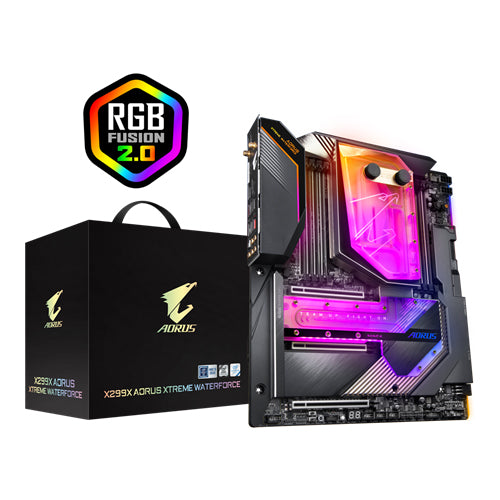

Gigabyte X299X AORUS XTREME WATERFORCE Motherboard
Features:
- Supports Intel® Core™ X-series Processor Family
- Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
- Intel® Optane™ Memory Ready
- 16 Phases IR Digital VRM Solution with 70A Power Stage

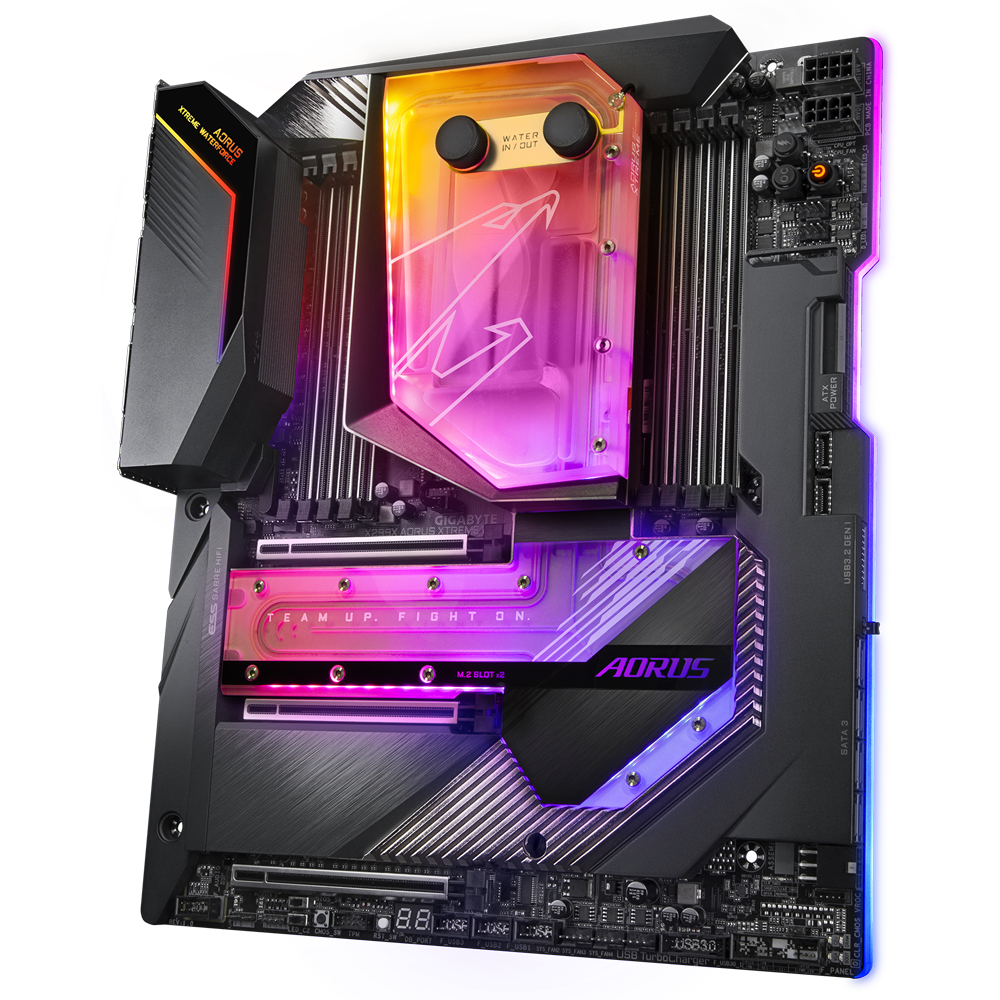

- World’s First AORUS All-In-One Monoblock for CPU, VRM, SSD and PCH
- Intel® Thunderbolt™ 3 Onboard
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
- 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220 and WIMA Audio Capacitors on Front and Rear Audio Output
- AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed
- Exclusive AORUS Gen4 AIC Adaptor for Extra 4x NVMe PCIe 3.0 x4 M.2
- Exclusive RGB FAN COMMANDER for Professional Casemodders
- Watercooled Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- 2 x Front USB 3.2 Gen 2 Type-C™ Header
- Q-Flash Plus Update BIOS without Installing CPU, Memory and Graphics card
Specifications:
| CPU | 1. Support for Intel® Core™ i7-7800X and above X series processors/Intel® Core™ i9 X series processors in the LGA2066 package |
| 2. L3 cache varies with CPU | |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | 1. Intel® X299 Express Chipset |
| Memory | Intel® Core™ X series 48-lane processors: |
| 1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory | |
| 2. Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| Intel® Core™ X series 44-lane/28-lane processors: | |
| 1. 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory | |
| 2. Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4 channel memory architecture | |
| Support for non-ECC Un-buffered DIMM memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Intel® Thunderbolt™ 3 Controller: |
| 1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096×2304@60 Hz | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, “Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 1.2 version. | |
| Maximum shared memory of 1 GB | |
| Audio | 1. 2 x Realtek® ALC1220-VB codecs |
| 2. 2 x ESS SABRE9218 DAC chips | |
| 3. High Definition Audio | |
| 4. 2/4/5.1/7.1-channel | |
| 5. Support for S/PDIF Out | |
| LAN | 1. 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) |
| 2. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN2) | |
| Wireless Communication module | 1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
| 2. BLUETOOTH 5.0 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Expansion Slots | Intel® Core™ X series 48-lane processors: |
| 1. 3 x PCI Express x16 slots, running at x16 | |
| Intel® Core™ X series 44-lane processors: | |
| 1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) | |
| 2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_3) | |
| Intel® Core™ X series 28-lane processors: | |
| 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) | |
| 2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. | |
| (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) | |
| Multi-Graphics Technology | 1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies |
| 2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |
| Storage Interface | 1. 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
| 2. 8 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * The M2P and M2Q connectors must work with an Intel® VROC Upgrade Key to support RAID configuration. | |
| * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| 4. Intel® Optane™ Memory Ready | |
| * Only Intel® Core™ X series 48-lane processors support Intel® Optane™ Memory. | |
| 5. Intel® VROC Ready | |
| USB | Chipset Intel® Thunderbolt™3 Controller: |
| 1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support | |
| Chipset 2 ASMedia® USB 3.2 Gen 2 Controllers: | |
| 1. 2 x USB Type-C™ ports with USB 3.2 Gen 2 support, available through the internal USB headers | |
| 2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| 1. 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| 2. 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset 2 USB 2.0 Hubs: | |
| 1. 6 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 2 x 8-pin ATX 12V power connectors | |
| 3. 1 x VGA_PW power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x water cooling CPU fan header | |
| 6. 1 x water cooling kit CPU LED header (LED_CPU) | |
| 7. 1 x water cooling kit Chipset LED header (LED_PCH) | |
| 8. 4 x system fan headers | |
| 9. 2 x system fan/water cooling pump headers | |
| 10. 2 x addressable LED strip headers | |
| 11. 2 x RGB LED strip headers | |
| 12. 2 x M.2 Socket 3 connectors | |
| 13. 8 x SATA 6Gb/s connectors | |
| 14. 1 x Intel® VROC Upgrade Key header | |
| 15. 1 x front panel header | |
| 16. 1 x front panel audio header | |
| 17. 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support | |
| 18. 2 x USB 3.2 Gen 1 headers | |
| 19. 3 x USB 2.0/1.1 headers | |
| 20. 1 x noise detection header | |
| 21. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 22. 1 x Clear CMOS jumper | |
| 23. 1 x power button | |
| 24. 1 x OC Ignition button | |
| 25. 1 x OC button | |
| 26. 1 x reset button | |
| 27. 1 x Clear CMOS button | |
| 28. 2 x temperature sensor headers | |
| 29. 2 x BIOS switches | |

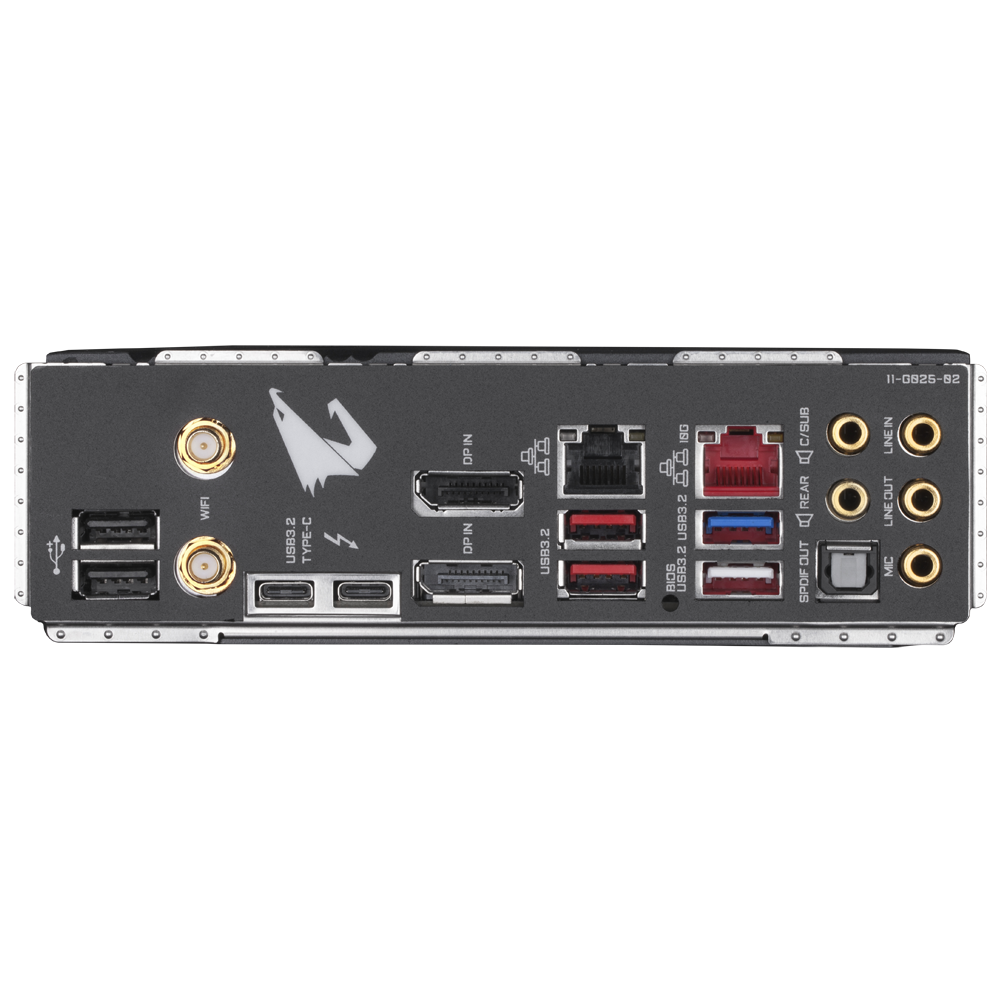

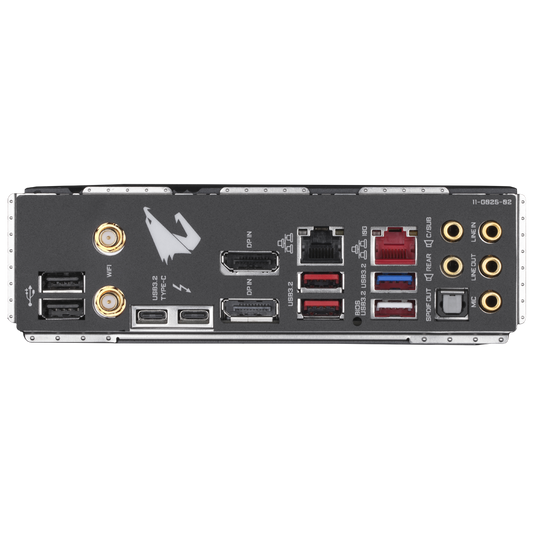

| Back Panel Connectors | 1. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support) |
| 2. 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3. 2 x USB 3.2 Gen 1 ports | |
| 4. 2 x USB 2.0/1.1 ports | |
| 5. 2 x DisplayPort In ports | |
| 6. 2 x RJ-45 ports | |
| 7. 2 x SMA antenna connectors (2T2R) | |
| 8. 1 x optical S/PDIF Out connector | |
| 9. 5 x audio jacks | |
| I/O Controller | 1. iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Overheating warning | |
| 6. Fan fail warning | |
| 7. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| 8. Noise detection | |
| BIOS | 1. 2 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. Support for DualBIOS™ | |
| 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Easy RAID | |
| Fast Boot | |
| Game Boost | |
| Platform Power Management | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| USB TurboCharger | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed | |
| 3. XSplit Gamecaster Broadcaster (12 months license) | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. XL-ATX Form Factor; 32.5cm x 27.5cm |
