Description

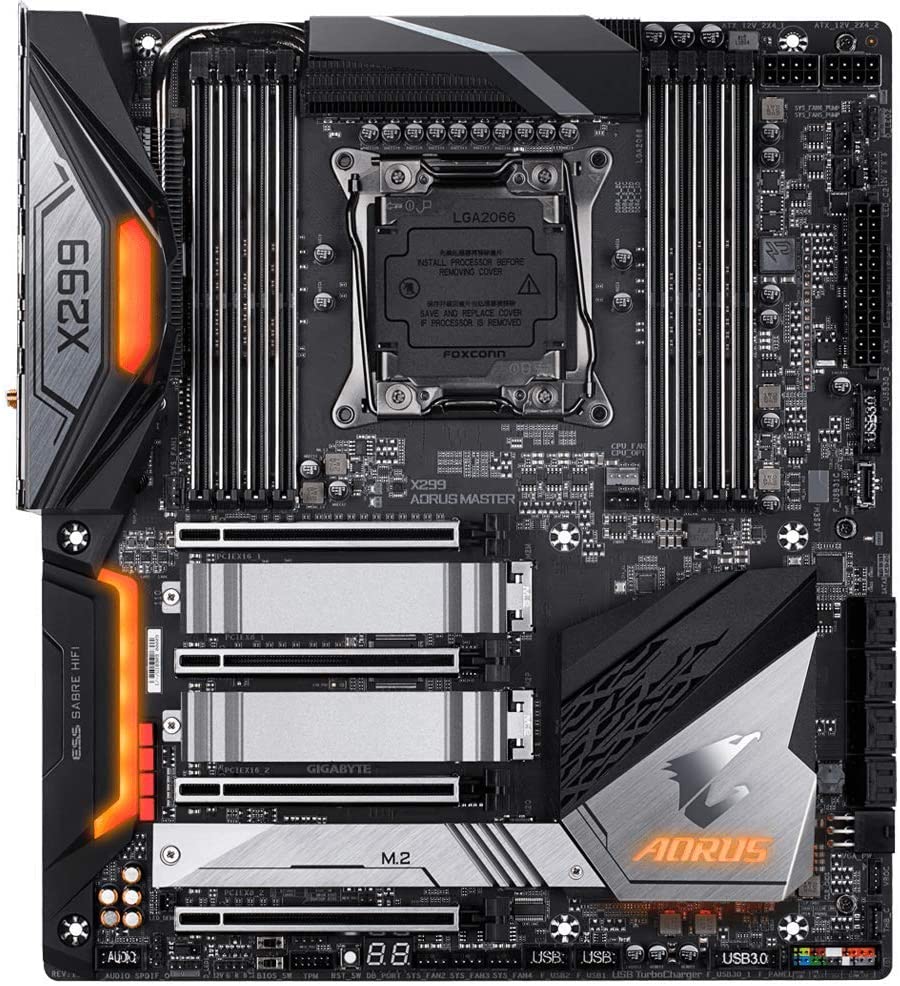

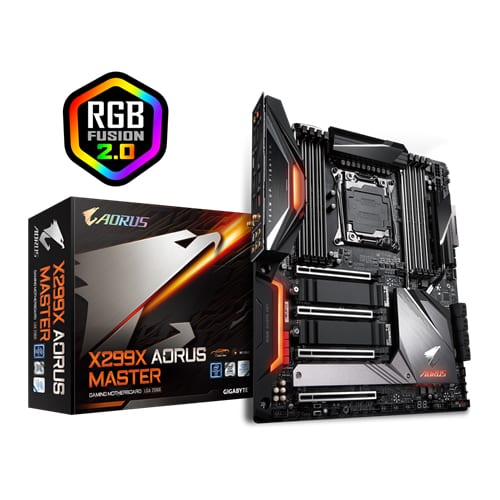

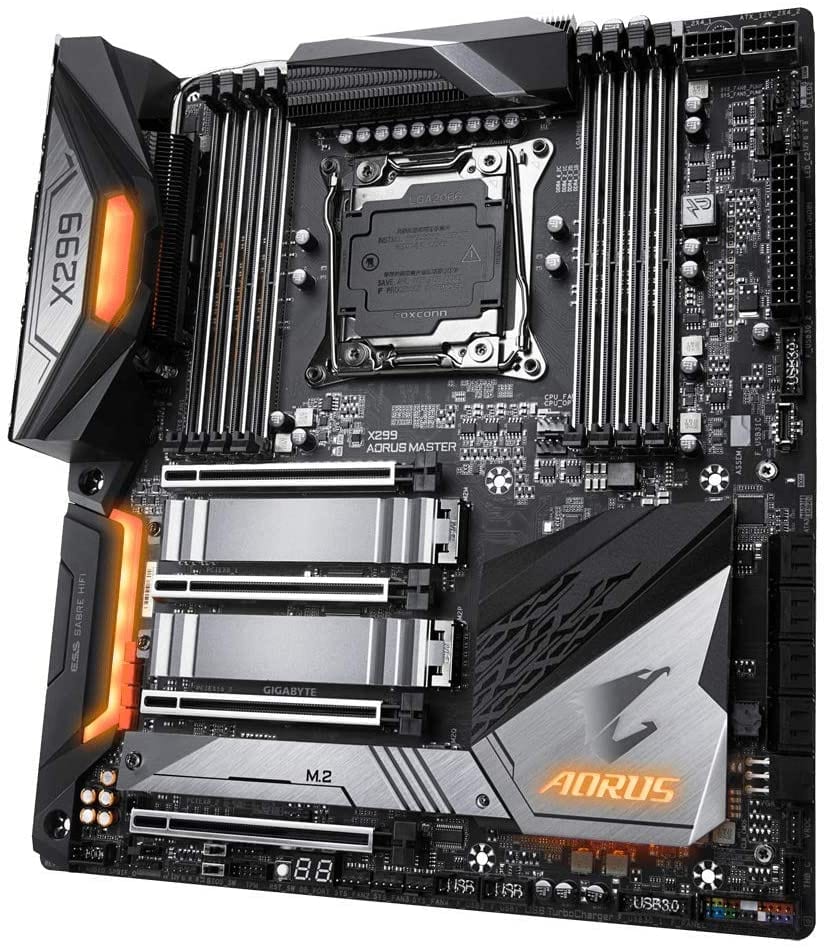

Gigabyte X299X Aorus Master Motherboard
Features:
- Supports Intel® Core™ X-series Processor Family
- Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
- Intel® Optane™ Memory Ready
- 12 Phases IR Digital VRM Solution with 70A Power Stage
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with AORUS Antenna
- 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220 and WIMA Audio Capacitors
- Onboard AQUANTIA 5GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION 2.0 supported with Multi-Zone Addressable LED Light Show Design, support Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
- Front USB 3.2 Gen2 Type-C™ Header
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
- Supports 4 Way Dual Wide PCIe Slots
Specifications :
| CPU | 1. Support for Intel® Core™ i7-7800X and above X series processors/Intel® Core™ i9 X series processors in the LGA2066 package |
| 2. L3 cache varies with CPU | |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | 1. Intel®X299 Express Chipset |
| Memory | Intel® Core™ X series 48-lane processors: |
| 1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory | |
| 2. Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| Intel® Core™ X series 44-lane/28-lane processors: | |
| 1. 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory | |
| 2. Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4 channel memory architecture | |
| Support for non-ECC Un-buffered DIMM memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Audio | 1. Realtek® ALC1220-VB codec |
| * The front panel line out jack supports DSD audio. | |
| 2. ESS SABRE9218 DAC chip | |
| 3. High Definition Audio | |
| 4. 2/4/5.1/7.1-channel | |
| 5. Support for S/PDIF Out | |
| LAN | 1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) |
| 2. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN2) | |
| Wireless Communication module | 1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
| 2. BLUETOOTH 5.0 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Expansion Slots | Intel® Core™ X series 48-lane processors: |
| 1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) | |
| 2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) | |
| * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. | |
| Intel® Core™ X series 44-lane processors: | |
| 1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) | |
| 2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) | |
| 3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) | |
| * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. | |
| Intel® Core™ X series 28-lane processors: | |
| 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) | |
| 2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) | |
| 3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. | |
| (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) | |
| Multi-Graphics Technology | 1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies |
| 2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M) | |
| 2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) | |
| * The M2M and M2Q connectors become unavailable when an Intel® Core™ X series 28-lane processor is used. | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P) | |
| 8 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| 1. * The M2M connector must work with an Intel® VROC Upgrade Key to support RAID configuration. | |
| 2. * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel® Optane™ Memory Ready | |
| 1. * Only Intel® Core™ X series 48-lane processors support Intel® Optane™ Memory. | |
| Intel® VROC Ready | |
| USB | Chipset 2 ASMedia® USB 3.2 Gen 2 Controllers: |
| 1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support | |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| Chipset Realtek® USB 3.2 Gen 1 Hub: | |
| 1. 2 x USB 3.2 Gen 1 ports on the back panel | |
| 2. 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset USB 2.0 Hub: | |
| 1. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset: | |
| 1. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| 2. 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 2 x 8-pin ATX 12V power connectors | |
| 3. 1 x CPU fan header | |
| 4. 1 x water cooling CPU fan header | |
| 5. 4 x system fan headers | |
| 6. 2 x system fan/water cooling pump headers | |
| 7. 2 x addressable LED strip headers | |
| 8. 2 x RGB LED strip headers | |
| 9. 3 x M.2 Socket 3 connectors | |
| 10. 8 x SATA 6Gb/s connectors | |
| 11. 1 x Intel® VROC Upgrade Key header | |
| 12. 1 x front panel header | |
| 13. 1 x front panel audio header | |
| 14. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support | |
| 15. 2 x USB 3.2 Gen 1 headers | |
| 16. 3 x USB 2.0/1.1 headers | |
| 17. 1 x noise detection header | |
| 18. 1 x Thunderbolt™ add-in card connector | |
| 19. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 20. 1 x power button | |
| 21. 1 x reset button | |
| 22. 2 x temperature sensor headers | |
| 23. 1 x Clear CMOS jumper | |
| 24. 2 x BIOS switches | |
| Back Panel Connectors | 1. 1 x Q-Flash Plus button |
| 2. 1 x Clear CMOS button | |
| 3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support | |
| 4. 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 5. 6 x USB 3.2 Gen 1 ports | |
| 6. 2 x USB 2.0/1.1 ports | |
| 7. 2 x RJ-45 ports | |
| 8. 2 x SMA antenna connectors (2T2R) | |
| 9. 1 x optical S/PDIF Out connector | |
| 10. 5 x audio jacks | |
| I/O Controller | 1. iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Overheating warning | |
| 6. Fan fail warning | |
| 7. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| 8. Noise Detection | |
| BIOS | 1. 2 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. Support for DualBIOS™ | |
| 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Easy RAID | |
| Fast Boot | |
| Game Boost | |
| Platform Power Management | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| USB TurboCharger | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed | |
| 3. XSplit Gamecaster Broadcaster (12 months license) | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. E-ATX Form Factor; 30.5cm x 26.9cm |
