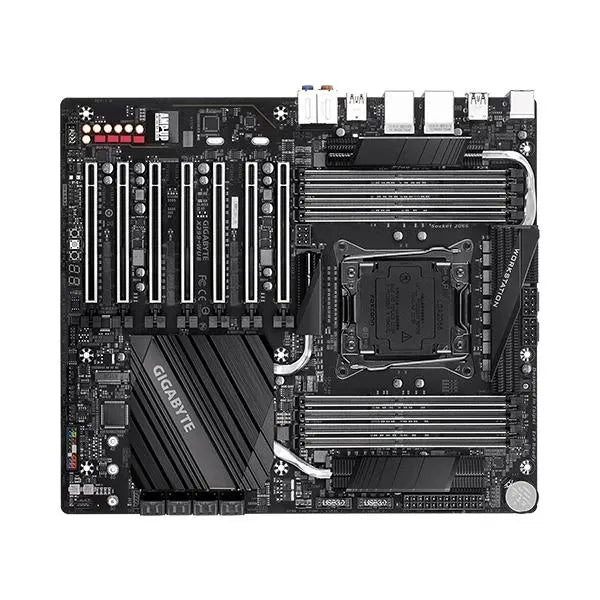

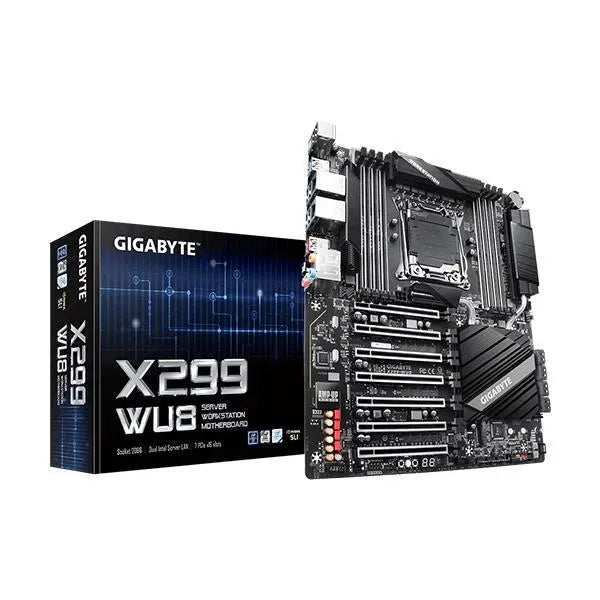

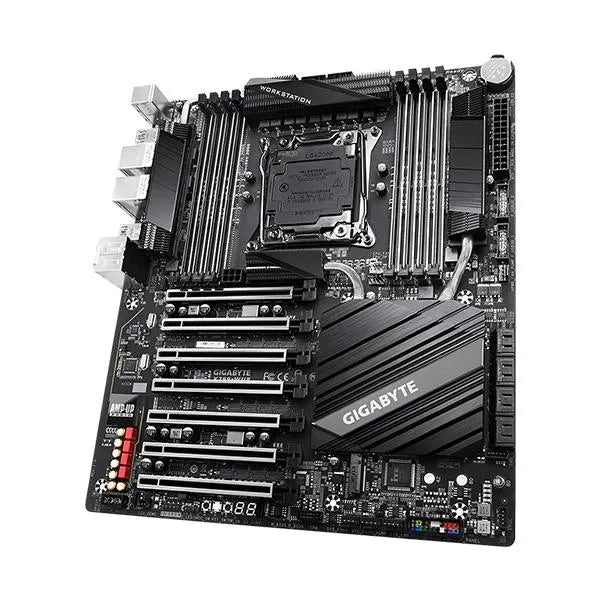

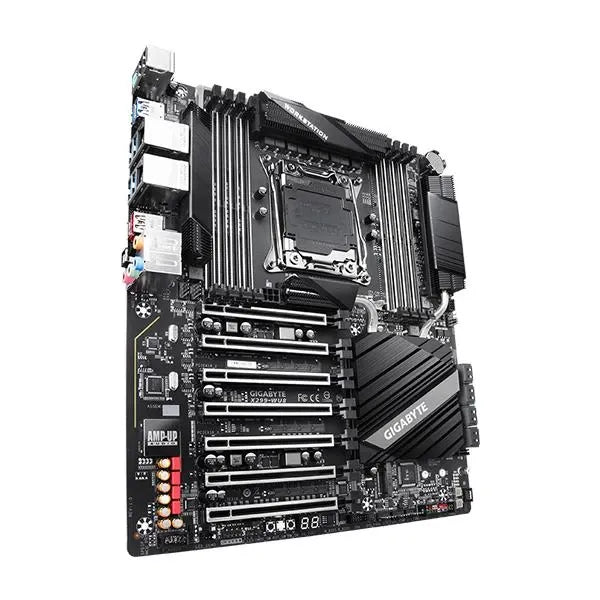

- GIGABYTE X299-WU8 DDR4 Intel Motherboard
Description
Feature of Gigabyte X299-WU8 DDR4
4-Way SLI™/4-Way CrossFire™ Multi-Graphics
Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.
Dual PLX8747 chips
Dual PLX chips increase the number of available PCIe lanes to enable 4-way GPU configurations, X299-WU8 also features multiple heatsinks for PLX to provide absolute maximum performance.
NVIDIA® QUADRO® Professional Graphics Supports
NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.
Support for DDR4 XMP Up to 4000MHz and Beyond
GIGABYTE X299-WU8 DDR4 is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
PERFORMANCE FUELED BY OPTANE
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!
GIGABYTE partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with GIGABYTE Motherboards. GIGABYTE has verified over 1000+ different modules to ensure performance in a GIGABYTE built system.
COOLING
Powerful heatsink design
An efficient thermal cooling design to provide absolute maximum performance.
X299-WU8 cover with an additional heat sink array for dual PLX chips to ensure optimal cooling and system stability.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Intelligent Cooling Fan Design
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
AUDIO
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
Smart Headphone AMP
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.
LIGHTING
RGB Fusion with Digital LEDs
With X299-WU8 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control external LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on X299-WU8 Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
Supports RGBW & UV Light Strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.
When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.
No need to worry when choosing light strips as GIGABYTE motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.
ULTRA DURABLE
Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.
Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable Memory Armor
GIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Easy to Install “G Connector” Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
Specifications of Gigabyte X299-WU8 DDR4
CPU |
Support for Intel® Core™ X series processors (6-core or above) in the LGA2066 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
Chipset | Intel® X299 Express Chipset |
Memory |
Intel® Core™ X series 48-lane processors: - 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Intel® Core™ X series 44-lane/28-lane processors: - 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory 4 channel memory architecture Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Audio |
Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
LAN | 2 x Intel® GbE LAN chips (10/100/1000 Mbit) |
Expansion Slots |
4 x PCI Express x16 slots, running at x16 (PCIEX16_1/2/3/4) 3 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3) (All of the PCI Express slots conform to PCI Express 3.0 standard.) * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots. |
Multi-Graphics Technology |
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies |
Storage Interface |
Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * The M.2 connector supports SATA RAID only. * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
USB |
Chipset+ASMedia® USB 3.1 Gen 2 Controller:1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel Chipset:10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers) 2 x USB 2.0/1.1 ports on the back panel |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x VGA_PW power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 1 x system fan/water cooling pump header 1 x 3 Amp fan/water cooling pump header 1 x digital LED strip header 1 x digital LED strip power select jumper 2 x RGB (RGBW) LED strip headers 1 x M.2 Socket 3 connector 8 x SATA 6Gb/s connectors 1 x Intel® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers |

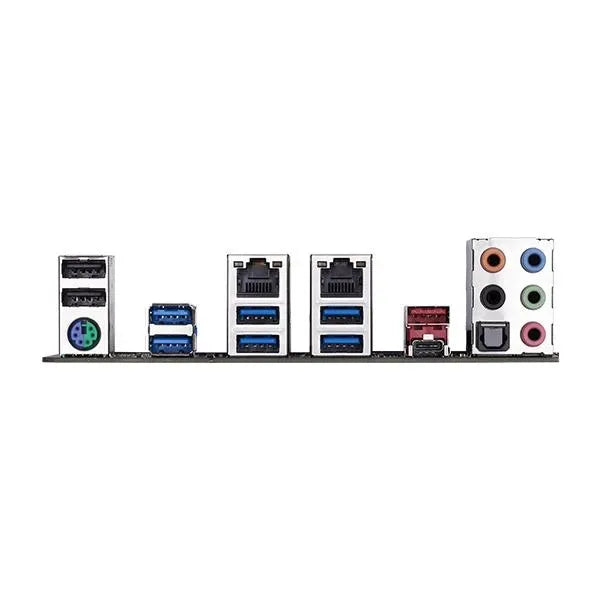

Back Panel Connectors |
2 x USB 2.0/1.1 ports 6 x USB 3.1 Gen 1 ports 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Operating Properties |
Operating temperature: -10°C to 50°C Operating humidity: 8 - 90% Non-operating temperature: -40°C to 70°C Non-operating humidity: 5% - 95% |
Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer Smart Survey USB Blocker Support for Q-Flash Support for Xpress Install |
Bundled Software |
Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) |
Operating System | Support for Windows 10 64-bit |
Form Factor | CEB Form Factor; 30.5cm x 26.7cm |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
