- GIGABYTE UD750GM 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features Of GIGABYTE UD750GM 80+ Gold Fully Modular
UD750GM features with 80 PLUS Gold certified, Fully modular design, Main Japanese capacitors, 120mm smart hydraulic bearing (HYB) fan, Active PFC
-
Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection - GIGABYTE UD750GM 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

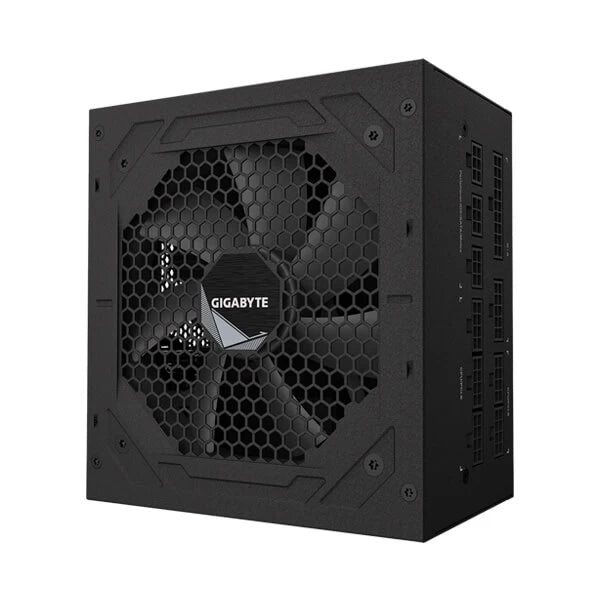

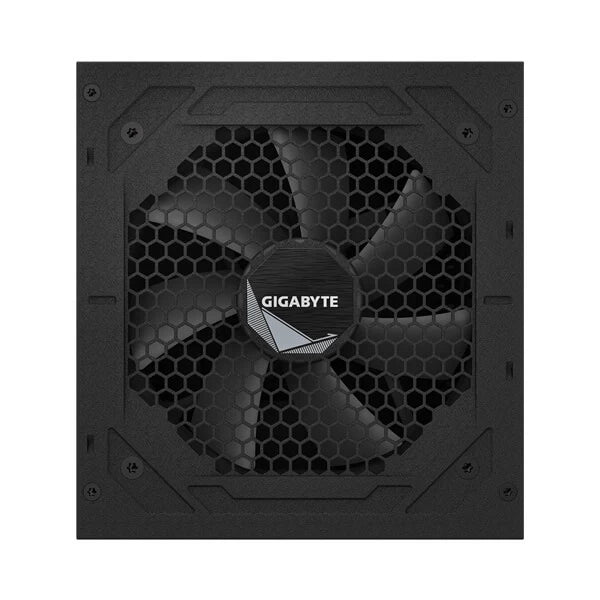

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

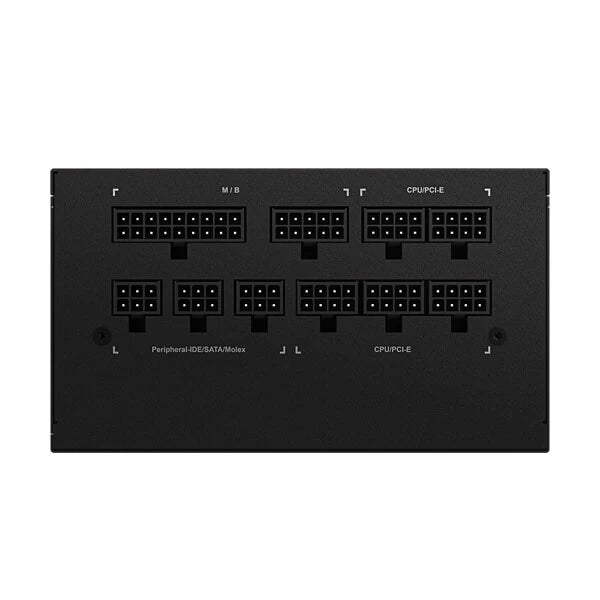

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Specifications Of GIGABYTE UD750GM 80+ Gold Fully Modular
Model | GP-UD750GM |
Type | Intel Form Factor ATX 12V v2.31 |
PFC | Active PFC (>0.9 typical) |
Input Voltage | 100-240 Vac (full range) |
Input Current | 12-6A |
Input Frequency | 60-50 Hz |
Output Capacity | 750W |
Dimension | 150 x 140 x 86 mm |
Fan Type | 120mm Hydraulic Bearing(HYB)fan |
80 PLUS | Gold |
Efficiency | 90% at typical load |
MTBF | >100,000 hours |
Protection | OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal | 100-150ms |
Hold Up Time | >16ms |
Cable Type | Flat, All black |
Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
