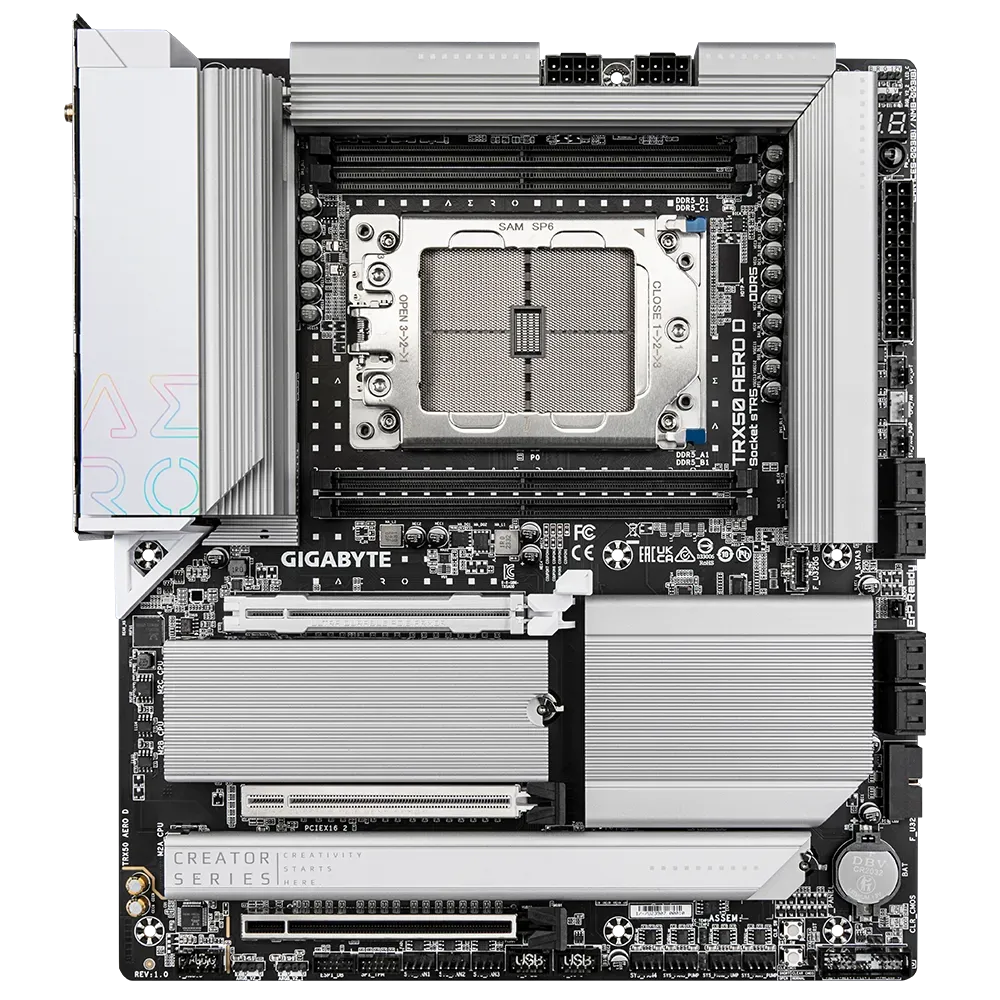

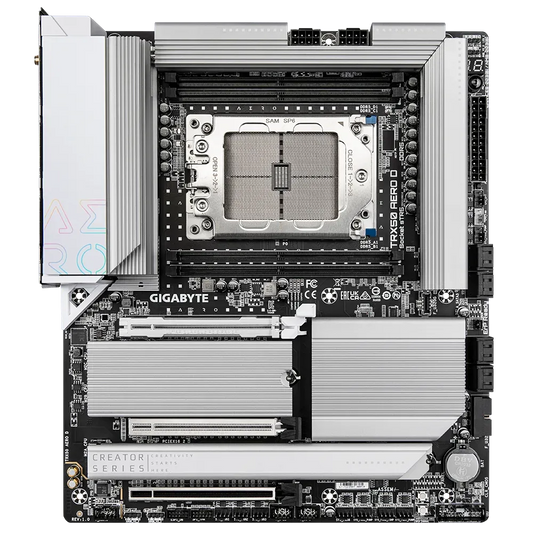

- GIGABYTE TRX50 Aero D DDR5 AMD Motherboard
Description
Features of GIGABYTE TRX50 Aero D DDR5
- Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- Breakthrough Performance：16+8+4 Phases Digital VRM Solution
- Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
- Next-gen Connectivity: Dual USB4® Type-C ports
- Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- Hi-Fi Audio with DTS:X® Ultra：ALC4080+ALC897 CODEC
- UC BIOS：User-Centred intuitive UX with Quick Access function
The Gigabyte TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen™ Threadripper™ CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders.
Advanced thermal
With enlarged full metal thermal design, TRX50 AERO D motherboard birngs you exceptional performance while keep the system cool and solid.
VRM Thermal Armor Advanced
These solid heatsinks are forged to keep your system cool. High coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.
Real One-piece Build
The TRUE single-piece heatsink offers superior cooling performance compared to competitors’ multi-piece designs, thanks to its one-piece construction and larger surface area.
Multi-Cut Design
With its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.
8mm Heatpipe
8mm Mega-Heatpipe with refined manufacturing minimizes the gap between the heatpipe and heatsink, ensuring efficient MOSFET heat transfer and enhancing thermal performance.
7 W/mK Thermal Pad
Optimize hardware performance with our advanced 7 W/mK thermal pad for efficient heat dissipation.
4x Large Surface
The surface area has been increased up to 4X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6
Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.
High Current Support
Each fan header supports PWM and DC fans and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.
Precision Control
Multiple temperature/fan speed control points for precise fan curve.
Dual Curve Mode
Slope/Stair dual mode for different user scenarios.
Fan Stop
Fan can stop completely below users’ specified temperature point.
Noise Detection
Monitor device noise levels in real time using our accurate sound pressure measurement and privacy-respecting Noise Detection cable, allowing you to adjust fan speeds accordingly for optimal noise control.
Enhance Fan Curve UI
Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
Slope/Stair Dual Graph Mode
Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
Manual Input
For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
EZ Tuning
Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
Fan Curve Profile
Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.
Memory
Maximum Capacity
TRX50 AERO D supports the max. memory capacity of DDR5 RDIMM up to 1TB, which brings crucial advantage when running high-demand computing like video editing, 3D rendering, high-resolution content creation, simulation, AI training, and etc..
Specifications of GIGABYTE TRX50 Aero D DDR5
| CPU |
AMD Socket sTR5, support for: AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors (Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD TRX50 |
| Memory |
Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Audio |
Realtek® ALC4080 CODEC (rear panel audio) – Support for DTS:X® Ultra – High Definition Audio – 2-channel Realtek® ALC897 CODEC (front panel audio) |
| LAN |
Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN) |
| Wireless Communication Module |
Qualcomm® Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.)Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations. |
| Expansion Slots |
CPU: – 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3) |
| Storage Interface |
CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)CPU+Chipset: – 8 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU: – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+Intel® JHL8540 USB4® controller: – 2 x USB4® USB Type-C® ports on the back panelChipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |

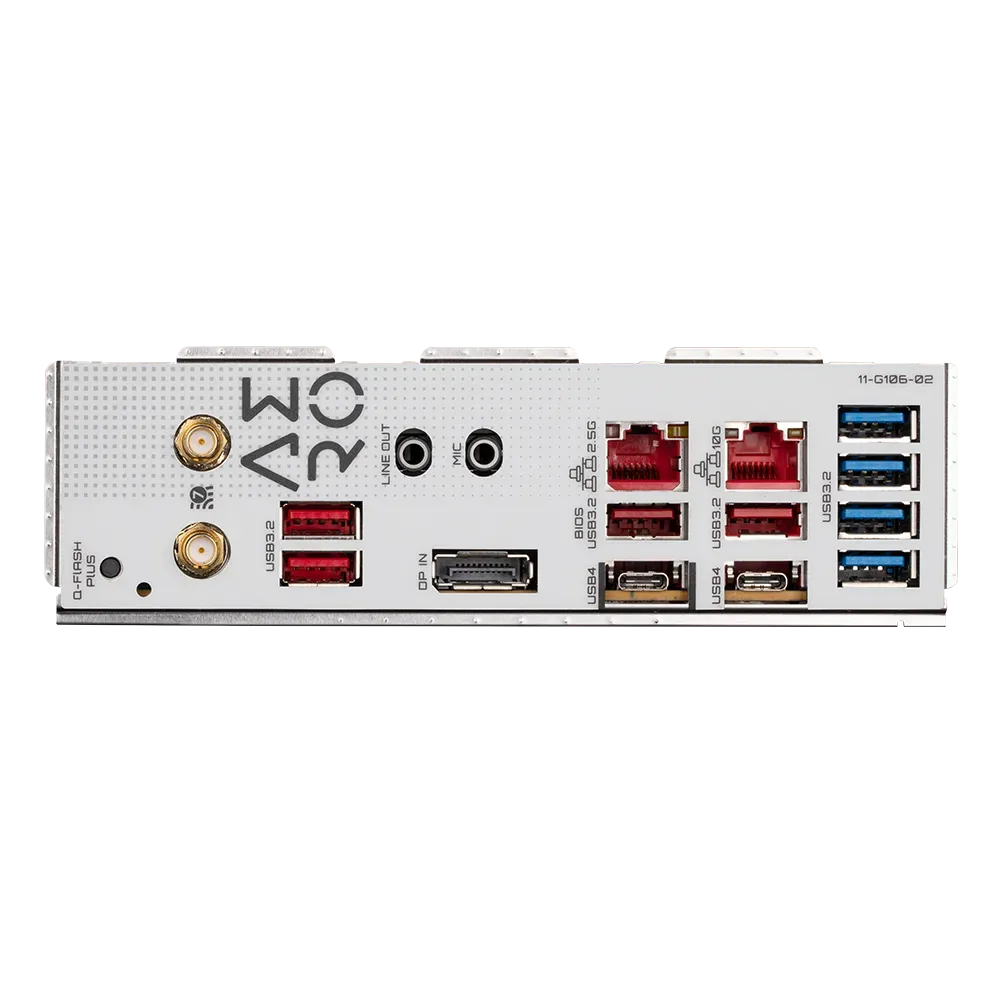

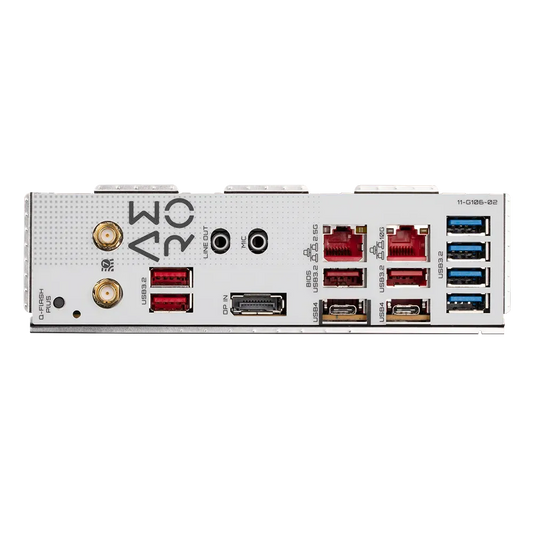

| Back Panel Connectors |
1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB4® USB Type-C® port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.4cm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
