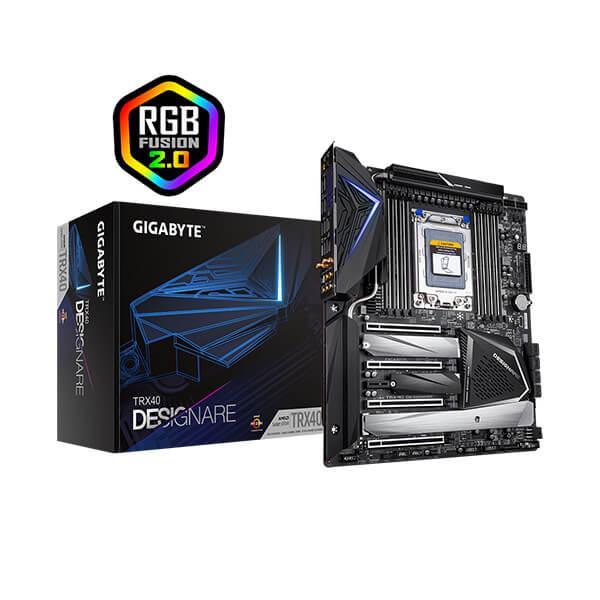

- GIGABYTE TRX40 Designare Wifi DDR4 AMD Motherboard
Description
Feature of Gigabyte TRX40 Designare WiFi DDR4
- Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
- 16 3 Phases Infineon Digital VRM Solution with 70A Power Stage
- Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
- Dual Intel® Gigabit LAN with cFosSpeed to shorten response time
- 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with Antenna
- 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
- Bundled 40Gb/s GC-Titan Ridge Add-In Card
- Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
- Front & Rear USB 3.2 Gen 2 Type-C™ Header
- Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
The GIGABYTE TRX40 Designare Wifi DDR4 Motherboard from GIGABYTE is engineered to deliver an unparalleled performance and exceptional thermal solution, specifically designed to support the 3rd Gen AMD Ryzen™ Threadripper™ Processors. This powerhouse motherboard is packed with advanced features to cater to the needs of professionals, gamers, and tech enthusiasts. It ensures unrivaled speed, exceptional connectivity, and superior audio quality while maintaining stability and efficiency.
Processor Support
Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
The compatibility with AMD's 3rd Gen Threadripper processors harnesses the sheer power and multi-core performance, making it ideal for demanding applications and multitasking.
Memory and Storage
Quad Channel ECC/Non-ECC Unbuffered DDR4, 8 DIMMs
The TRX40 DESIGNARE supports ECC (Error-Correcting Code) and Non-ECC unbuffered DDR4 memory with a total of 8 DIMM slots, allowing for an expansive capacity and improved reliability, crucial for professional workloads.
4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
The motherboard is equipped with four M.2 slots, supporting PCIe 4.0 x4 NVMe SSDs. These slots come with enlarged thermal guards, ensuring that drive temperatures are managed efficiently to prevent throttling and maintain high-performance storage operations.
Power and Thermal Design
16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
This motherboard incorporates an advanced VRM (Voltage Regulator Module) design for optimum power delivery. The 16+3 phase Infineon digital VRM ensures precise and stable power to the CPU, enabling robust performance and overclocking potential.
Triple Thermal Protection with Fin-Arrays and 8mm Mega-Heatpipe
Featuring an innovative cooling design, the TRX40 DESIGNARE uses Fin-Arrays heatsinks and an 8mm Mega-Heatpipe for efficient thermal dissipation. This ensures that the motherboard maintains ideal operating temperatures, even under heavy loads.
Network Connectivity
Dual Intel® Gigabit LAN with cFosSpeed
Equipped with dual Intel Gigabit LAN ports, the motherboard offers high-speed networking with optimized bandwidth usage, reduced latency, and reliable connections, essential for tasks that require extensive data transfers or online gaming.
Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with Antenna
The inclusion of Intel WiFi 6 (802.11ax) ensures ultrafast wireless connectivity, with increased efficiency and lower latency compared to previous standards. The integrated Bluetooth 5 adds convenience for connecting peripherals wirelessly.
Expansion and Customization
Bundled 40Gb/s GC-Titan Ridge Add-In Card
This Thunderbolt 3 add-in card allows for a blazing-fast 40Gb/s connection, providing unparalleled transfer speeds and versatile connectivity options for numerous devices.
Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
The AORUS Gen4 AIC adaptor further extends the motherboard’s storage capabilities by accommodating up to four additional NVMe PCIe 4.0/3.0 x4 M.2 slots, ensuring vast and rapid storage solutions.
Audio Enhancement
120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
Delivering superior audio performance, the onboard 120dB SNR AMP-UP audio solution includes ALC1220-VB codec and high-quality WIMA capacitors. This setup ensures crystal-clear sound, making it perfect for audiophiles and immersive gaming experiences.
USB Connectivity
Front & Rear USB 3.2 Gen 2 Type-C™ Header
The motherboard includes both front and rear USB 3.2 Gen 2 Type-C headers, providing versatile, high-speed data transfer capabilities for modern USB-C devices.
RGB and Fan Control
RGB FUSION with Multi-Zone Addressable LED Light Show Design
GIGABYTE's RGB FUSION technology provides extensive customization for your system’s lighting. It supports addressable LED and RGB LED strips, allowing users to create stunning visual effects and synchronized light shows across multiple zones.
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Smart Fan 5 technology ensures your system stays cool and operates silently. This feature levies multiple temperature sensors and hybrid fan headers, which can automatically stop fans when temperatures are below a certain threshold, minimizing noise levels.
Specifications of Gigabyte TRX40 Designare WiFi DDR4
CPU |
AMD Socket sTRX4:Support 3rd Generation AMD Ryzen™ Threadripper™ processors (Please refer "CPU Support List" for more information.) |
Chipset | AMD TRX40 |
Memory |
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Quad Channel memory architecture Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Audio |
Realtek® ALC4050H codec Realtek® ALC1220-VB codec Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
LAN | 2 x Intel® GbE LAN chip (10/100/1000 Mbit) |
Wireless Communication module |
Intel® Wi-Fi 6 AX200 Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment. |
Expansion Slots |
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) 1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 4.0 standard.) |
Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies |
Storage Interface |
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
USB |
CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset 2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC_PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper |
Back Panel Connectors |
1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostRGB FusionSmart BackupSmart KeyboardSmart SurveySystem Information Viewer USB Blocker USB TurboChargerSupport for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster Broadcaster (12 months license) |
Operating System | Support for Windows 10 64-bit |
Form Factor | XL-ATX Form Factor; 32.5cm x 26.9cm |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
