- GIGABYTE Radeon RX 570 Gaming 8GB AMD Graphic Card
Description
Features of Gigabyte Radeon RX 570 Gaming 8G Graphics Card
Powered by Radeon ™ RX 570
WINDFORCE 2X with 90mm Blade Fan Design
Ultra Durable Materials
Intuitive AORUS Engine

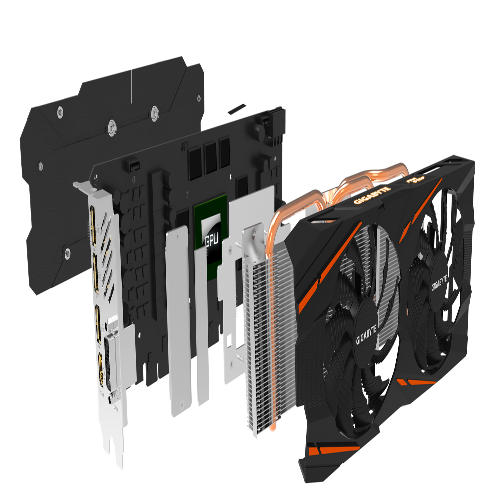

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.
Composite heat-pipe
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
Built for OverClocking with 6+1 power phases
6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
AORUS Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
- WINDFORCE 2X Cooling System
- The GIGABYTE Radeon RX 570 Gaming 8GB AMD Graphic Card Comes with the 90mm Unique Blade Fan Design
- 3 Heat-Pipes Direct Touch
- Composite heat-pipes
- Built for OverClocking with 6 1 power phases
- Ultra Durable Materials
- AORUS Graphics Engine
- One-click Overclocking
Buy Online VGA Cards for PC at Best Prices in India from Elitehubs!
Specifications of GIGABYTE Radeon RX 570 Gaming 8GB AMD Graphic Card
| Chipset | Radeon RX570 |
| I/O | Dual-link DVI-D *1 |
| HDMI 2.0 *1 | |
| Display Port 1.4 *3 | |
| Core Clock | OC mode: up to 1255 MHz |
| Gaming mode: up to 1244 MHz | |
| Stream Processors | 2048 |
| Process Technology | 14 nm |
| Memory Clock | 7000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR5 |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 3.0 x 16 |
| Digital max resolution | 7680×4320 |
| Multi-view | 5 |
| Card size | H=40 L=232 W=116 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.5 |
| Power requirement | 450W |
| Power Connectors | 8 pin*1 |
| Package Content | 1. Graphics card quick guide |
| 2. Driver CD |
