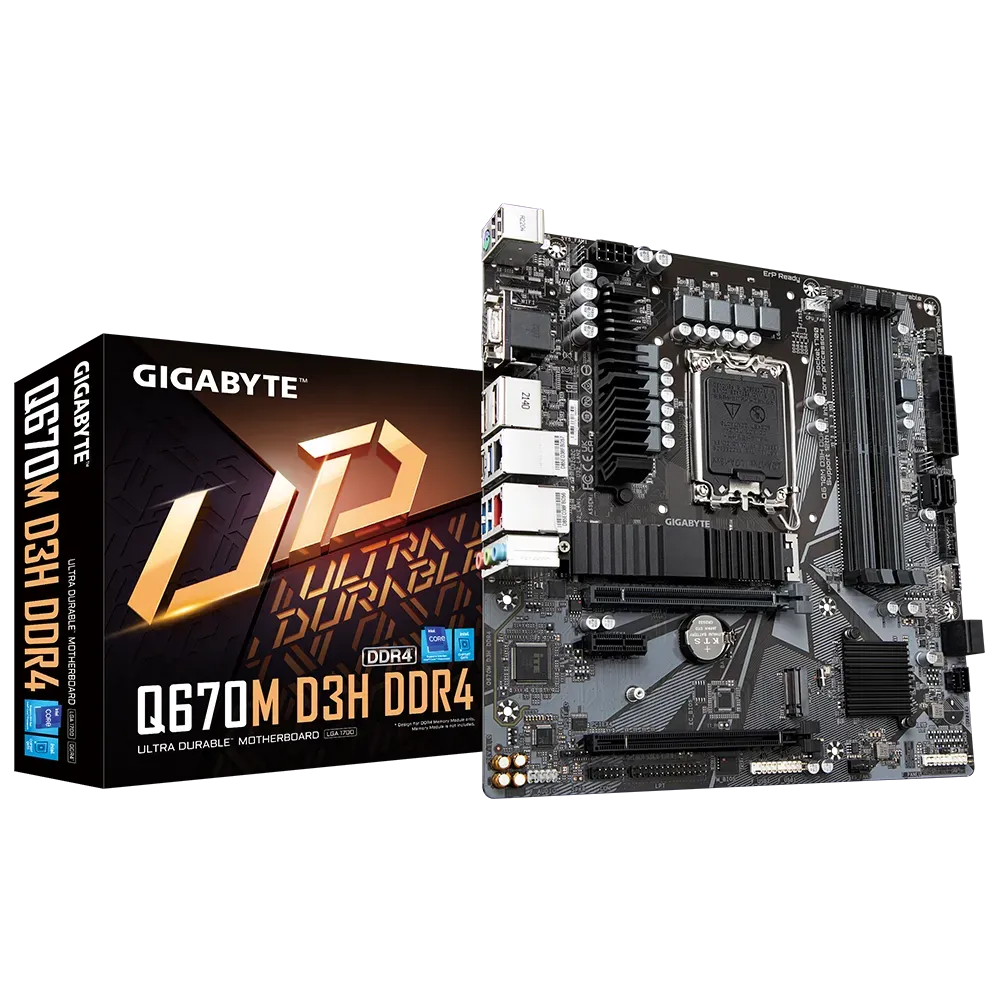

GIGABYTE Q670M D3H DDR4 AMD Motherboard

Out of stock

Rs. 12,369.00 Rs. 28,000.00

Discount: Rs. 15,631.00 (56%)

33 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of GIGABYTE Q670M D3H DDR4 AMD Motherboard

Gigabyte Supports Intel^® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
6+1+1 Phases Hybrid Digital VRM with MOS Heatsink
Dual GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with One Thermal Guard
Rear USB 3.2 Gen 2 Type-C^® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Support Intel^® vPro™ Technology

6+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

6+1+1 Phases Low RDS(on) MOSFETs
Solid capacitors to improve transient response and minimize oscillation
8-pin Solid Pin CPU Power Connector

PCIe 4.0 Design

GIGABYTE Q670 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

2x PCIe 4.0 M.2 Slots

DDR4 XMP

Support for DDR4 XMP Up to 5333MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

Dual PCIe 4.0 x4 M.2 Connectors with Thermal Guard

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new ” CPU Upgrade ” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

GAMING MAX PERFORMANCE

M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Thermal Throttling As Temperature Rises

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control

Up to 6 temperature/fan speed control points for precise fan curve
Dual Curve Mode

Slope/Stair dual mode for different user scenario
Fan Stop

Fan can stop completely below users’ specified temperature point

Dual Intel^® GbE LAN with Bandwidth Management

Dual Intel^® GbE LAN features with network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Connecting the Future – USB 3.2 Gen 2 Type-C^®

The World’s Next Universal Connector

The USB Type-C^® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen 2 support for 10Gb/s transfer speed. Powered by the Intel^® USB 3.2 Gen 2 controller, this little port provides the best USB Type-C^® experience possible.

HDMI 2.0 for 4K UHD Display and HDCP 2.2 supported

HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors

Q670 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

EasyTune™

GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

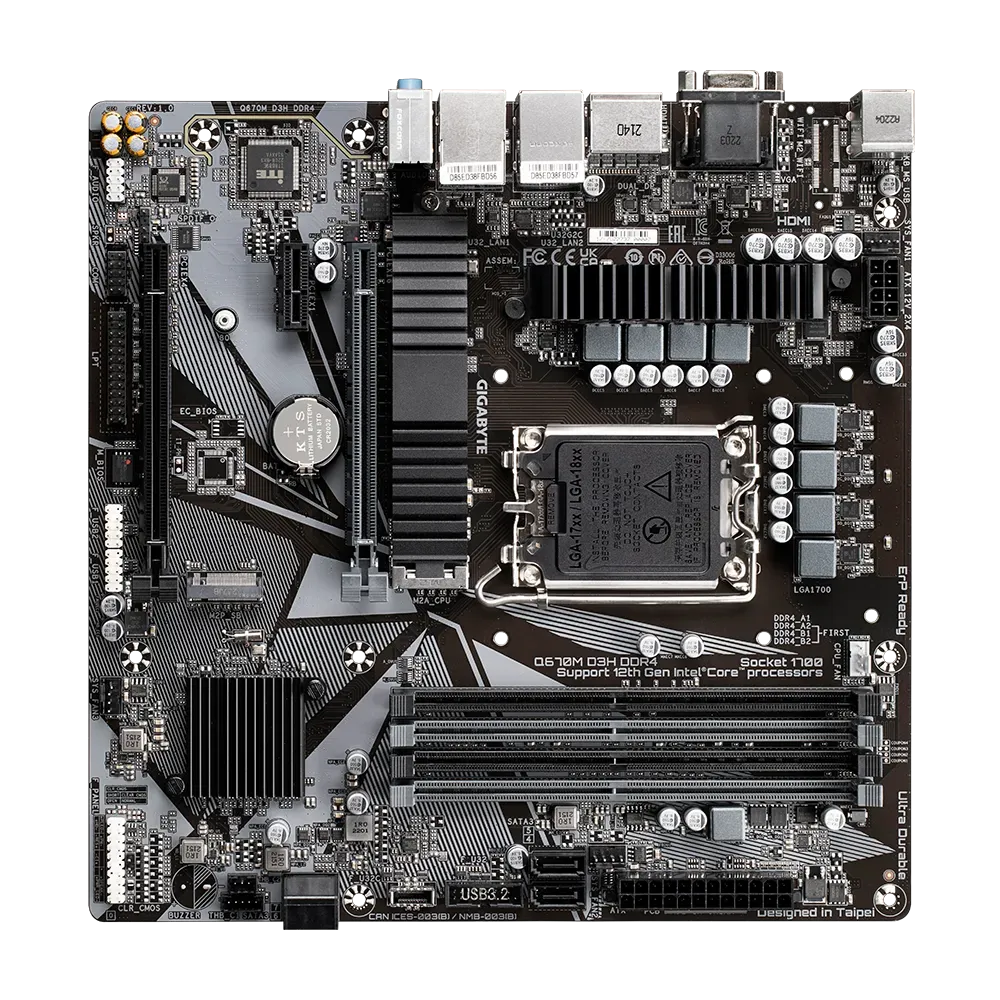

Specifications of GIGABYTE Q670M D3H DDR4 AMD Motherboard

Model:	GIGABYTE Q670M D3H

Model:	GIGABYTE B650 Aorus Elite V2
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel® Q670 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version.
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	ntel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
	Intel® GbE LAN chip (1 Gbps/100 Mbps) (LAN2)
Expansion Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
	Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
	Intel® Optane™ Memory Ready
	* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB	1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
	1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	3 x system fan headers
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x serial port header
	1 x parallel port header
	1 x Clear CMOS jumper

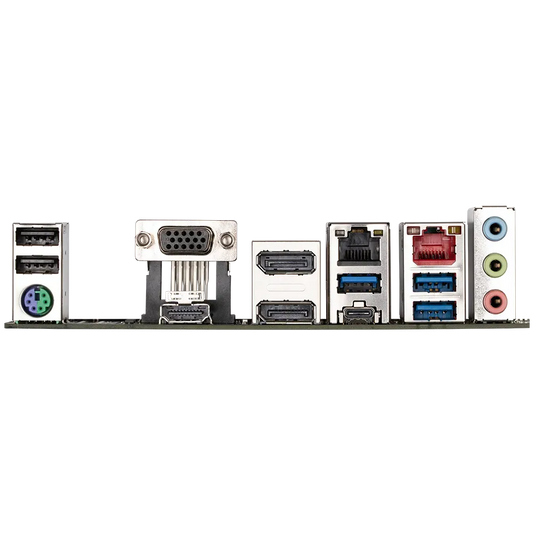

Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	2 x DisplayPorts
	1 x USB Type-C® port, with USB 3.2 Gen 2 support
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	2 x RJ-45 ports
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
