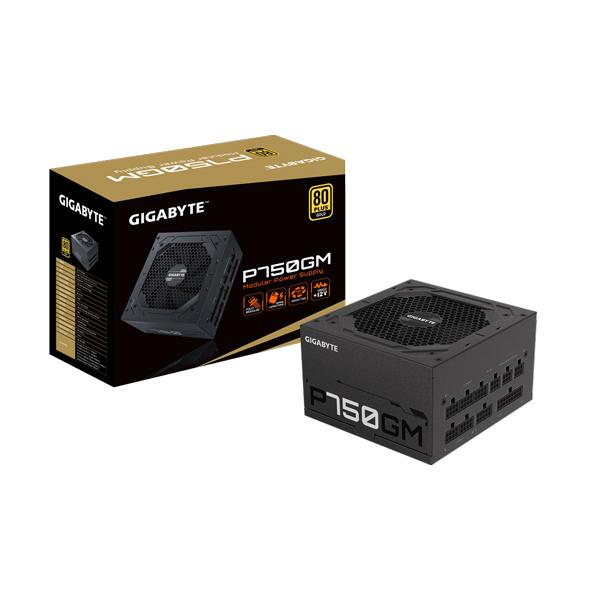

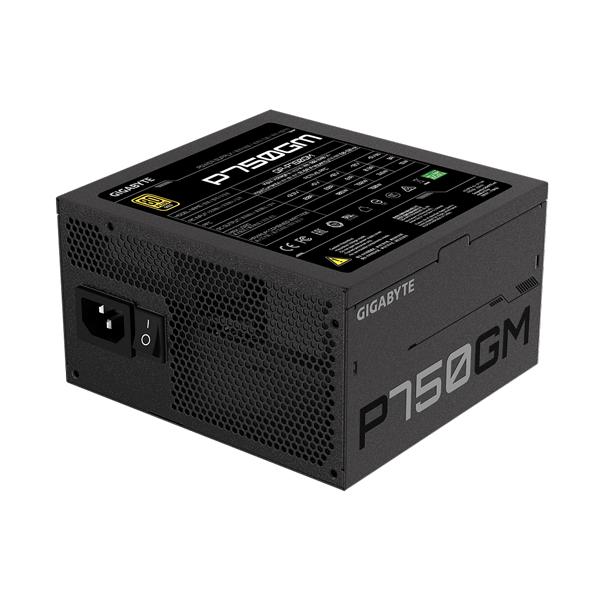

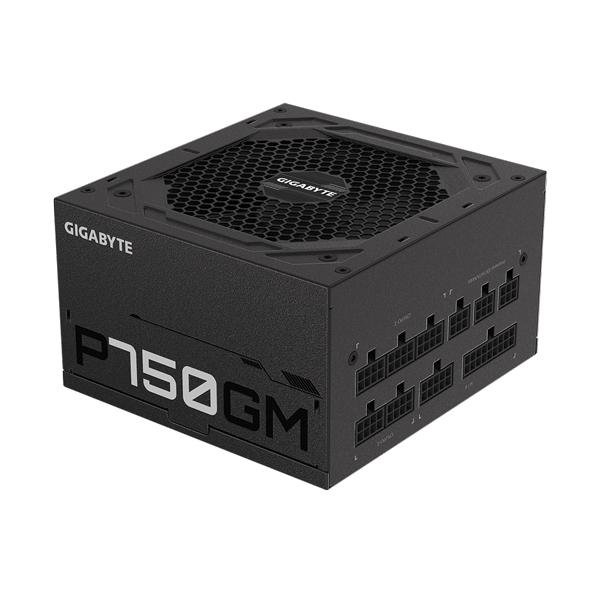

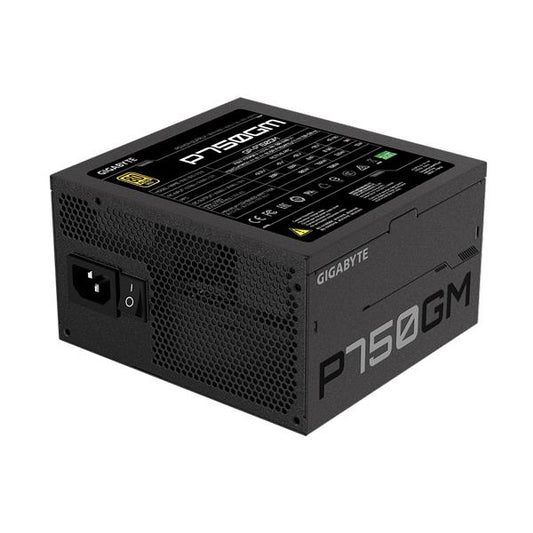

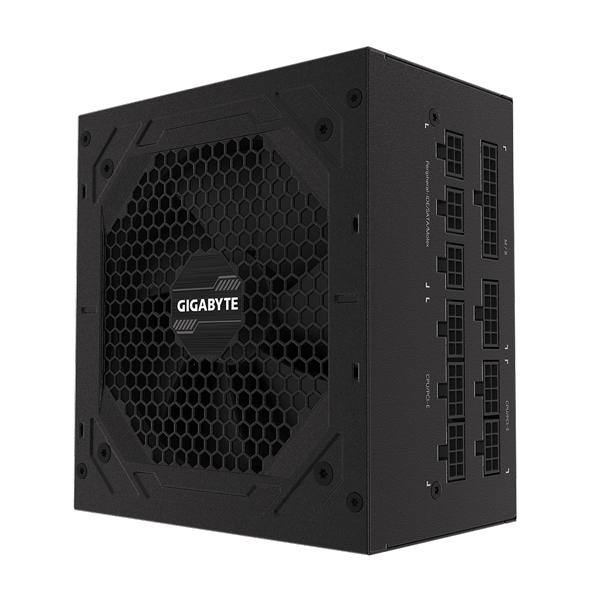

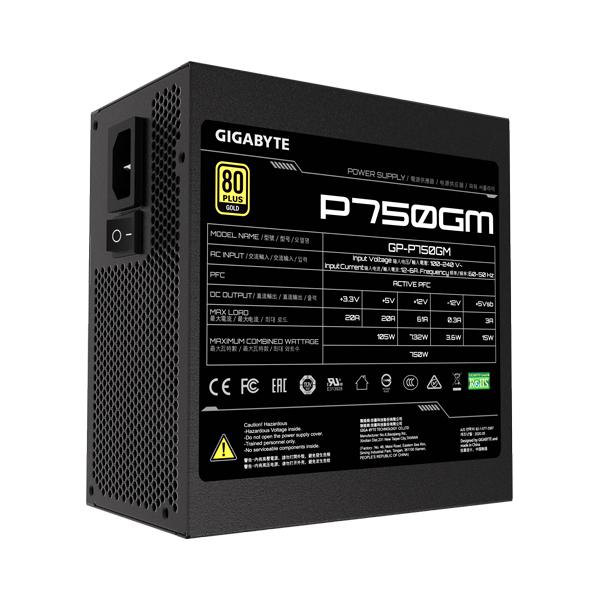

- GIGABYTE P750GM 750W 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features of GIGABYTE P750GM 750W 80+ Gold Fully Modular ATX 2.0 Power Supply
- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Main Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact size
- 5 years warranty (Adjusted according to different regions)
Specifications of GIGABYTE P750GM 750W 80+ Gold Fully Modular ATX 2.0 Power Supply
Model | GIGABYTE GP-P750GM |
Type | Intel Form Factor ATX 12V v2.31 |
PFC | Active PFC (>0.9 typical) |
Input Voltage | 100-240 Vac (full range) |
Input Current | 12-6 A |
Input Frequency | 60-50 Hz |
Output Capacity | 750W |
Dimension | 150 x 140 x 86 mm |
Fan Type | 120mm Hydraulic Bearing ( HYB ) fan |
80 PLUS | Gold |
Efficiency | 90% at typical load |
MTBF | >100,000 hours |
Protection | OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal | 100-500ms |
Hold Up Time | >16ms |
Cable Type | Flat, All black |
Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1 |
Warranty | 5 Years |
Note | ***Features, Price and Specifications are subject to change without notice |
