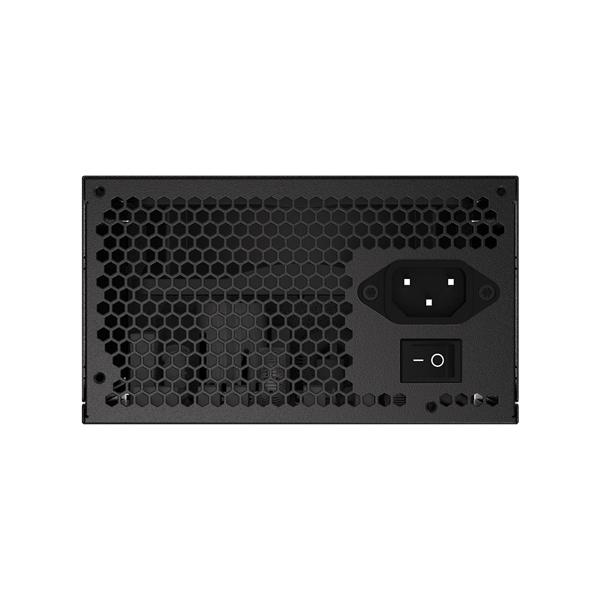

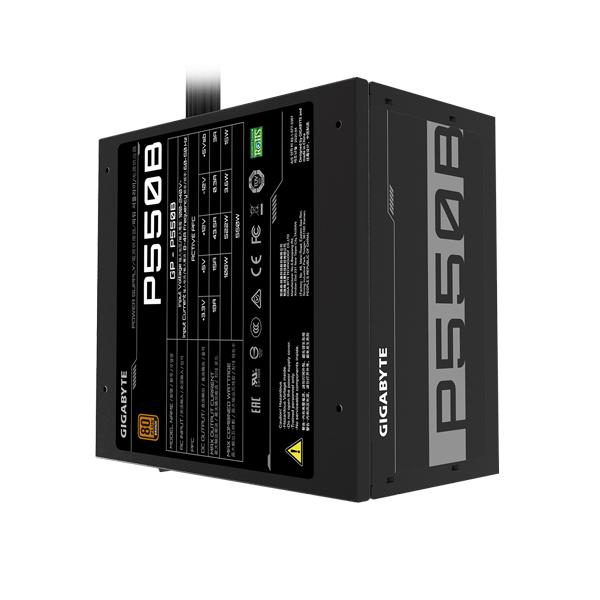

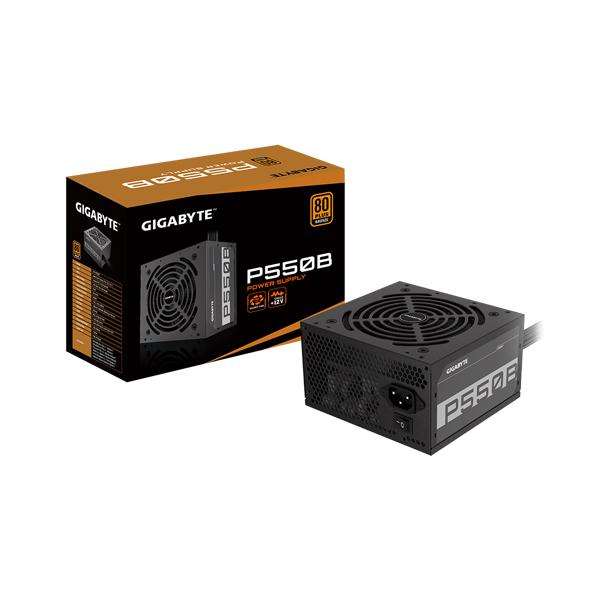

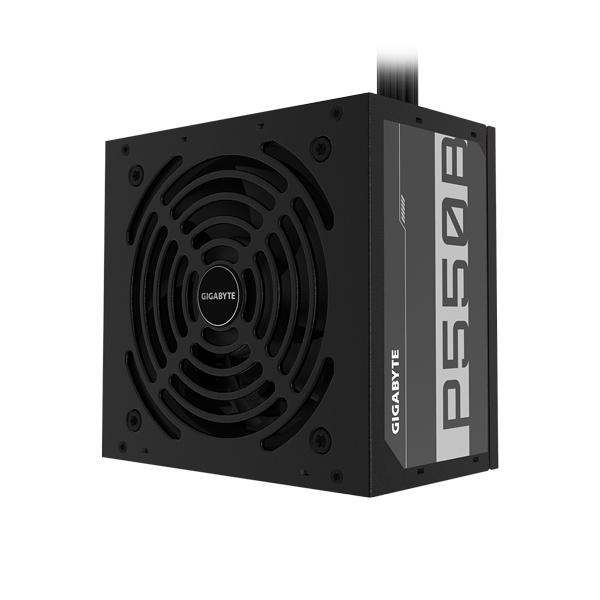

- GIGABYTE P550B 550W 80+ Bronze Non Modular ATX 2.0 Power Supply
Description
Features of GIGABYTE P550B 550W 80+ Bronze Non Modular ATX 2.0 Power Supply
- 80 PLUS Bronze certified
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty (Adjusted according to different regions)
- 80 PLUS BRONZE CERTIFIED
- Reliable Flat Cable
- 120mm Silent Hydraulic Bearing (HYB) Fan
- SINGLE +12V RAIL
- PROTECTION
Specifications of GIGABYTE P550B 550W 80+ Bronze Non Modular ATX 2.0 Power Supply
Model | GIGABYTE P550B |
Type | Intel Form Factor ATX 12V v2.31 |
PFC | Active PFC(>0.9 typical) |
Input Voltage | 100-240 Vac(full range) |
Input Current | 8-4 A |
Input Frequency | 60-50 Hz |
Output Capacity | 550W |
Dimension | 150 x 140 x 86 mm |
Fan Type | 120 mm Hydraulic Bearing (HYB) Fan |
80 PLUS | Bronze |
Efficiency | 85% at typical load |
MTBF | >100,000 hours |
Protection | OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal | 100-500ms |
Hold Up Time | >16ms |
Cable Type | Flat, All black |
Connectors |
ATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1 |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice |
