The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
| CPU | |
| LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* | |
| L3 cache varies with CPU | |
| Chipset | Intel® H610 Express Chipset |
| Memory | |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | |
| Realtek® Audio CODEC | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software."}">* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
| LAN | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | |
|
1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) |
|
|
1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
|
| USB | |
| Chipset: | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hub: | 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | |
| 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 1 x RGB LED strip header | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |

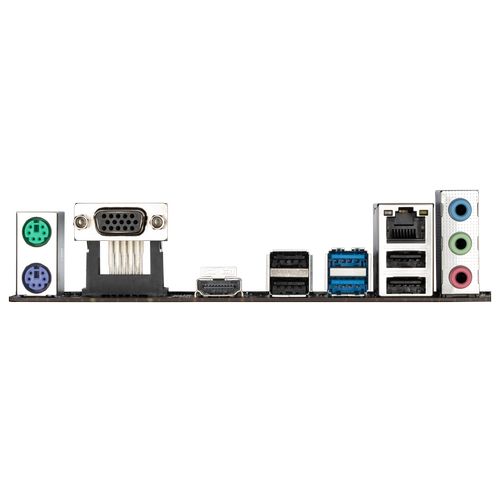

| Back Panel Connectors | |
| 1 x PS/2 keyboard port | |
| 1 x PS/2 mouse port | |
| 1 x D-Sub port | |
| 1 x HDMI 2.0 port | |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | |
| Voltage detection | |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | |
| 1 x 256 Mbit flash | |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | |
| Support for APP Center | |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| Ambient LED | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundled Software | |
| Norton® Internet Security (OEM version) | |
| LAN bandwidth management software | |
| Operating System | |
| Support for Windows 11 64-bit | |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
