- 4+1+1 Phases DrMOS*.
- Solid capacitors to improve transient response and minimize oscillation.
- Solid Pin CPU Power Connector.
Your one stop destination for all your Computer needs!
- Home

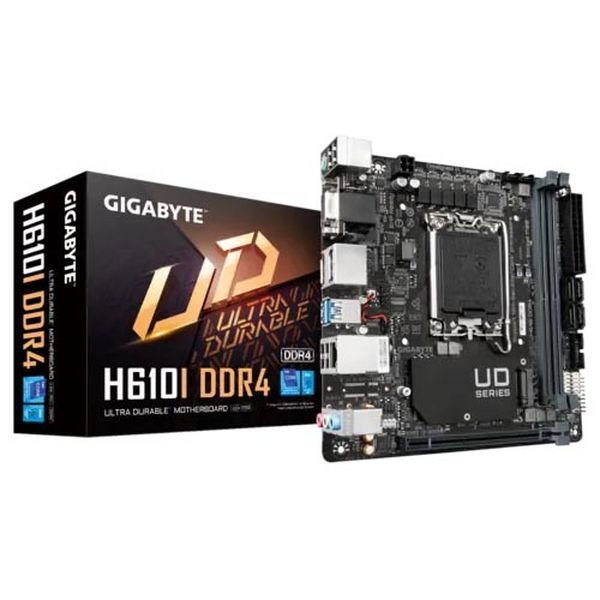

- GIGABYTE H610I DDR4 Intel Motherboard
Description
Features of GIGABYTE H610I DDR4 Intel Motherboard
- GIGABYTE H610I Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
4+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Intel® GbE LAN
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 3.0 M.2 Slot
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Specifications of GIGABYTE H610I DDR4 Intel Motherboard
CPU | 1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors |
2. L3 cache varies with CPU | |
(Please refer to CPU Support List for more information.) | |
1. Intel® H610 Express Chipset | |
Memory | 1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
3. Dual channel memory architecture | |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
6. Support for Extreme Memory Profile (XMP) memory modules | |
(Please refer Memory Support List for more information.) | |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.1 version and HDCP 2.3. | |
** Support native HDMI 2.1 TMDS compatible ports | |
3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
* Support for DisplayPort 1.2 version and HDCP 2.3. | |
4. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
* Support for DisplayPort 1.2 version. | |
(Graphics specifications may vary depending on CPU support.) | |
Support for up to 3 displays at the same time | |
Audio | 1. Realtek® Audio CODEC |
2. High Definition Audio | |
3. 2/4/5.1/7.1-channel | |
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
LAN | 1. Intel® GbE LAN chip (1 Gbps/100 Mbps) |
Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) | |
Storage Interface | Chipset: |
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) | |
2. 4 x SATA 6Gb/s connectors | |
USB | Chipset: |
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
2. 4 x USB 2.0/1.1 ports on the back panel | |
Chipset+USB 2.0 Hub: | |
1. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
2. 1 x 4-pin ATX 12V power connector | |
3. 1 x CPU fan header | |
4. 2 x system fan headers | |
5. 1 x RGB LED strip header | |
6. 1 x M.2 Socket 3 connector | |
7. 4 x SATA 6Gb/s connectors | |
8. 1 x front panel header | |
9. 1 x front panel audio header | |
10. 1 x USB 3.2 Gen 1 header | |
11. 2 x USB 2.0/1.1 headers | |
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
13. 2 x serial port headers | |
14. 1 x Clear CMOS jumper | |
15. 1 x chassis intrusion header | |
Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
2. 2 x USB 3.2 Gen 1 ports | |
3. 4 x USB 2.0/1.1 ports | |
4. 1 x D-Sub port | |
5. 2 x DisplayPorts | |
6. 1 x HDMI 2.0 port | |
7. 1 x RJ-45 port | |
8. 3 x audio jacks | |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
2. Temperature detection | |
3. Fan speed detection | |
4. Fan fail warning | |
5. Fan speed control | |
* Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS | 1. 1 x 256 Mbit flash |
2. Use of licensed AMI UEFI BIOS | |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
RGB Fusion | |
Smart Backup | |
System Information Viewer | |
2. Support for Q-Flash | |
3. Support for Xpress Install | |
Bundled Software | 1. Norton® Internet Security (OEM version) |
2. LAN bandwidth management software | |
Operating System | 1. Support for Windows 11 64-bit |
2. Support for Windows 10 64-bit | |
Form Factor | 1. Mini-ITX Form Factor; 17.0cm x 17.0cm |
**Features, Price and Specifications are subject to change without notice to customer. |
