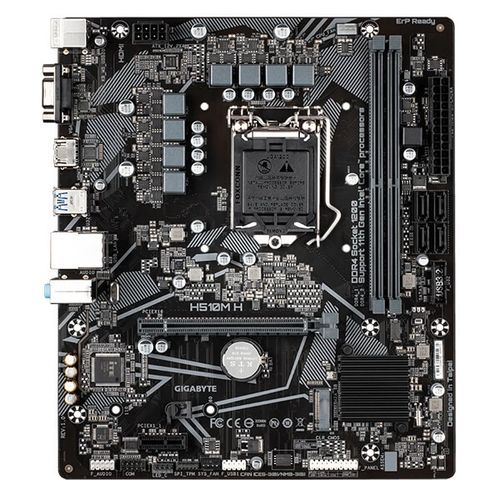

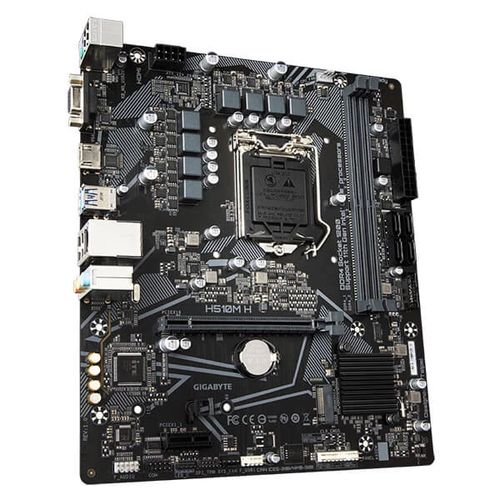

- GIGABYTE H510M H DDR4 Intel Motherboard
Description
Feature of Gigabyte H510M H DDR4
GIGABYTE H510M H DDR4 Motherboard supports 11th and 10th Gen Intel Core Series Processors along with Ultra-Fast M.2 with PCIe 4.0* design. Also, it comes with Realtek GbE LAN with high ESD Protection, Anti-Sulfur Resistor and 6+2 Phases Digital VRM.
Moreover, from high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging.
EFFICIENT POWER DELIVERY
Cleaner and more efficient power delivery to the CPU with better thermal performance. Thus, ensure stability under high CPU frequencies and heavy loading.
- 6+2 Phases Low RDS (ON) MOSFET’s.
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
COOLING FEATURES
- High Current Support – Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
- Precision Control – Up to 7 temperature/fan speed control points for precise fan curve.
- Dual Curve Mode – Slope/Stair dual mode for different user scenario.
- Fan Stop – Fan can stop completely below users’ specified temperature point.
REALTEK GbE LAN WITH BANDWIDTH MANAGEMENT
Realtek Gigabit LAN features a network bandwidth management application which thus helps to improve network latency and maintain low ping times. So, it delivers better responsiveness in crowded LAN environments.
ULTRA DURABLE
GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and thus extended motherboard lifespan.
SOLID PIN POWER CONNECTORS
H510 motherboards feature solid plated ATX 12V 8pin power connectors. Therefore, it offers a stable power supply during CPU overloading.
Solid Pin Power connector advantages:
- Larger contact area for electricity.
- More metal quantity to sustain higher power and generated heat.
- Ultra durable and longer lifespan.
ULTRA PERFORMANCE
GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures in order to provide a longer lifespan.
ELECTROSTATIC PROTECTION
GIGABYTE motherboards feature High Resistance ICs which thus help protect the motherboard against electrostatic discharge.
APP CENTER
GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from the motherboard. Moreover, using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.
Specifications of Gigabyte H510M H DDR4
CPU |
LGA1200 package:11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
Chipset | Intel® H510 Express Chipset |
Memory |
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software."}"> Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
LAN | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
Storage Interface |
Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
USB |
Chipset:4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |

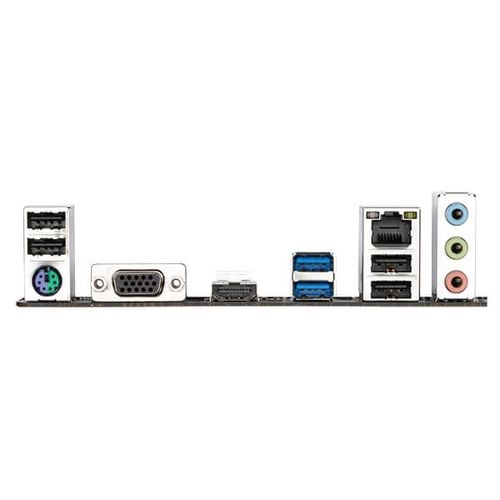

Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
Bundled Software |
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
Operating System | Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
