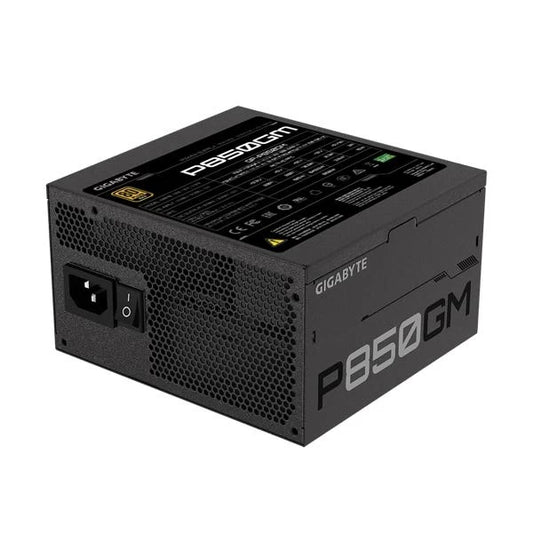

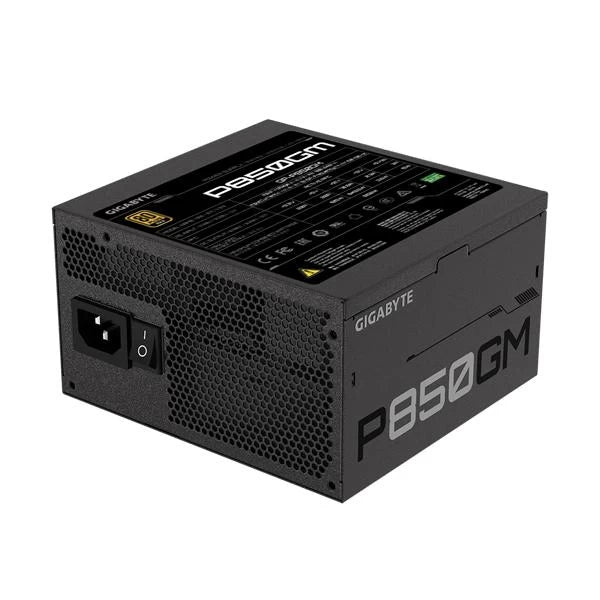

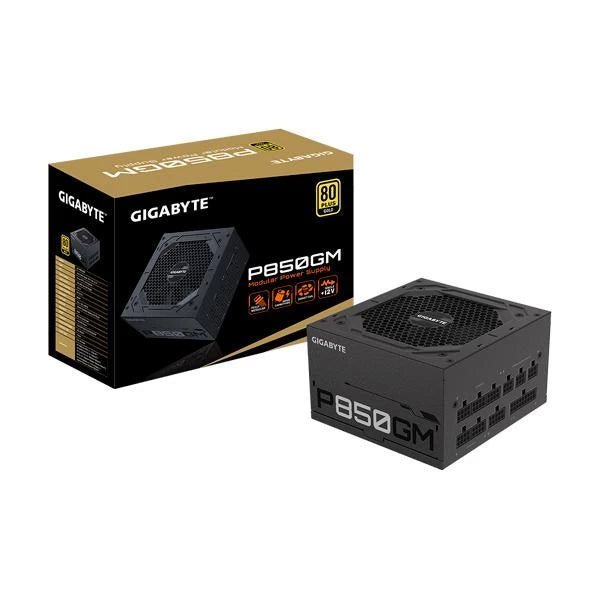

- GIGABYTE GP-P850GM 850W 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features Of GIGABYTE GP-P850GM
Gigabyte P850GM 80 Plus Gold Fully Modular SMPS Comes with Active PFC, 8x Sata Slots, 4x PCIe 6+2 Pin Connectors, 3x Molex + 1x Floppy Drive Connector and 120mm Smart Hydraulic Fan.
- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Main Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact size
- 5 years warranty (Adjusted according to different regions)

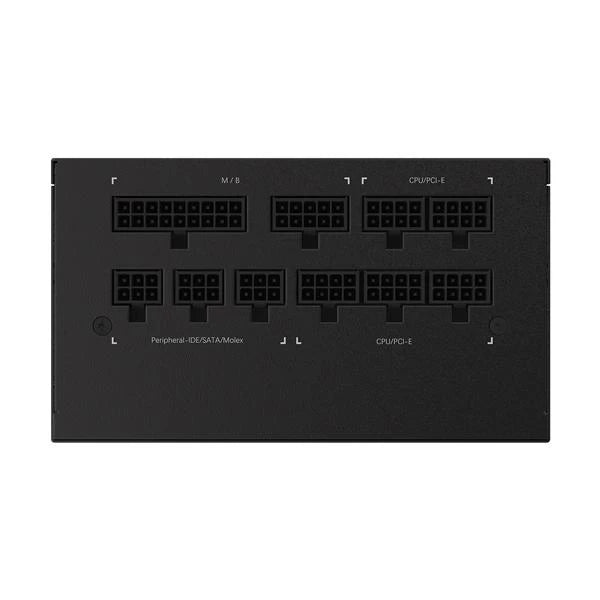

Fully Modular Design
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 Plus Gold Certified
GIGABYTE GP-P850GM 850W PSU ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
High Quality Japanese Capacitors
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

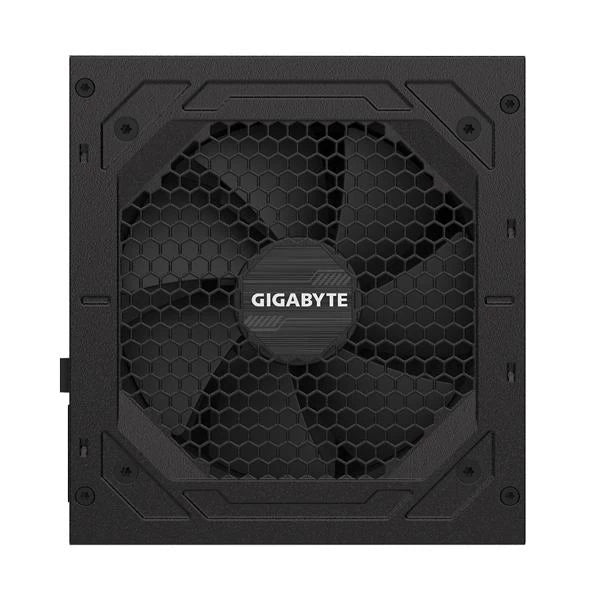

120mm Smart Hydraulic Bearing Fan
The fan speed of Gigabyte Power Supply is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
Single 12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
Protections
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Get the best 80 Plus Gold computer smps price from us today!

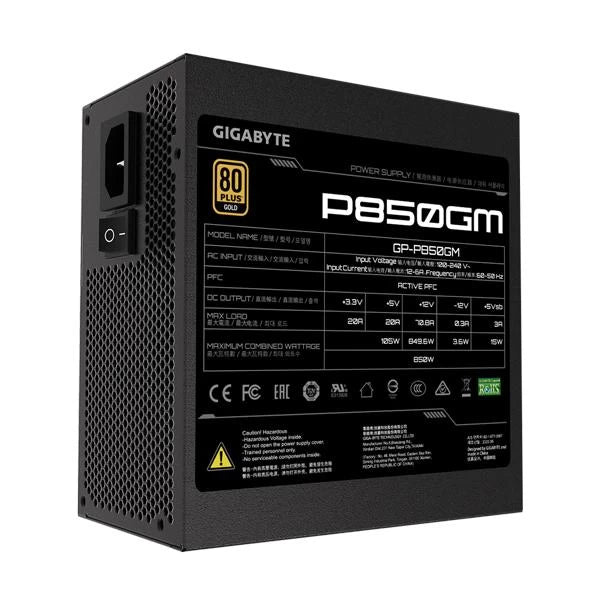

Specifications Of GIGABYTE GP-P850GM
| Model | GP-P850GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | 0.9 typical)"}">Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6 A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing ( HYB ) fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | 100,000 hours"}">>100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | 16ms"}">>16ms |
| Cable Type | Flat, All black |
| Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+150mm *1 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change |
