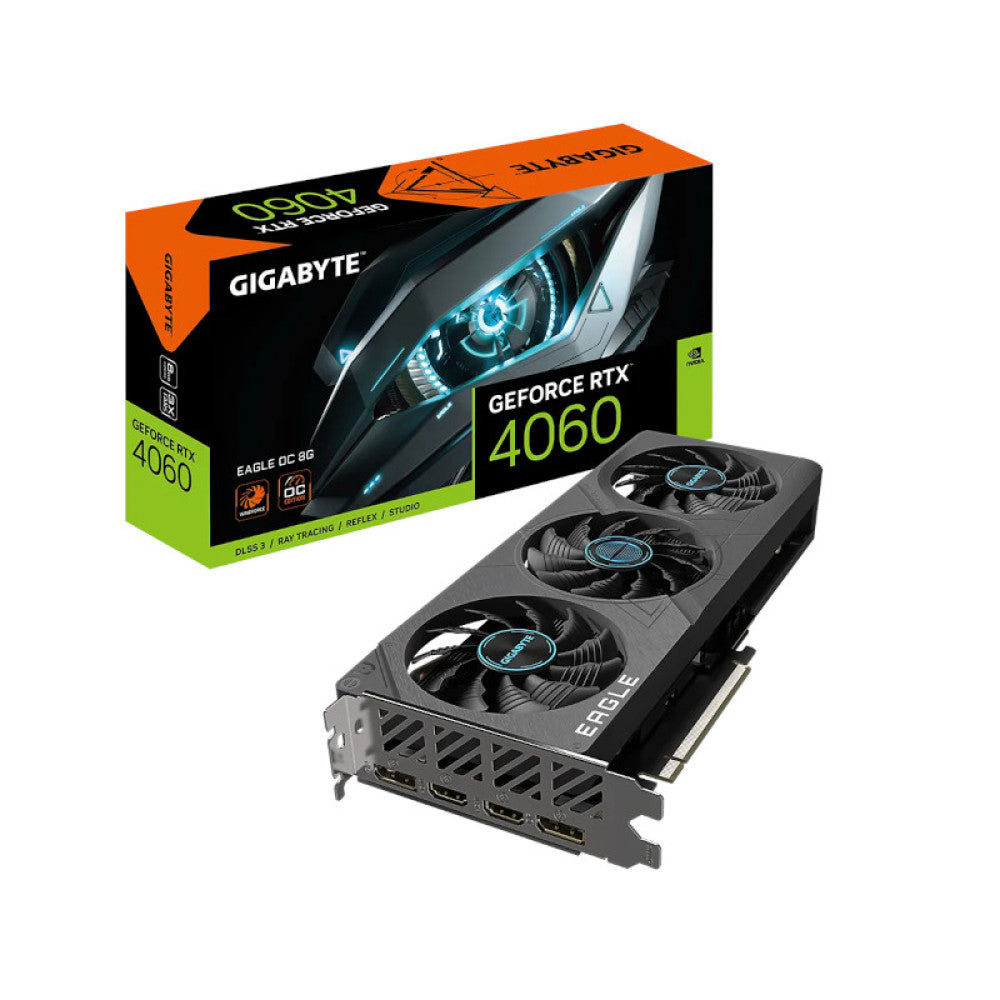

- GIGABYTE GeForce RTX 4060 Eagle OC 8GB Nvidia Graphic Card
Description
Features Of GIGABYTE GeForce RTX 4060 Eagle OC
Features of Gigabyte RTX 4060 Eagle OC 8GB :
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Dual BIOS
- Protection back plate
Overview of Gigabyte RTX 4060 Eagle OC 8GB :
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
-
New Streaming Multiprocessors
Up to 2x performance and power efficiency -
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering -
Third-Gen RT Cores
Up to 2x ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers
WINDFORCE COOLING SYSTEM

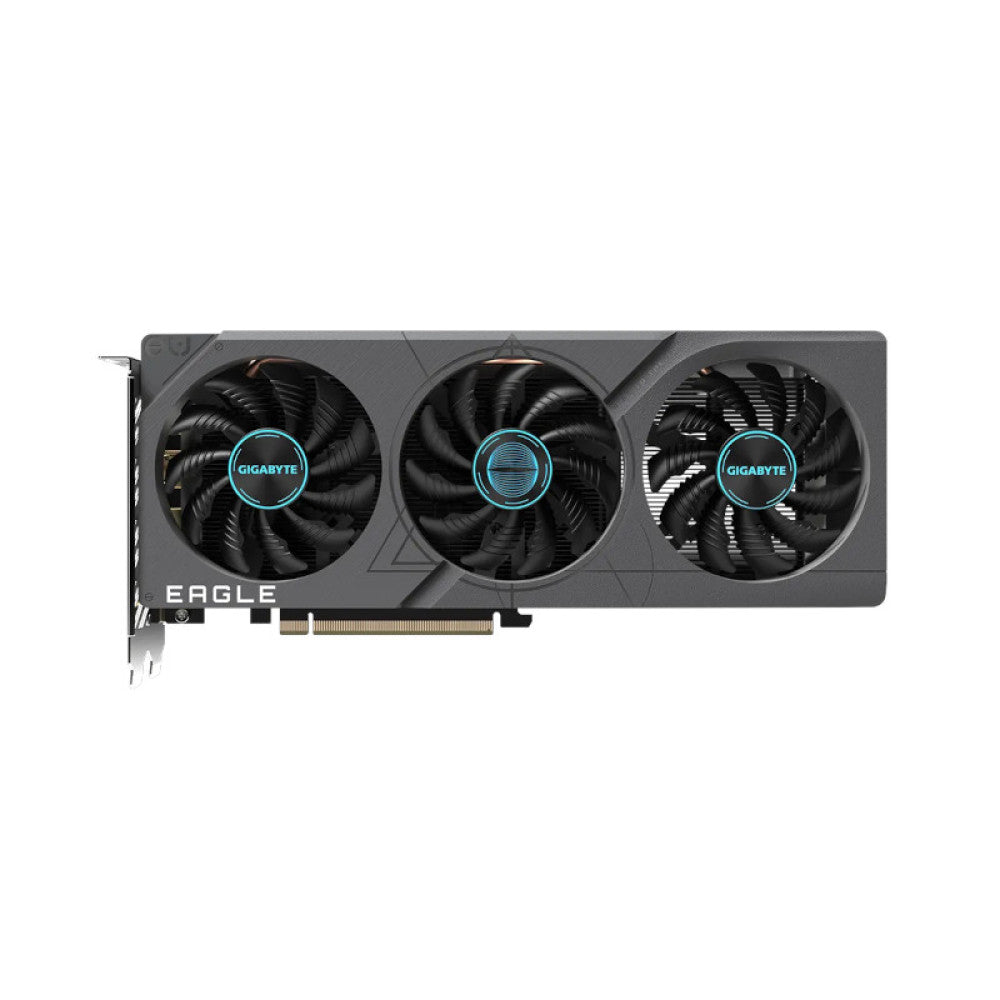

The Gigabyte RTX 4060 Eagle OC 8GB features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
Gigabyte RTX 4060 Eagle OC 8GB turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Optimized Thermal Module

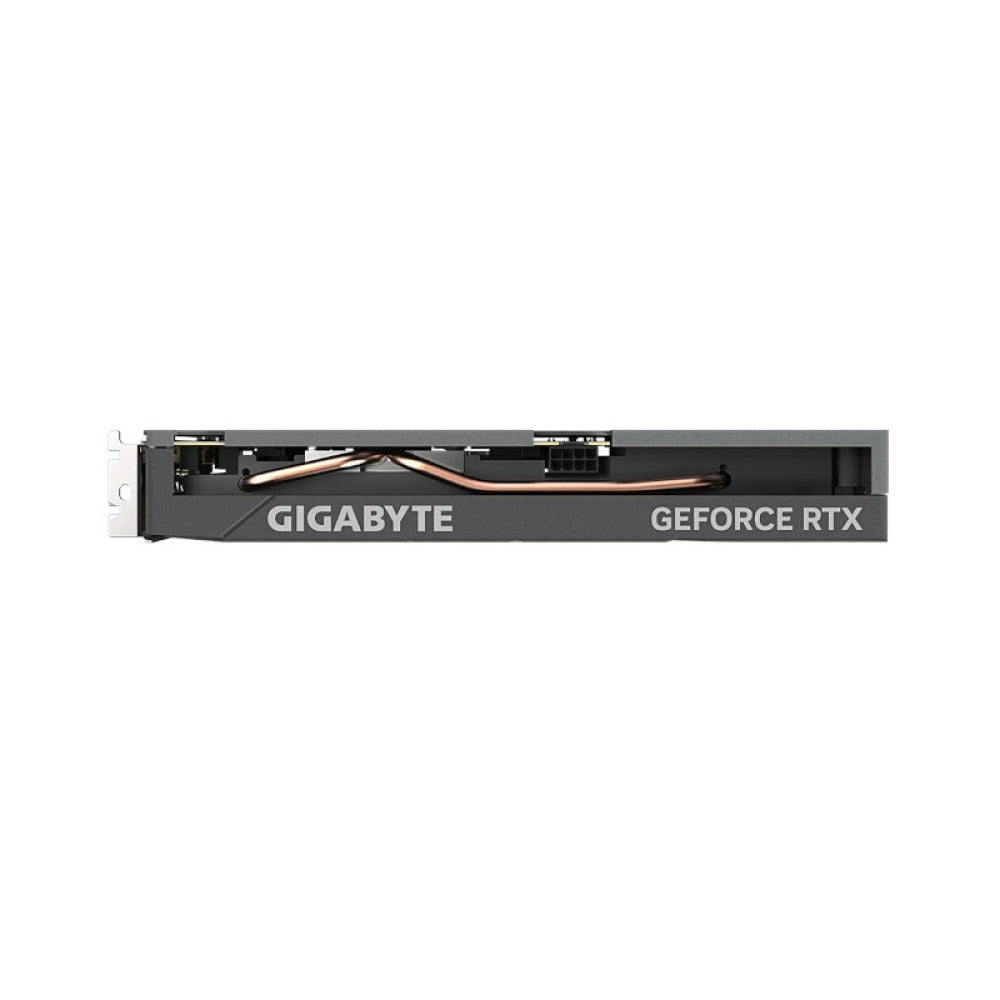

The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
EXCELLENT IN ESSENTIAL
-

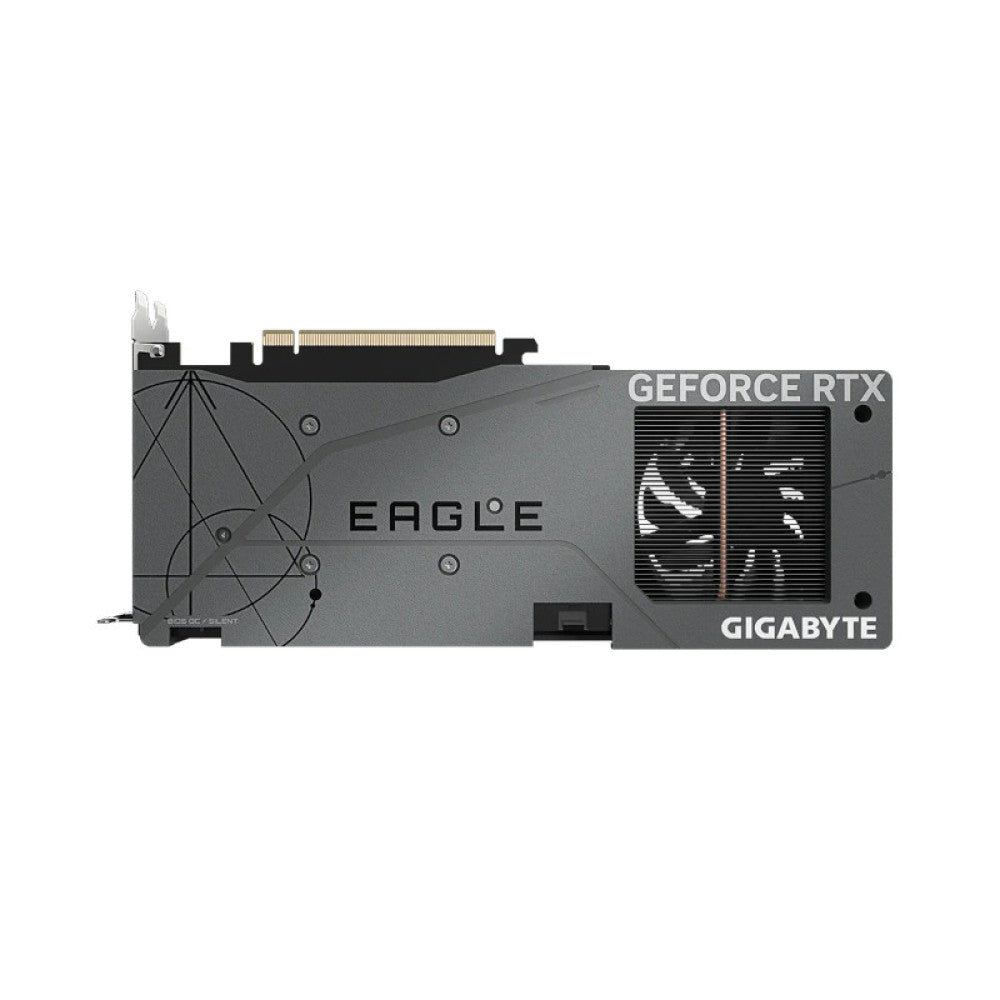

PROTECTION METAL BACK PLATE
- The metal back plate not only provides an aesthetical shape, but also enhances the structure of the Gigabyte RTX 4060 Ti Eagle OC 8GB graphics card to provide complete protection.
-
DUAL BIOS
- The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
BUILD STRONG
-
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. -
FRIENDLY PCB DESIGN
- Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications Of GIGABYTE GeForce RTX 4060 Eagle OC
Chipset |
GeForce RTX™ 4060
|
Core Clock |
2505 MHz (Reference card: 2460 MHz)
|
CUDA® Cores | 3072 |
Memory Clock | 17 Gbps |
Memory Size | 8 GB |
Memory Bus | 128 bit |
Memory Type | GDDR6 |
Card Bus | PCI-E 4.0 |
Resolution | 7680x4320 |
Multi-view | 4 |
Dimension |
L=272 W=115 H=40 mm
|
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 450 W |
Power Connectors | 8 Pin*1 |

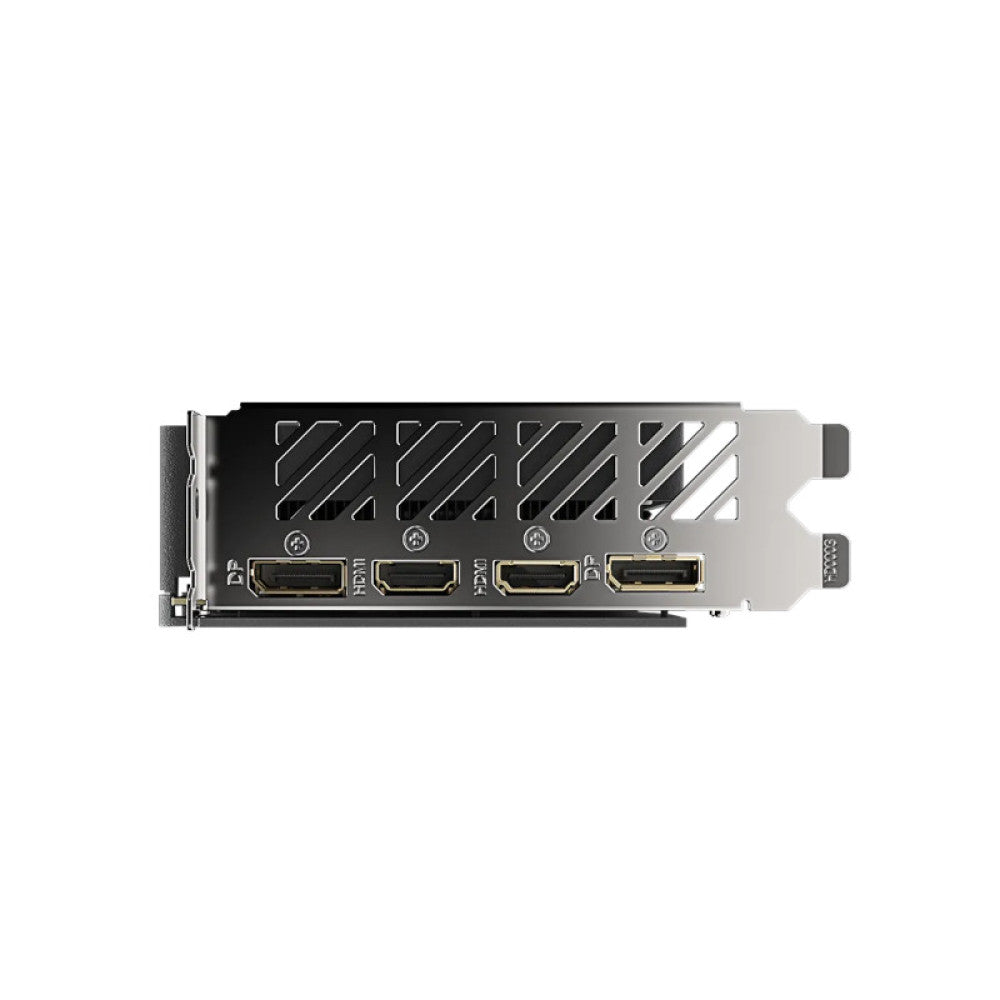

Output |
DisplayPort 1.4a*2
HDMI 2.1a*2 |
Accessories | Quick guide |
Warranty |
3 Years Warranty
|
Note* |
Price, feature and specifications are subject to change without notice.
|
3 years |
