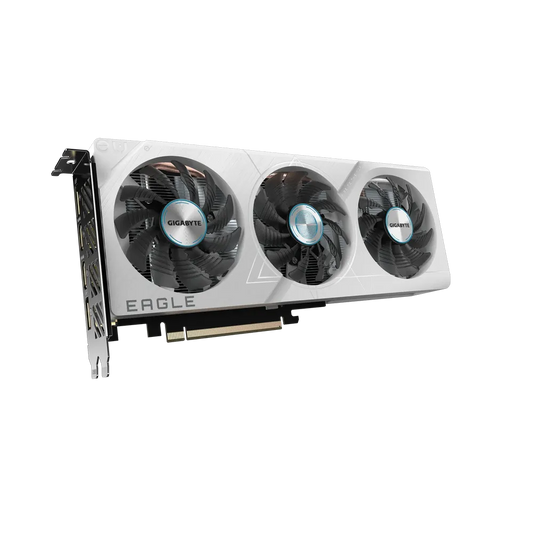

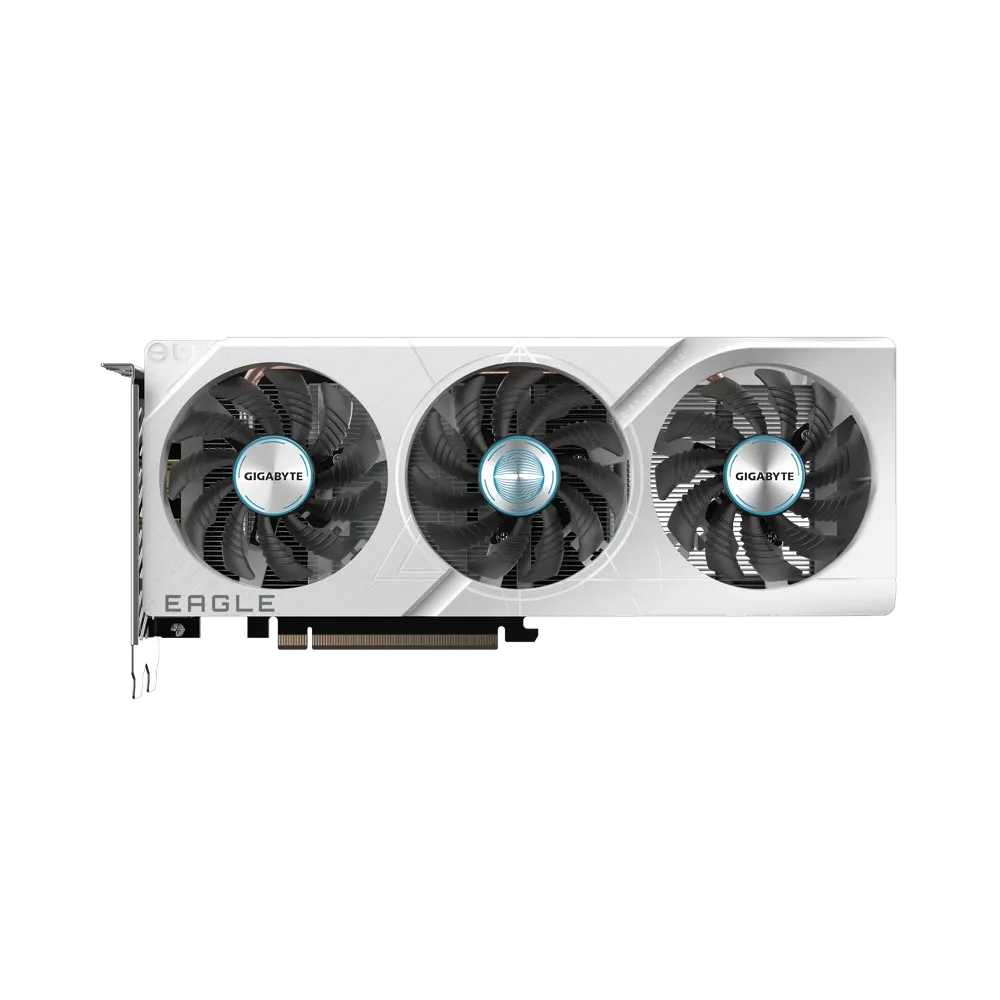

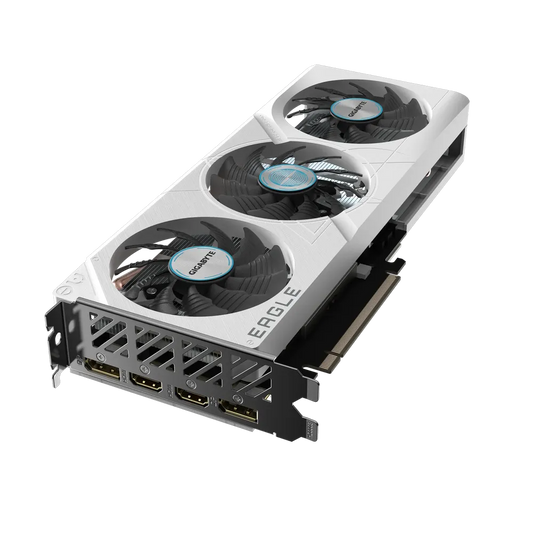

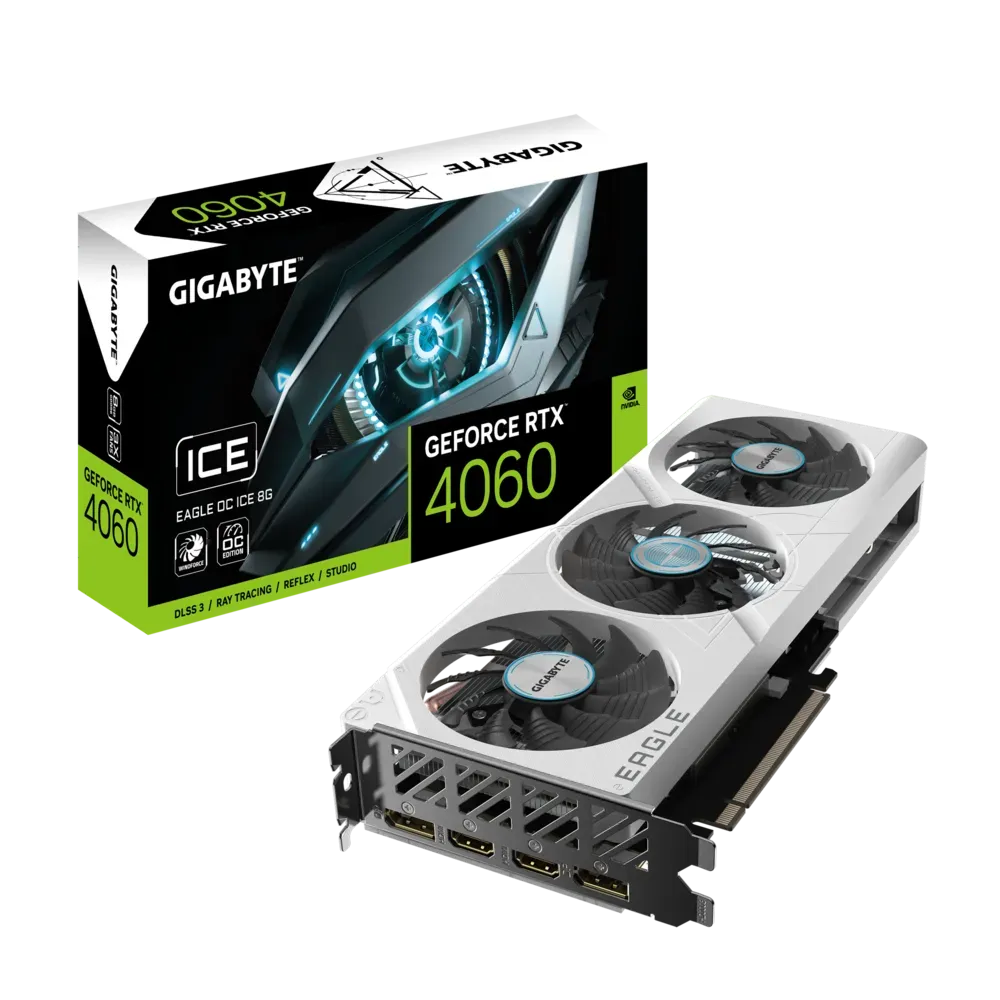

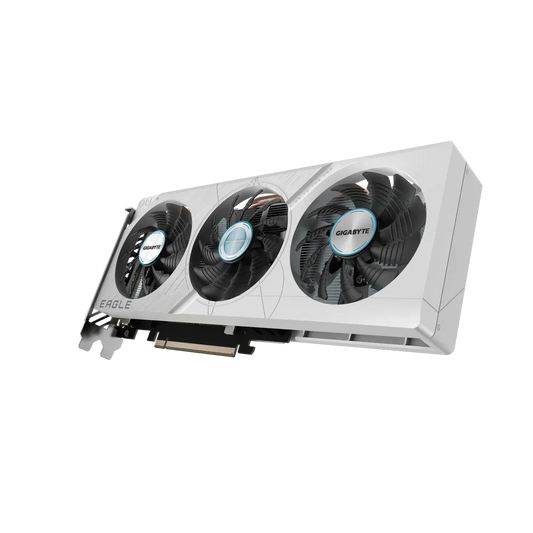

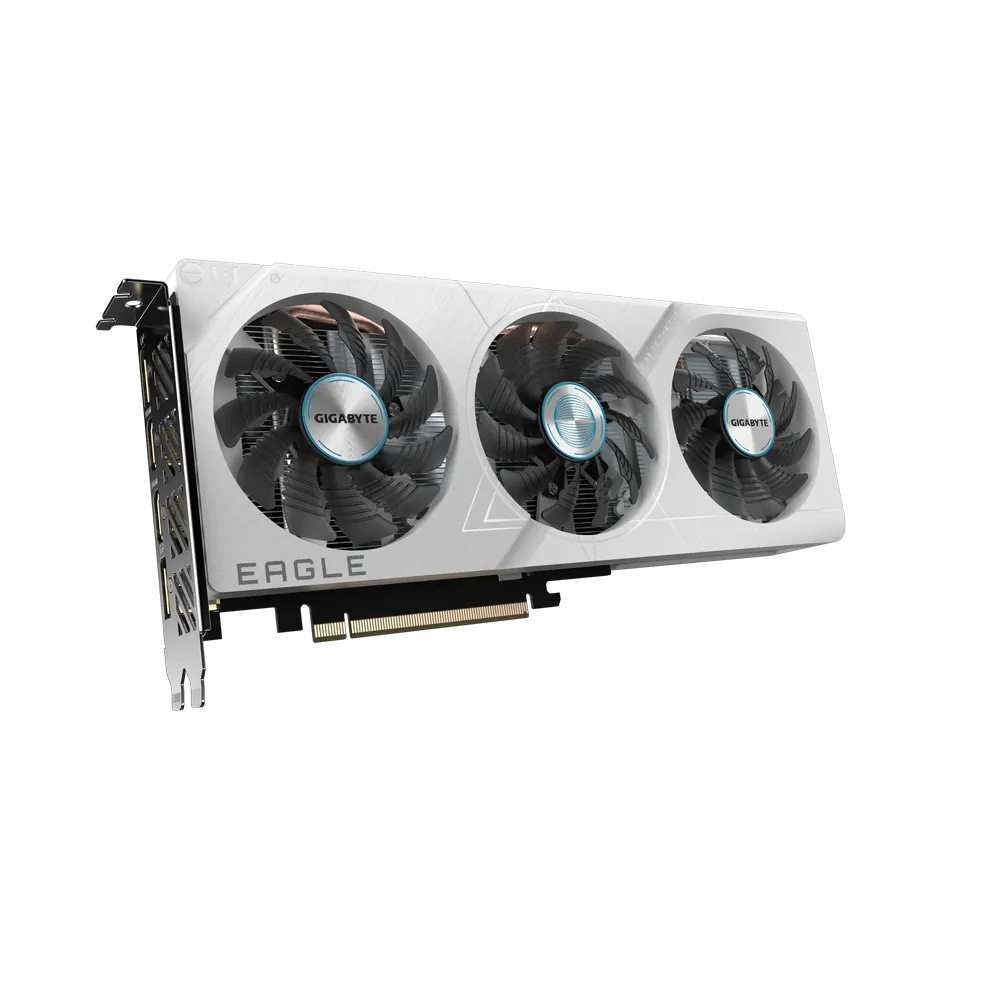

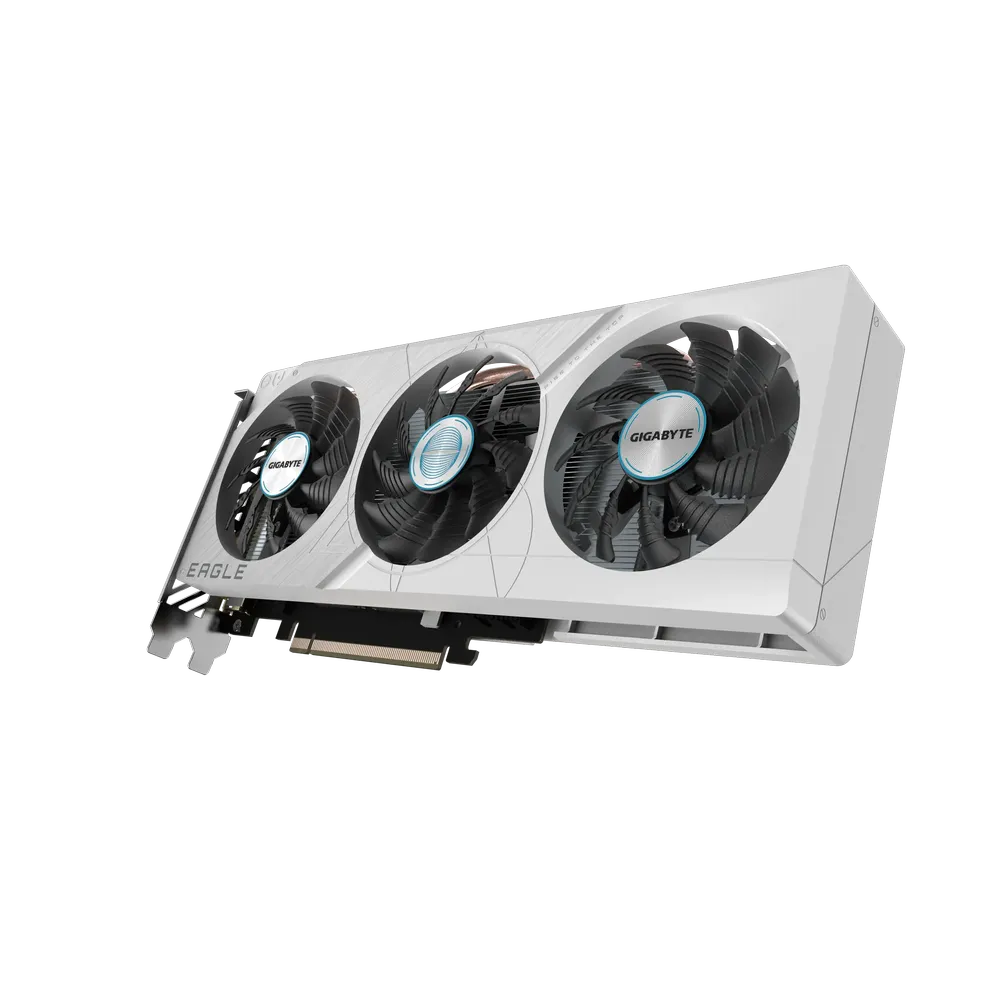

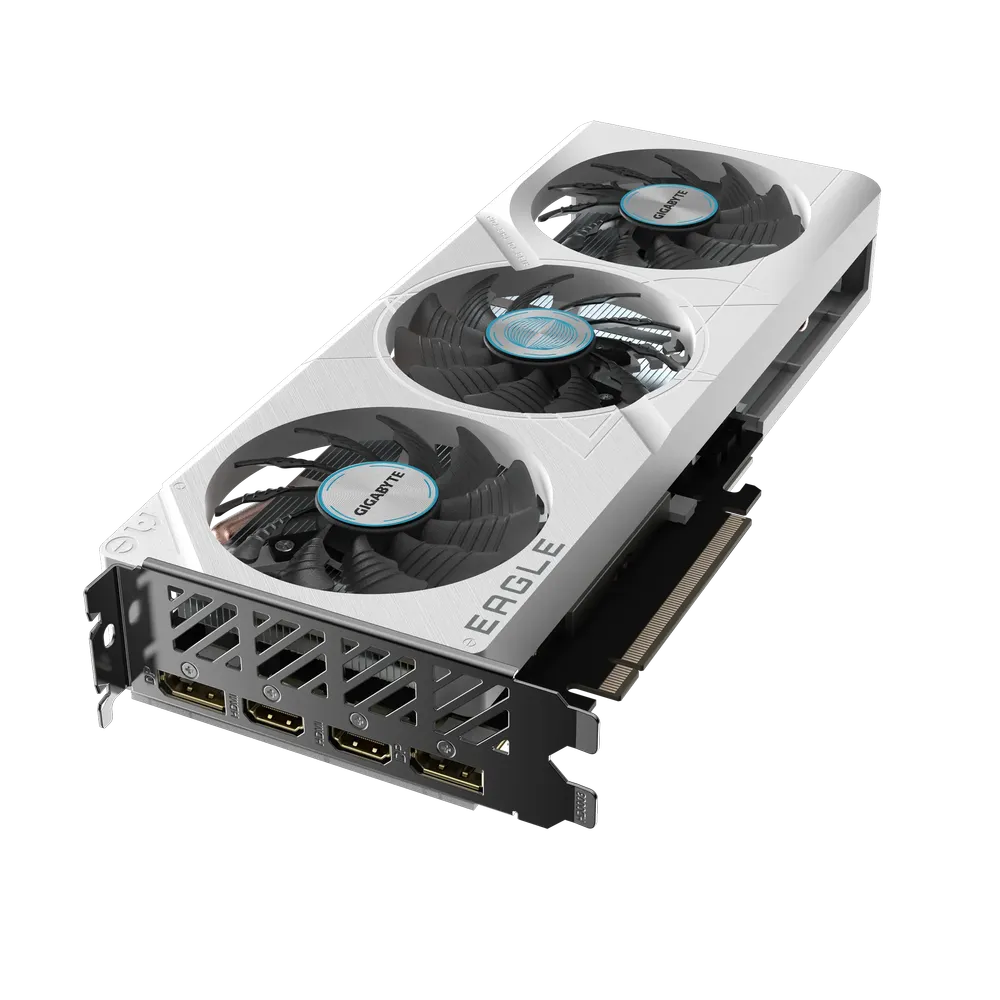

- GIGABYTE GeForce RTX 4060 Eagle Ice OC 8GB Nvidia Graphic Card (White)
Description
Features of GIGABYTE GeForce RTX 4060 Eagle Ice OC 8GB (White)
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Dual BIOS
- Protection back plate

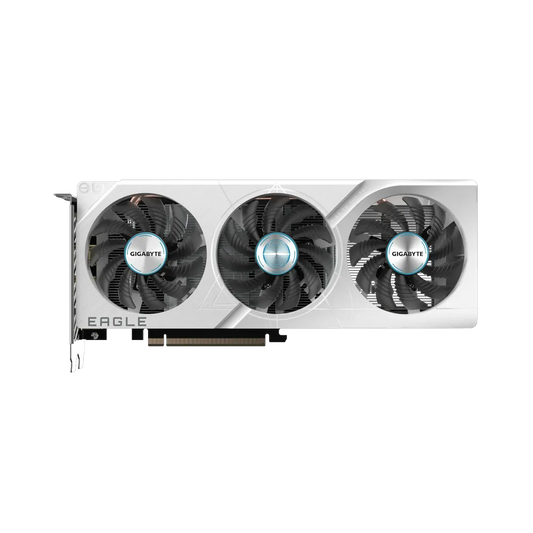

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system of the GIGABYTE GeForce RTX 4060 Eagle Ice OC features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Optimized Thermal Module

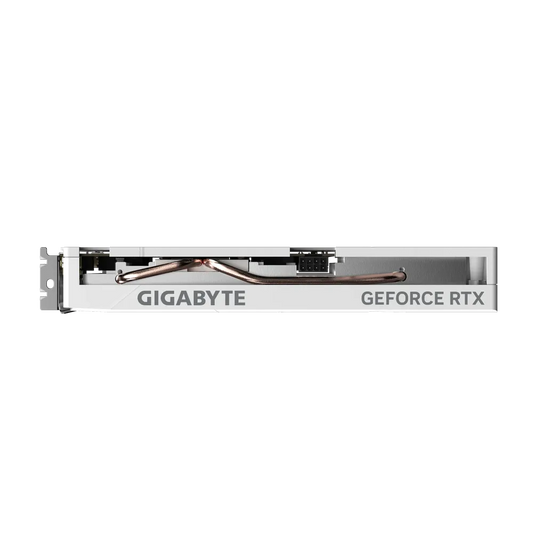

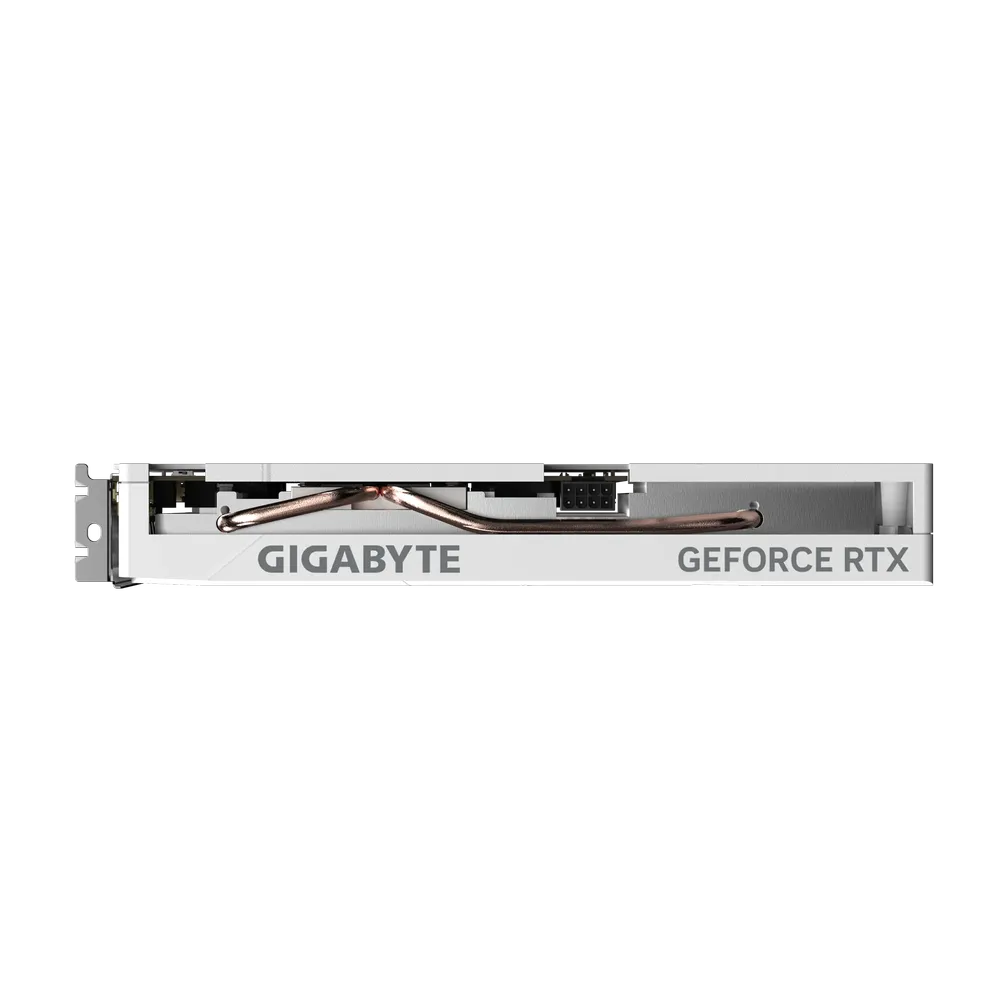

The copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

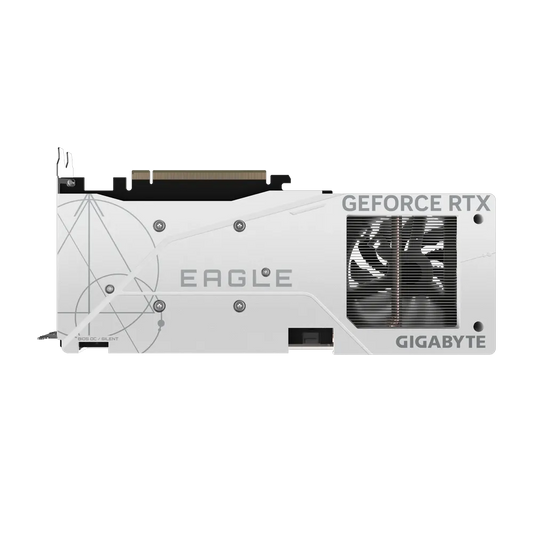

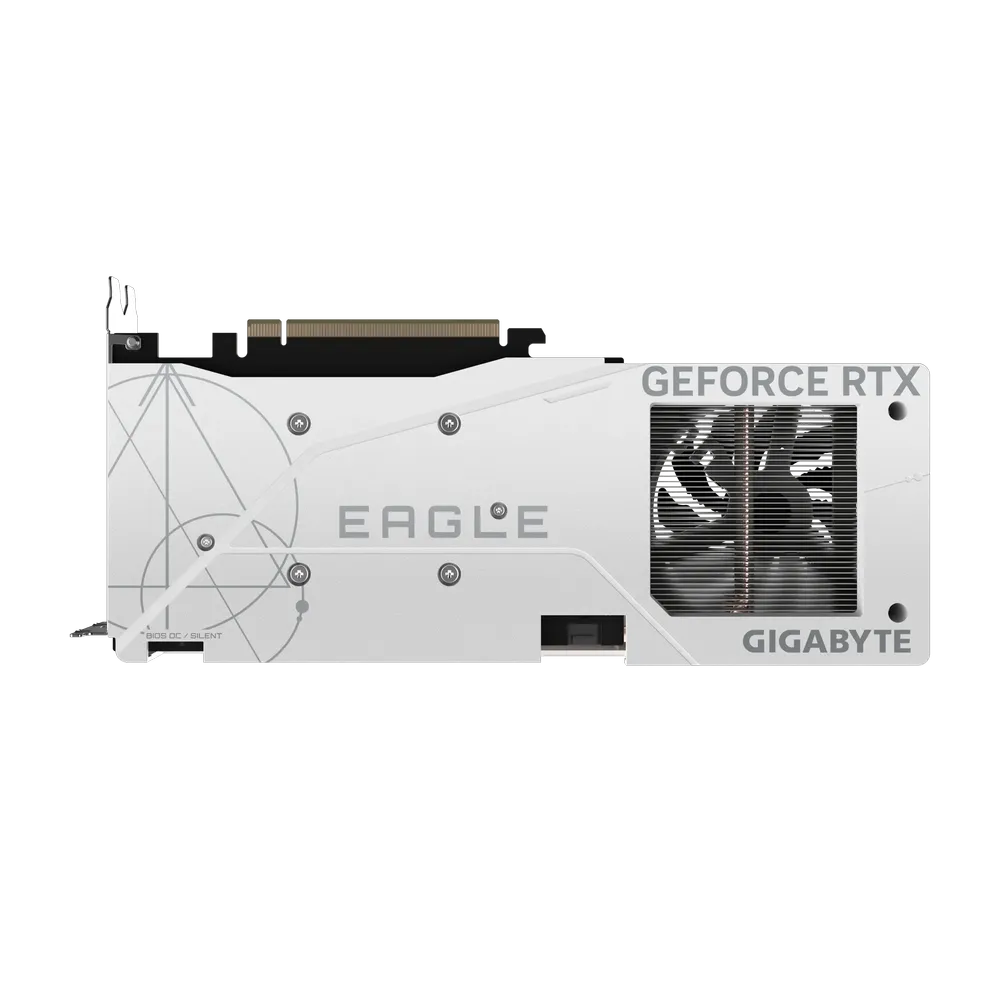

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications of GIGABYTE GeForce RTX 4060 Eagle Ice OC 8GB (White)
Graphics Processing | GeForce RTX™ 4060 |
Core Clock | 2505 MHz (Reference card: 2460 MHz) |
CUDA® Cores | 3072 |
Memory Clock | 17 Gbps |
Memory Size | 8 GB |
Memory Type | GDDR6 |
Memory Bus | 128 bit |
Card Bus | PCI-E 4.0 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=272 W=115 H=40 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 450W |
Power Connectors | 8 Pin*1 |

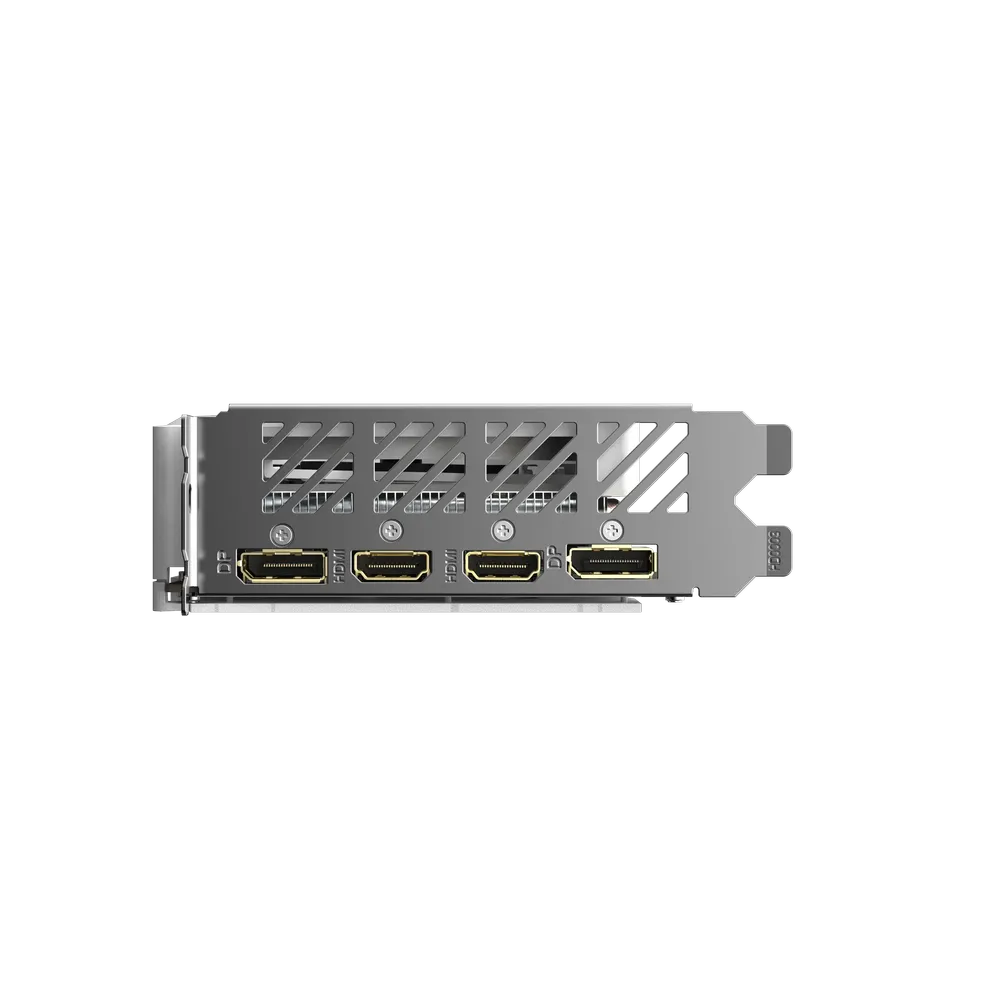

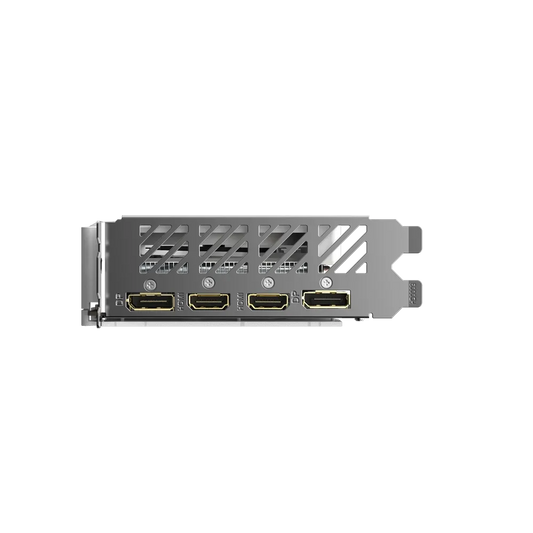

Output | DisplayPort 1.4a *2 HDMI 2.1a *2 |
Accessories | Quick guide |
