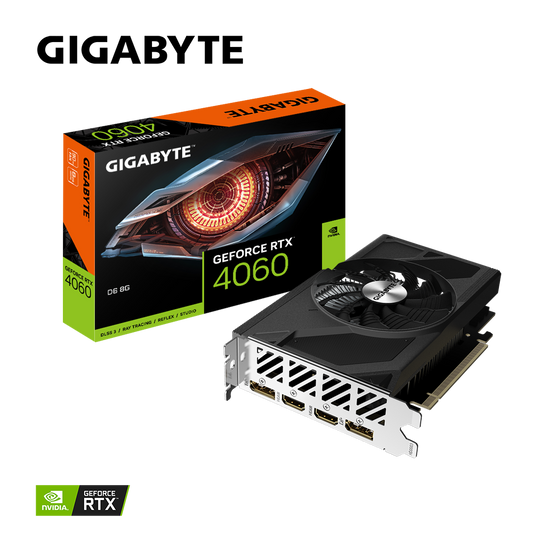

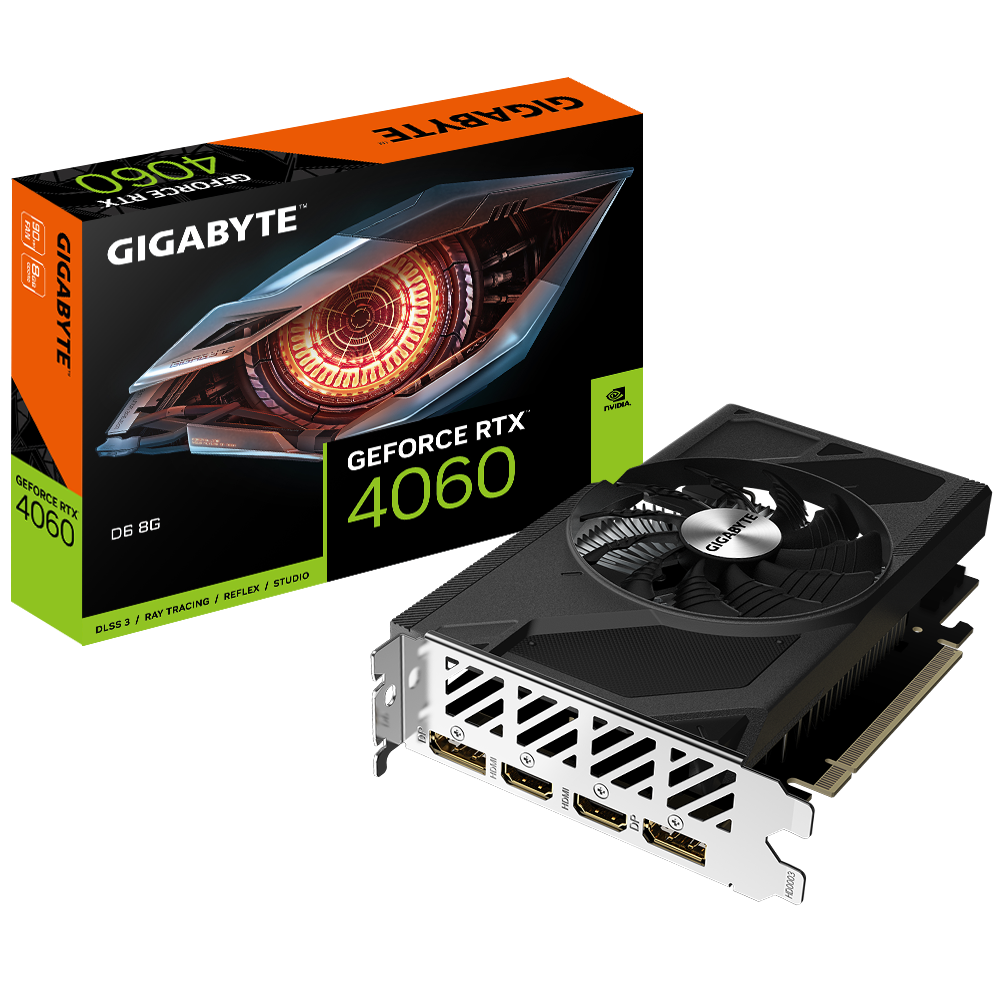

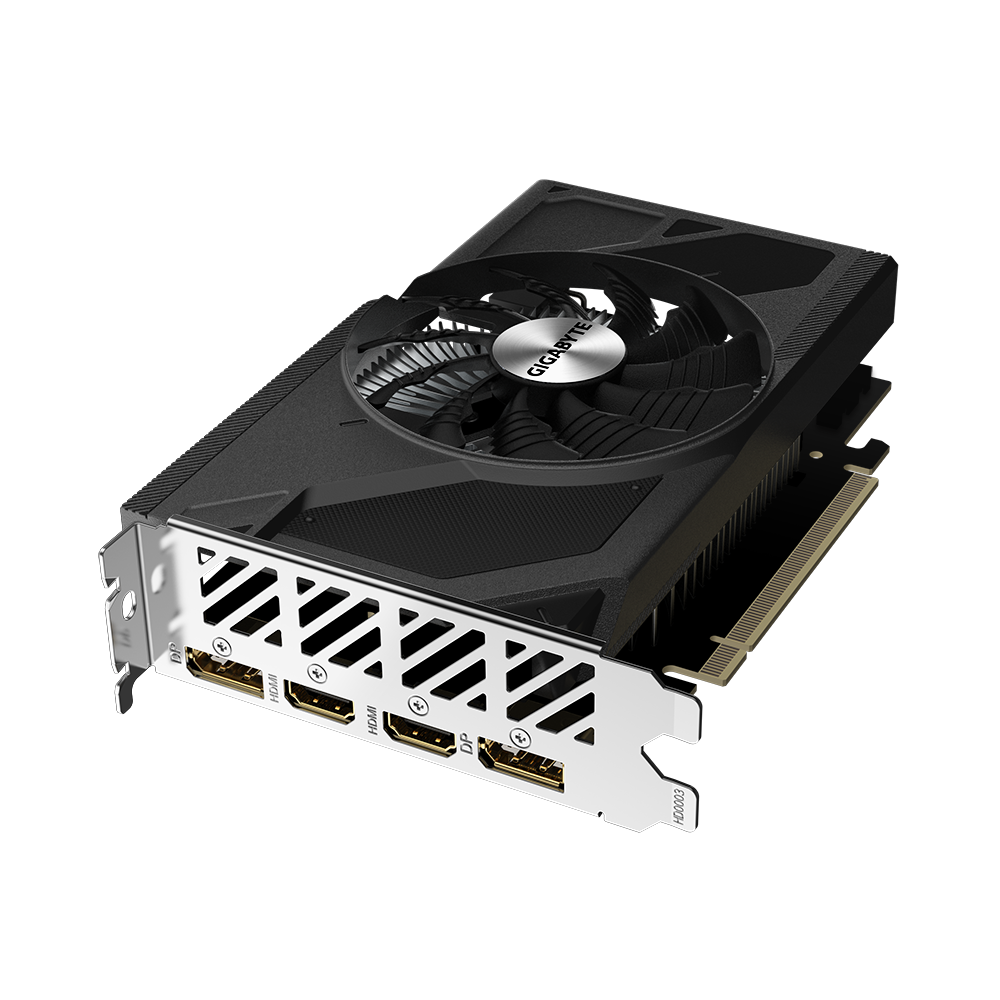

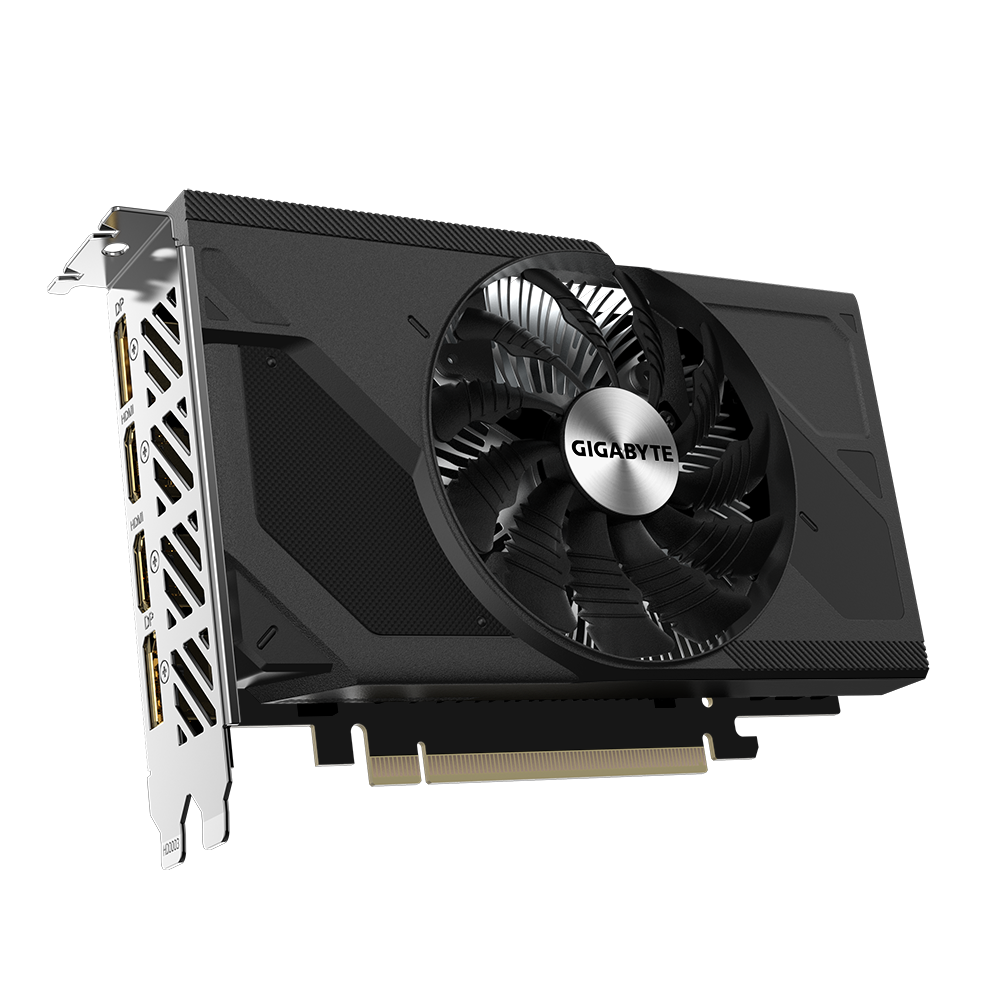

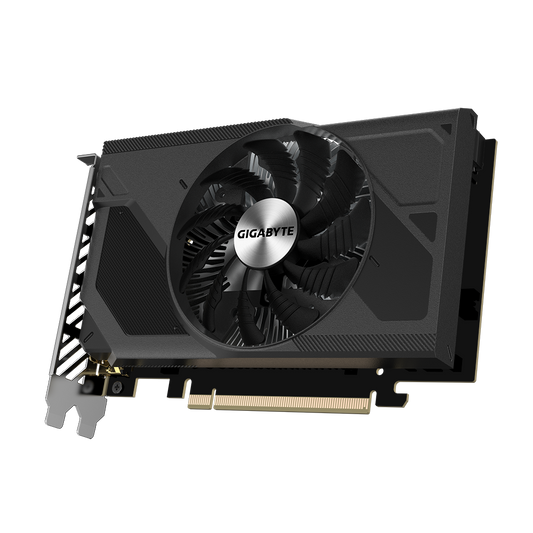

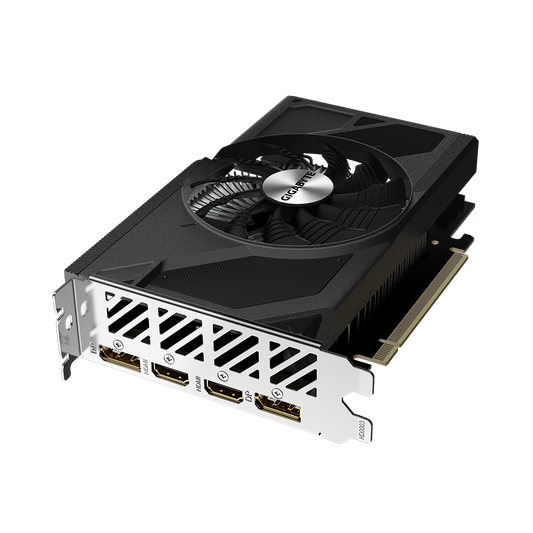

- GIGABYTE GeForce RTX 4060 D6 8GB Nvidia Graphic Card
Description
Features of GIGABYTE GeForce RTX 4060 D6 8GB Nvidia Graphic Card
KEY FEATURE
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by gigabyte rtx 4060
- Integrated with 8GB GDDR6 128bit memory interface

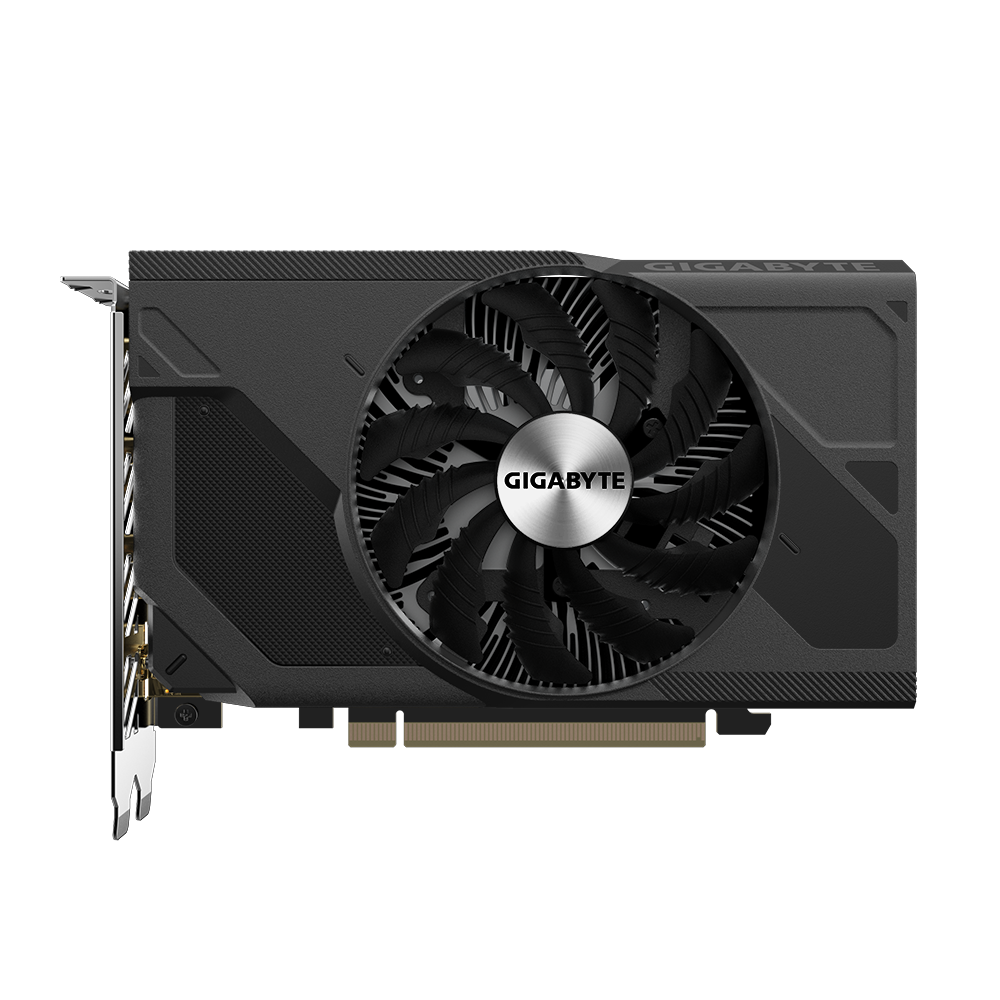

- 90mm unique blade fan
- 170 mm compact card size
The Ultimate Platform for Gamers and Creators
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
GIGABYTE

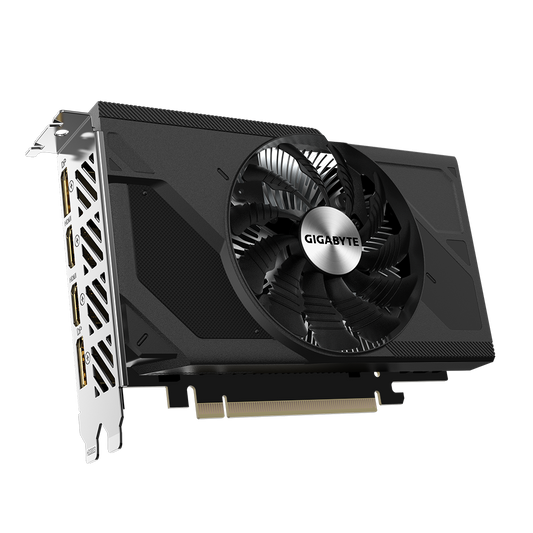

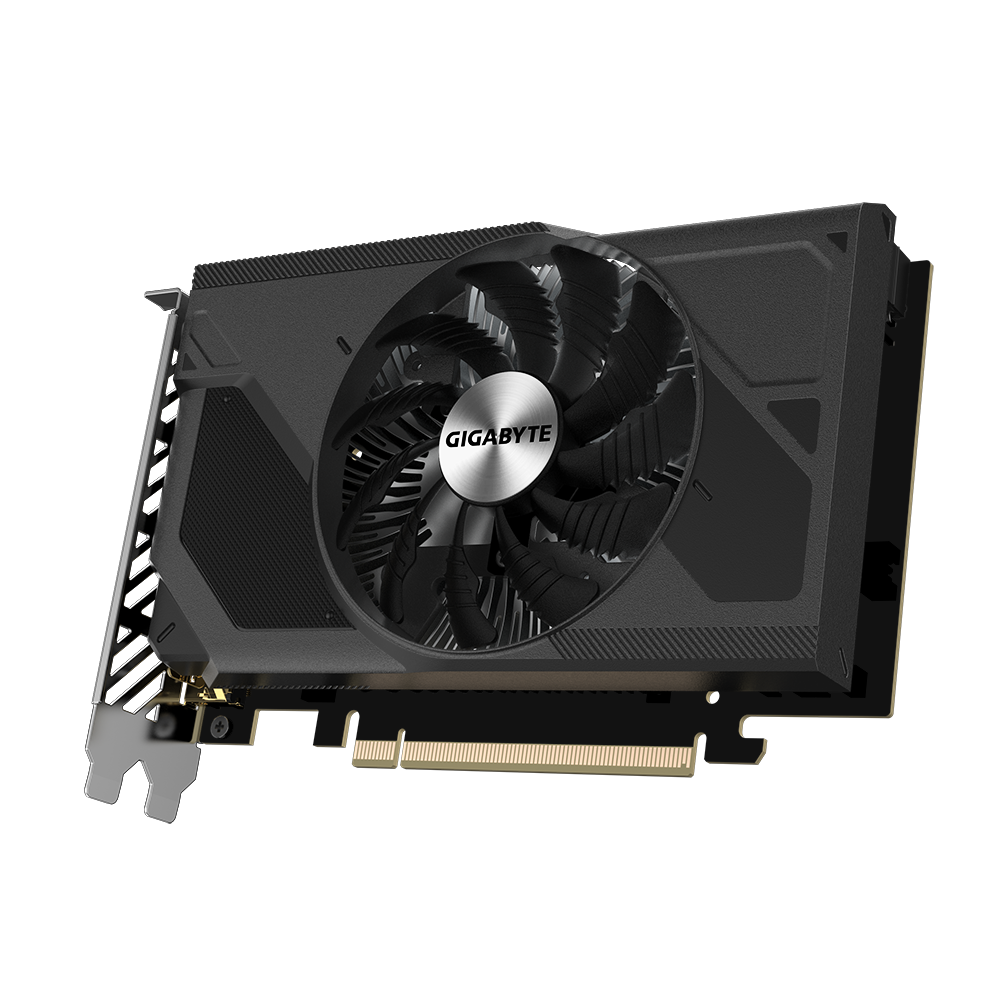

CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
COMPACT SIZE FOR EASY INSTALLATION
With a length of 170mm, the rtx 4060 graphics card can be easily installed in most small cases.

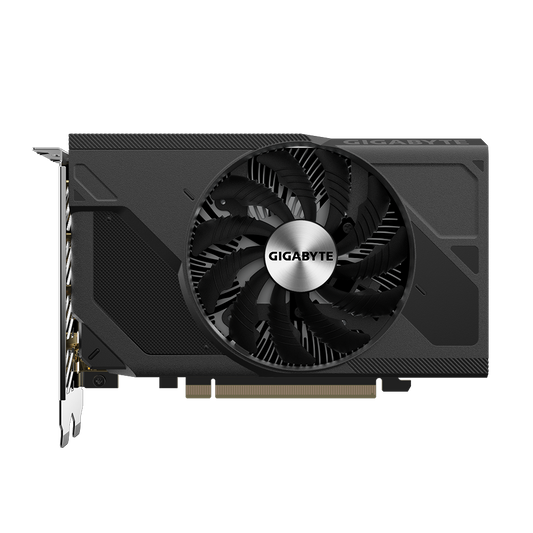

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
ULTRA DURABLE
-
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
-
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
-
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications of GIGABYTE GeForce RTX 4060 D6 8GB Nvidia Graphic Card
| Graphics Processing | GeForce RTX™ 4060 |
| Core Clocks | 2460Mhz |
| Cuda Cores | 3072 |
| Memory Clock | 17 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 Bit |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680×4320 |
| Multi View | 4 |
| Card Size | L=170 W=120 H=40 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| Open GL | 4.6 |
| Recommended PSU | 450W |
| Power Connectors | 8 Pin*1 |

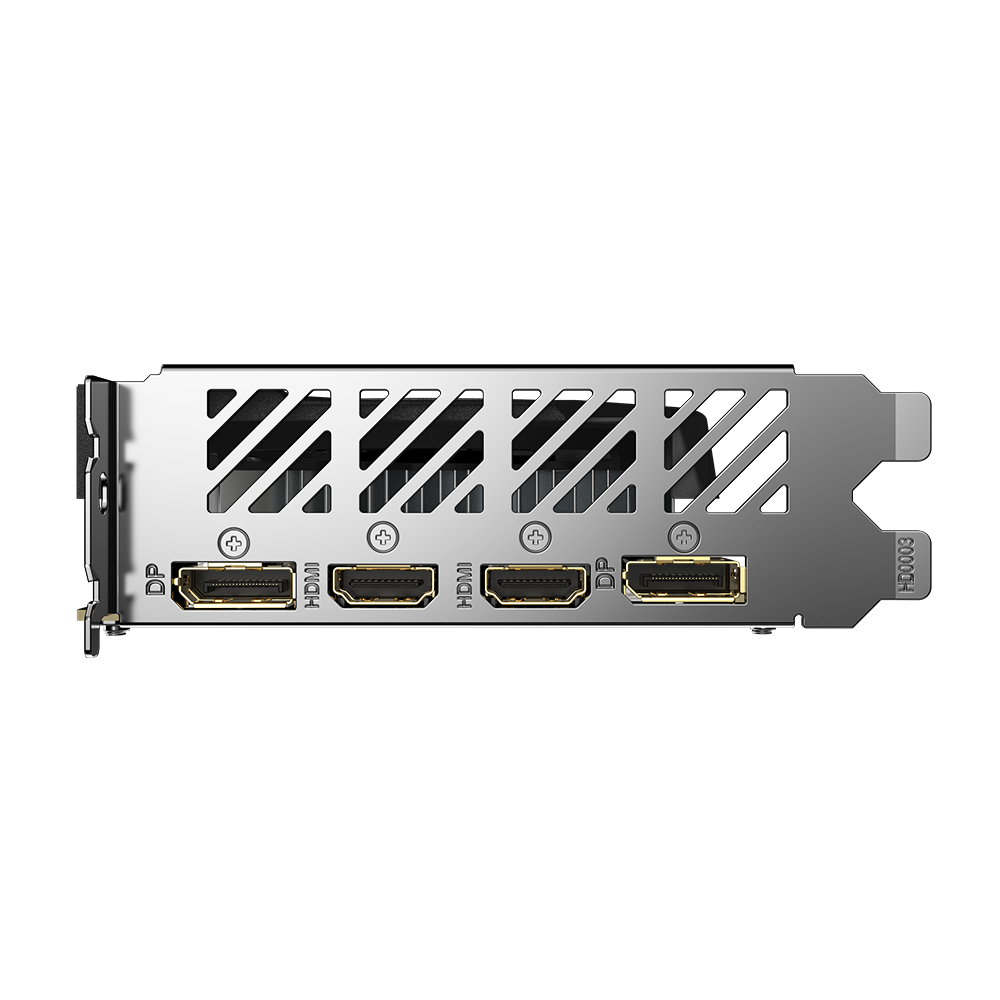

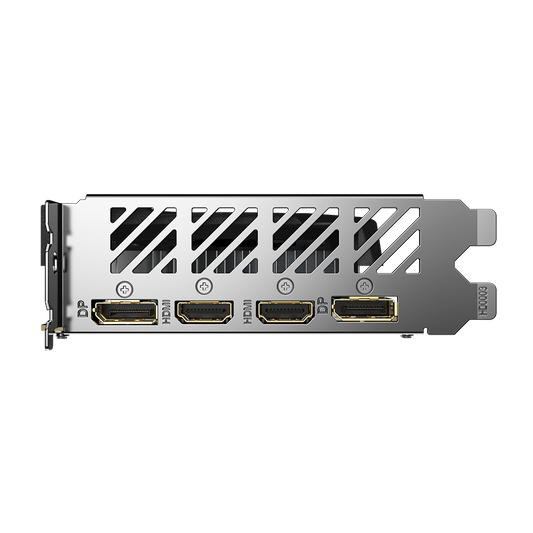

| Output | DisplayPort 1.4a *2 HDMI 2.1a *2 |
| Accessories | Quick Guide |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
