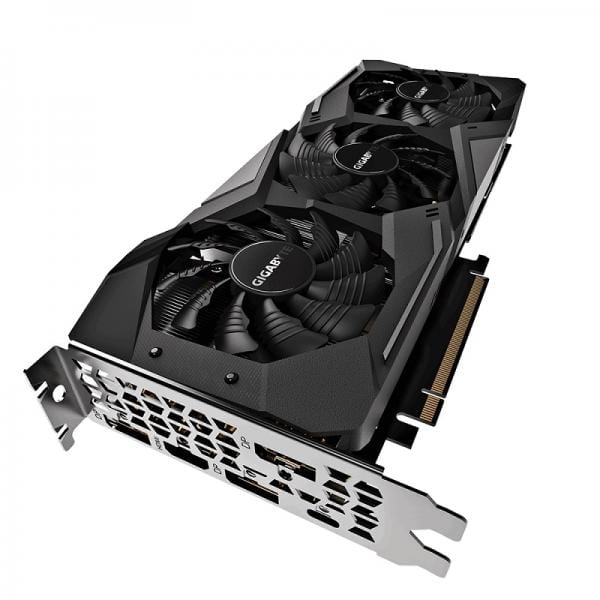

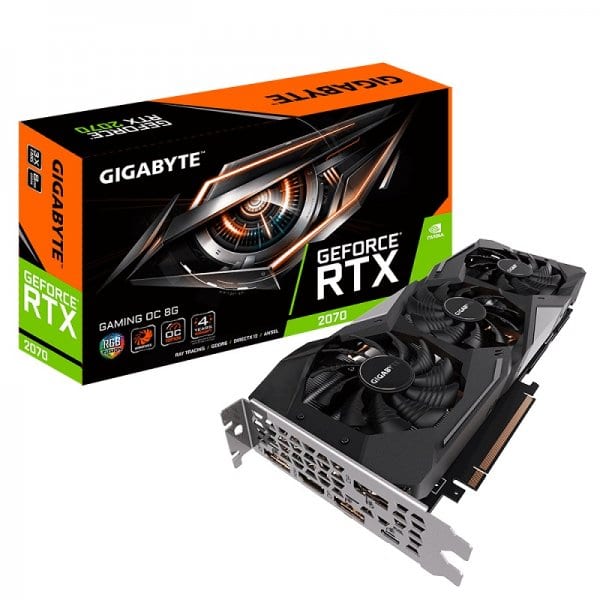

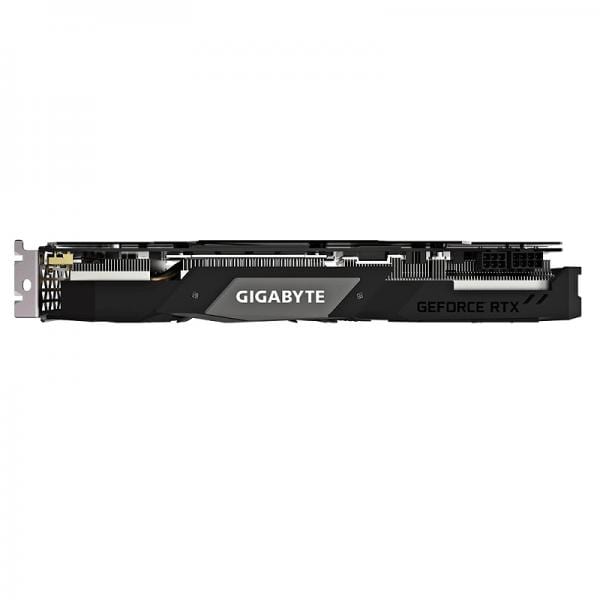

- GIGIABYTE GeForce RTX 2070 Gaming OC 8GB Nvidia Graphic Card
Description
Features of GIGIABYTE GeForce RTX 2070 Gaming OC 8GB Nvidia Graphic Card
Powered by GeForce RTX™ 2070
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – synchronize with other AORUS devices
Metal Back Plate
4 Years Warranty (Online registration required)

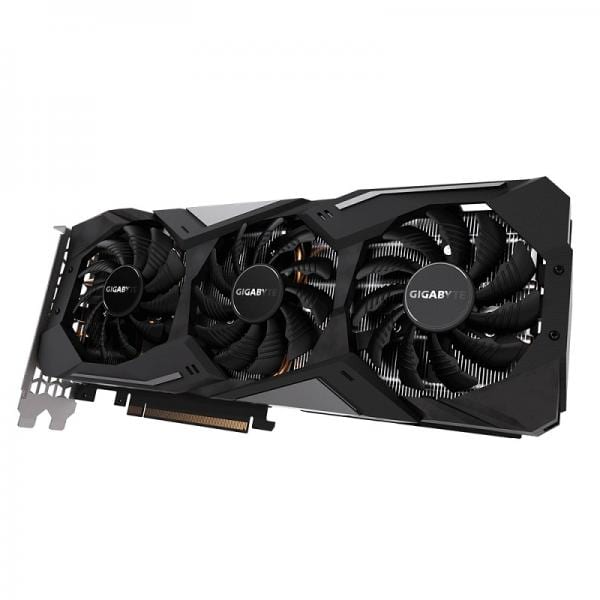

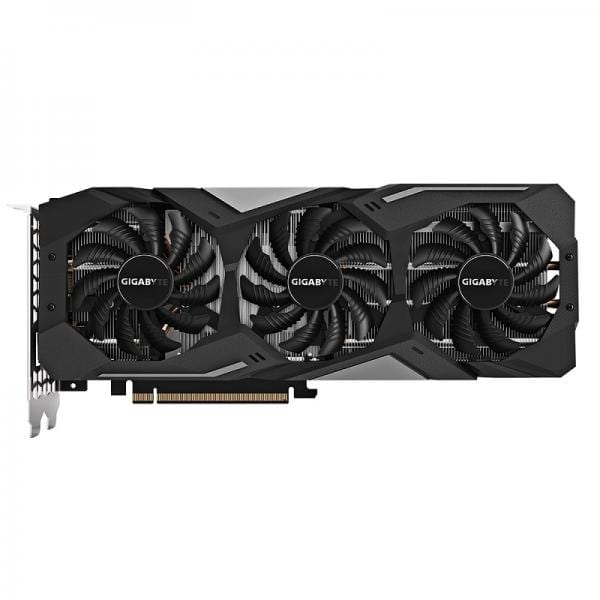

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the vga card for pc, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
game in styleRGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. RGB Fusion 2.0
Extreme durability and overclocking
The graphics card uses the 8+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

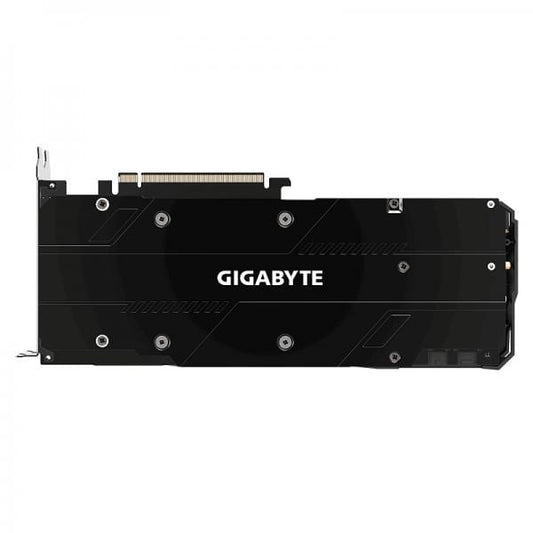

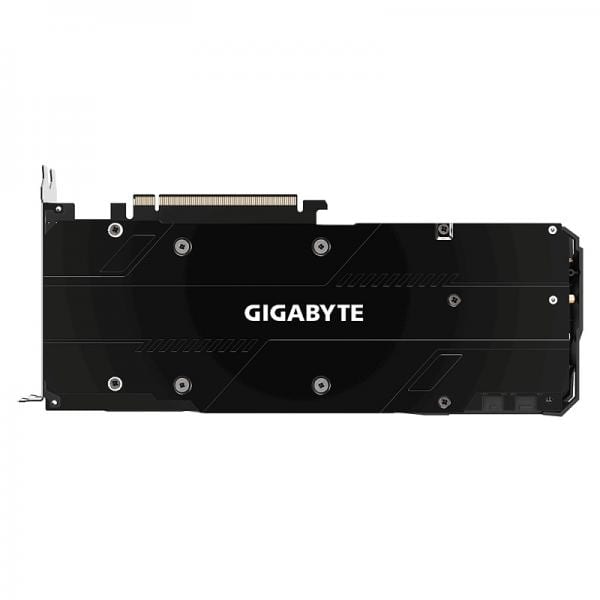

Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
4 years warranty
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
- WINDFORCE 3X COOLING SYSTEM
- ALTERNATE SPINNING
- UNIQUE BLADE FAN
- 3D ACTIVE FAN
- HEAT PIPES DIRECT TOUCH
- COMPOSITE HEAT-PIPES
Specifications of GIGIABYTE GeForce RTX 2070 Gaming OC 8GB Nvidia Graphic Card
| Chipset | GeForce® RTX 2070 |
| Core Clock |
OC mode: up to 1740 MHz Gaming mode: up to 1725 MHz (Reference card: 1620 MHz) |
| RTX-OPS |
46 in OC mode 45 in Gaming mode |
| CUDA® Cores | 2304 |
| Memory Clock | 14000 MHz |
| Memory Interface | 8GB GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth | 448 GB/s |
| Card Bus | PCI-E 3.0 x 16 |
| Resolution | 7680x4320@60Hz |
| Multi-view | 4 |
| Dimension | 280.35x116.45x40.24 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.6 |
| Recommended PSU | 550 W |
| Power Connectors |
8 Pin*1 6 Pin*1 |

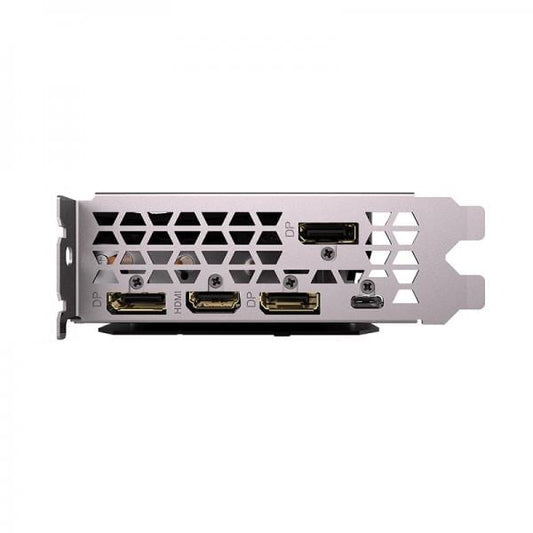

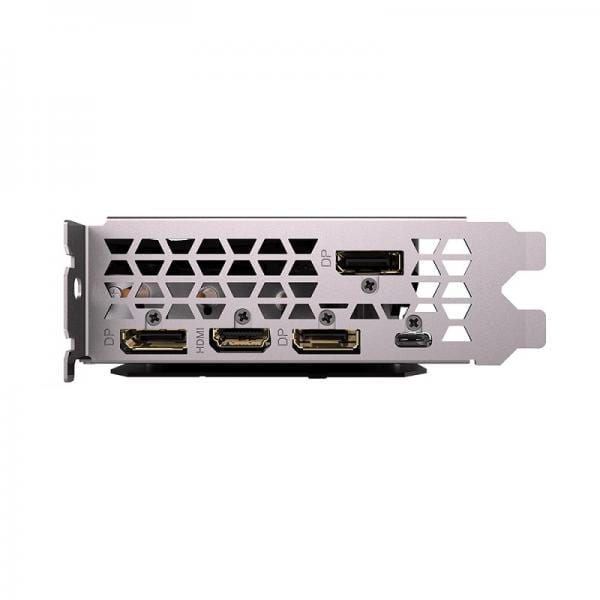

| Output |
DisplayPort 1.4 *3 HDMI 2.0b *1 USB Type-CTM(support VirtualLinkTM) *1 |
| SLI Support | No |
| Accessories |
Quick guide Driver CD |
| Warranty | 3 Years |
| Note | Price, feature and specifications are subject to change without notice. |
