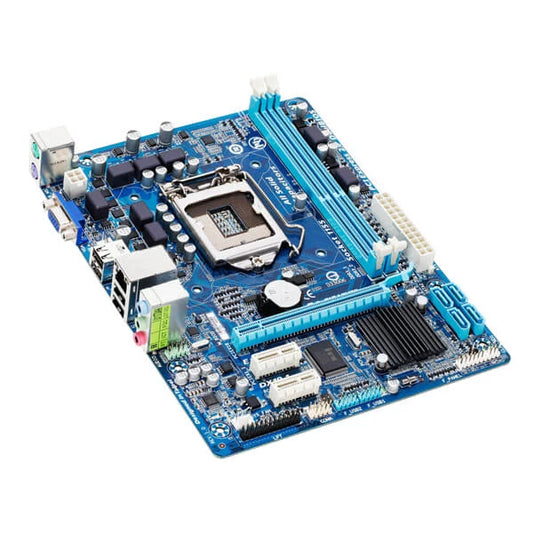

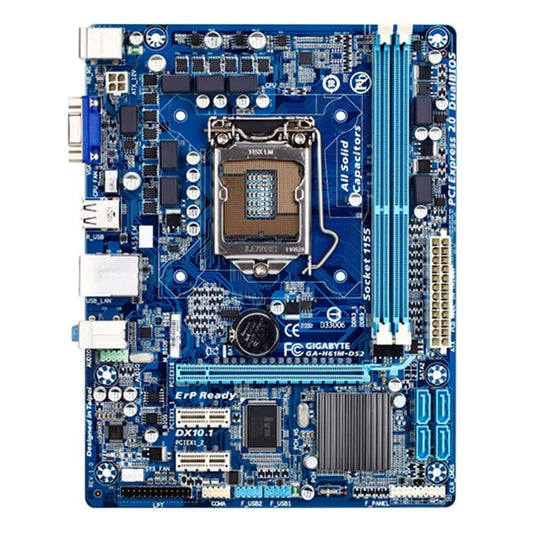

- GIGABYTE GA-H61M-DS2 DDR3 Intel Motherboard
Description
Features of GIGABYTE GA-H61M-DS2 DDR3 Intel Motherboard
- All new design of Ultra Durable 4 classic
- Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
- Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
- Supports 3rd generation PCI-Express interface
- Industry's Leading All Solid Capacitor Design
- Touch BIOS™ delivers No Need for Reboot to more easily modify BIOS settings
- Enhanced Intel HD Graphics 2000/3000 integrated with the processor
- Innovative Smart 6 technology for smarter PC management
- DualBIOS™ protection with 3TB+ HDD boot up capability
Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Electrostatic Protection
GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.
Power Failure Protection
Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
High Temperature Protection
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.
Designed for PCI Express Gen.3 Support
The GIGABYTE GA-H61M-DS2 motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
Intel® HD Graphics Core 2000/3000 Enhanced Visual Features
Intel® Quick Sync Video
Intel® Quick Sync Video provides breakthrough media processing for incredibly fast editing and sharing.
Intel® InTru™ 3D
2nd Generation Intel® Core™ Processors offer an outstanding Blu-Ray Stereo 3D experience in full high definition resolution (1080p) with HDMI 1.4.
Intel® Advanced Vector Extensions (AVX)
Increases the performance of Accelerated Floating Point and Vector Computing Intensive Applications with minimal power gains.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger
DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology)
Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website.
GIGABYTE DualBIOS™ is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive
Specifications of GIGABYTE GA-H61M-DS2 DDR3 Intel Motherboard
CPU |
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU |
Chipset | Intel® H61 Express Chipset |
Memory |
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules |
Onboard Graphics | 1 x D-Sub port |
Audio |
Realtek ALC887 audio codec High Definition Audio 2/4/5.1/7.1-channel |
LAN | 1 x Atheros GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots |
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
Storage Interface |
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
|
USB |
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x serial port header 1 x clearing CMOS jumper |
Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) |
I/O Controller | iTE IT8728 chip |
H/W Monitoring |
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU fan speed control |
BIOS |
2 x 32 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
Unique Features |
Support for @BIOS
Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Smart 6™ Support for Auto Green Support for ON/OFF Charge Support for Cloud OC Support for 3TB+ Unlock Support for Q-Share |
Bundled Software | Norton Internet Security (OEM version) |
Operating System | Support for Microsoft® Windows® 8/7/Vista/XP |
Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
Warranty | 3 Years |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
