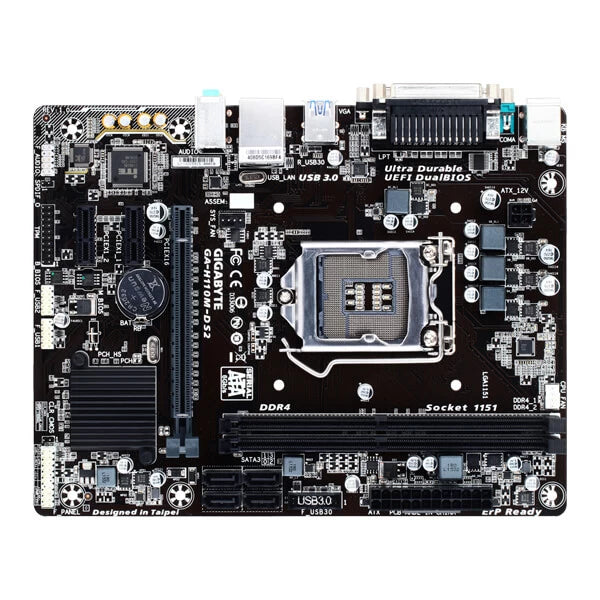

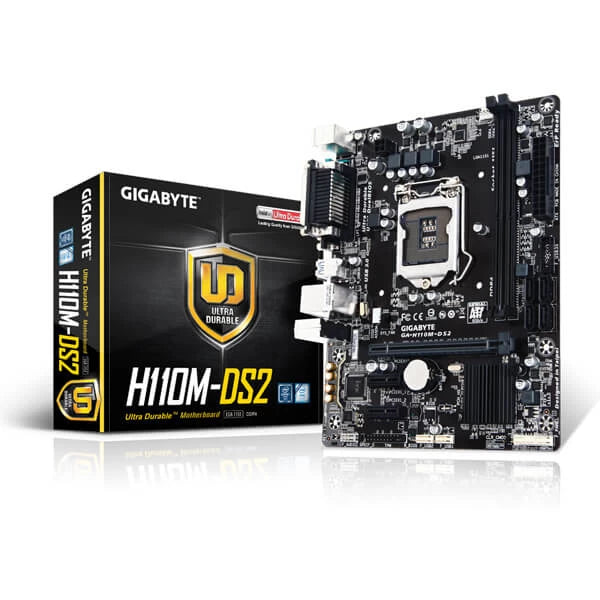

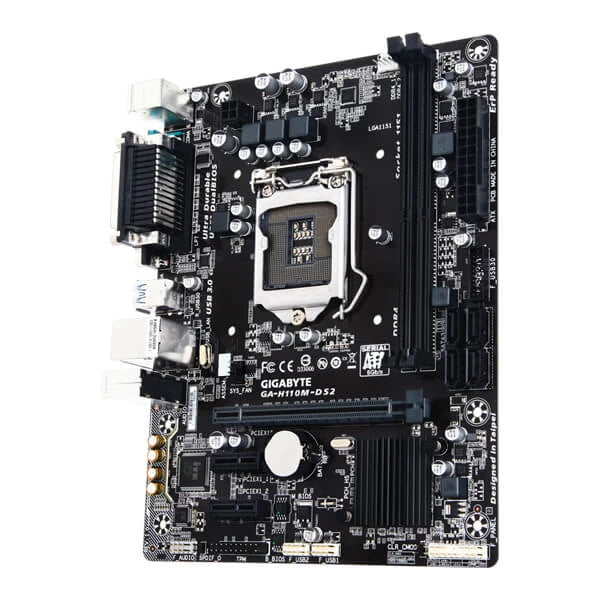

- GIGABYTE GA-H110M-DS2 DDR4 Intel Motherboard
Description
Features of GIGABYTE GA-H110M-DS2 DDR4 Intel Motherboard
- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4, 2 DIMMs
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
- All new GIGABYTE™ APP Center, simple and easy use
- GIGABYTE UEFI DualBIOS™ Technology
- Support Intel® Small Business Basics
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.
Humidity Protection with Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
High ESD Ethernet & USB Port Protection
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
High Temperature Protection of Lower RDS(on) MOSFETs Design
GIGABYTE GA-H110M-DS2 use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes significant less power when it’s in idle state in comparison with others.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
USB 3.0 Ports Onboard
With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
INTEL® SMALL BUSINESS BASICS
With 6th Generation Intel® Core™ Processor
Security and Productivity Solution with built in IT
New compelling usages in one intuitive Customizable UI
Specifications of GIGABYTE GA-H110M-DS2 DDR4 Intel Motherboard
CPU |
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU |
Chipset | Intel® H110 Express Chipset |
Memory |
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
Onboard Graphics |
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Maximum shared memory of 1024 MB |
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
Expansion Slots |
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
Storage Interface | 4 x SATA 6Gb/s connectors |
USB |
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |

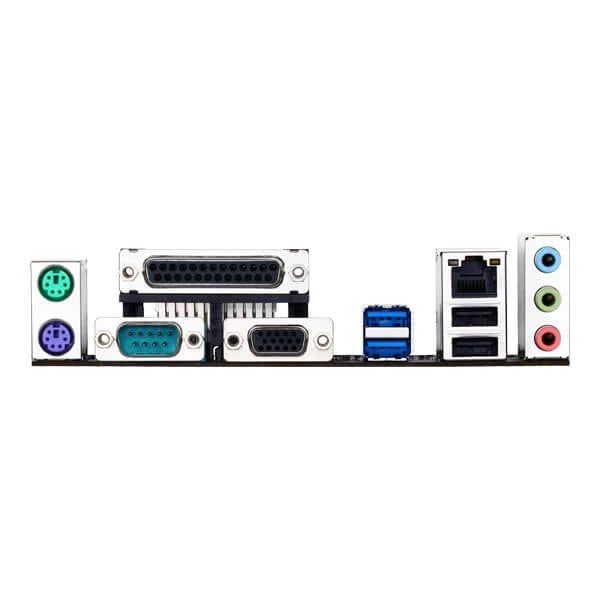

Back Panel Connectors |
1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control |
BIOS |
2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
Bundled Software |
Norton® Internet Security (OEM version) cFosSpeed |
Operating System |
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) |
Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
Warranty | 3 Years |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
