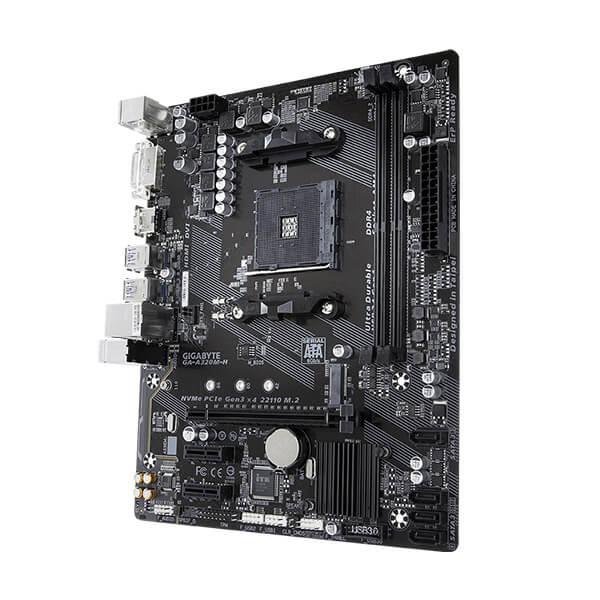

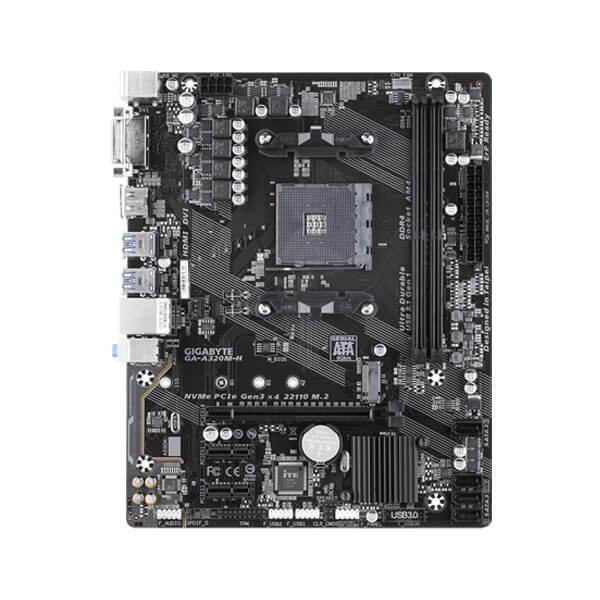

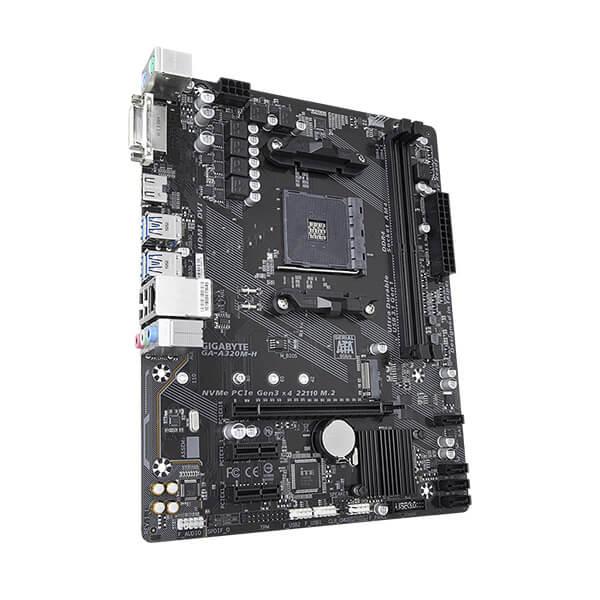

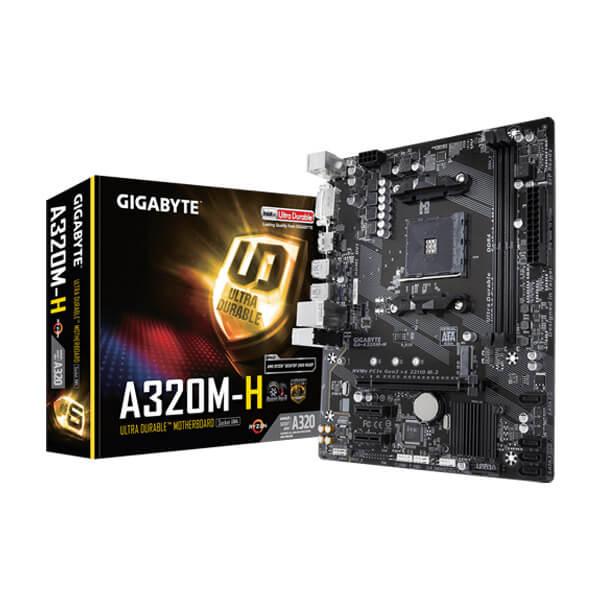

Gigabyte GA-A320M-H Motherboard
Features:
- Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- GIGABYTE™ UEFI BIOS
- All New GIGABYTE™™ APP Center, Simple and Easy Use
Specification:
| CPU |
AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD A320 |
| Memory |
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules* Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version. Maximum shared memory of 2 GB * Actual support may vary by CPU. |
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16)* Actual support may vary by CPU.(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Storage Interface |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)* Actual support may vary by CPU.* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
| USB |
Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |

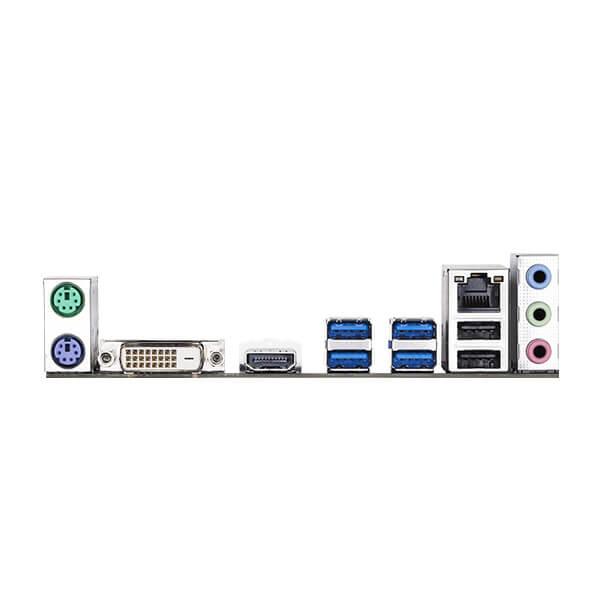

| Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOS3D OSDAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeSmart BackupSmart Keyboard Smart TimeLock System Information Viewer USB BlockerSupport for Q-Flash Support for Xpress Install |
| Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed |
| Operating System |
Support for Windows 10 64-bit Support for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
