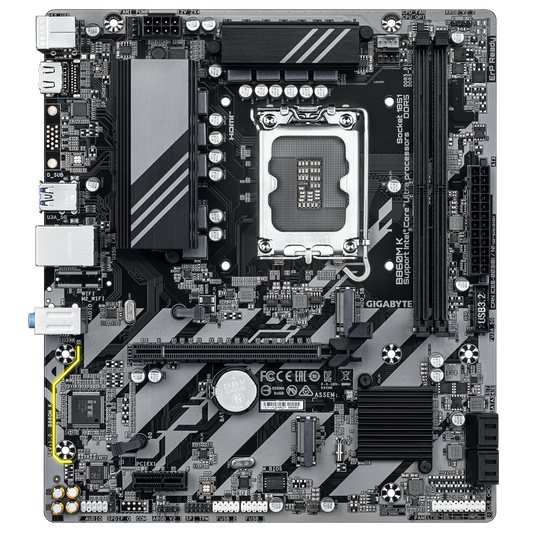

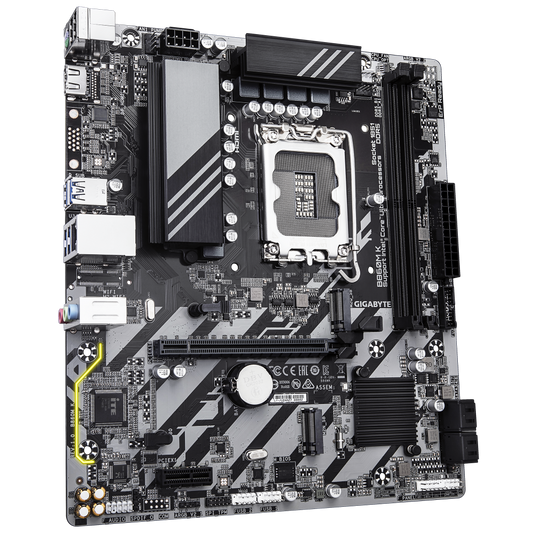

- GIGABYTE B860M K DDR5 Intel Motherboard
Description
Features of GIGABYTE B860M K DDR5 Intel Motherboard
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Effortlessly Boost Your DDR5 Memory Speed
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
Boost instantly
Instant memory performance uplift
Hands-off memory tuning
Eliminate manual entry of complex memory settings such as clock, voltage, and timings.
Hassle-free overclocking
Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies.
Incorporated database
Built-in library of pre-optimized configurations for diverse memory chip suppliers.
Boost DDR5 Memory Performance with Optimized Tuning:
Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance.
Customizable SPD Profiles or retrieve from database:
Create and transfer two custom SPD profiles between systems.
Quick Performance Simulator:
Rapidly assess potential memory performance by entering clock speeds and timing parameters.
Profile Management:
Store and retrieve memory configurations for online sharing.
Unlock non-overclockable DDR5 Potential:
Enhance clock speeds of non-overclockable DDR5 modules.
Instant Reset:
Revert memory settings with a single click.
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance CPU & DDR5 speeds with a single click.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networking : GbE LAN
- Extended Connectivity : HDMI
Specifications of GIGABYTE B860M K DDR5 Intel Motherboard
| Model | B860M-K |
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface | Chipset: - 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header j 1 x Clear CMOS jumper |

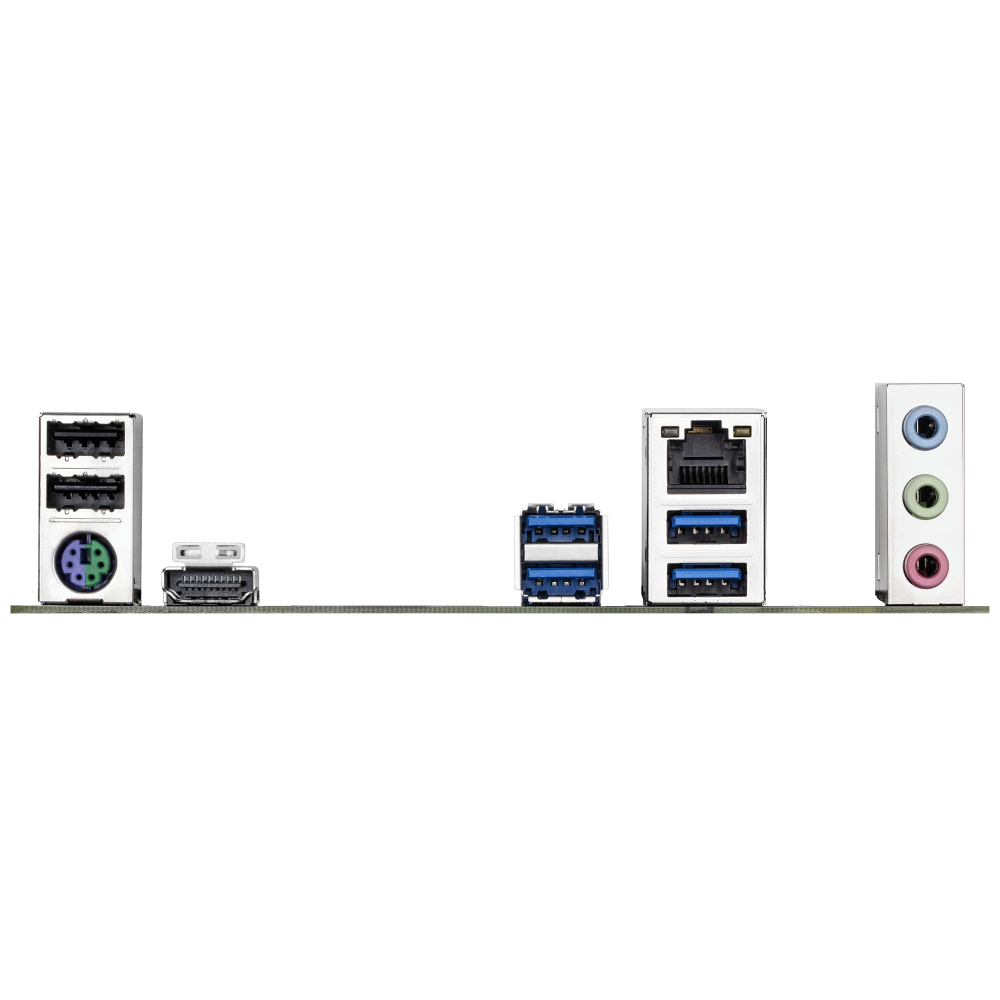

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x HDMI port* 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU. |
| I/O Controller | iTE®I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
