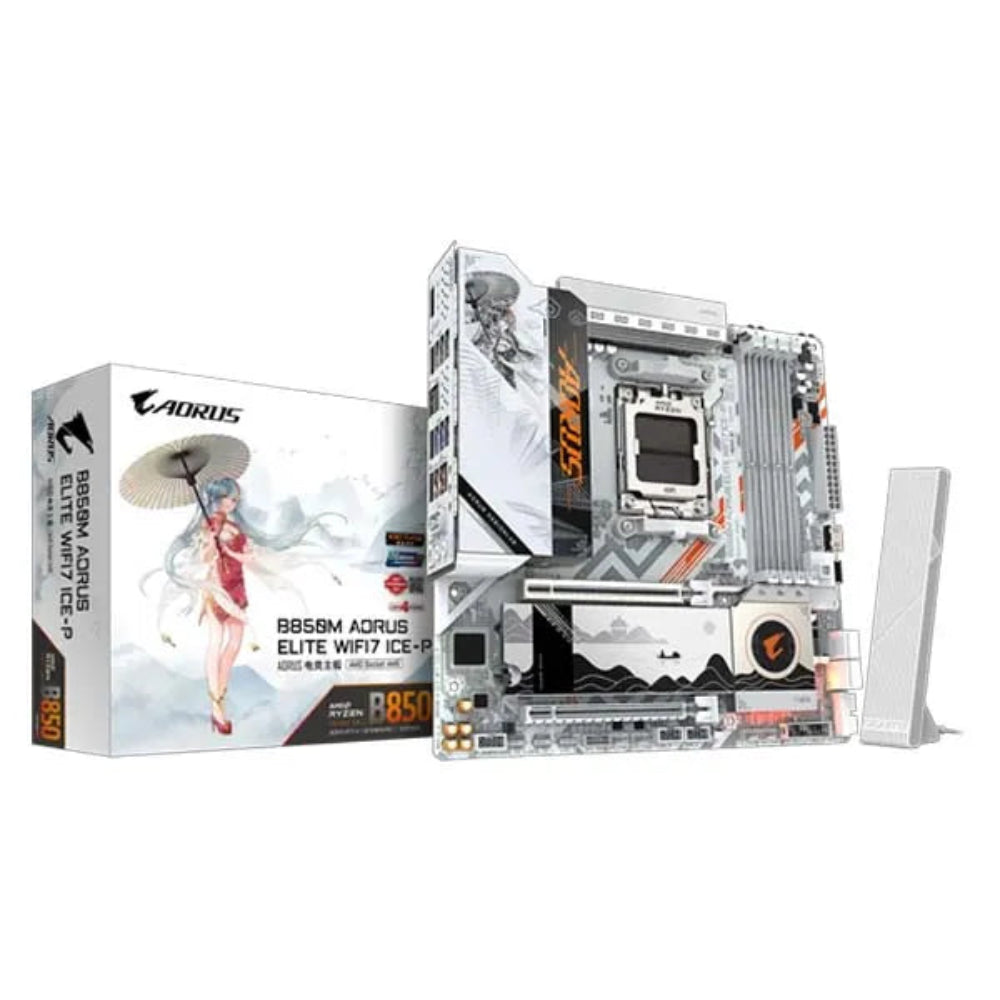

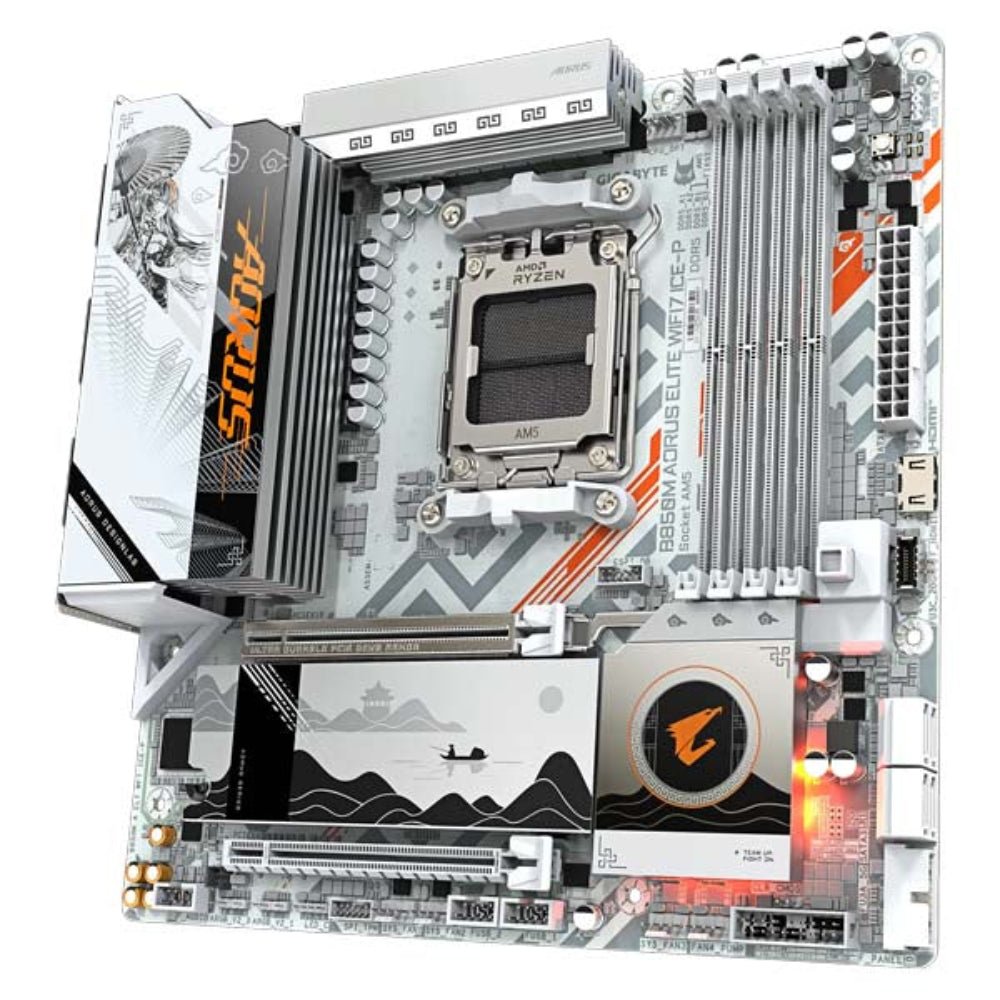

- GIGABYTE B850M Aorus Elite ICE-P Wifi7 DDR5 AMD Motherboard
Description
Features of GIGABYTE B850M Aorus Elite ICE-P Wifi7 DDR5 AMD Motherboard
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
One-Click Acceleration:
Enhance Gaming FPS Performance with a single click.
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
AI-Driven PCB Technology
-Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
- AI-Via Fusion Technology Optimized vias & pads for signal integrity
- AI-Trace Technology Smart routing for peak performance
- AI-Layer Technology Tailored stackups for enhanced functionality
HyperTune BIOS – AI-Driven Advanced BIOS Optimization Technology
BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimization
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Memory
Infinite Memory Performance
Elite gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Sturdy VRM Design
Steady Power
Elite Series with steady power keeps your AI operation smooth.
Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Specifications of GIGABYTE B850M Aorus Elite ICE-P Wifi7 DDR5 AMD Motherboard
| Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | |
| Supported Memory | DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200/4800 MT/s |
| DIMM Sockets | 4 x DDR5 DIMM sockets |
| Maximum System Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel |
| Supported Memory Modules | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXtended Profiles for Overclocking (AMD EXPO™), Extreme Memory Profile (XMP) |
| Onboard Graphics | |
| Integrated Graphics | AMD Radeon™ Graphics |
| DisplayPort | 1 x, supporting 3840x2160@144 Hz (DisplayPort 1.4, HDR) |
| Front HDMI Port | 1 x, supporting 1920x1080@30 Hz (HDMI 1.4) |
| Audio | |
| Codec | Realtek® ALC1220 CODEC |
| Channels | 2/4/5.1/7.1-channel |
| S/PDIF Out | Yes |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | |
| Model | Realtek® Wi-Fi 7 RTL8922AE |
| Wi-Fi Standard | 802.11a, b, g, n, ac, ax, be (2.4/5/6 GHz) |
| Bluetooth | BLUETOOTH 5.4 |
| Expansion Slots | |
| PCIEX16 (CPU) | 1 x PCI Express x16 (varies by CPU: PCIe 5.0 x16, PCIe 4.0 x8, or PCIe 4.0 x4) |
| PCIEX4 (Chipset) | 1 x PCI Express x16 (PCIe 3.0, running at x4) |
| Storage Interface | |
| M.2 Connector (M2A_CPU) | 1 x, integrated in the CPU (PCIe 5.0 x4/x2 or PCIe 4.0 x4/x2) |
| M.2 Connector (M2B_CPU) | 1 x, integrated in the CPU (PCIe 4.0 x4/x2 or PCIe 4.0 x2) |
| SATA 6Gb/s connectors | 4 x |
| RAID Support | RAID 0, 1, 5, 10 for NVMe; RAID 0, 1, 10 for SATA |
| USB | |
| Back Panel Ports | 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 |
| Internal Headers | 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Other Ports | 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Connectors | |
| Power | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan Headers | 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump |
| RGB Headers | 3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip |
| Other Headers | 2 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB Type-C®, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x Trusted Platform Module, 1 x HDMI port, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |
| Back Panel Connectors | |

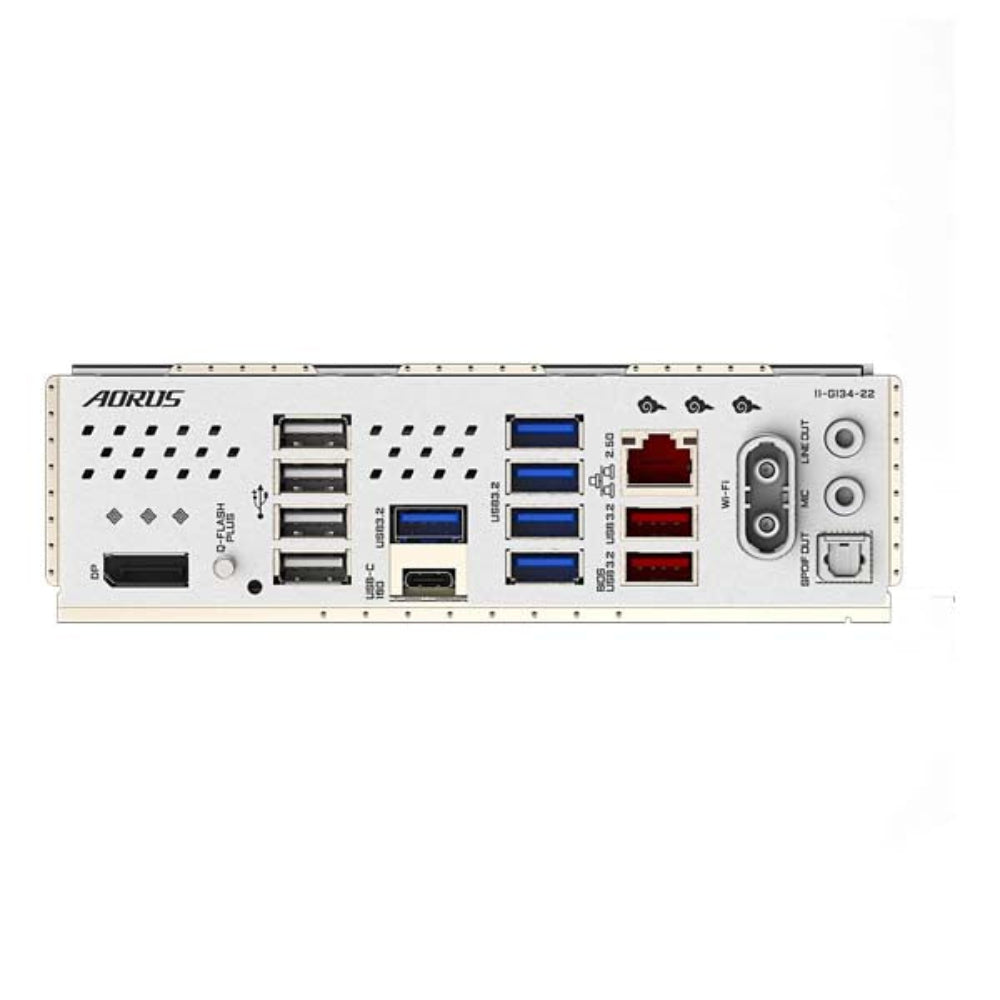

| Ports | 1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 5 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C®, 1 x RJ-45, 2 x antenna, 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
