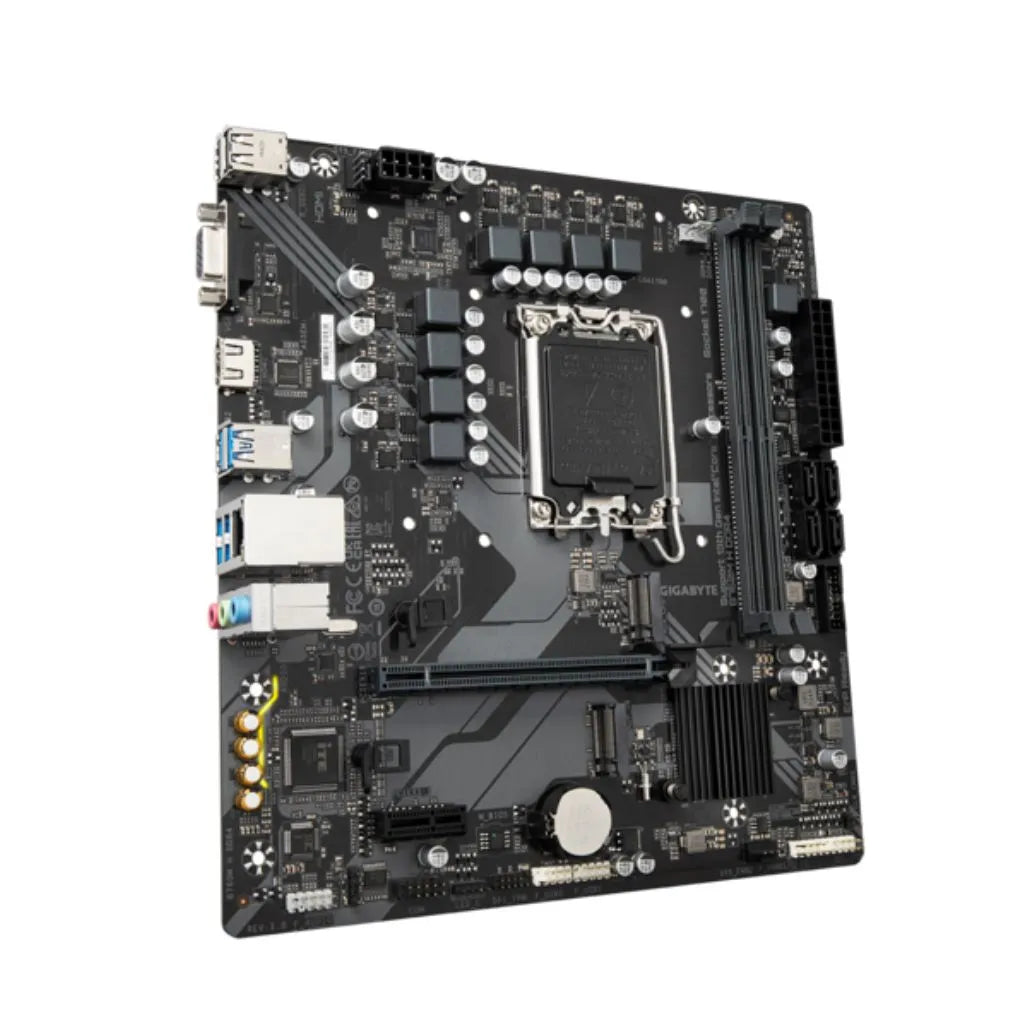

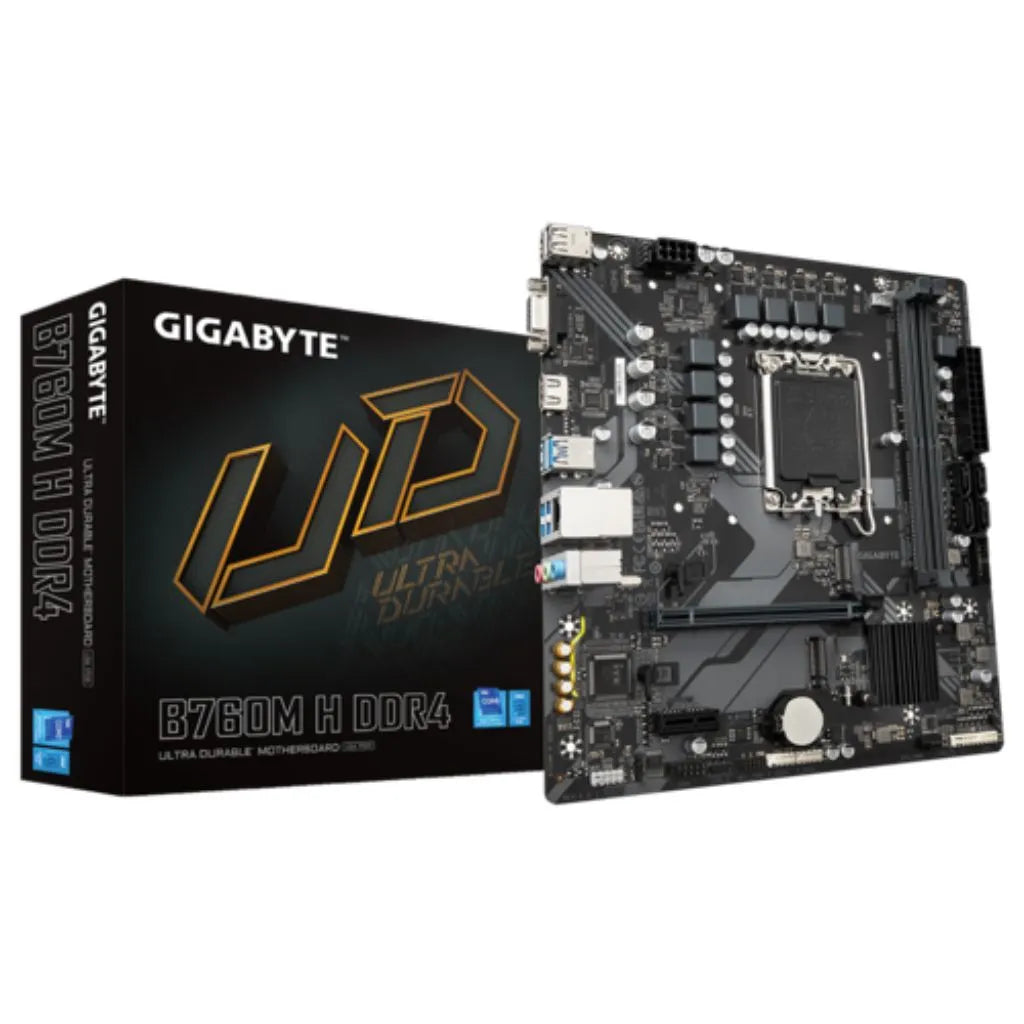

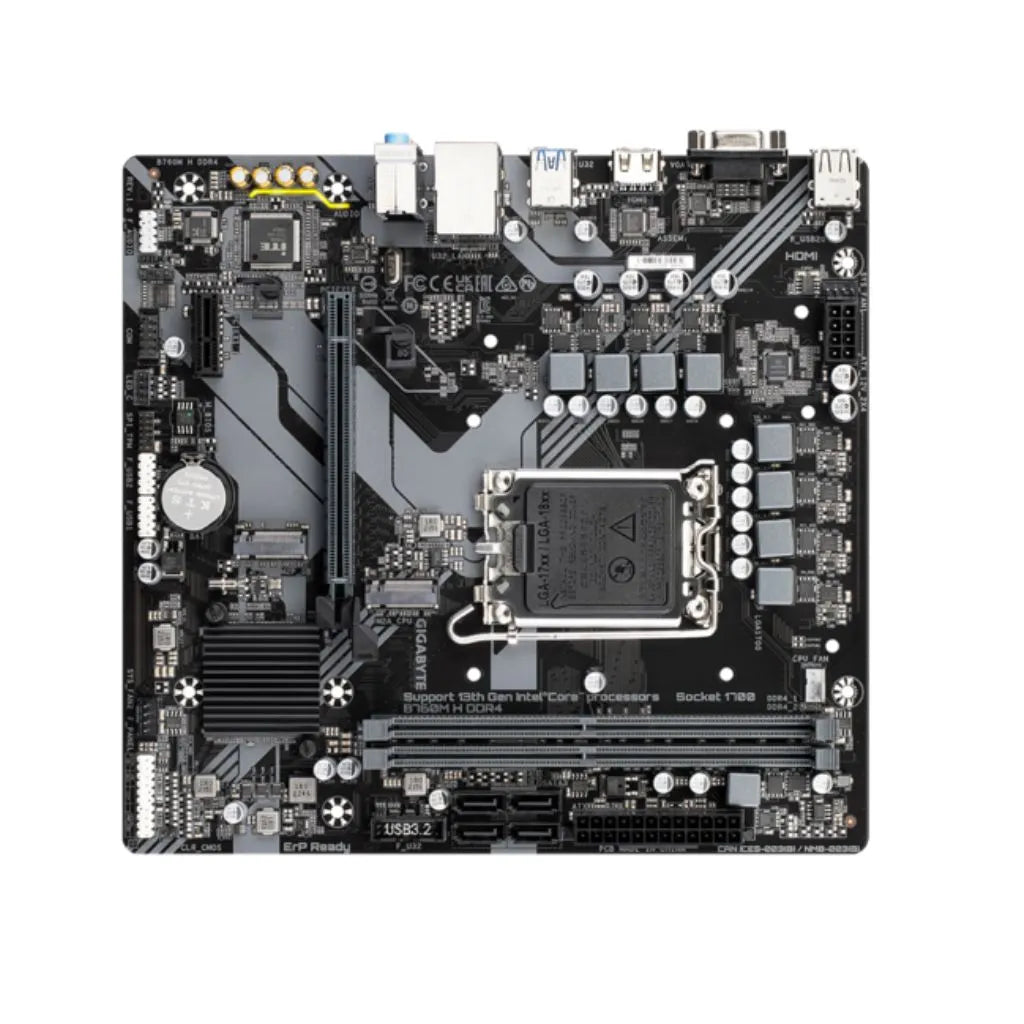

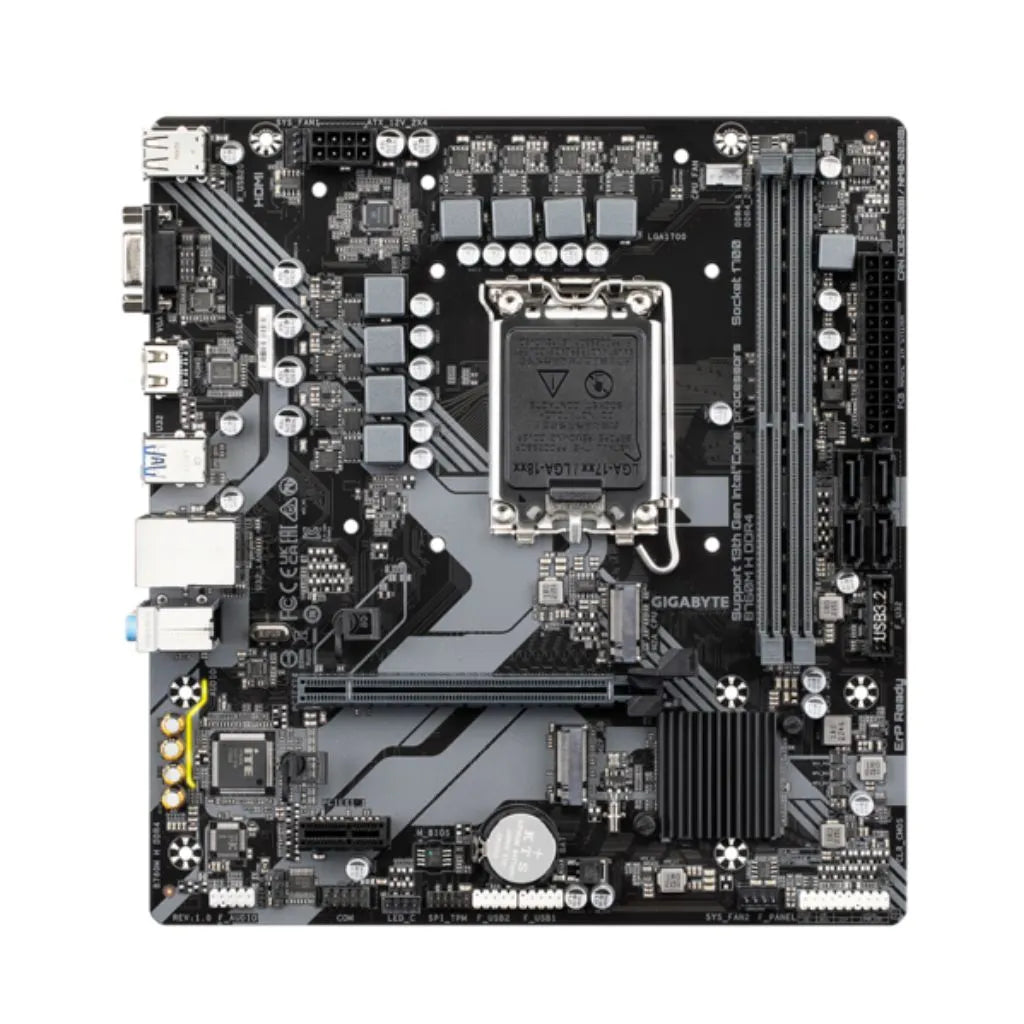

- GIGABYTE B760M-H DDR4 Intel Motherboard
Monsoon Sale Offer
Description
Features of GIGABYTE B760M-H DDR4 Intel
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2*DIMMs XMP Memory Module Support with GIGABYTE B760M-H
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
UNPARALLELED PERFORMANCE
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support - Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control - Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode - Slope/Stair dual mode for different user scenario
- Fan Stop - Fan can stop completely below users’ specified temperature point
Smart Fan 6 BIOS UI
Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input
For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating
BIOS.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
Specifications of GIGABYTE B760M-H DDR4 Intel
| Brand | Gigabyte |
| Series | B760 Motherboard Series |
| Model | B760M H DDR4 Rev 1.0 |
| CPU Support |
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
|
| Chipset | Intel B760 Express |
| Memory Support | |
|
Intel 13th Gen & 12th Gen Processors
|
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
|
|
2x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
|
|
| Dual channel memory architecture | |
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
|
| Video | |
| HDMI |
1x HDMI 2.0 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR
|
|
VGA D-Sub
|
1x VGA D-Sub port, supporting a maximum resolution of 1920×1200 @ 60Hz
|
|
Integrated Intel graphics required. Actual support may vary by CPU.
|
|
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical slot |
| Intel B760 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical slot |
| Storage | |
| CPU Direct |
1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
|
|
Intel B760 Chipset
|
1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
|
| 4x SATA 6Gb/s ports | |
|
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
|
|
| Networking | |
| LAN | Realtek Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
|
Codec
|
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
|
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
| Support for S/PDIF Out (internal header) | |
| Connectivity | |
|

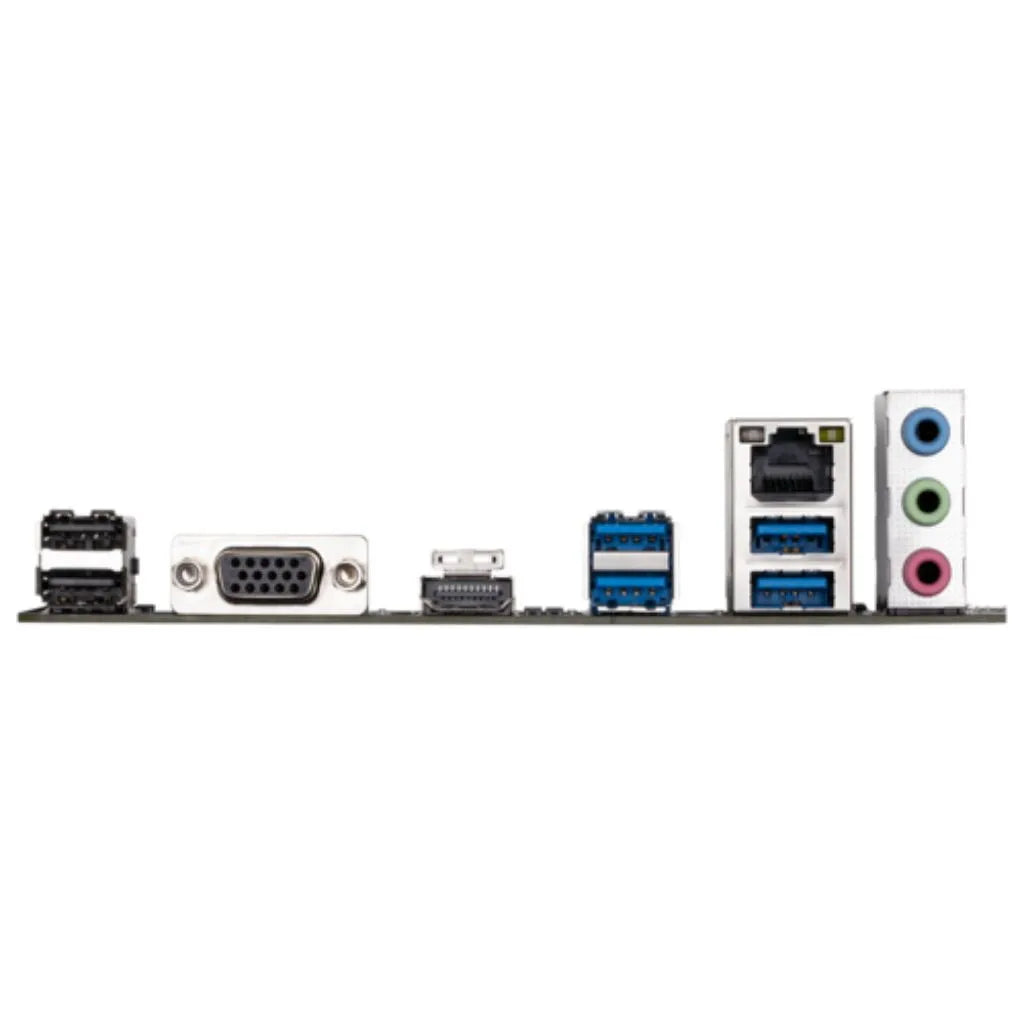

Ports
|
4x USB 5Gb/s Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.0 Port | |
| 1x VGA D-Sub Port | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN Port | |
| General | |
|
Internal Connectors
|
1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
|
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
|
|
| 1x serial port header | |
| 1x Clear CMOS jumper | |
| Buttons | N/A |
| LED Displays | N/A |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor, 230 x 215 mm (H x W) |
|
Operating System Support
|
Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
