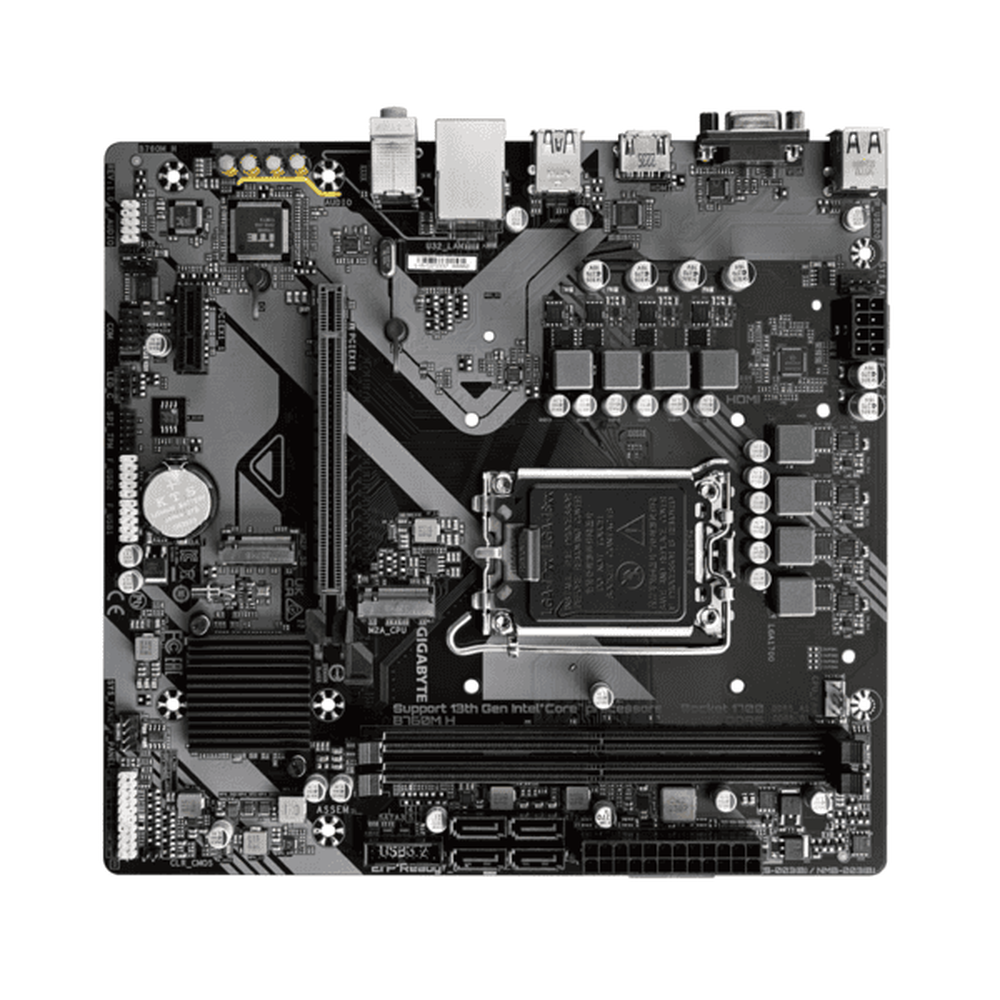

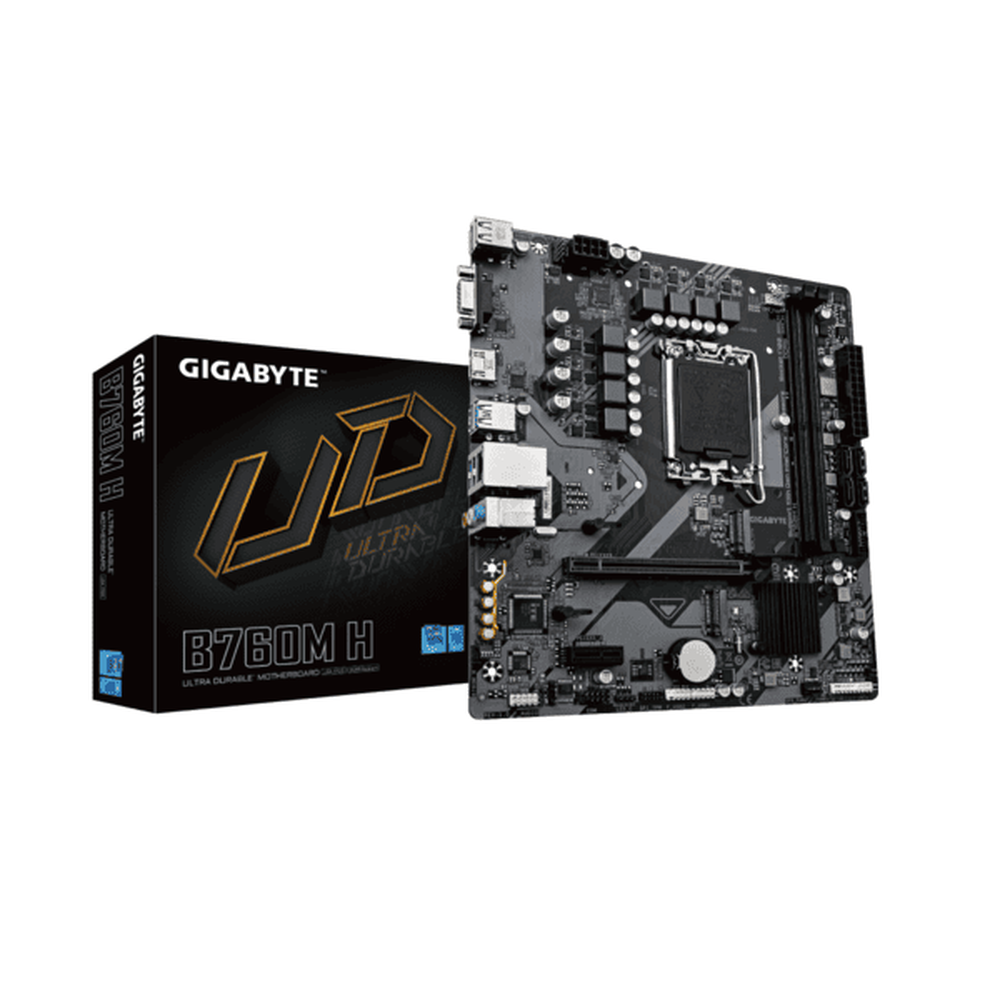

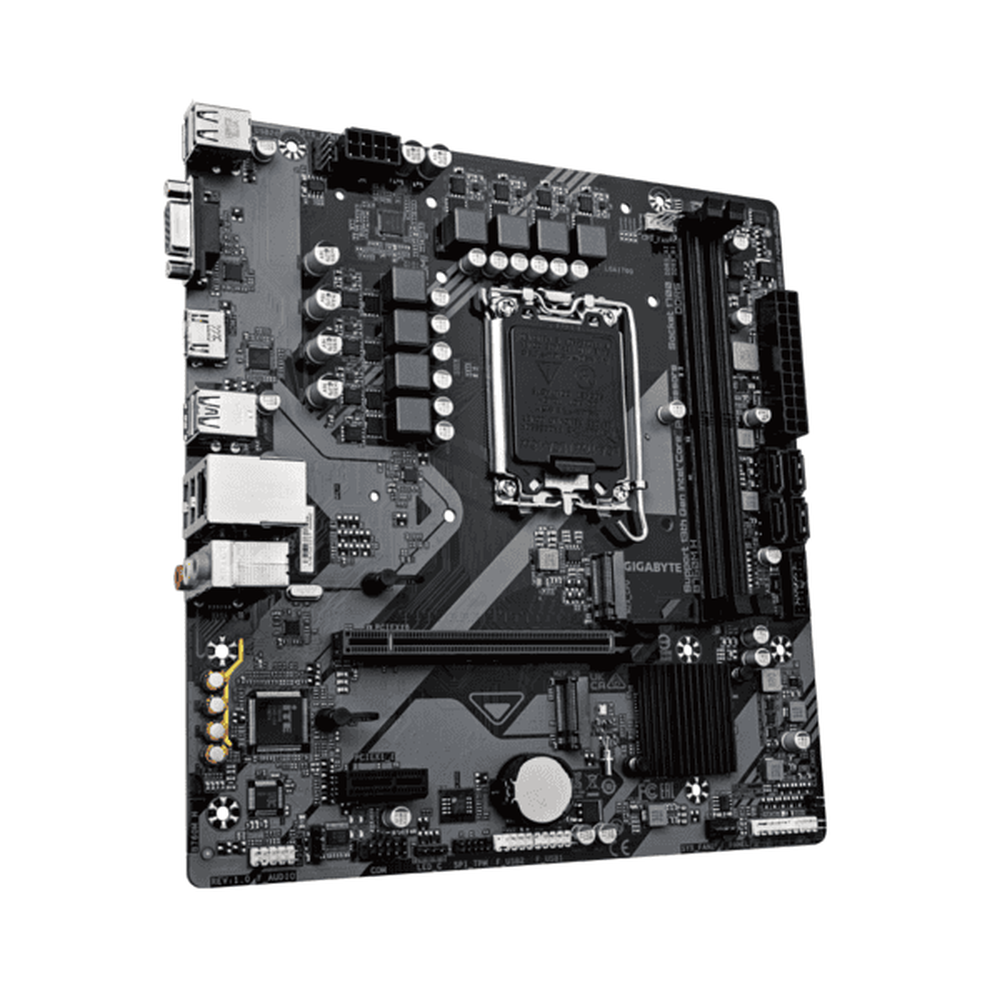

- GIGABYTE B760M-H DDR5 MATX Intel Motherboard
Description
Features of GIGABYTE B760M-H DDR5 MATX Intel Motherboard
- 6+1+1 Phases Low RDS(on) MOSFETs
- Premium Choke and Capacitors to improve transient response and minimize oscillation
GBE LAN with Bandwidth Management
GIGABYTE B760M-H DDR5 motherboard GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
UEFI Bios
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
Specifications of GIGABYTE B760M-H DDR5 MATX Intel Motherboard
MOTHERBOARD CHIPSET | INTEL B760 |
MOTHERBOARD FORM FACTOR | MICRO ATX |
MOTHERBOARD SOCKET | LGA 1700 |
CPU | LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors |
L3 cache varies with CPU | |
(Please refer to “CPU Support List” for more information.) | |
Chipset | Intel ® B760 Express Chipset |
Memory | 1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
3. Dual channel memory architecture | |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
6. Support for Extreme Memory Profile (XMP) memory modules | |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.0 version and HDCP 2.3. | |
(Graphics specifications may vary depending on CPU support.) | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
Support for S/PDIF Out | |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Expansion Slots | CPU: |
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
Chipset: | |
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
Storage Interface | CPU: |
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
– 4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
USB | Chipset: |
– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x CPU fan header | |
2 x system fan headers | |
1 x RGB LED strip header | |
2 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x S/PDIF Out header | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x serial port header | |
1 x Clear CMOS jumper | |

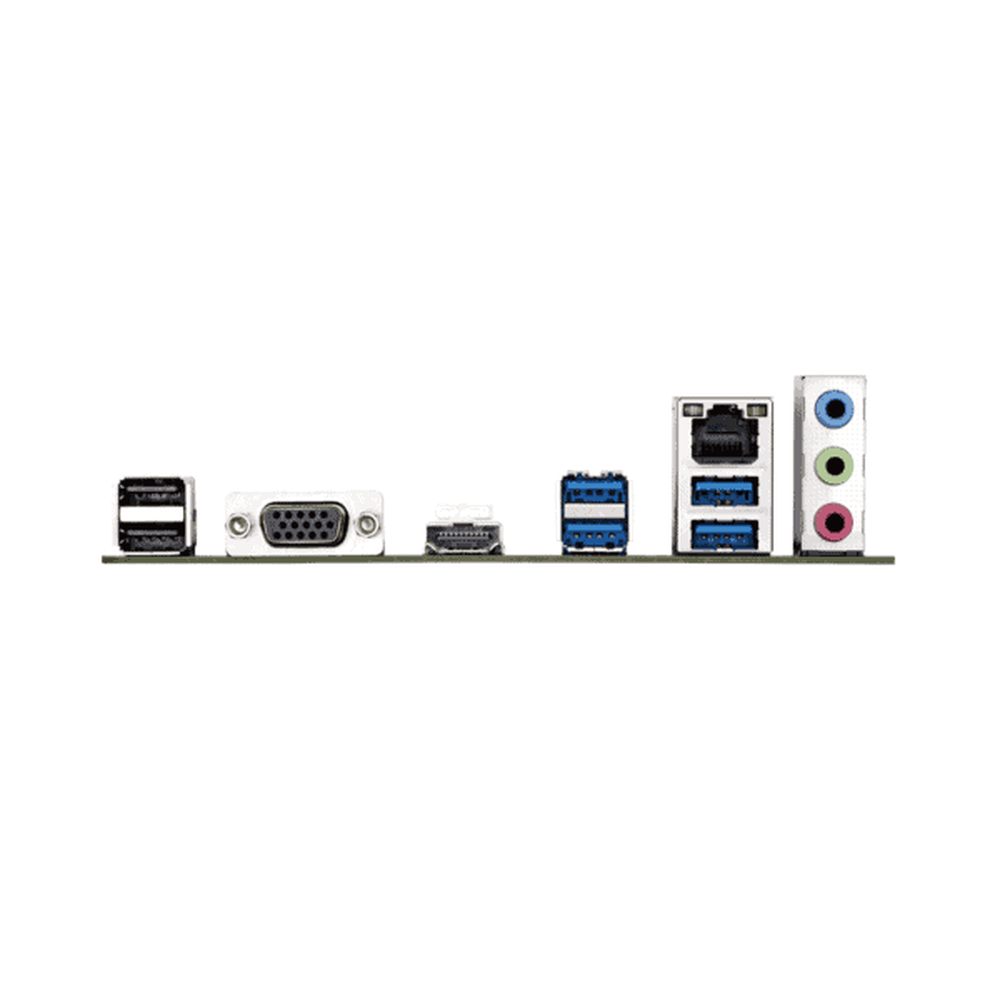

Back Panel Connectors | 2 x USB 2.0/1.1 ports |
1 x D-Sub port | |
1 x HDMI port | |
4 x USB 3.2 Gen 1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Fan speed detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
* Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS | 1 x 128 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
Support for Q-Flash | |
Bundled Software | Norton® Internet Security (OEM version) |
LAN bandwidth management software | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
