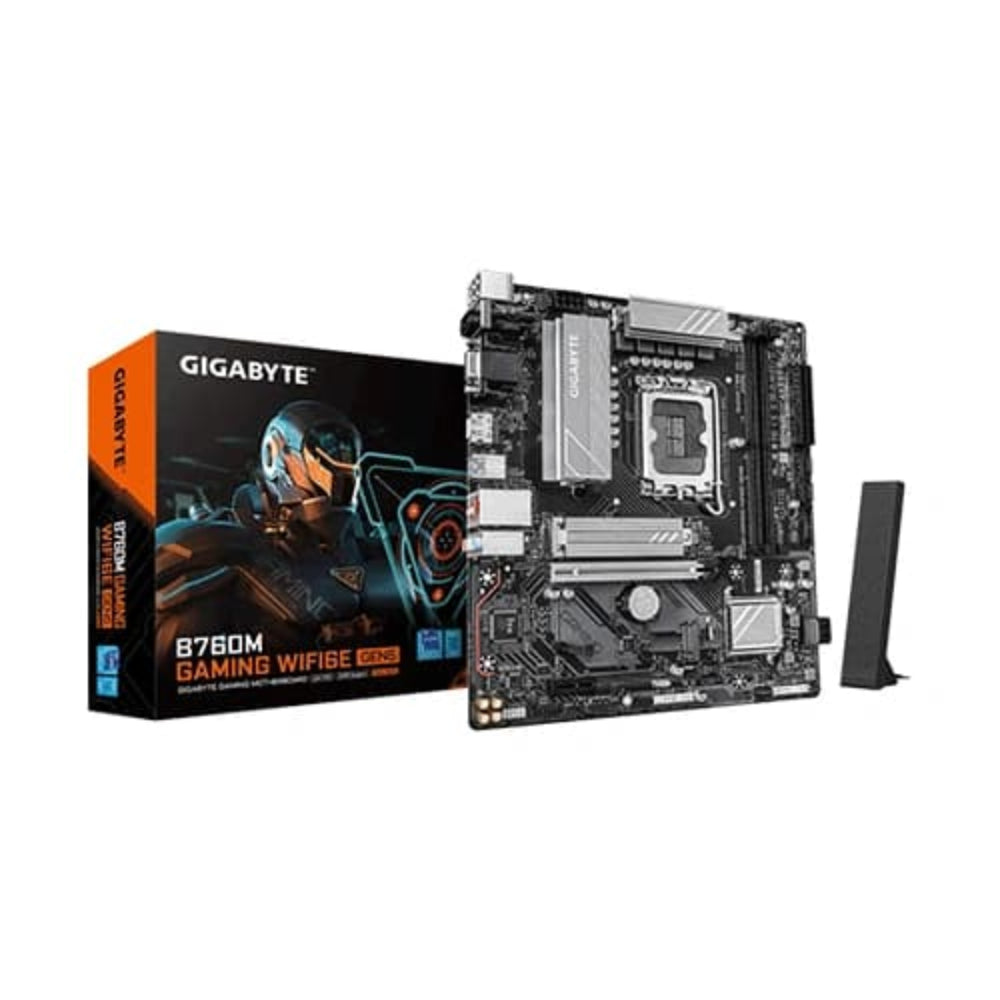

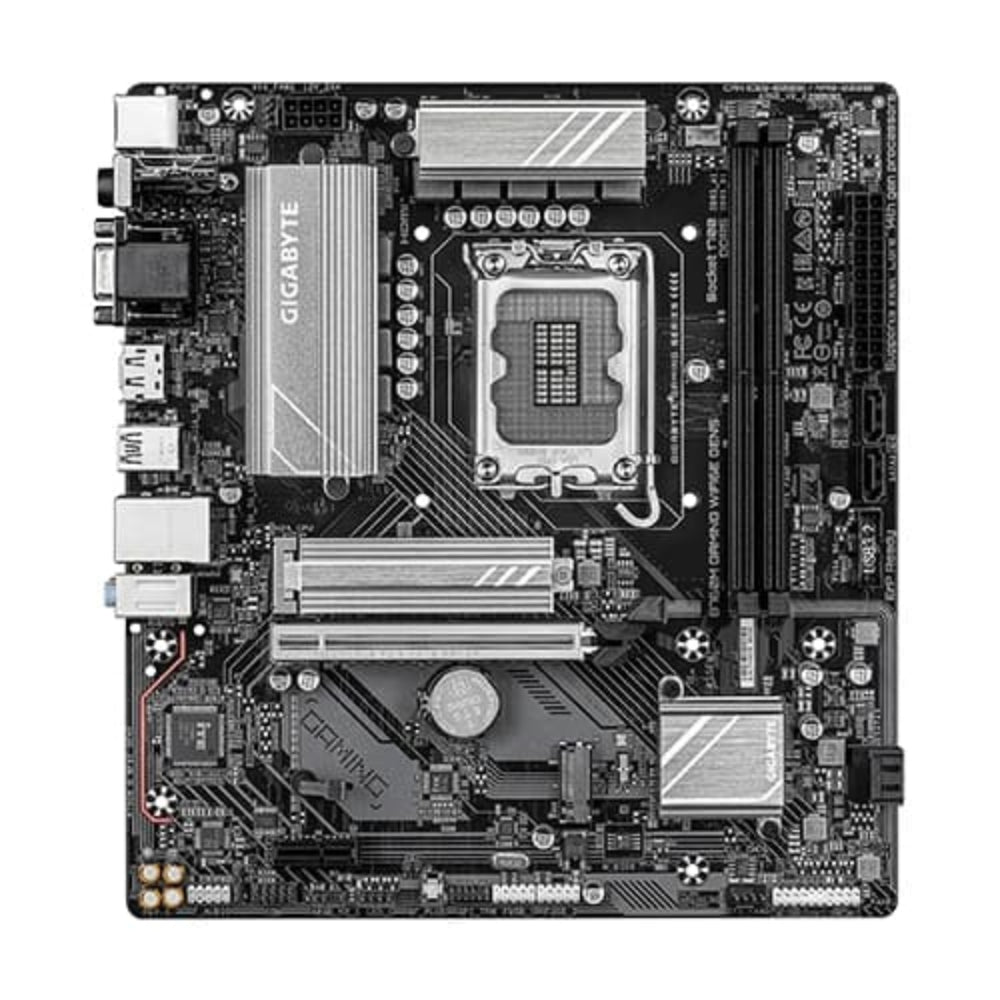

- GIGABYTE B760M Gaming Wifi6e DDR5 Intel Motherboard
Description
Features of GIGABYTE B760M Gaming Wifi6e DDR5 Intel Motherboard
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel Core 14th/ 13th /12th processors
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5 : 2*DIMMs XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ax
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform.PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5G LAN
Design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
WIFI Compass
features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
Specifications of GIGABYTE B760M Gaming Wifi6e DDR5 Intel Motherboard
| Product Code | B760M-GAMING-WIFI6E-GEN5 |
| Platform | INTEL |
| Socket | LGA 1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 8000 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 1x HDMI, 1x DisplayPort, 1x D-Sub |
| Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

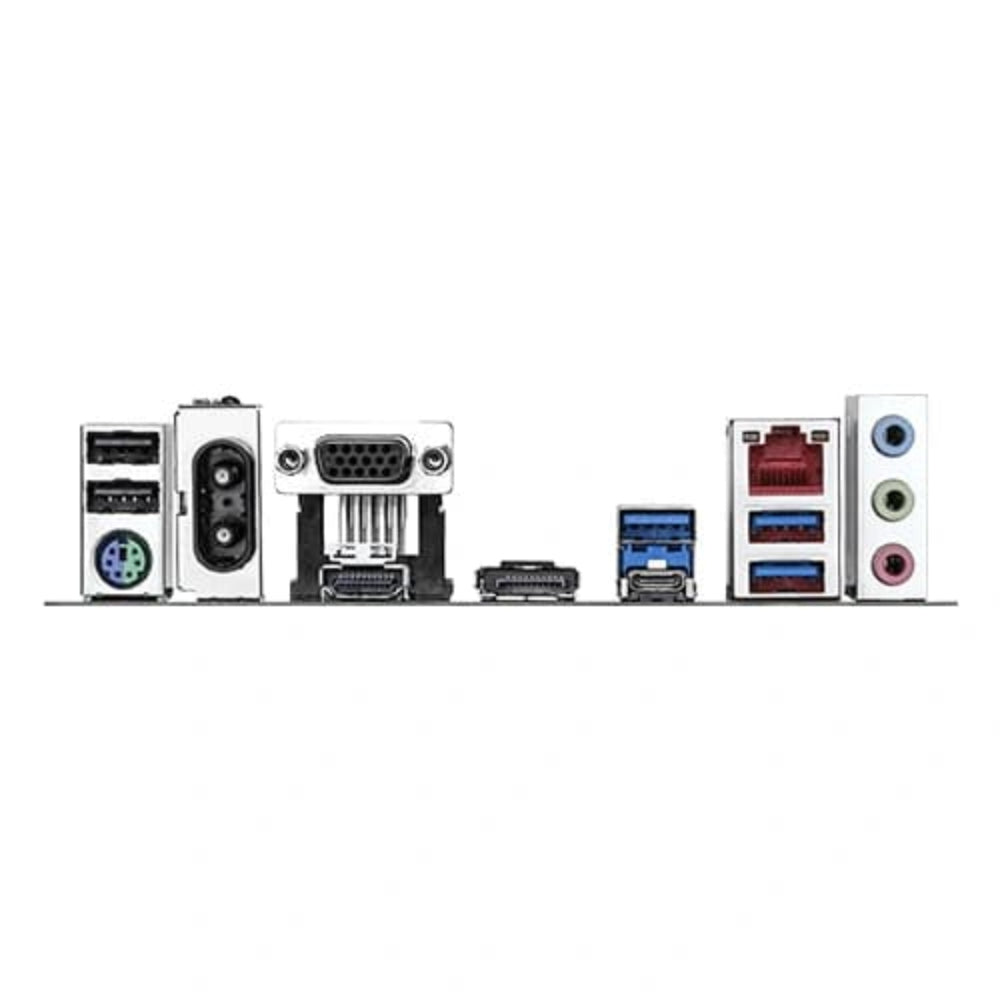

| Back Panel I/O Ports |
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
