Gigabyte B660 Aorus Elite Ax DDR4 Motherboard

GIGABYTE B660 Aorus Elite AX DDR4 Intel Motherboard

Out of stock

Rs. 15,810.00 Rs. 17,999.00

Discount: Rs. 2,189.00 (13%)

26 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of GIGABYTE B660 Aorus Elite AX DDR4 Intel Motherboard

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
Blazing Fast 2.5GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
Pre-installed IO Shield for easy and quick installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

B660 AORUS ELITE AX DDR4

Ever wonder why your system underperforms? You may be surprised how a motherboard could critically bottleneck the system performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step-up to be the best-in-class. Build Smart. Go ELITE.

UNPARALLELED PERFORMANCE

With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.â€‹

ADVANCED THERMAL SOLUTION

GIGABYTE B660 Aorus Elite AX Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming

CONNECTIVITY

GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Specifications of GIGABYTE B660 Aorus Elite AX DDR4 Intel Motherboard

CPU	1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
	2. L3 cache varies with CPU
	* Please refer to “CPU Support List” for more information.

Chipset	1. Intel® B660 Express Chipset

Memory	1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
	2. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)

Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)

Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
	4. Support for S/PDIF Out

LAN	1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module	Intel® Wi-Fi 6E AX211
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.2
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	* Actual data rate may vary depending on environment and equipment.

Expansion Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

	1. 2 x PCI Express x1 slots
	(The PCIEX1 slots conform to PCI Express 3.0 standard.)


Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
	3. 4 x SATA 6Gb/s connectors
	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
	Intel® Optane™ Memory Ready
	* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

USB	Chipset:
	1. 2 x USB Type-C® ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
	2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	3. 2 x USB 3.2 Gen 1 ports, available through the internal USB header
	Chipset+USB 3.2 Gen 1 Hub:
	1. 4 x USB 3.2 Gen 1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x 4-pin ATX 12V power connector
	4. 1 x CPU fan header
	5. 1 x water cooling CPU fan header
	6. 3 x system fan headers
	7. 1 x system fan/water cooling pump header
	8. 2 x addressable LED strip headers
	9. 2 x RGB LED strip headers
	10. 3 x M.2 Socket 3 connectors
	11. 4 x SATA 6Gb/s connectors
	12. 1 x front panel header
	13. 1 x front panel audio header
	14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
	15. 1 x USB 3.2 Gen 1 header
	16. 2 x USB 2.0/1.1 headers
	17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	18. 1 x reset button
	19. 1 x Q-Flash Plus button
	20. 1 x reset jumper
	21. 1 x Clear CMOS jumper

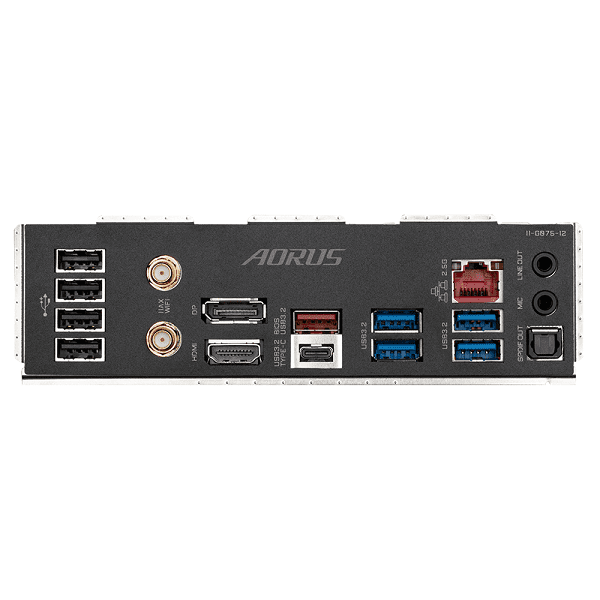

Back Panel Connectors	1. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
	2. 1 x USB 3.2 Gen 2 Type-A port (red)
	3. 4 x USB 3.2 Gen 1 ports
	4. 4 x USB 2.0/1.1 ports
	5. 2 x SMA antenna connectors (2T2R)
	6. 1 x DisplayPort
	7. 1 x HDMI 2.0 port
	8. 1 x RJ-45 port
	9. 1 x optical S/PDIF Out connector
	10. 2 x audio jacks

I/O Controller	1. iTE® I/O Controller Chip

H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	RGB Fusion
	Smart Backup
	System Information Viewer
	2. Support for Q-Flash Plus
	3. Support for Q-Flash
	4. Support for Xpress Install

Bundled Software	1. Norton® Internet Security (OEM version)
Bundled Software	2. LAN bandwidth management software

Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit

Form Factor	1. ATX Form Factor; 30.5cm x 24.4cm
