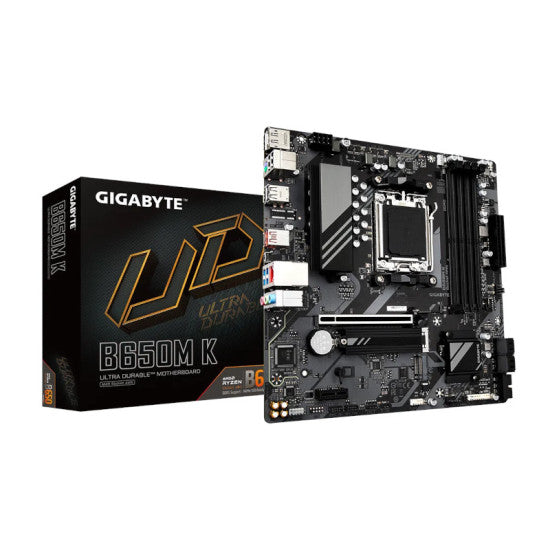

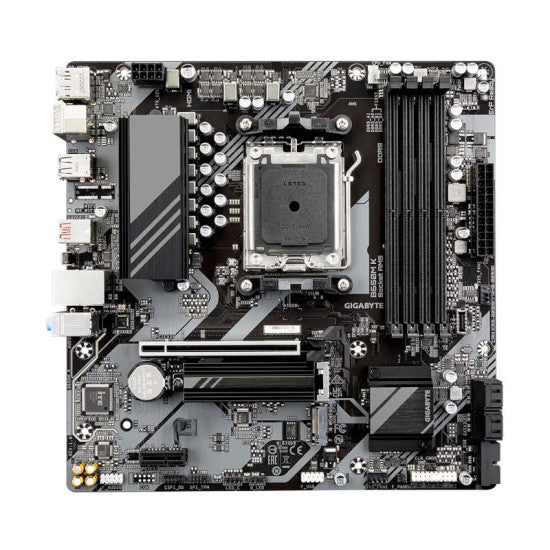

- GIGABYTE B650M K DDR5 AMD Motherboard
Description
Features Of GIGABYTE B650M K DDR5 AMD Motherboard
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：8+2+1 Phases Digital VRM Solution
- GIGABYTE B650M K DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- PCIe x16 EZ-Latch with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：DP, HDMI, USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of AMD’s new generation CPU, GIGABYTE UD series motherboard equip the best VRM design ever built with the highest quality components.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond
AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
-
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
-
Precision Control
Multiple temperature/fan speed control points for precise fan curve
-
Dual Curve Mode
Slope/Stair dual mode for different user scenario
-
Fan Stop
Fan can stop completely below users’ specified temperature point
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input
For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS
Specifications Of GIGABYTE B650M K DDR5 AMD Motherboard
| CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.) |
| Chipset | AMD B650 |
| Memory |
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Expansion Slots |
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface |
CPU:
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset jumper 1 x Clear CMOS jumper |

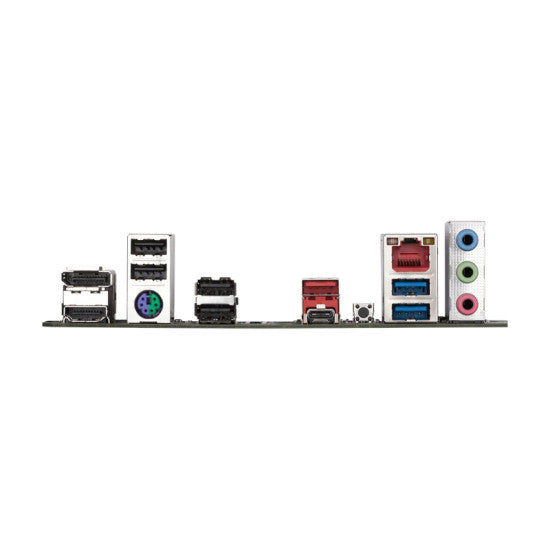

| Back Panel Connectors |
1 x DisplayPort
1 x HDMI port 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip
|
| H/W Monitoring |
Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| BUNDLE SOFTWARE |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm
|
| Warranty | 3 Years |
| Note* |
Price, feature and specifications are subject to change without notice.
|
