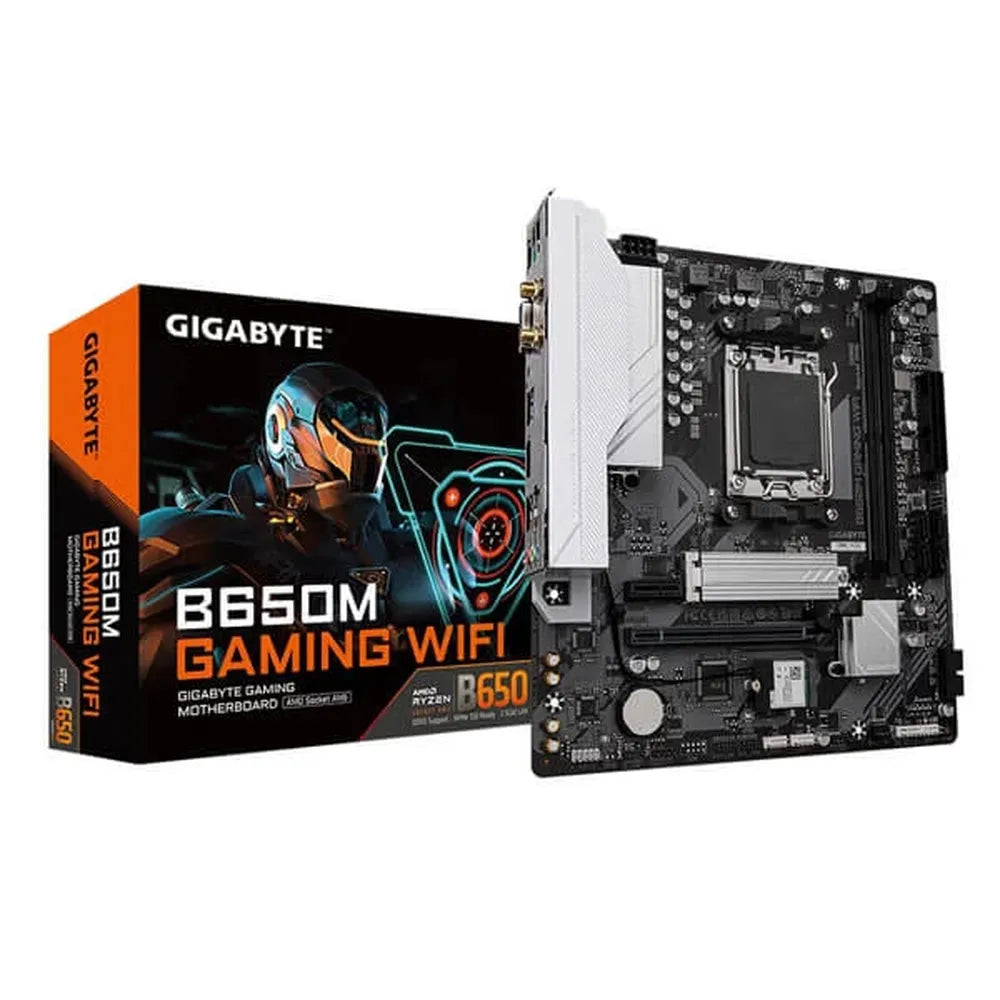

- GIGABYTE B650M Gaming WIFI DDR5 AMD Motherboard
Description
Features of GIGABYTE B650M Gaming WIFI DDR5 AMD Motherboard

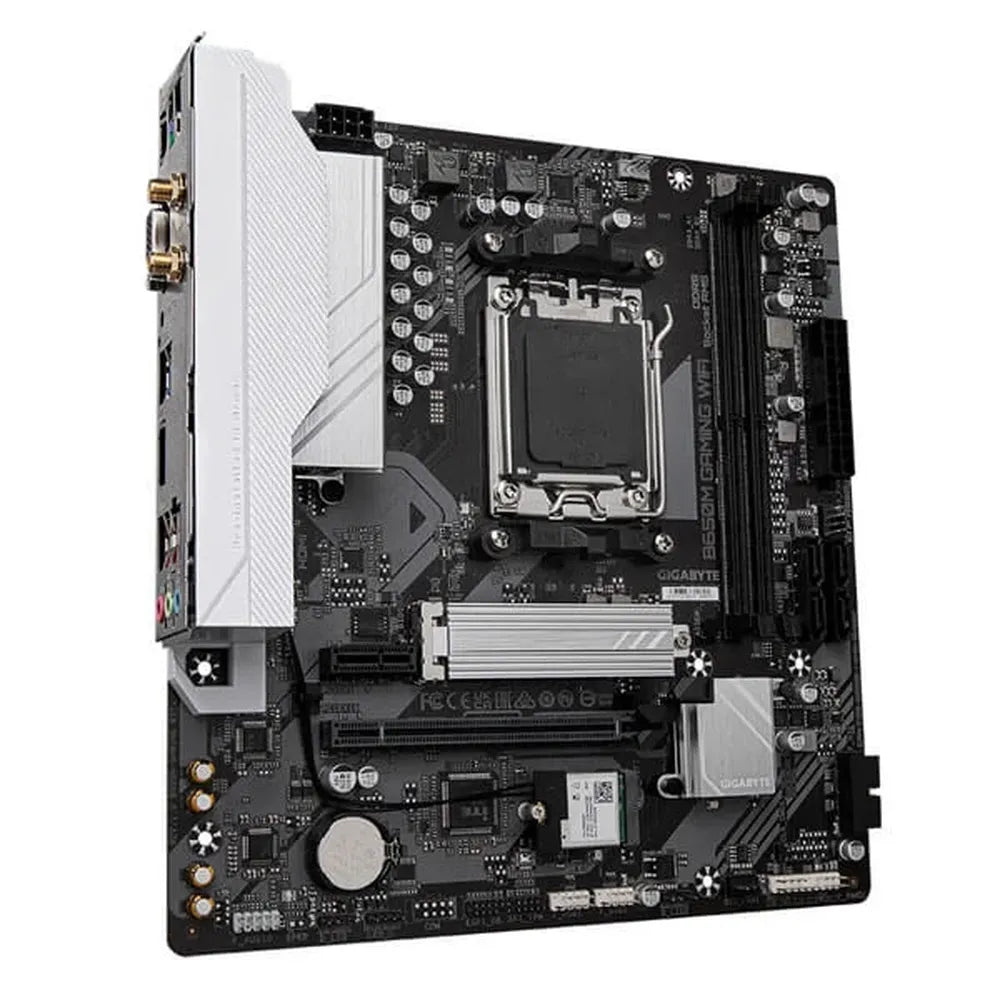

The Gigabyte B650M Gaming WiFi is a high-performance motherboard that supports the latest AMD Ryzen processors and features a dual-channel DDR5 memory interface, a PCIe 4.0 x16 slot, an M.2 slot with PCIe 4.0 x4 bandwidth, and a WiFi 6 module for fast and stable wireless connectivity.
-
AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance:5+2+2 Phases Digital VRM Solution - Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:HDMI , D-sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
Gigabyte B650M Gaming WIFI motherboards built with optimal components inside out provide the prime performance and timeless platform.
AMD B650 Chipset
The AMD B650 chipset is designed to unleash the full potential of the 3rd Generation AMD Ryzen processors. It offers enhanced performance and overclocking capabilities, as well as improved power efficiency and stability. The chipset also supports PCIe 4.0, which delivers twice the bandwidth of PCIe 3.0 for faster data transfer and smoother gaming experience.
Dual-Channel DDR4 Memory
The motherboard supports up to 96GB of dual-channel DDR4 memory with a maximum speed of 6400 MHz (OC). The memory modules are arranged in a Daisy Chain layout, which reduces the signal interference and improves the memory stability and compatibility. The motherboard also features XMP 2.0 support, which allows you to easily load the optimal memory settings for your modules.
PCIe 4.0 x16 Slot
The motherboard has one PCIe 4.0 x16 slot that can accommodate a powerful graphics card or other expansion device. The slot is reinforced with Ultra Durable PCIe Armor, which prevents the slot from being damaged by heavy graphics cards. The slot also supports AMD CrossFire technology, which allows you to combine two graphics cards for enhanced performance.
M.2 Slot with PCIe 4.0 x4 Bandwidth
The motherboard has one M.2 slot that supports both SATA and PCIe 4.0 x4 SSDs. The M.2 slot is equipped with a thermal guard, which prevents the SSD from overheating and throttling under heavy load. The M.2 slot also supports NVMe protocol, which offers faster access speed and lower latency than SATA protocol.
802.11ac Wi-Fi
Faster and Better Coverage with Dual Band 802.11ac Wi-Fi + BT 4.2 Module The onboard 802.11ac Wi-Fi module supports Dual Band and up to 433 Mbps, 3x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 4.2
Other Features
The motherboard also has many other features that enhance its performance, durability, and functionality, such as:
- RGB Fusion 2.0, which allows you to customize the lighting effects of your system with various modes and colors.
- Smart Fan 5, which allows you to control the fan speed and noise level of your system with multiple sensors and fan headers.
- Q-Flash Plus, which allows you to update the BIOS without installing the CPU, memory, or graphics card.
- High Quality Audio Capacitors and Audio Noise Guard, which deliver crystal clear sound quality and reduce the noise interference from other components.
- Ultra Durable Components, such as solid capacitors, chokes, and MOSFETs, which ensure long-lasting reliability and stability of your system.
The Gigabyte B650M Gaming WiFi is a motherboard that offers excellent performance, features, and quality for gamers and enthusiasts who want to build a powerful AMD Ryzen system. It is compatible with Windows 10 64-bit operating system. You can find more information about this motherboard on its official website.
Specifications of GIGABYTE B650M Gaming WIFI DDR5 AMD Motherboard
Model Number | B650M GAMING WIFI |
CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
Chipset | AMD B650 |
Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.) |
Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |

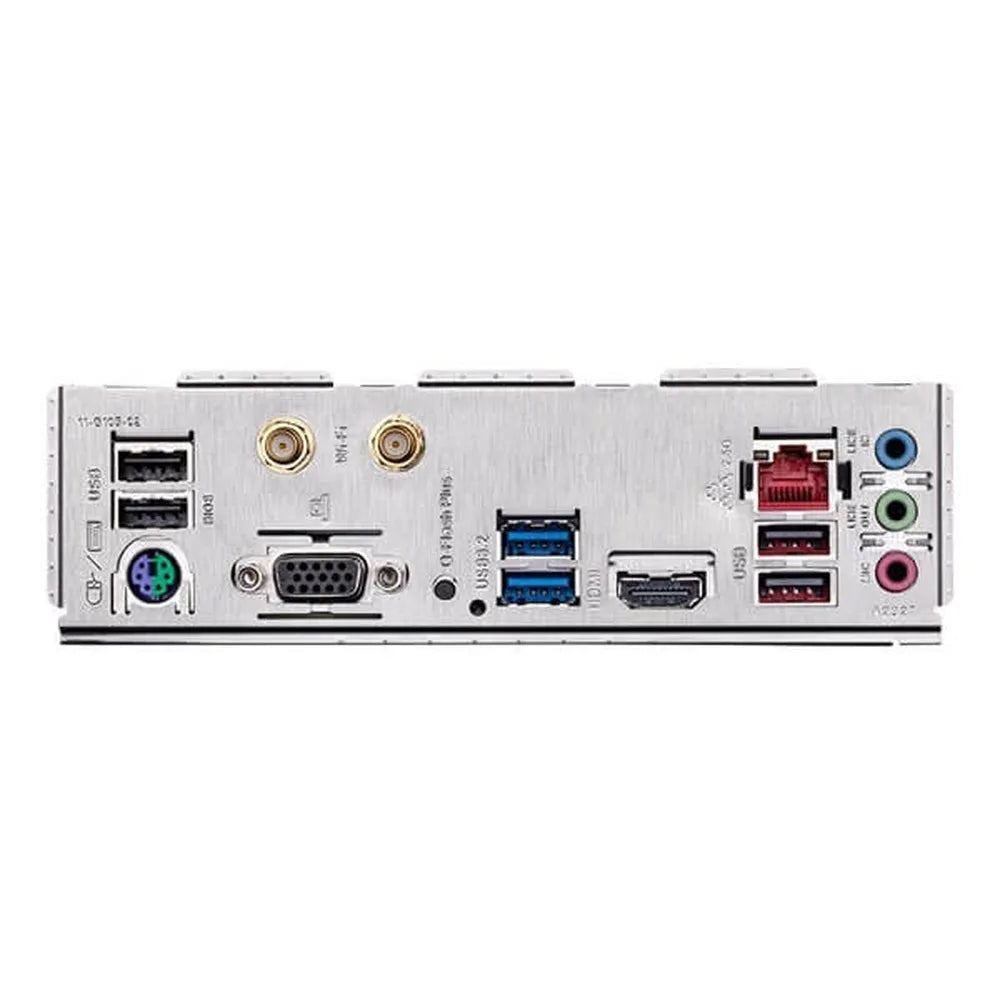

Back Panel Connectors | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
