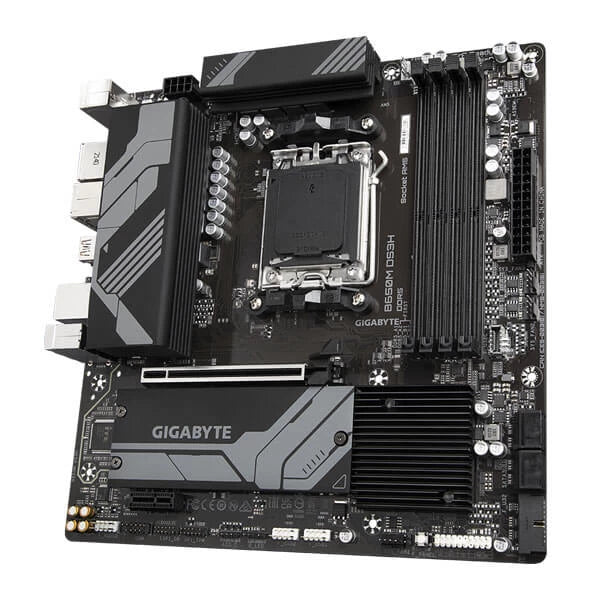

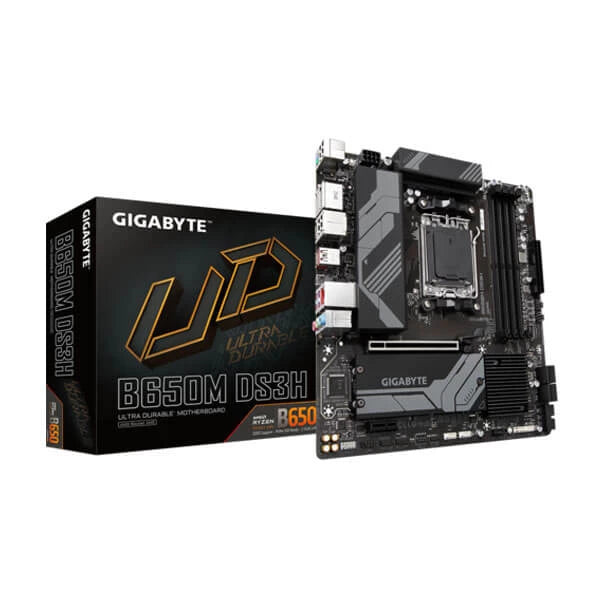

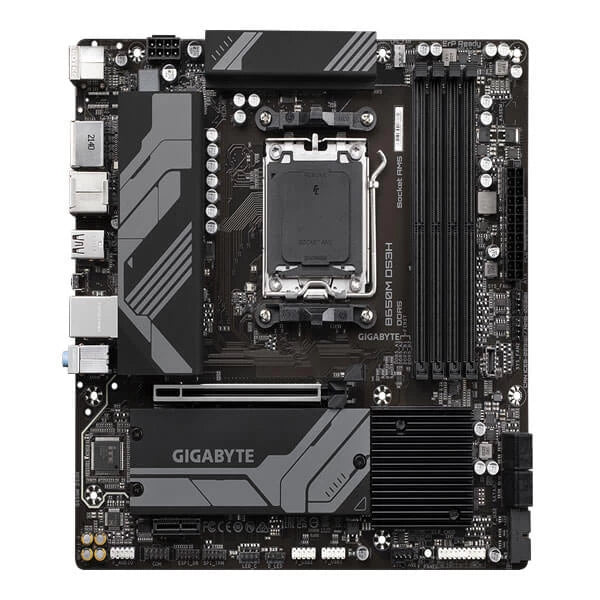

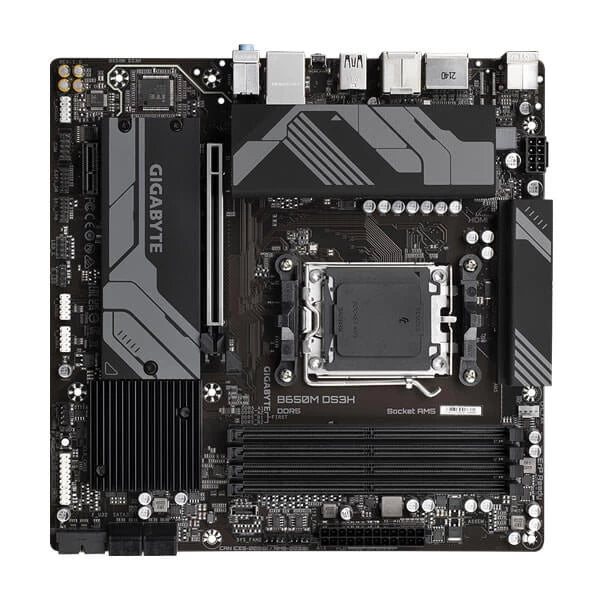

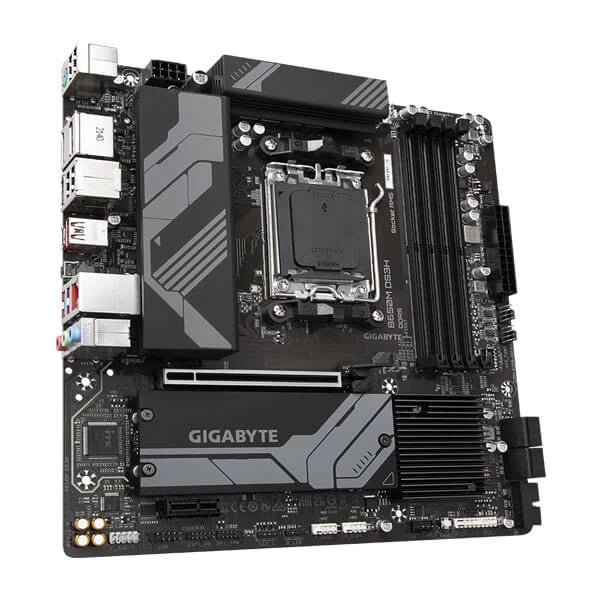

- GIGABYTE B650M DS3H DDR5 AMD Motherboard
Description
Features Of GIGABYTE B650M DS3H DDR5 AMD Motherboard
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
- GIGABYTE B650M DS3H DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：2PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- PCIe x16 EZ-Latch with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：2DP, HDMI, 2USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte B650M DS3H Motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
THERMAL DESIGN
Gigabyte B650M DS3H Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
Gigabyte B650M DS3H Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.
PERSONALIZATION
Gigabyte B650M DS3H Motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
Gigabyte B650M DS3H Motherboards Ultra Durable™ design provides product durability and high-quality manufacturing process. Gigabyte B650M DS3H Motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specifications Of GIGABYTE B650M DS3H DDR5 AMD Motherboard
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memory |
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
Integrated Graphics Processor: 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface |
CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| USB |
CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors` |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

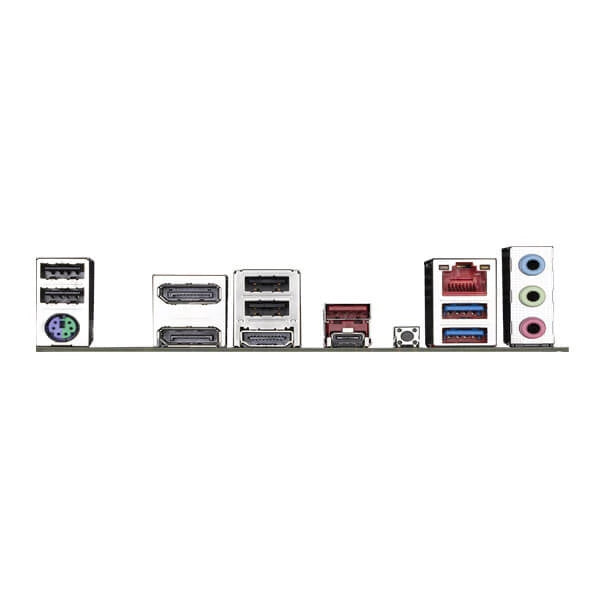

| Back Panel Connectors |
4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
