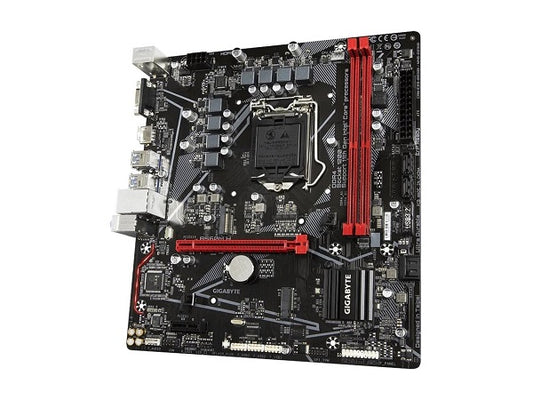

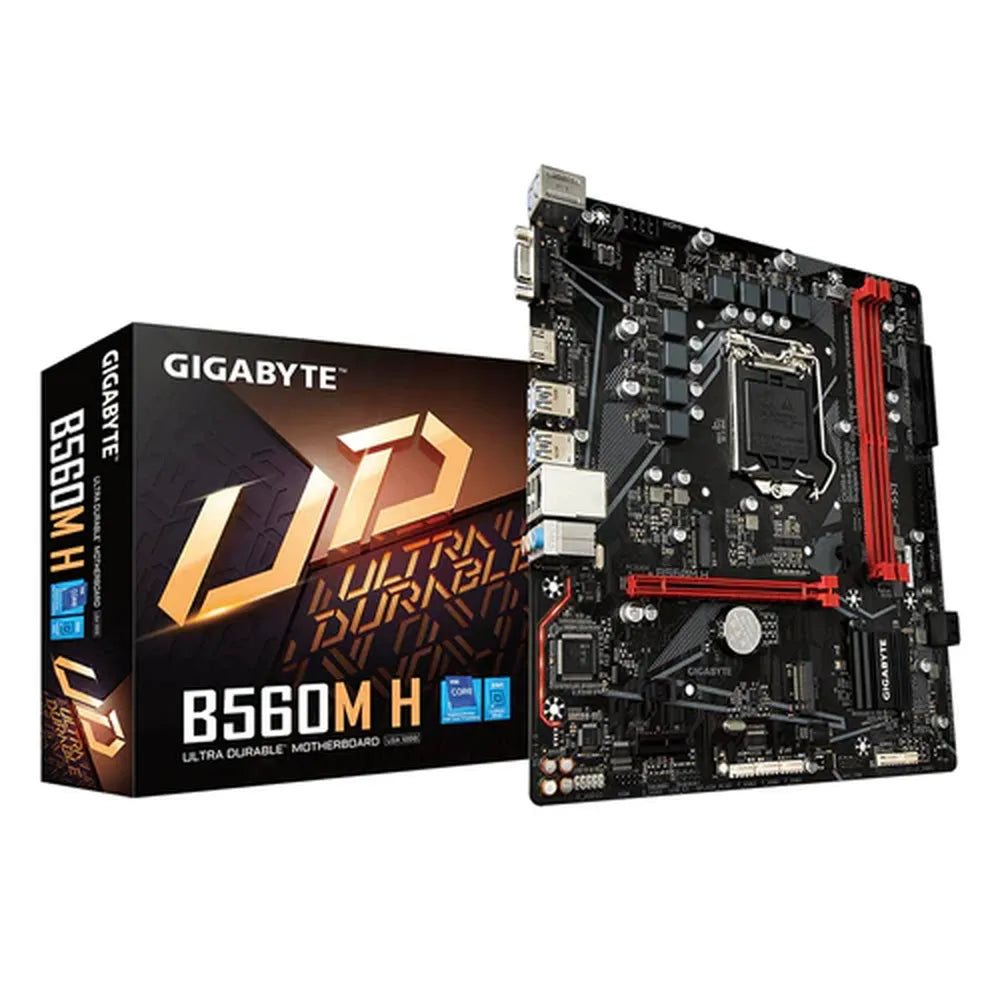

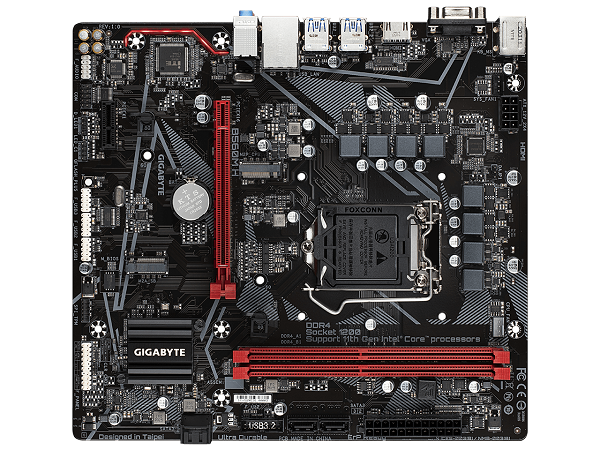

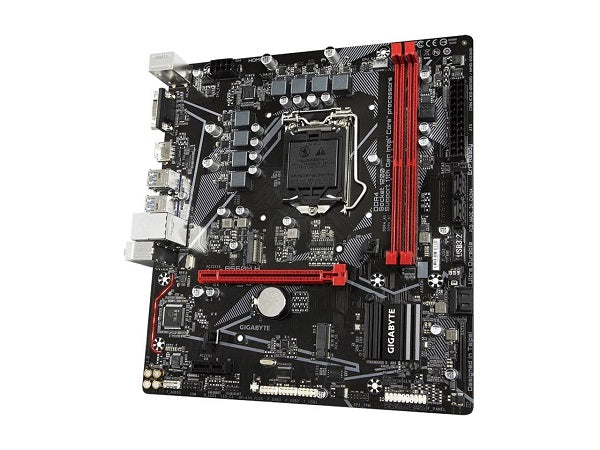

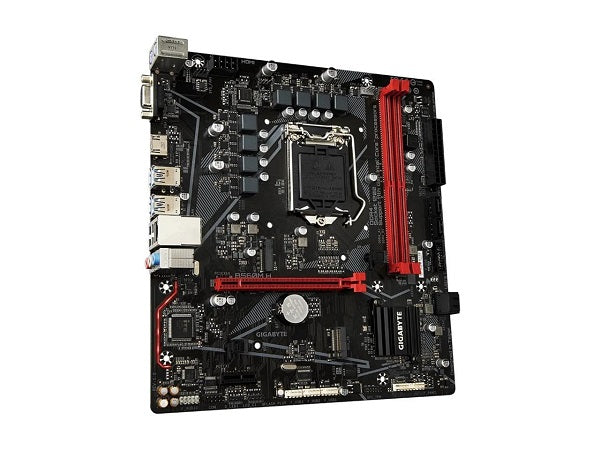

- GIGABYTE B560M H DDR4 Intel Motherboard
Description
Features of GIGABYTE B560M H DDR4
12+1 Phases Digital Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
PERFORMANCE
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
XMP 4600+
GIGABYTE B560M H DDR4 is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
CONNECTIVITY
Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
GIGABYTE Gaming GbE LAN
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
LIGHTING
RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
RGB FUSION Software
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
RGB FUSION APP
Don’t just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
ULTRA DURABLE
Solid Pin Power Connectors
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Q-Flash Plus
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Anti-Sulfur
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
SOFTWARE
BIOS New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune
GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most
Specifications of GIGABYTE B560M H DDR4
Model | |
Brand | GIGABYTE |
Model | B560M-H |
Supported CPU | |
CPU Socket Type | LGA 1200 |
CPU Type
|
Supports 11th / 10th Gen Intel Core processors |
Supports Intel Pentium / Celeron processors* | |
* Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. | |
Chipsets | |
Chipset | Intel B560 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 2x288pin (DDR4) |
Memory Standard
|
DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors) |
DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors) | |
DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors) | |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 4.0 x16
|
1 x PCI Express 4.0 x16* |
* Actual support may vary by CPU. | |
PCI Express x1 | 1 x PCI Express 3.0 x1 |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2
|
CPU: |
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* | |
Chipset: | |
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) | |
* System acceleration with Intel Optane Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel processor installed. | |
* Supported by 11th Generation processors only. | |
Intel Optane Ready | Yes |
Onboard Audio | |
Audio Chipset | Realtek Audio CODEC |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Realtek GbE LAN chip |
Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports | |

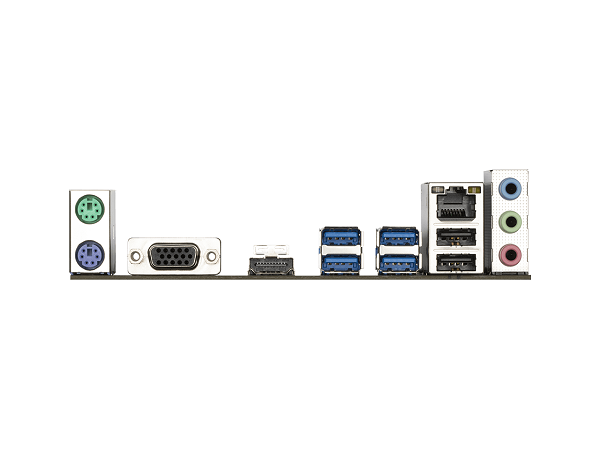

Back I/O Ports
|
1 x PS/2 mouse port |
1 x PS/2 Keyboard port | |
1 x D-Sub port | |
1 x HDMI port | |
4 x USB 3.2 Gen 1 ports | |
2 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
Internal I/O Connectors | |
Onboard USB
|
1 x USB 3.2 Gen 1 header |
3 x USB 2.0/1.1 headers | |
Other Connectors
|
1 x CPU fan header |
1 x system fan header | |
1 x addressable LED strip header | |
1 x RGB LED strip header | |
1 x front panel header | |
1 x front panel audio header | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x serial port header | |
1 x Clear CMOS jumper | |
1 x Q-Flash Plus button | |
Physical Spec | |
Form Factor | Micro ATX |
LED Lighting | RGB |
Dimensions (W x L) | 9.6″ x 8.9″ |
Power Pin
|
1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
Features | |
Features
|
I/O Controller: |
iTE I/O Controller Chip | |
H/W Monitoring: | |
Voltage detection | |
Temperature detection | |
Fan speed detection | |
Fan fail warning | |
Fan speed control | |
* Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS: | |
1 x 256 Mbit flash | |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features: | |
Support for APP Center | |
*Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
RGB Fusion | |
Smart Backup | |
System Information Viewer | |
Support for Q-Flash Plus | |
Support for Q-Flash | |
Support for Xpress Install | |
Bundled Software: | |
Norton Internet Security (OEM version) | |
Realtek 8118 Gaming LAN bandwidth Control Utility | |
Operating System: | |
Support for Windows 10 64-bit |
