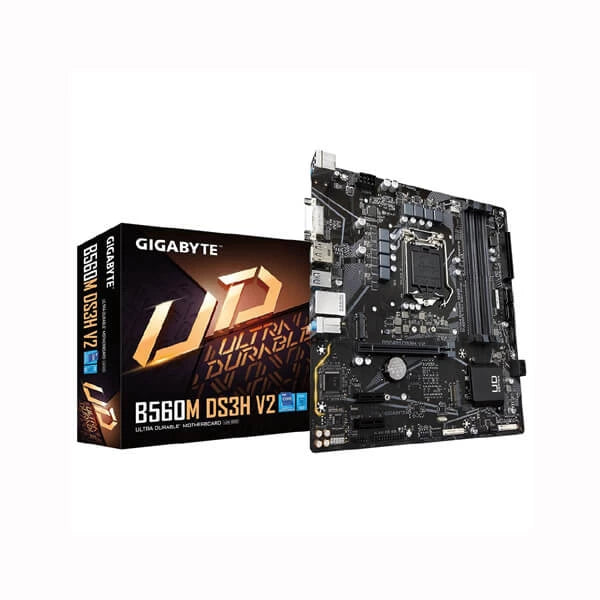

GIGABYTE B560M DS3H V2 DDR4 Intel Motherboard

Feature of GIGABYTE B560M DS3H V2 DDR4 Intel Motherboard

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

1. Supports 11th and 10th Gen Intel® Core™ Series Processors
2. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
3. Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
4. Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
5. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
6. USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
7. High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
8. RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
9. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
10. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

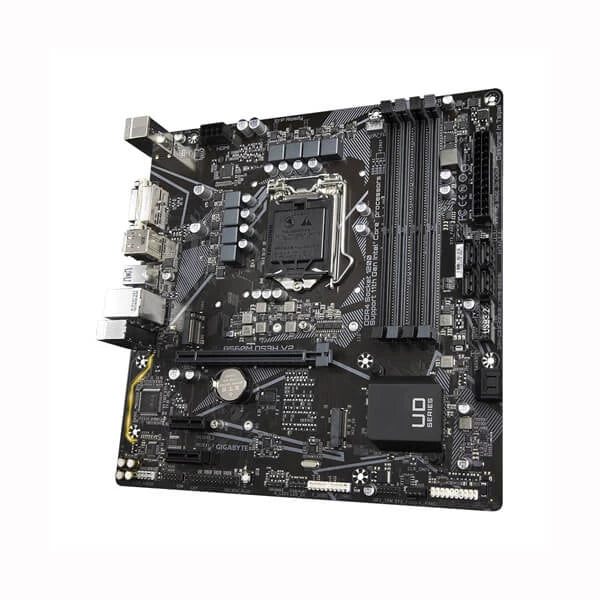

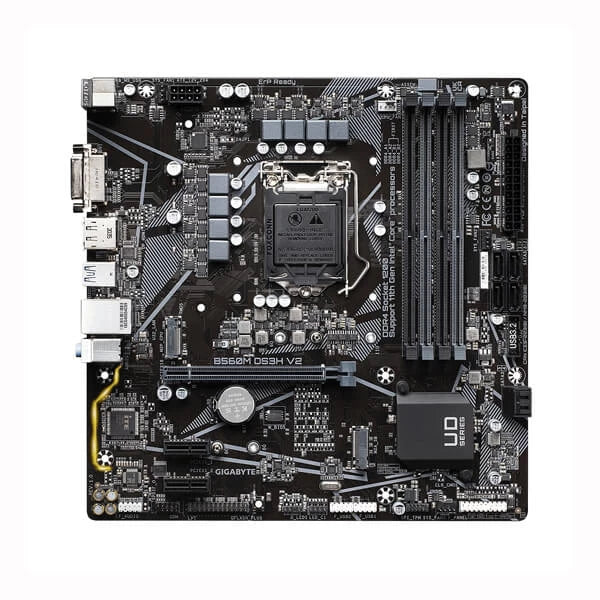

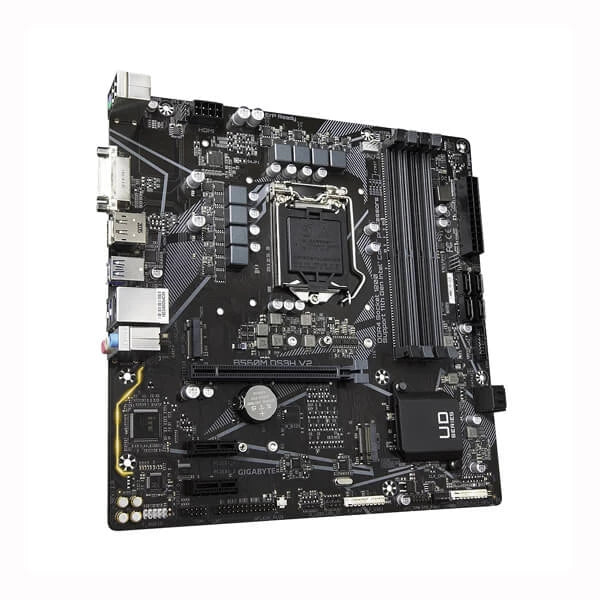

B560M DS3H V2 (rev. 1.0)

Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading

Smart Fan 6

contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Dual PCIe 4.0/3.0 x4 M.2 Connectors

GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
PCIe 4.0 support varies by processor installed, refer product spec for further details.

RGB FUSION 2.0

With GIGABYTE B560M DS3H V2 DDR4, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Solid Pin Power Connectors

B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model

Specifications of GIGABYTE B560M DS3H V2 DDR4 Intel Motherboard
