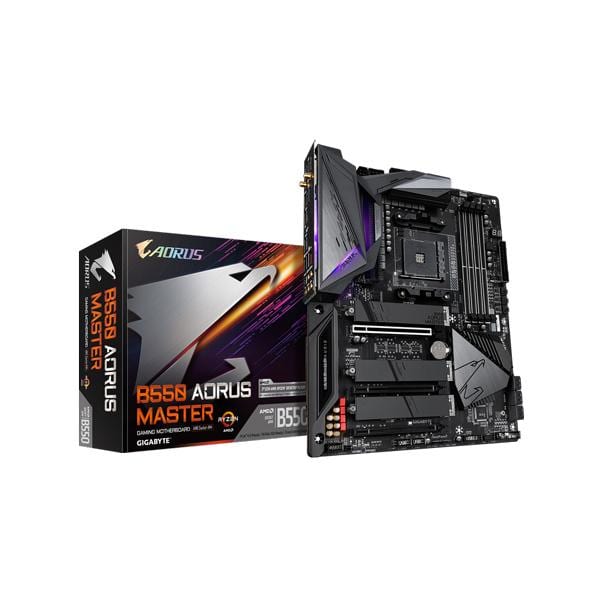

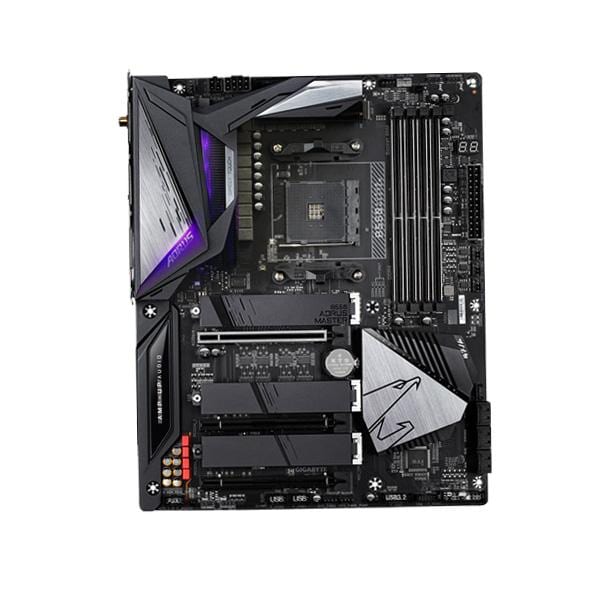

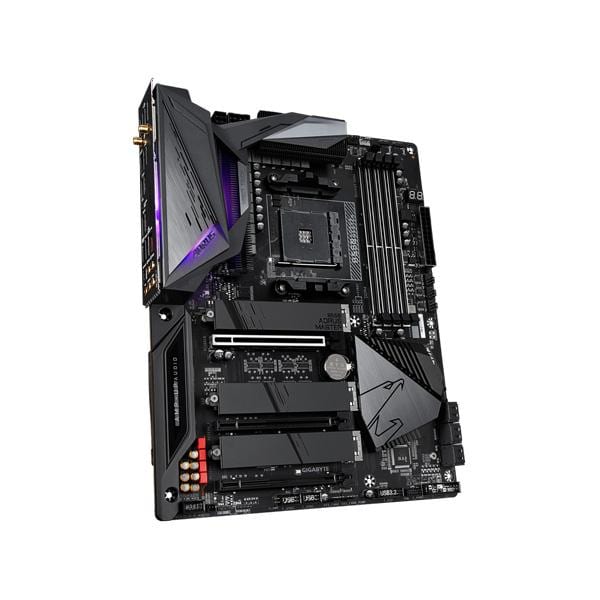

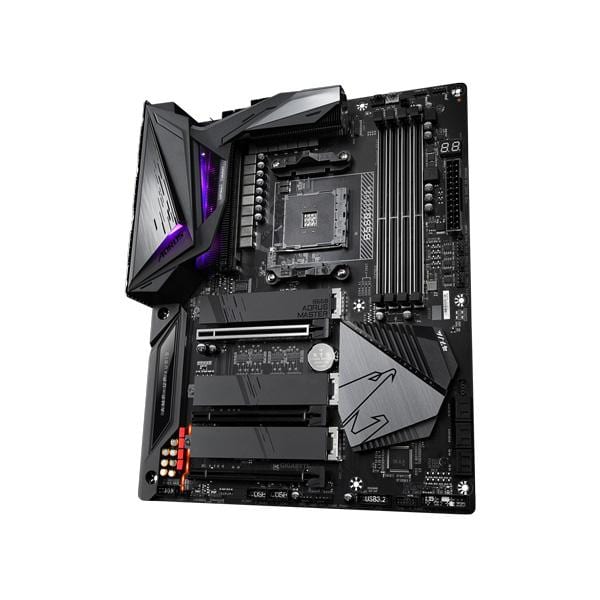

GIGABYTE B550 Aorus Master Wifi AM4 DDR4 AMD Motherboard

Gigabyte B550 Aorus Master WiFi AM4 Motherboard

GIGABYTE B550 Aorus Master Wifi AM4 DDR4 AMD Motherboard

Name: EliteHubs
Address: E Square, 201/217/218, Subhash Rd, Vishnu Prasad Society, Navpada, Vile Parle East, Vile Parle,, Mumbai, 400057, IN
Telephone: +91-93217 27055
Price range: INR

Rs. 24,695.00 Rs. 29,999.00

Discount: Rs. 5,304.00 (18%)

47 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 16 December,2024 - 20 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features Of GIGABYTE B550 Aorus Master Wifi

Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16 Phases Digital VRM Solution with 70A Power Stage
Advanced Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Baseplate
GIGABYTE B550 Aorus Master Wifi AM4 DDR4 / New Generation AMD Ryzen™ with Radeon™ Graphics processors
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
Blazing Fast 2.5GbE LAN with Bandwidth Management
USB 3.2 Gen2 Type-C™ & HDMI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

Specifications Of GIGABYTE B550 Aorus Master Wifi

CPU	AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Audio	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. 2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated in the Chipset: Supporting PCIe 3.0 x4 mode * The PCIEX4_2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX4_2 slot operates at up to x2 mode when a device is installed in the SATA3 4 or SATA3 5 connector.
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
USB	CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers

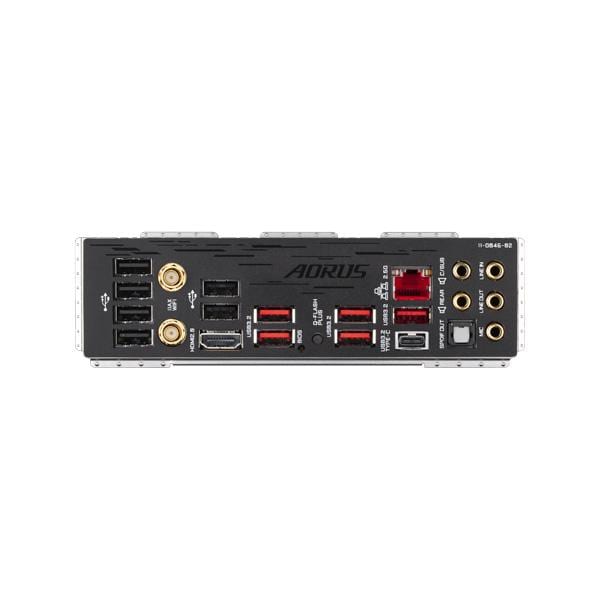

Back Panel Connectors	2 x SMA antenna connectors (2T2R) 1 x HDMI port 6 x USB 2.0/1.1 ports 5 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Instal
Bundled Software	Norton® Internet Security (OEM version) XSplit Gamecaster Broadcaster (12 months license) Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
