- GIGABYTE B460 Aorus Pro AC DDR4 Intel Motherboard
Description
Feature of GIGABYTE B460 Aorus Pro AC DDR4 Intel Motherboard

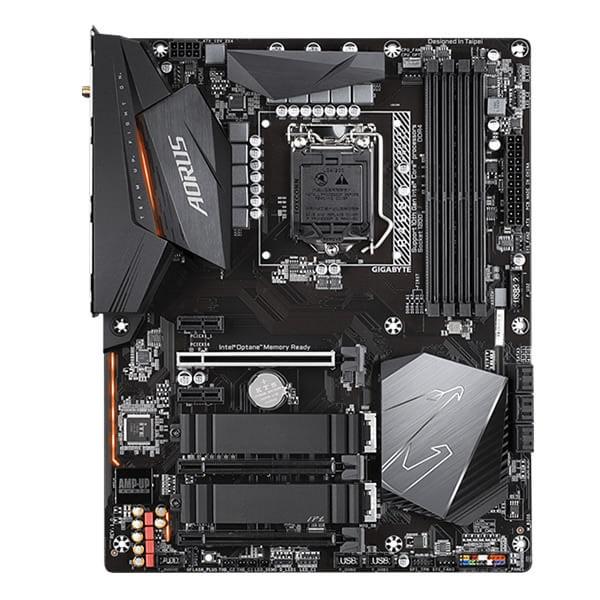

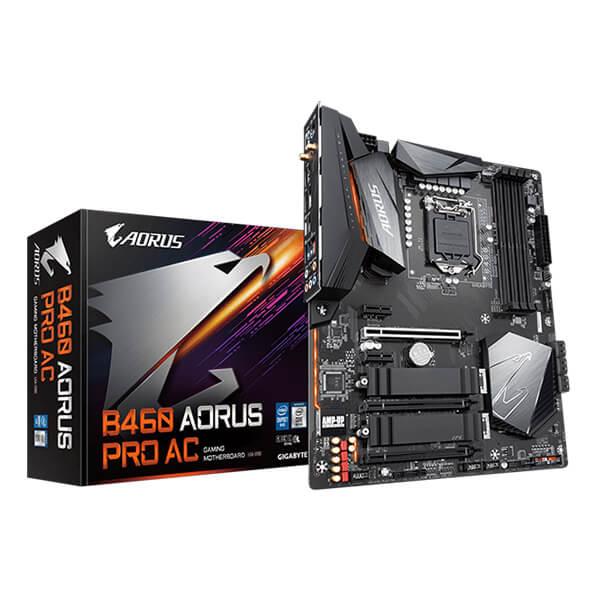

The Gigabyte B460 AORUS PRO AC LGA 1200 ATX Motherboard is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. You can also connect to the internet wirelessly via Wi-Fi 5 (802.11ac). It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features an ATX form factor, allowing for use in mid-tower and full-tower cases. Other integrated features include Intel 2.5GbE RJ45 LAN, Bluetooth 5.0, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, and more.
Intel B460 Chipset
This motherboard features the Intel B460 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core, Pentium Gold, and Celeron processors.
Storage
The dual M.2 slots support data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.
Wi-Fi 5 (802.11ac)
This motherboard features Wi-Fi 5 (802.11ac) Wave 2 functionality, enabling gigabit wireless performance and up to 1.73 Gb/s speed. Bluetooth 5.0 connectivity allows you to connect compatible accessories and peripherals wirelessly.
USB 3.2 Gen 2
The USB 3.2 Gen 2 host controller provides USB 3.2 Gen 2 ports with speeds up to 10 Gb/s. The USB 3.2 Gen 2 is available over USB Type-C and USB Type-A for a wide range of compatibility.
Intel 2.5GbE LAN
This motherboard features an Intel 2.5GbE LAN RJ45 port, allowing gamers and streamers to have a fast, smooth online experience.
ALC 1220 120dB SNR HD Audio
The ALC1220 is a high-performance multi-channel HD Audio Codec with up to 120dB SNR for clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats, and hardware decoding of DSD128. The Smart Headphone Amp automatically detects the impedance of your headphones to provide an optimal audio experience.
RGB Fusion 2.0 Support
With full RGB support and a redesigned RGB Fusion 2.0 app, you'll have full control over the LEDs that support the motherboard and compatible RGB LED lights you decide to add.
Specifications of GIGABYTE B460 Aorus Pro AC DDR4 Intel Motherboard
| CPU |
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU |
| Chipset | Intel® B460 Express Chipset |
| Memory |
Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Maximum shared memory of 512 MB |
| Audio |
Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication module |
Intel® Wi-Fi 9260 Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors. Intel® Optane™ Memory Ready * System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only. |
| USB |
Chipset+ASMedia® USB 3.2 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors |
Chipset: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

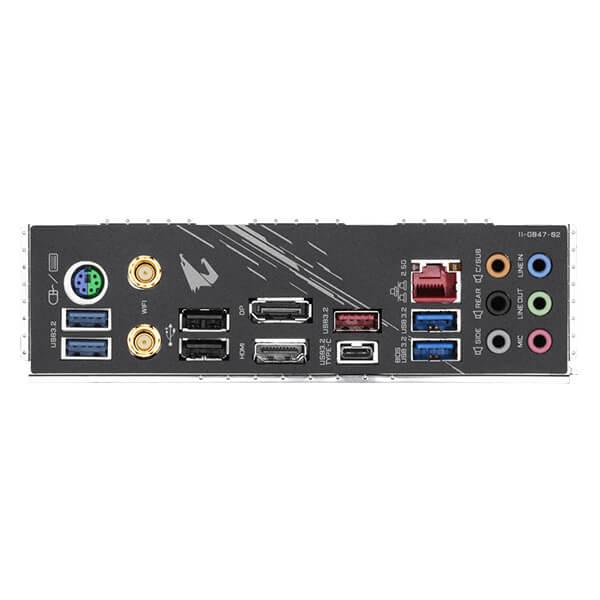

| Back Panel Connectors |
Chipset: 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
