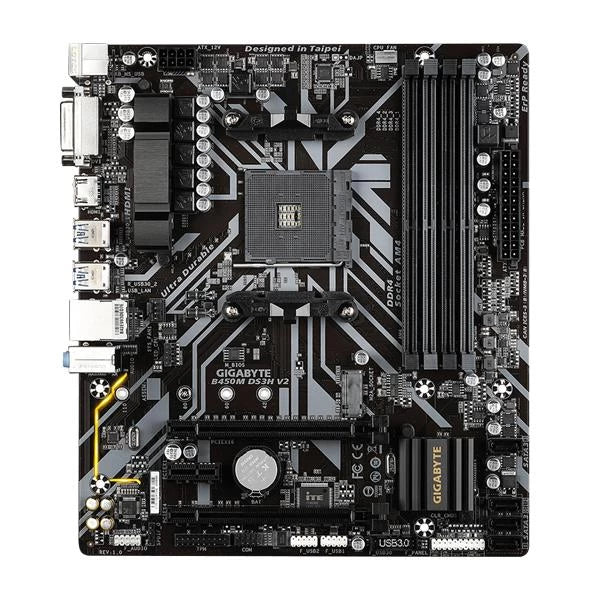

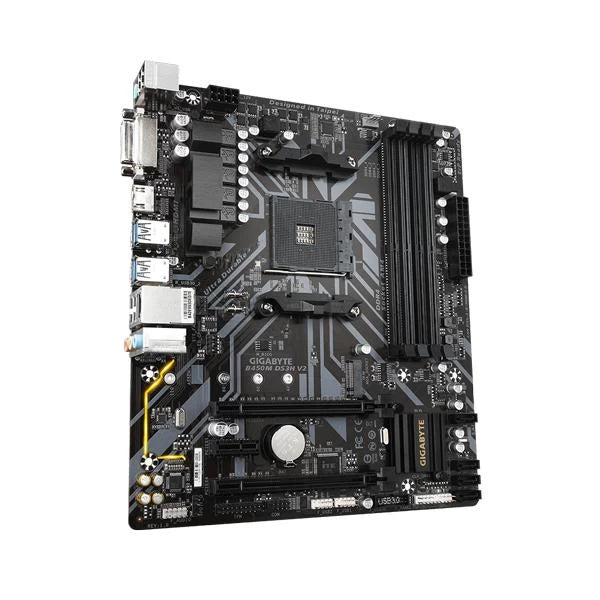

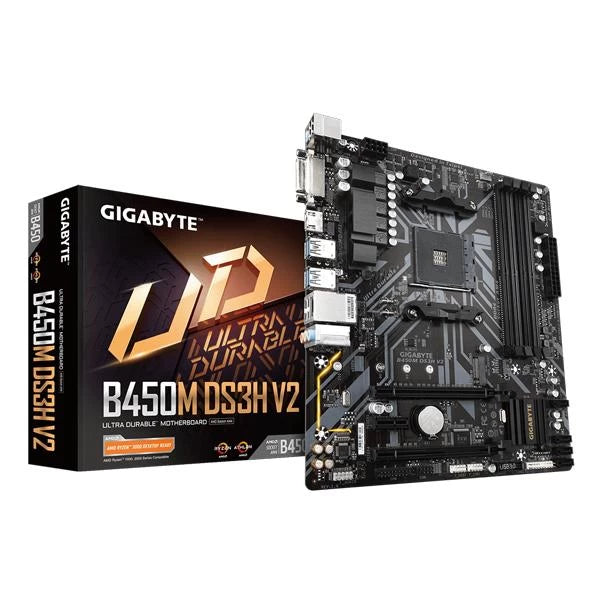

- GIGABYTE B450M DS3H V2 DDR4 AMD Motherboard
Description
Features Of Gigabyte B450M DS3H V2
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- GIGABYTE B450M DS3H V2 DDR4, 4 DIMMs
- Feature Digital VRM Solution with Low RDS(on) MOSFETs
- HDMI, DVI-D Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- RGB Fusion supports RGB LED Strips in 7-Colors
- Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE B450M DS3H V2 motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE B450M DS3H V2 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, GIGABYTE B450M DS3H V2 motherboards are perfect for users looking to build the best AMD platform systems.
Specifications Of Gigabyte B450M DS3H V2
Brands | Gigabyte |
CPU | AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
Chipset | AMD B450 |
Memory |
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics |
Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB |
Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
Storage Interface |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
USB |
Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

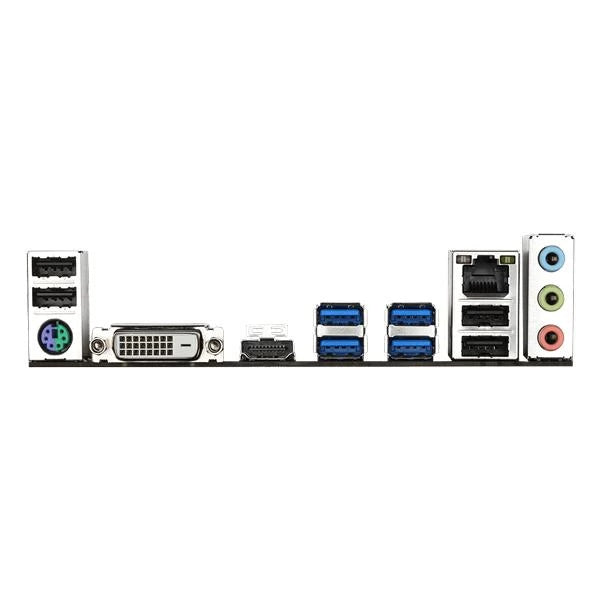

Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
Operating System |
Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
Form Factor | Micro-ATX |
Warranty | 3 Year |
