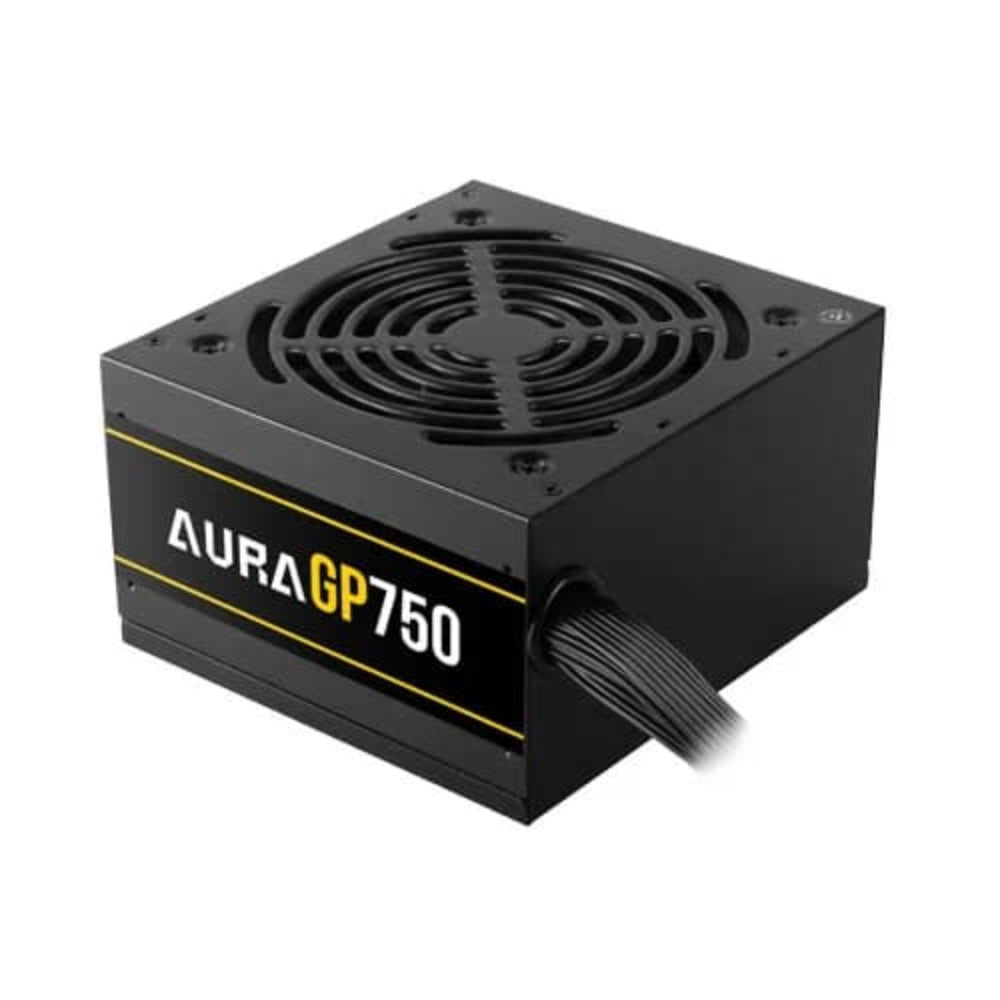

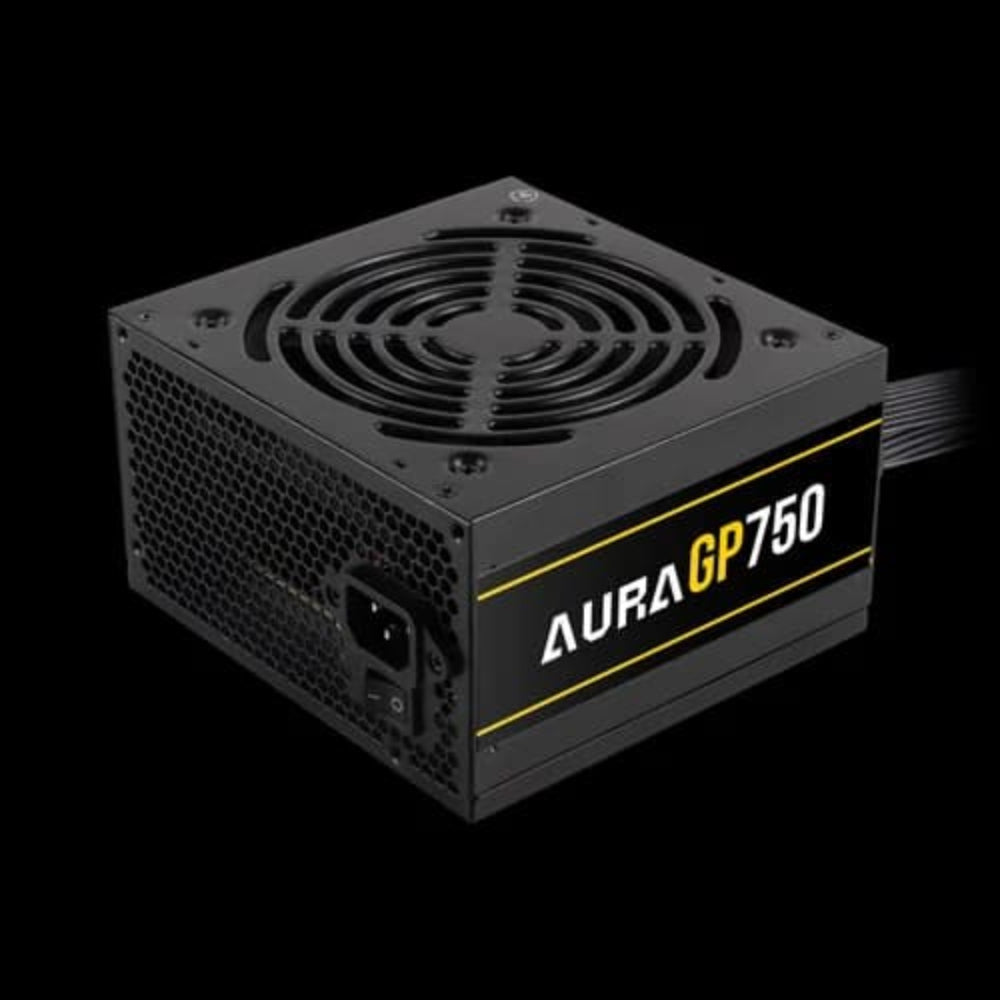

GIGABYTE Aura GP750 80+ White Non-Modular ATX 2.0 Power Supply ( 750W ) ( Black )

Features of GIGABYTE Aura GP750 80+ White Non-Modular ATX 2.0 Power Supply ( 750W ) ( Black )

• 750W Power Supply
• 120mm Hydraulic Bearing Fan
• 1x 24-pin Main Connecter
• Compatible with ATX12V v2.4

750W EFFICIENT POWER SUPPLY

The AURA GP750 is a non-modular power supply unit featuring high efficiency and a 120mm hydraulic bearing smart fan with automatic temperature control to achieve extremely stable performance.

HIGH EFFICIENCY

The AURA GP750 delivers watts at approximate 80% efficiency to reduce power waste and heat.

SMART VENTILATION

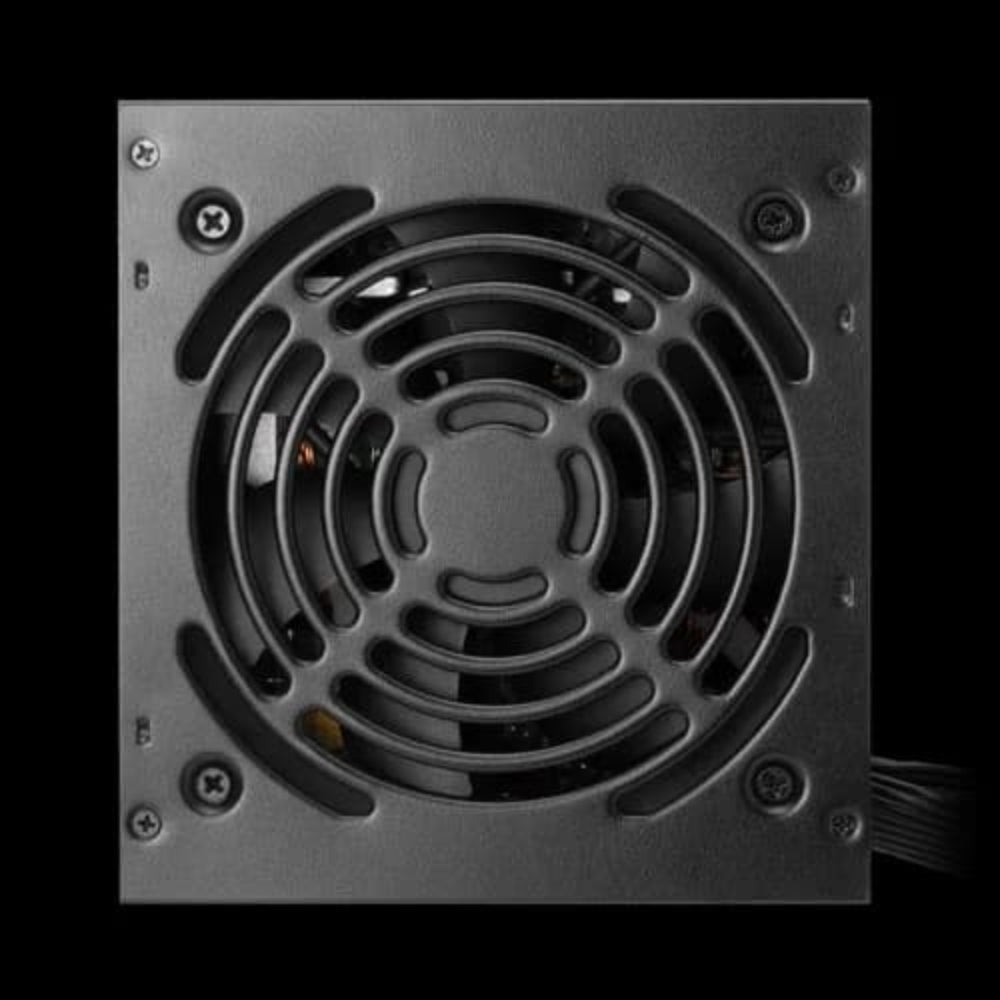

The power supply unit supports automatic fan speed optimization which adjusts the 120mm hydraulic bearing fan speed according to load.

HEAVY-DUTY PROTECTION

The power supply unit ensures stable output voltage and provides multiple protections against short circuits, overload, overheating, low voltage, etc.

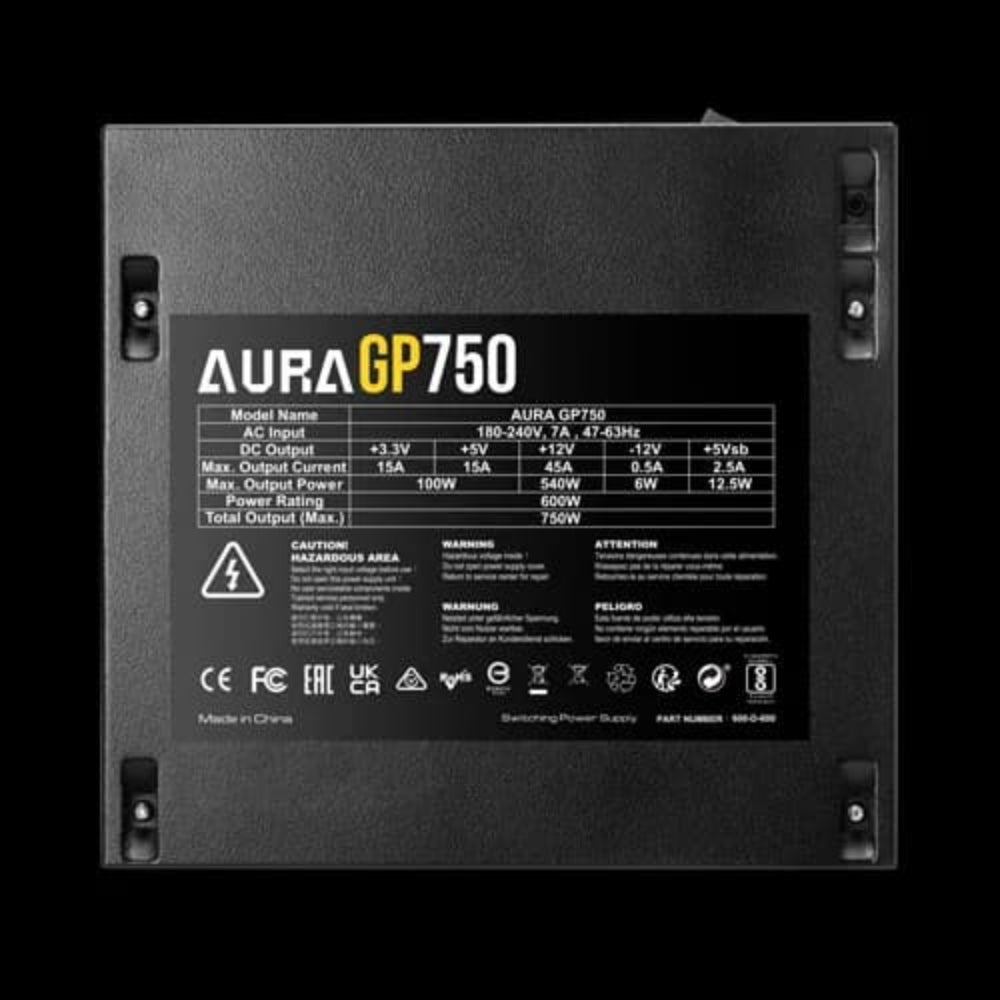

Type: ATX12V v2.4

Efficiency: Close to 80 PLUS White efficiency

Dimensions (LxWxH): 140 x 150 x 86 mm

AC Input: 180-240V / 7A / 47-63Hz

DC Output: +3.3V / +5V / +12V / -12V / +5Vsb

Max. Output Current: 15A / 15A / 45A / 0.5A / 2.5A

Max. Output Power: 100W / 540W / 6W / 12.5W

Power Rating: 600W

Total Output (Max.): 750W

Protection: OVP / UVP / OPP / OCP / SCP

Main Power: 1 (24 Pin)

CPU: 2 (4+4 Pin)

PCI-E: 2 (6+2 Pin)

SATA: 4 (4 Pin)

Molex: 2 (4 Pin)

Modular: Non Modular

Flat Cable: Yes

Cooling System: 120mm hydraulic bearing fan
