- GIGABYTE Aorus Master GeForce RTX 4090 24GB Nvidia Graphic Card
Description
Features of GIGABYTE Aorus Master GeForce RTX 4090 24GB
Gigabyte Aorus RTX 4090 Master 24GB Graphics Card brings an enormous leap in performance, efficiency, and AI-Accelerated Performance graphics. It is best for performance gaming, incredibly detailed virtual worlds, unprecedented productivity, and creativity
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4090
- Integrated with 24GB GDDR6X 384-bit memory interface
- WINDFORCE cooling system
- LCD Edge View
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
THE EVOLVING POWER OF WINDFORCE
The WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
AORUS BIONIC FAN TECH
The sharks’ dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.
DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
ALTERNATE SPINNING
Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
ANGULAR FIN DESIGN
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

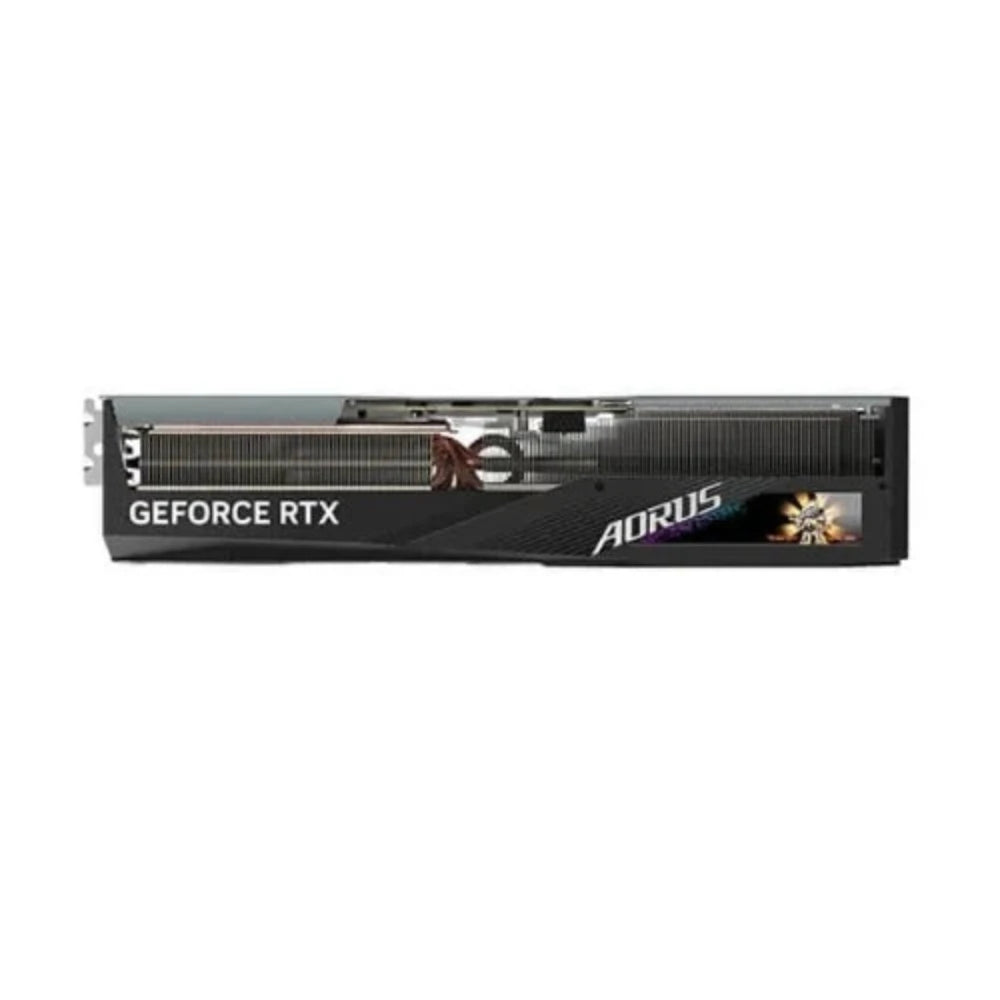

LCD EDGE VIEW
The LCD monitor displays not only graphics card information, but also various favorite texts, pictures, and GIFs. You can also adjust lighting effects via GIGABYTE CONTROL CENTER.
SCREEN COOLING
To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

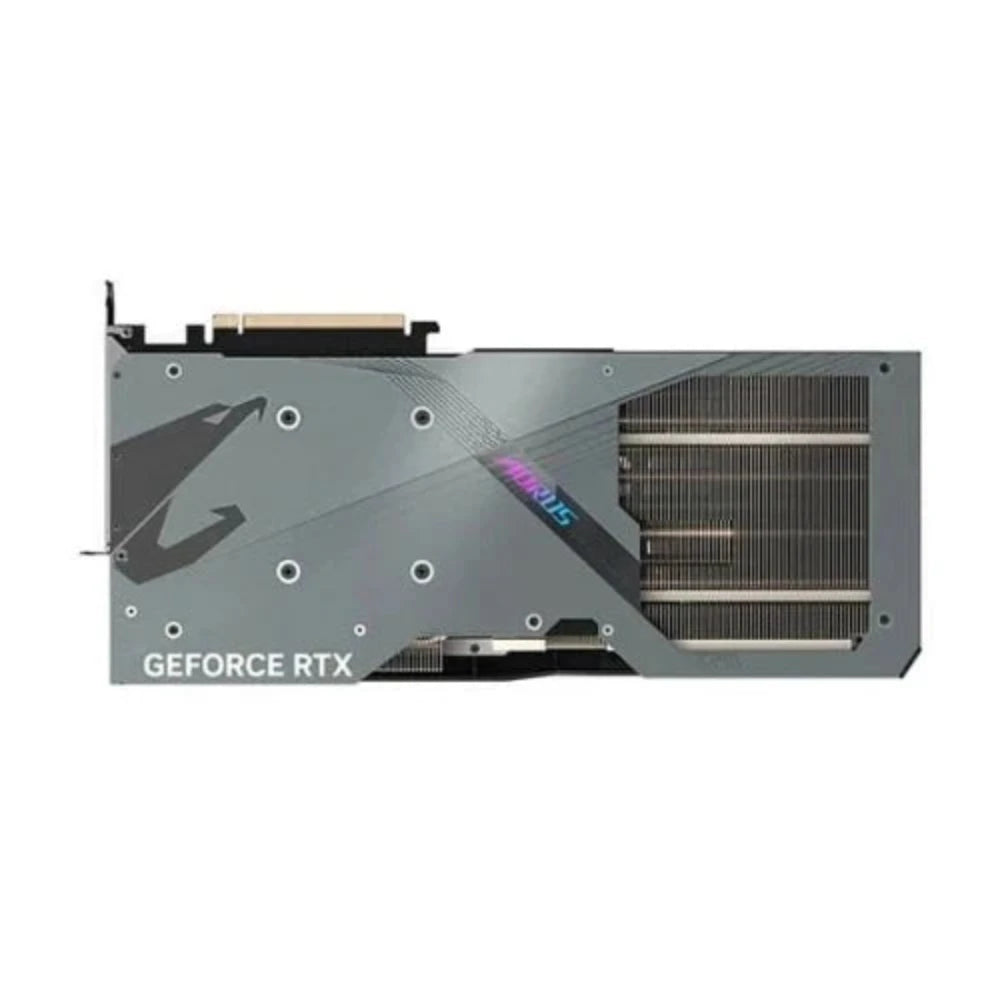

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
PCB COATING
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant - prevents unwanted conduction paths and board damage.
Corrosion resistant - protects from salt spray, humidity, and corrosion.
SPECIFICATIONS OF GIGABYTE Aorus Master GeForce RTX 4090 24GB Nvidia Graphic Card
Chipset | GeForce RTX™ 4090 |
Core Clock | 2550 MHz (Reference Card: 2520 MHz) |
CUDA® Cores | 16384 |
Memory Clock | 21 Gbps |
Memory Size | 24GB |
Memory Bus | 384 bit |
Memory Type | GDDR6X |
Card Bus | PCI-E 4.0 |
Resolution | 7680x4320 |
Multi-view | 4 |
Dimension | L=358.5 W=162.8 H=75.1 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 1000 W |
Power Connectors | 16 Pin*1 |

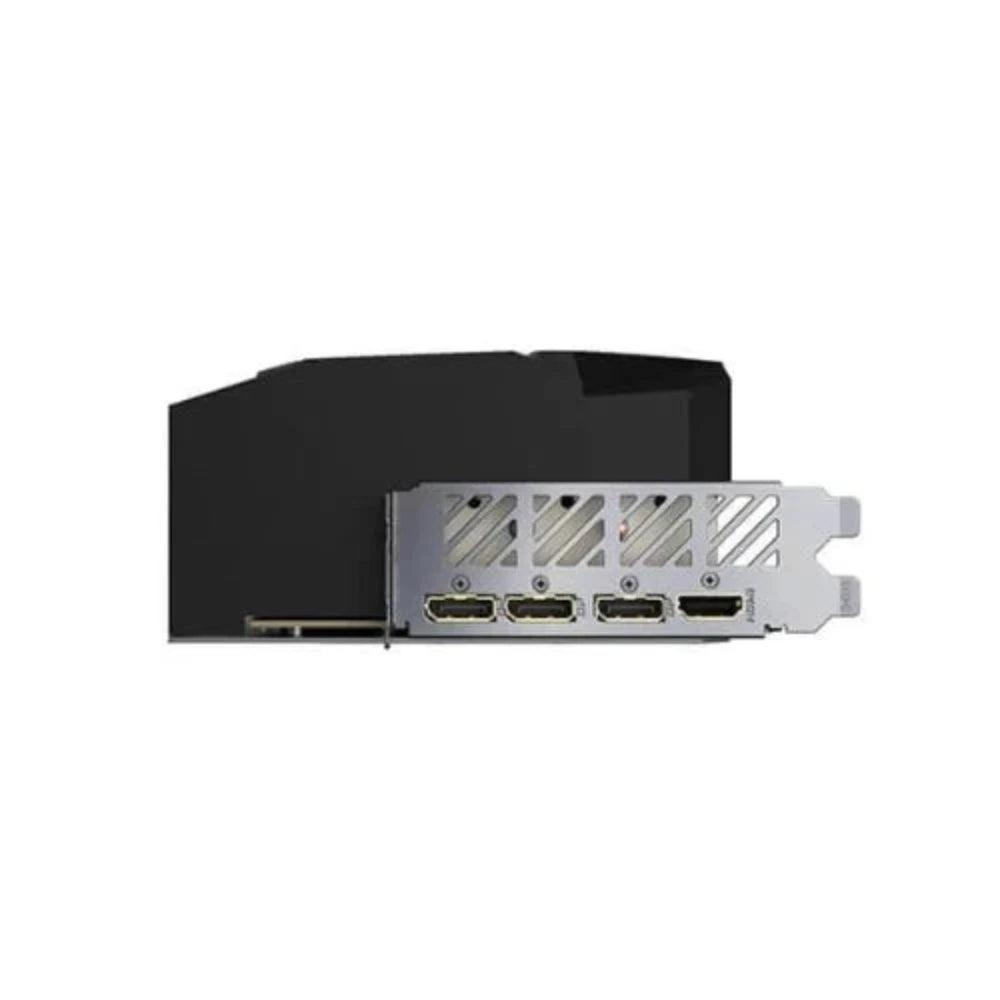

Output | DisplayPort 1.4 *3 HDMI 2.1 *1 |
Accessories | 1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to four 8-pin power adaptor 6. AORUS Metal sticker |
Warranty | 3+1 Years Warranty (Online registration required) |
Note* | Price, feature and specifications are subject to change without notice. |
