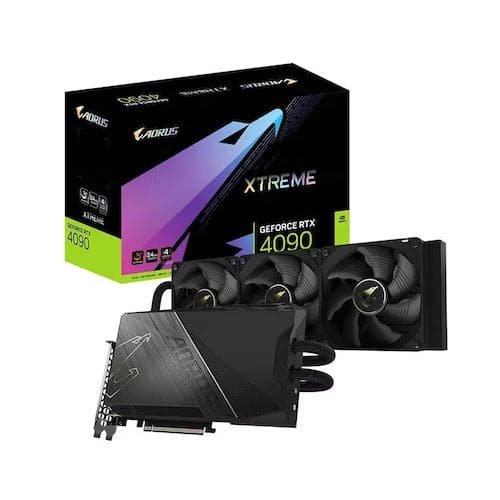

- GIGABYTE Aorus Xtreme GeForce RTX 4090 WaterForce 24GB Nvidia Graphic Card
Description
Features of GIGABYTE Aorus Xtreme GeForce RTX 4090 WaterForce 24GB Nvidia Graphic Card
KEY FEATURE
- NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce rtx 4090
- Integrated with 24GB GDDR6X 384-bit memory interface
- WATERFORCE all-in-one cooling system
- 360mm radiator with 3x 120mm fans
- Protection metal back plate
- 4 Years Warranty (Online registration required)
CORE CLOCK
2565 MHz (Reference Card: 2520 MHz)
WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enjoy the benifits of water cooling without complicated installations. gigabyte rtx 4090 provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
OPTIMIZED 360MM ALUMINUM RADIATOR
The triple-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cooler under high overclocks.
3X 120MM FANS
The triple-fan design can generate more airflow to better heat dissipation, delivering a powerful cooling and quiet gaming experience.
2X DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure, and has at least twice the service life.
LARGE COPPER BASE PLATE
Without any extra fan on the card, WATERFORCE provides the best cooling solution for the GPU/VRAM/MOSFET. The copper plate efficiently dissipates the heat to result in a real silent environment.
460MM BRAIDED FEP TUBES
With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
- 24GB 384-Bit GDDR6X
- Core Clock 2565 MHz
- 1 x HDMI 2.1 3 x DisplayPort 1.4a
- 16384 CUDA Cores
- PCI Express 4.0
Specifications of GIGABYTE Aorus Xtreme GeForce RTX 4090 WaterForce 24GB Nvidia Graphic Card
| Model | |
| Brand | GIGABYTE |
| Model | GV-N4090AORUSX W-24GD |
| Form Factor | RTX 4090 XTREME WATERFORCE 24G |
| Interface | |
| Interface | PCI Express 4.0 |
| Chipset | |
| GPU | NVIDIA® GeForce RTX® 4090 |
| Core clock | 2565 MHz (Reference Card: 2520 MHz) |
| Memory | |
| Memory Clock | 21 Gbps |
| Memory Size | 24GB |
| Memory Interface | 384-bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | DirectX : 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Ports | |
| HDMI | HDMI 2.1*1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| General | |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple fan |
| Power Connector | 1 x 16-pin |
