GIGABYTE Aorus 2TB NVME Gen4 Solid State Drive ( SSD )

Feature of GIGABYTE Aorus 2TB NVME Gen4

GIGABYTE Aorus 2TB NVME Gen4 M.2 2280 PCI-Express 4.0 x4 3D TLC NVMe Gen4 SSD GP-ASM2NE6200TTTD is an SSD of the Gigabyte Brand. Gigabyte is a brand that is known to make some of the best M.2, Sata & NVME Solid State Drives. The Form factor of this Solid State Drive is M.2 2280. The Storage Size of the SSD is 2TB with a Read Speed of 5000 MBps. The write speed of the SSD is 4400 MBps and has a weight of 10g. The NAND Type of the SSD is 3D TLC and the SSD has a warranty of 5 Years. A solid-state drive has a lot of benefits for your Gaming PC.

World First PCIe 4.0×4 Controller

The World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

1. PCIe 4.0×4, NVMe 1.3 Interface
2. DDR4 DRAM cache
3. 8 CH with 32 CEs
4. Phison 4th Gen LDPC & RAID ECC
5. Support Pyrite
6. Heat spreader for controller

NAND Flash Selected for High Quality and Performance

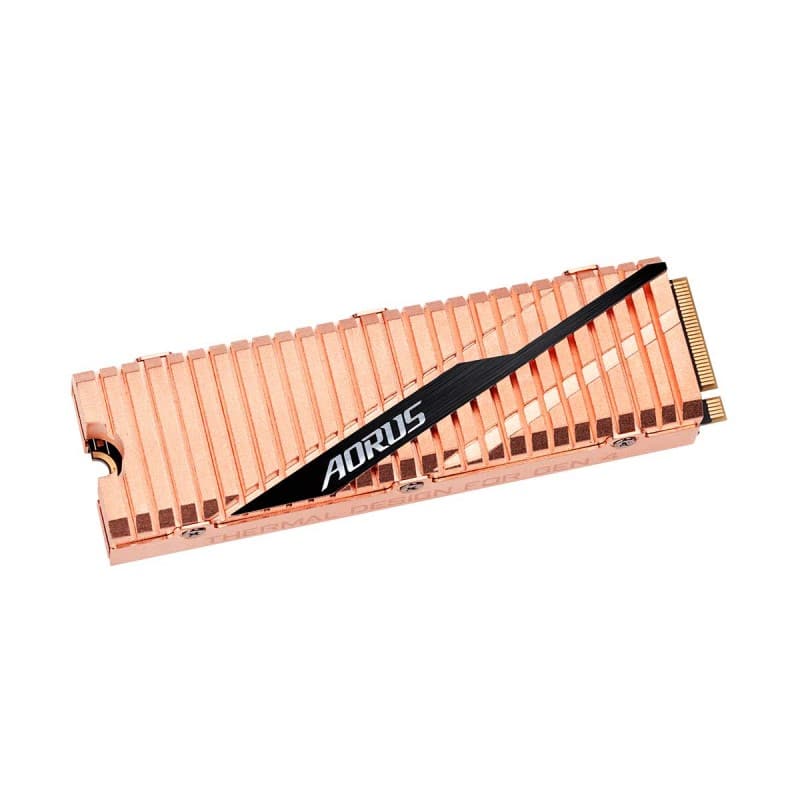

Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance

The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminum heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance.

Efficient Copper Heat Spreader Design

Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate.

Why is keeping an SSDs at lower temperatures so important?

1. Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
2. With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.

SSD Tool Box

The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Specifications of GIGABYTE Aorus 2TB NVME Gen4
