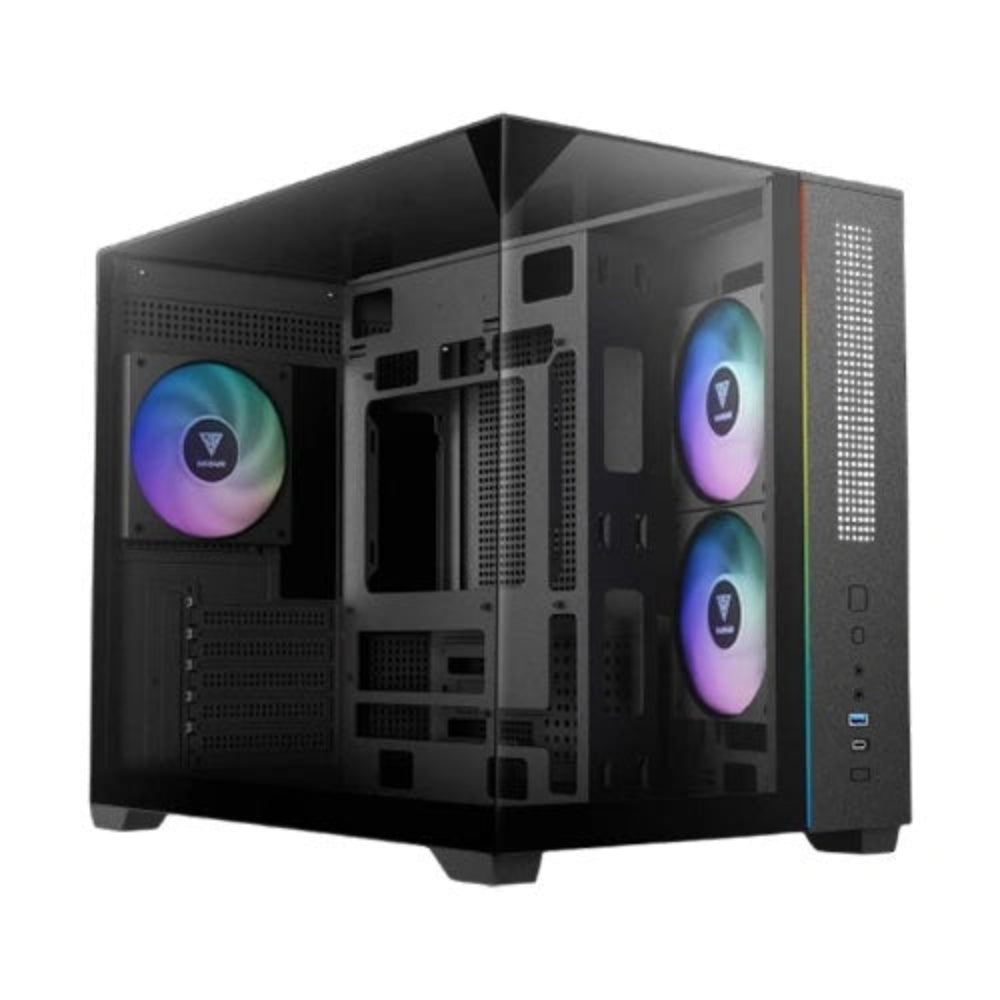

GAMDIAS Atlas M3M ARGB MATX Mini Tower Cabinet ( Black )

Features of GAMDIAS Atlas M3M ARGB MATX Mini Tower Cabinet ( Black )

• Three-sided Columnless Tempered Glass Display
• Modular Tool-free Installation
• 3 Built-in NOTUS M1 ARGB Fans (2 x Reverse Intake Fans)
• Unique Angeled Airflow Design
• Fits Mini-ITX and Micro-ATX motherboards
• Supports Connector-hidden Motherboards
• Gen 2 Type-C Port Ready
• Compatible with 400mm GPU

VISUALIZE THE VICTORY

The ATLAS M3M is a dual chamber micro-tower case with three built-in NOTUS M1 fans, a unique angled airflow design, and perforated vents for enhanced cooling. It supports connector-hidden motherboards for a cleaner look and features three-sided columnless tempered glass panels for an immersive view of your setup.

BREATHTAKING VISUALS

Showcase your setup from every angle with seamless tempered glass panels on the top, front, and side. The ATLAS M3M is designed to deliver a panoramic, unobstructed view of your build.

POWERFUL VENTILATION

The ATLAS M3M is built with perforated air vents throughout the case, including the side panel, rear exhaust, and the side intake on the front panel to ensure superior airflow configurations.

3 NOTUS M1 ARGB FANS WITH BUILT-IN FAN HUB

Featuring three built-in NOTUS M1 ARGB fans, the case can provide exceptional lighting and fine-tuned airflow. Additionally, it includes a 8-port PWM ARGB fan hub, allowing for easy management and synchronization, ensuring a cohesive lighting setup.

ANGLED AIRFLOW DESIGN

A unique angled fan mounting system channels airflow directly toward high-end GPUs, maintaining optimal temperatures during intensive gaming. This thoughtful design ensures your graphics card runs more efficiently, even under maximum load.

FLAWLESS VIEW

This case supports connector-hidden motherboard (BTF motherboard), enabling cables to plug in from the back for a cleaner front appearance and enhanced PC setups.

GEN 2 TYPE-C INTERFACE

The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, USB 3.0 port, fan LED controls, and additional audio connectivity.

MODULAR GLASS PANELS

The case showcases your components through three seamless glass panels designed for easy access. The top and side panels can be swiftly removed via thumb screws, while the front panel is securely held by a single screw for convenient removal, enhancing both accessibility and the overall modding experience.

COOLING COMPATIBILITY

The ATLAS M3M can accommodate up to 6 fans and offers flexible options for the installation of radiators at the side and bottom.

INTERIOR ACCOMMODATION

Designed with a compact form factor, the case offers the option to house up to m-ATX motherboards and VGA cards up to 400mm, including support for RTX 50 Series GPUs.

FLEXIBLE STORAGE SOLUTION

The case features an interior configuration with ample room for cable management optimization, supporting installation of up to 2 x 2.5" + 1 x 3.5" drives and PSU lengths up to 160mm.

Radiator Support

• Side: 240mm
• Bottom: 360mm

Fan Support

• Side: 2 x 120mm
• Bottom: 3 x 120mm, 2 x 140mm
• Rear: 1 x 120mm, 1 x 140mm

Pre-installed Fans

• Rear: 1 x 120mm PWM ARGB Fan
• Side: 2 x 120mm PWM ARGB Fans

Specifications of GAMDIAS Atlas M3M ARGB MATX Mini Tower Cabinet ( Black )
