- GAMDIAS Atlas M1 ATX Mid Tower ARGB Cabinet ( Black )
Description
Features of GAMDIAS Atlas M1 ATX Mid Tower ARGB Cabinet ( Black )
FUNCTIONALITY WITH SEAMLESS VISUALS

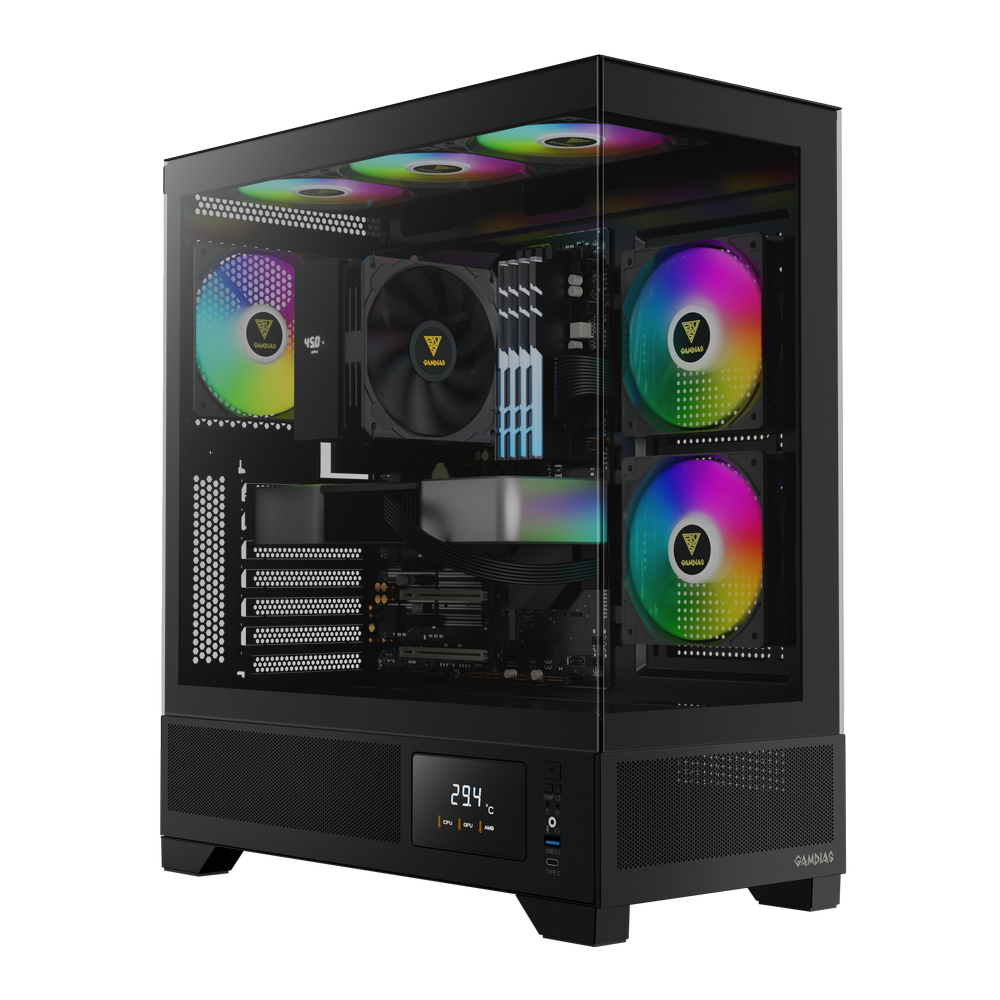

The ATLAS M1 Series is available in black and white editions. The case features perforated air vents with three built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of seamless tempered glass panels providing stunning visuals of your build.
POWERFUL VENTILATION
The ATLAS M1 is built with perforated air vents throughout the case, vents perforated on the side panel, PSU chamber, and back exhaust to ensure superior airflow configurations.
3 BUILT-IN ARGB PWM FANS
The case comes with three ARGB PWM fans, with two preinstalled 120mm reverse intake fans on the side and one 120mm fan on the rear exhaust, providing excellent airflow and stunning ARGB visuals via the motherboard or LED control button.
BREATHTAKING VISUALS
The ATLAS M1 provides a perfect view of all your components with its seamless glass panels equipped with a clasp mechanism for simple glass removal. The case excels in not only visuals but improves on the user's modding experience.
FLEXIBLE GPU COMPATIBILITY
The 7+2 PCI-e slots allow GPUs to be mounted in vertical and horizontal orientations and can support massive modern GPUs.
MONITOR REAL-TIME STATUS
The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O port.
COOLING SUPPORT
The ATLAS M1 can accommodate up to 6 fans and offers flexible options for the installation of radiators at the top, side, and rear.
INTERIOR ACCOMMODATION
The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 410mm.
STORAGE COMPATIBILITY
The ATLAS M1 Series supports installation of up to 4x 2.5" or 3 x 2.5"+1x 3.5" and can accommodate PSU lengths up to 180mm.
DUST RESISTANT
This Gamdias Cabinet is Equipped with dust filters on the top and bottom, the case effectively protects against dust while maintaining ventilation.
CONCISE I/O DESIGN
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, a USB 3.0 port, a fan LED control, a monitor mode switch, and an integrated audio jack.
Best cpu case gaming at affordable prices at Elitehubs!
Specifications of GAMDIAS Atlas M1 ATX Mid Tower ARGB Cabinet ( Black )
Case Type | MID Tower |
MB Support | ATX、Micro-ATX、Mini-ITX |
Synchronization | 5V 3-Pin Addressable Header |
CASE Color | Black |
Expansion Slots | 7+2 |
Material | SPCC & ABS & Tempered glass |
Window | Front, Left |
Radiator Support | Top: 360mm、 280mm / Side: 240mm / Rear: 120mm |
Fan Support | Top: 3 x 120mm、2 x 140mm / Side: 2 x 120mm / Rear: 1 x 120mm |
Pre-installed Fans | Side : 2 x 120mm ARGB PWM Fans / Rear : 1 x 120mm ARGB PWM Fan |
Drive Bays | 1 x 3.5"(HDD Cage) 2 x 2.5"(SSD Bracket) |
I/O Port | USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1 |
Clearance | CPU cooler height limitation:160mm |
VGA length limitation:410mm | |
PSU length limitation:180mm | |
Dimension (L x W x H) | 420 x 210 x 465 mm |
Net Weight | 7.6 kg / 16 lb |
