- GALAX Revolution 01 ATX Mid Tower Cabinet (Black)
Description
Features of GALAX Revolution 01 Mid Tower Cabinet
- GALAX REV-01 is a Mid Tower PC case that supports ATX, M-ATX and ITX motherboards.
- Besides having a front panel mesh design for better heat dissipation, it also supports water-cooling systems and up to 6 cooling fans installation.
- For the ease of customization, REV-01 also comes with a tempered glass panel and an built in ARGB controller, including the V2.0
- Modern and idealistic design for Enthusiast, Gamers and other PC builds • Supplied with GALAX Vortex Wind 4 ARGB Fans and ARGB Controller
- VGA card hanger is included, it will support all sizes Graphics cards • Form Factor : Mini Tower (Mini ITX, Micro ATX and ATX)
- PSU Form Factor : Bottom / ATX

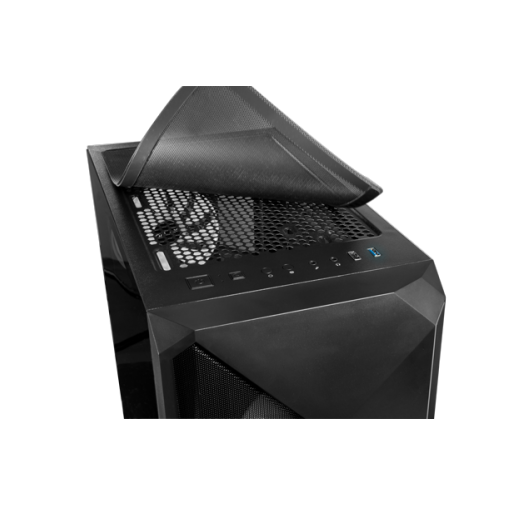

- Sides and Panels : Front Panel – ABS, Mesh | Top Panel – Metal Mesh, with removable dust Filter | Left Panel – Tempered Glass | Right Panel – Metal Cover
- Internal Drives : 3.5” HDD x2 and 2.5” SSD/HDD x2
- Buttons : 4 ( Start, Restart, Lighting Control and RGB Control)
- Ports : 1x MIC, 1x Audio Jack, 1x USB 2.0, 1x USB 3.0
Specifications of GALAX Revolution 01 ATX Mid Tower Cabinet (Black)
Chassis | SPCC: 0.45mm |
PSU Form Factor | Bottom/ATX |
M/B Form Factor | ATX, M-ATX |
Front Panel | ABS, Mesh |
Top Panel | Metal cover |

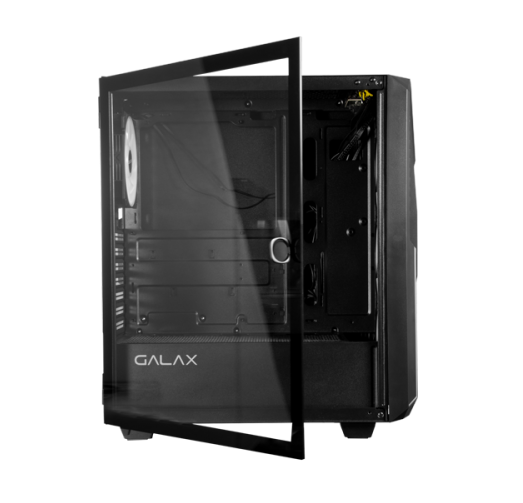

Side Panel | Tempered Glass |
5.25" (ODD) | *0 |
3.5" | *0 |
3.5" (HDD) | *2 |
2.5" (SSD) | *2 |
Buttons | *4 |
USB1.1 Port(s) | *0 |
USB2.0 Port(s) | *1 |
USB3.0 Port(s) | *1 |
USB3.1 Port(s) | *0 |
HD Audio Support | *1 |
Card Reader (Support) | *0 |
P-Lock | *0 |
RGB Controller | *1 Rainbow+PWM V2.0 |
Controller max. fans | *5 |
RGB Controller max. LED strips | *2 |
Remote (IR or RF) | *0 |
Front | 3x120mm,2x140mm(Fan optional) |
Top | 2x120mm,2x140mm(Fan optional) |
Rear | 1x120mm (Fan optional) |
Left Side | 0 |
PSU Cover | 2x120mm (Fan optional) |
Front | 120mm, 140mm, 240mm, 280mm, 360mm |
Top | 120mm, 140mm, 240mm |
Rear | 120mm*1 |
Dust Cover | Bottom and top cover with dust filter |
Slots | *7 |
Chassis(mm) | (L)360*(W)210*(H)440 |
Full Case (inc Fascia)(mm) | (L)424*(W)215*(H)460 |
Carton(mm) | (L)506*(W)266*(H)465 |
Net Weight (Kg) | 4.9 |
Gross Weight (Kg) | 5.8 |
VGA Card Length | up to 340mm |
CPU Cooler Height | 170mm |
Cable Management Depth | 22 |
