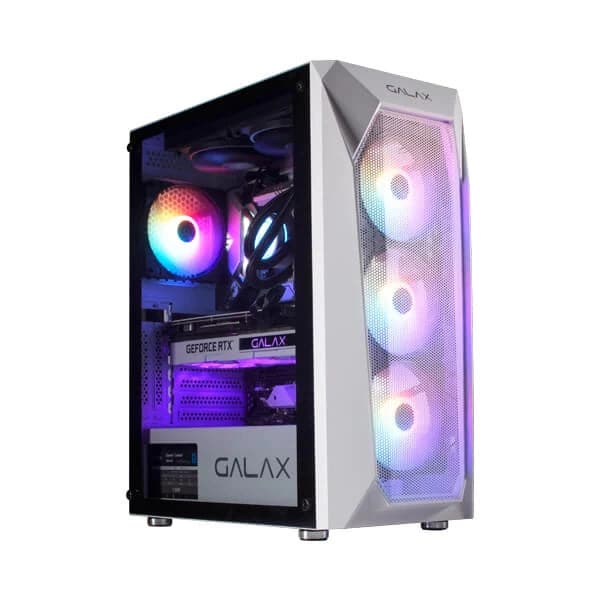

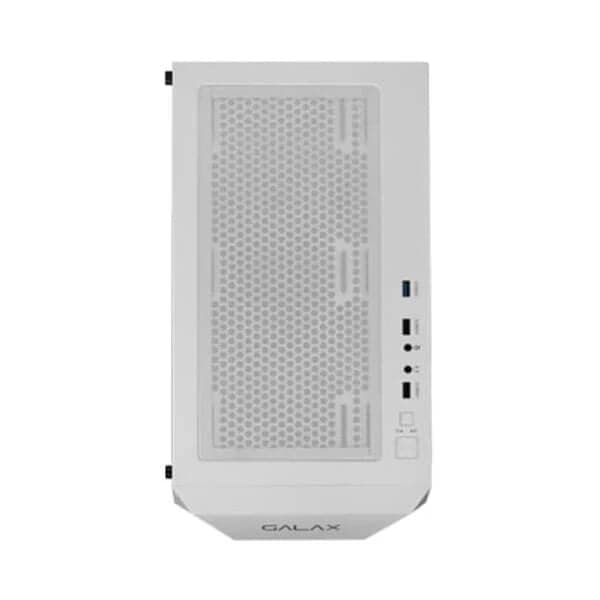

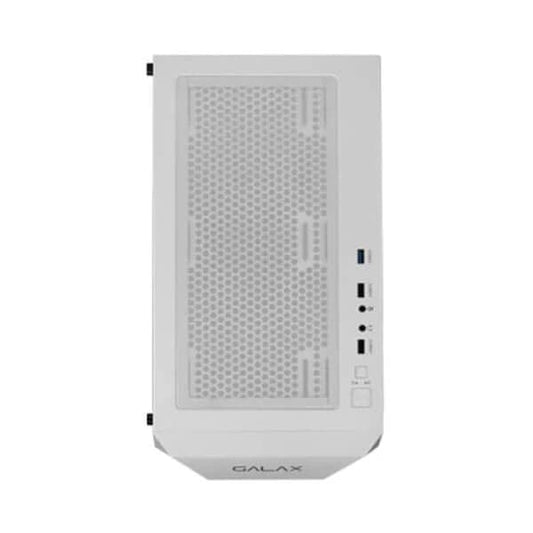

- GALAX Revolution 05 Mesh RGB ATX Mid Tower Cabinet (White)
Description
Features of GALAX Revolution 05 Mesh RGB (ATX) Mid Tower Cabinet (White)
Now available in arctic white color, REV-05W is by far the tallest PC case in the Revolution family and is compatible with ATX, M-ATX, ITX motherboards. Standing tall at 470mm, it provides a spacious interior for customization, allowing you to choose between vertical or horizontal mounting for the graphics card and maximizing cooling and storage potential for your next build.
Specifications of GALAX Revolution 05 Mesh RGB (ATX) Mid Tower Cabinet (White)
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX, M-ATX, ITX |
| Chassis | SPCC + Tempered Glass |
| PSU Form Factor | ATX |
| M/B Form Factor | ATX, M-ATX, ITX |
| Front Panel | ABS,Mesh cover |
| Top Panel | Metal cover |
| Side Panel | |
| Left | Tempered Glass |
| Right | Metal cover |
| External Drive Bay(s) | |
| 5.25" (ODD) | *0 |
| 3.5" | *0 |
| Internal Drive Bay(s) | |
| 3.5" (HDD) | *2 |
| 2.5" (SSD) | *3 |
| I/O | |
| Buttons | *2 |
| USB1.1 Port(s) | *0 |
| USB2.0 Port(s) | *2 |
| USB3.0 Port(s) | *1 |
| USB3.1 Port(s) | *0 |
| HD Audio Support | *1 |
| Card Reader (Support) | *0 |
| P-Lock | *0 |
| RGB Controller | *0 |
| Controller max. fans | *0 |
| RGB Controller max. LED strips | *0 |
| Remote (IR or RF) | *0 |
| Cooling Fan Support | |
| Front | 3x120mm (Fan optional) |
| Top | 2x120mm，2x140mm (Fan optional) |
| Rear | 1x120mm (Fan optional) |
| Side | 0 |
| Bottom | 2x120mm (Fan optional) |
| Water Cooling Support (Radiator Size) | |
| Front | 240mm/280mm/360mm |
| Top | 240mm/280mm |
| Rear | 120mm |
| Dimensions | |
| Chassis | (L)350*(W)205*(H)470mm |
| Full Case (inc Fascia) | (L)400.6*(W)205*(H)481.5mm |
| Carton | (L)532*(W)258*(H)465mm |
| Net Weight (Kg) | 4.3KG |
| Gross Weight (Kg) | 4.95KG |
| VGA Card Length | up to 330mm |
| CPU Cooler Height | 160mm |
| Cable Management Depth | 18mm |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
