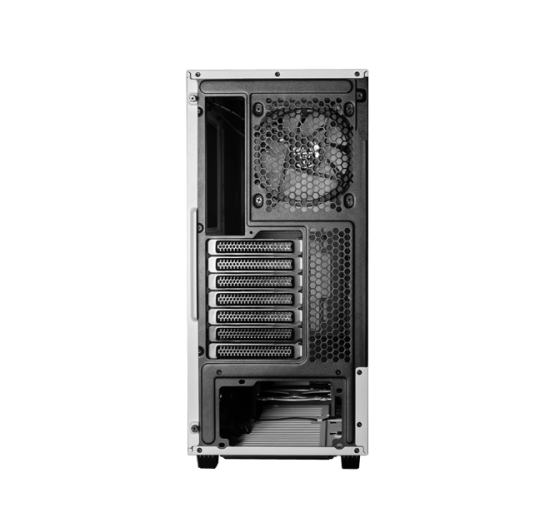

- GALAX Revolution 02 EATX Mid Tower Cabinet (Black)
Description
Features of GALAX Revolution 02 EATX Mid Tower Cabinet (Black)

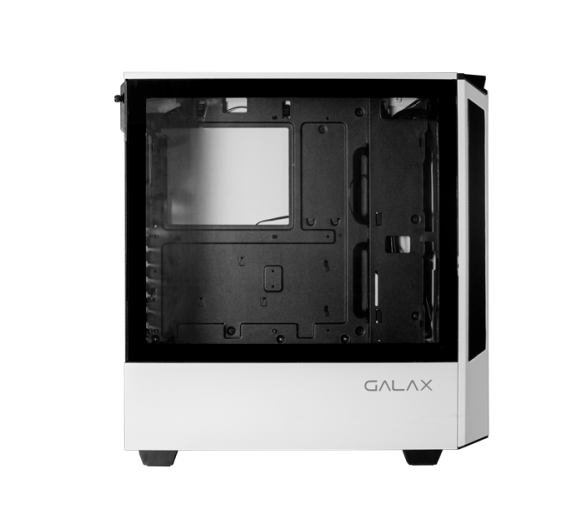

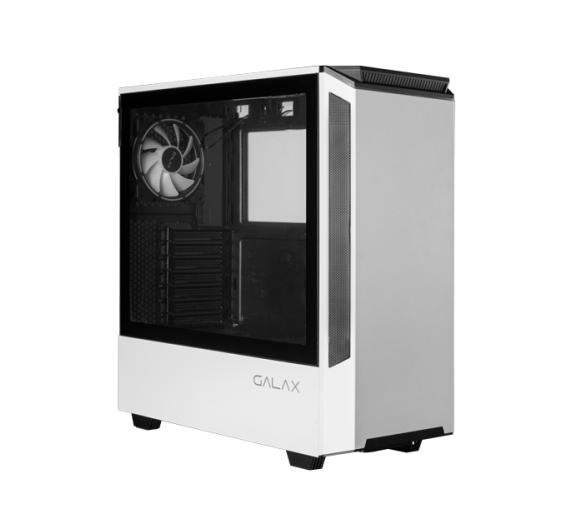

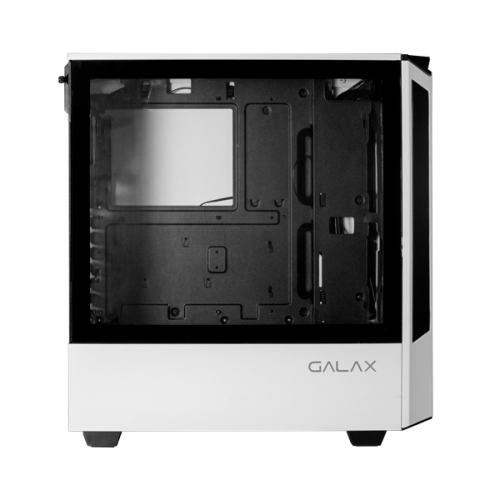

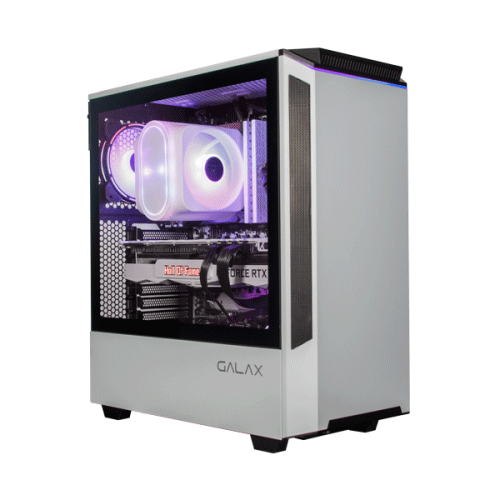

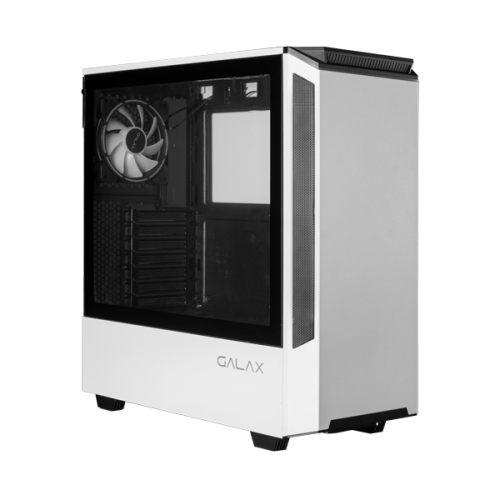

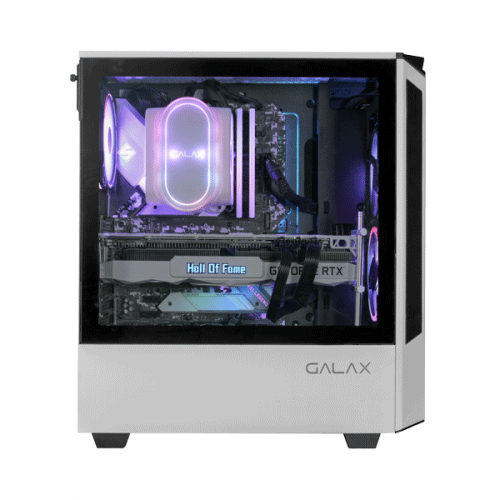

GALAX REV-02 lands with an all new arctic white aesthetic. It is compatible with EATX, ATX,Micro and Mini ITX motherboards, as well as allowing the installation of up to 5 cooling fans. As it also features a tempered glass cover which only requires a single screw piece to hold it in place, the ease of installation and tinkering is totally unbeatable. If you enjoy RGB effects, REV-02 also comes in with an ARGB controller!
- Mid Tower Gaming Case With ARGB Controlller
- 4 ARGB Fans With Premium quality side Tempered Glass Panel
- Design for best of Gaming experience
- Good space for gaming components installation
Specifications of GALAX Revolution 02 EATX Mid Tower Cabinet (Black)
| Chassis | SPCC Rear:0.8mm, Left/right/Top/front:06mm, other:0.5mm. Black painting interior |
| PSU Form Factor | Bottom/ATX |
| M/B Form Factor | EATX(282*305mm)、ATX、M-ATX、ITX |

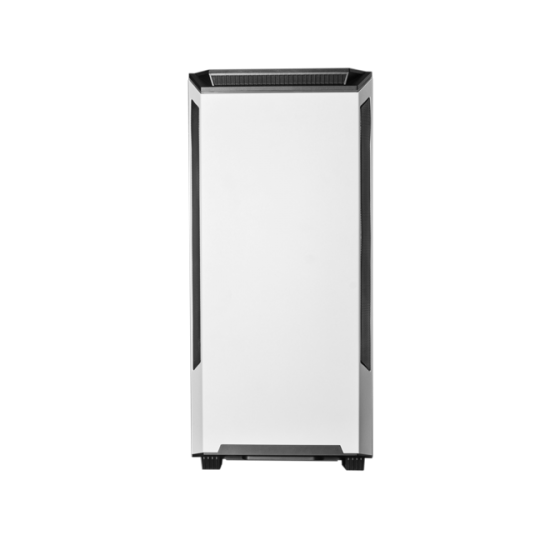

| Front Panel | ABS, Mesh |
| Top Panel | Metal cover |
| Left | Tempered Glass |
| Right | Metal cover |
| 5.25" (ODD) | *0 |
| 3.5" | *0 |
| 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 |

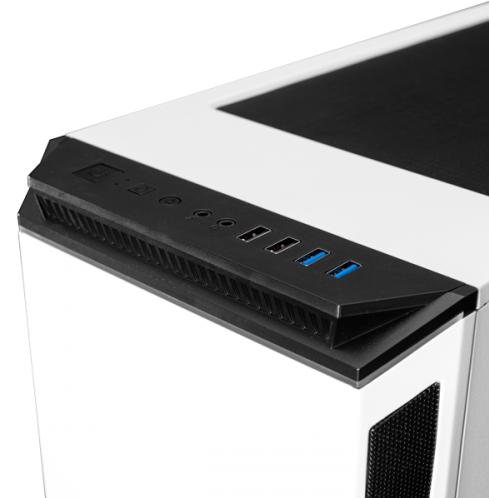

| Buttons | *3 |
| USB1.1 Port(s) | *0 |
| USB2.0 Port(s) | *2 |
| USB3.0 Port(s) | *2 |
| USB3.1 Port(s) | *0 |
| HD Audio Support | *1 |
| Card Reader (Support) | *0 |
| P-Lock | *0 |
| RGB Controller | *1 Rainbow+PWM V2.0 |
| Controller max. fans | *5 |
| RGB Controller max. LED strips | *2 |
| Remote (IR or RF) | *0 |
| Front | 2x120mm,2x140mm(Fan optional) |
| Top | 2x120mm ,2x140mm (Fan optional) |
| Rear | 1x120mm (Fan optional) |
| Left Side | 0 |
| PSU Cover | 0 |
| Front | 120mm*1, 140mm*1,240mm*1,280mm*1 |
| Top | 120mm*1, 240mm*1,140mm*1,280mm*1 |
| Rear | 120mm*1 |
| Dust Cover | Bottom and top cover with dust filter |
| Slots | *7 |
| Chassis(mm) | (L)390*(W)210*(H)445mm |
| Full Case (inc Fascia) | (L)438*(W)210*（H)468mm |
| Carton(mm) | (L)515*(W)280*（H)505mm |
| VGA Card Length(mm) | up to 360 |
| CPU Cooler Height(mm) | 170 |
| Cable Management Depth(mm) | 37.5 |
