- FRACTAL DESIGN Meshify 2 XL Dark EATX Mid Tower Cabinet (Black)
Description
Features of FRACTAL DESIGN Meshify 2 XL Dark EATX (Black)
Bigger, bolder and better? With more of everything, the FRACTAL DESIGN Meshify 2 XL is ready to take on your most ambitious builds.

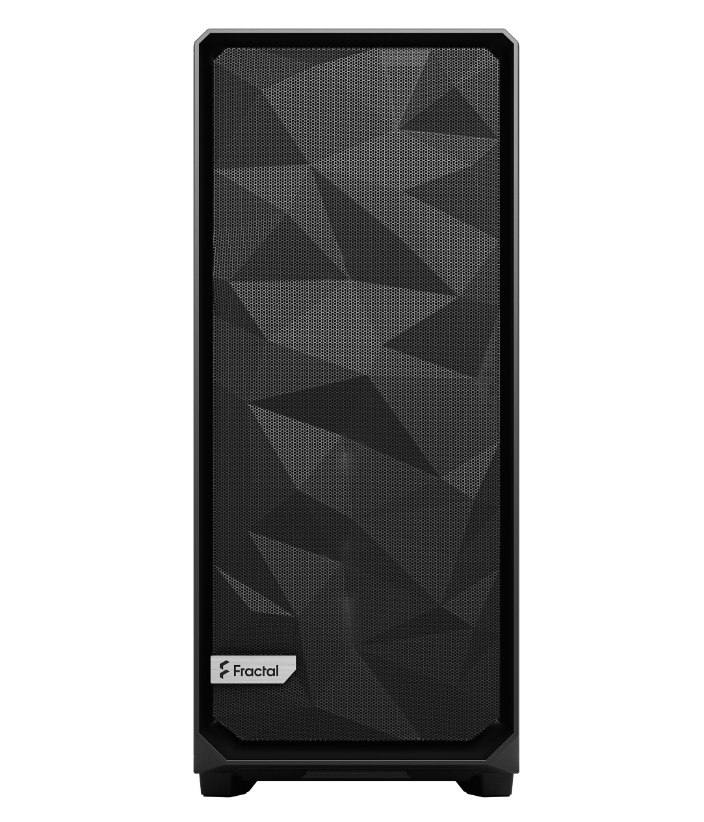

- Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious and extensively adaptable dual-layout interior
- Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
- Open Layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
Detachable front filter
- The nylon filter is easily removed from the hinged mesh panel for increased airflow
- Tether-free bezel for easier access to front fan mounts
- Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)
Superlative storage
- Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
- The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
- Tool-less, top-latching panels allow quick access while preventing accidental drops
Flexible dual-layout design
- Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
- Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB
Open and interchangeable

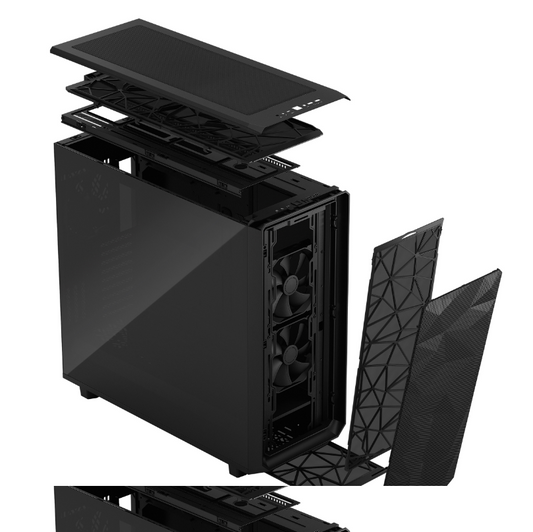

Remove the entire top to build and route with zero hindrance.
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10Gbps
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans
Versatile multibrackets
The included Multibrackets lets you convert unused fan positions to HDD, SSD or pump mounts
Easy cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Specifications of FRACTAL DESIGN Meshify 2 XL Dark EATX (Black)
Specification | |
Specifications |
3.5"/2.5" Universal drive mounts : 6 included, 18 positions total + 2 Multibrackets Dedicated 2.5" drive mounts : 2 included, 5 positions total Expansion slots : 9 + 3 Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button Total fan mounts : 11x 120 mm or 9x 140 mm Front fan : 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included) Top fan : 4x 120 mm or 3x 140 mm Rear fan : 1x 120/140 mm, (1x Dynamic X2 GP-14 included) Bottom fan : 2x 120/140 mm Dust filters : Top, front and bottom Fixed velcro straps : Yes Cable routing grommets : Yes Captive thumbscrews : HDD, SSD and PSU brackets Left side panel : Tempered glass dark tint Right side panel : Steel |
Compatibility |
Motherboard compatibility : E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB Power supply type : ATX PSU max length : 250 mm (both HDD cages installed) GPU max length : Storage layout: 359 mm Open layout: 549 mm (524 mm w/ front fan) CPU cooler max height : 185 mm Front radiator : Up to 480/420 mm Top radiator : Up to 480/420 mm Rear radiator : 120 mm Bottom radiator : Up to 240/280 mm Cable routing space : 30 mm |
Dimensions |
Case dimensions (LxWxH) : 600 x 240 x 566 mm Case dimensions w/o feet/protrusions/screws : 588 x 240 x 547 mm Package dimensions (LxWxH) : 651 x 330 x 684 mm Net weight : 14.1 kg Gross weight : 16.4 kg Volume : 77,2 liters |
Other |
Package contents : Meshify 2 XL Case, user manual, accessory box, screw box Product code : FD-C-MES2X-01 |
Warranty | 2 Years |
Note* | Price, feature and specifications are subject to change without notice. |
