- FRACTAL DESIGN Meshify 2 Compact Solid ATX Mid Tower Cabinet (Black)
Description

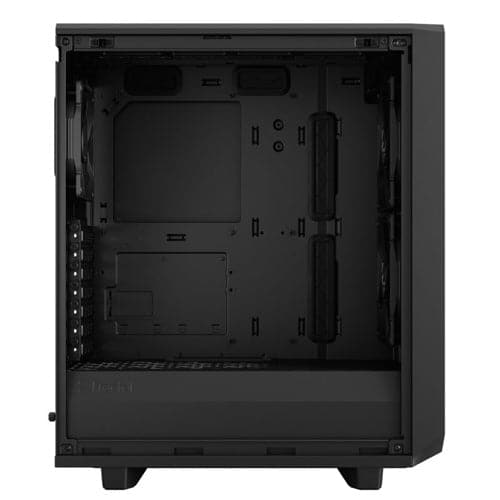

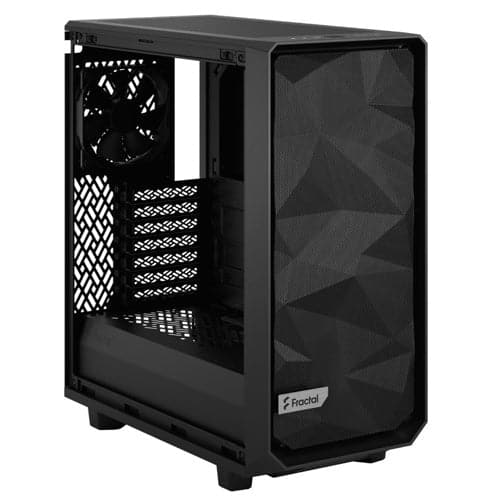

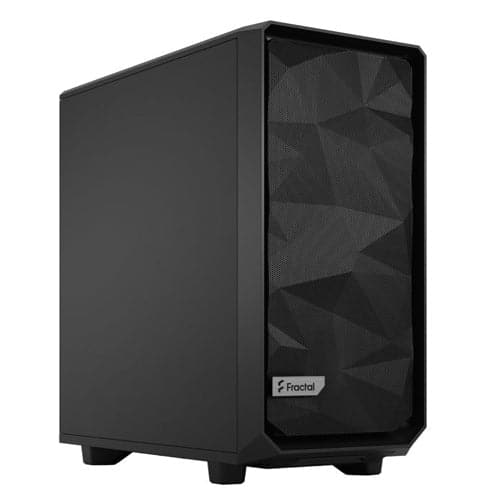

Features of FRACTAL DESIGN Meshify 2 Compact Solid Cabinet (Black)
Fractal Design cabinet is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

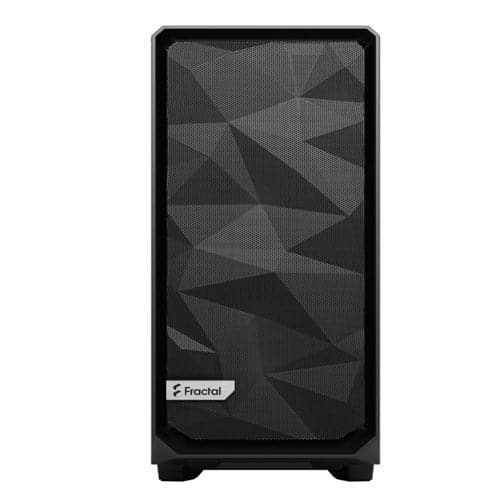

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
Removable front filter
- New front panel design of ATX Cabinet with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow
Robust cooling
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Fully featured

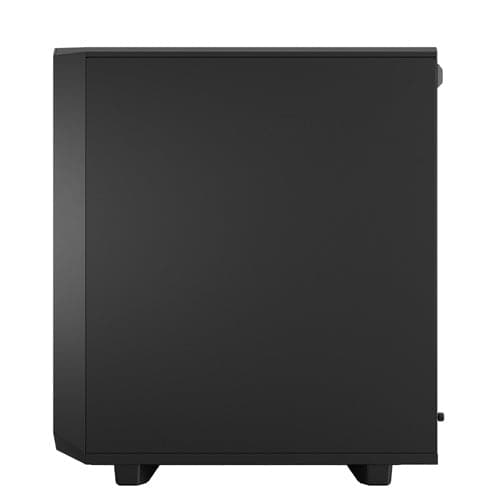

- Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
- Improved cable routing with three integrated cable alignment clips and six velcro straps
Top priority access
The fully removable top panel opens to provide excellent interior access
Spaciously compact
Clever layout enables the capacity of much larger cases
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps
Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets
Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling
Get the affordable cpu cabient price with the huge variety with us!
Specifications of FRACTAL DESIGN Meshify 2 Compact Solid Cabinet (Black)
| 3.5"/2.5" Universal drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included) |
| Expansion Slots | 7 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
| Front fan | 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm, (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front and bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Steel |
| Right side panel | Steel |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max lengthq | 200 mm (165 mm with HDD cage and front fan) |
| GPU max length | 341 mm (360 mm without front fan) |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Radiator Support – Additional Details | Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual. |
| Case dimensions (LxWxH) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Package dimensions (LxWxH) | 542 x 320 x 554 mm |
| Net weight | 7.7 kg |
| Gross weight | 9.3 kg |
| Volume | 39.4 Liters |
| Package contents | Meshify 2 Compact Case, User manual, Accessory box |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
