Description
Features of FRACTAL DESIGN Meshify 2 Compact Dark Tint TG Mid Tower Cabinet (Black)

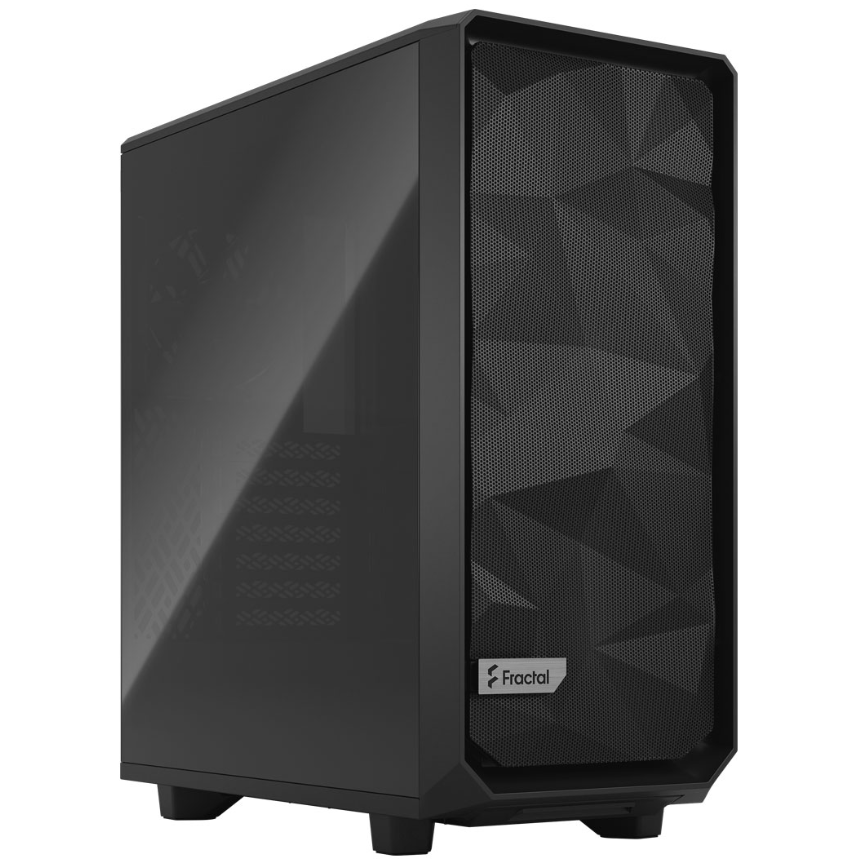

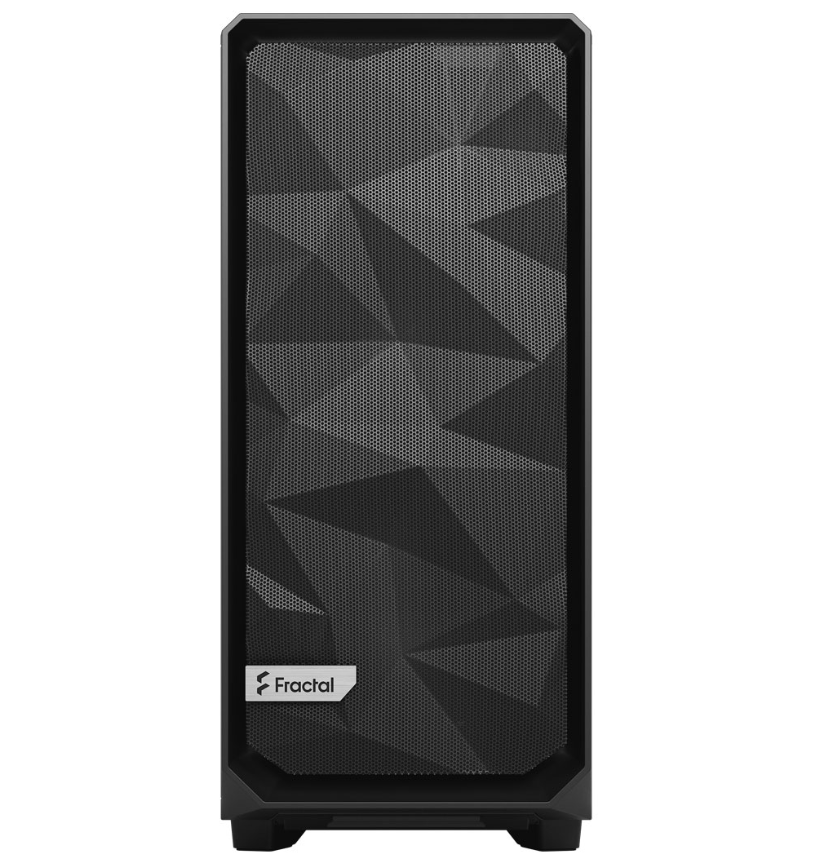

The Fractal Design Meshify 2 Compact Black TG Dark Tint features a dark tinted tempered glass side panel, iconic angular mesh front panel design that provides filtered airflow with a bold, stealth-inspired aesthetic, supports m-ITX, m-ATX, and ATX motherboards, 2 x pre-installed 140mm Dynamic X2 GP-14 front fans, 1 x pre-installed 120mm Dynamic X2 GP-12 rear fan, radiator support at the front (up to 360mm), top (up to 240mm), bottom and rear (up to 120mm), and supports a graphics card of up to 341mm in length (with front fans).
- Removable front filter
- Robust cooling
- Fully featured
- Filtered airflow
- Top priority access
- Spaciously compact
- Type-C interface
- Smooth and quiet operation
- Full length shroud
Specifications of FRACTAL DESIGN Meshify 2 Compact Dark Tint ATX Mid Tower Cabinet (Black)
3.5"/2.5" Universal drive mounts | 2 (included) |
Dedicated 2.5" drive mounts | 4 (2 included) |
Expansion slots | 7 |

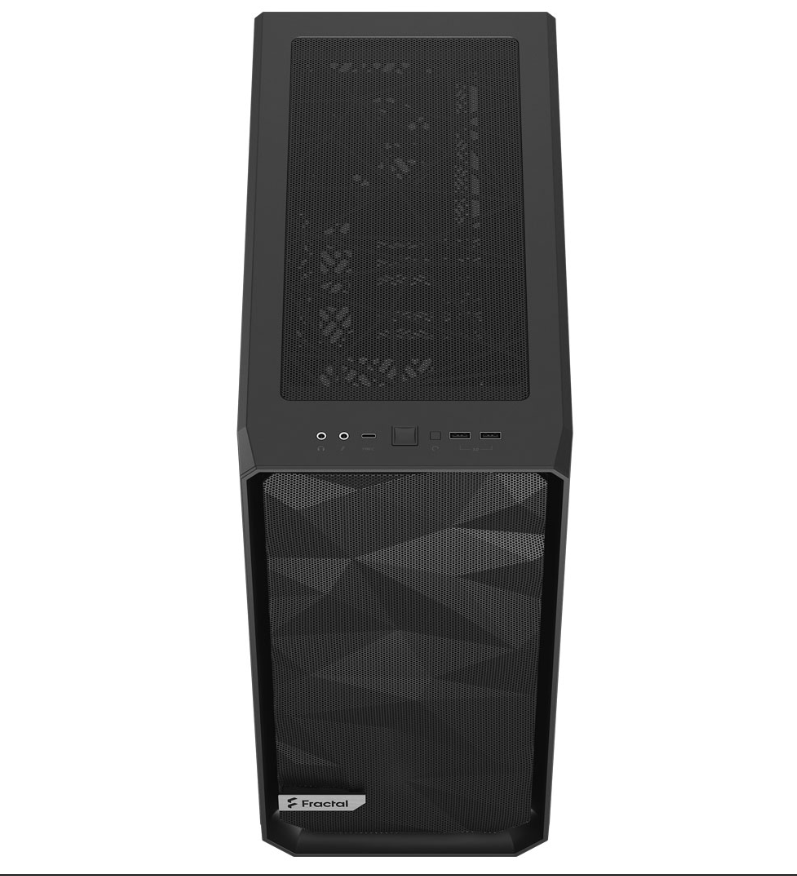

Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
Front fan | 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) |
Top fan | 2x 120/140 mm |
Rear fan | 1x 120 mm, (1x Dynamic X2 GP-12 included) |
Bottom fan | 1x 120 mm (requires removal of HDD cage) |
Dust filters | Top, front and bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |
Left side panel | Tempered Glass |
Right side panel | Steel |
Motherboard compatibility | ATX / mATX / Mini-ITX |
Power supply type | ATX |
PSU max length | 200 mm (165 mm with HDD cage and front fan) |
GPU max length | 341 mm (360 mm without front fan) |
CPU cooler max height | 169 mm |
Front radiator | Up to 360/280 mm |
Top radiator | Up to 240 mm |
Rear radiator | 120 mm |
Bottom radiator | 120 mm (requires removal of HDD cage) |
Cable routing space | 17-28 mm |
Radiator Support – Additional Details | Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm. |
Case dimensions (LxWxH) | 424 x 210 x 475 mm |
Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
Package dimensions (LxWxH) | 542 x 320 x 554 mm |
Net weight | 7.7 kg |
Gross weight | 9.3 kg |
Volume | 39.4 Liters |
