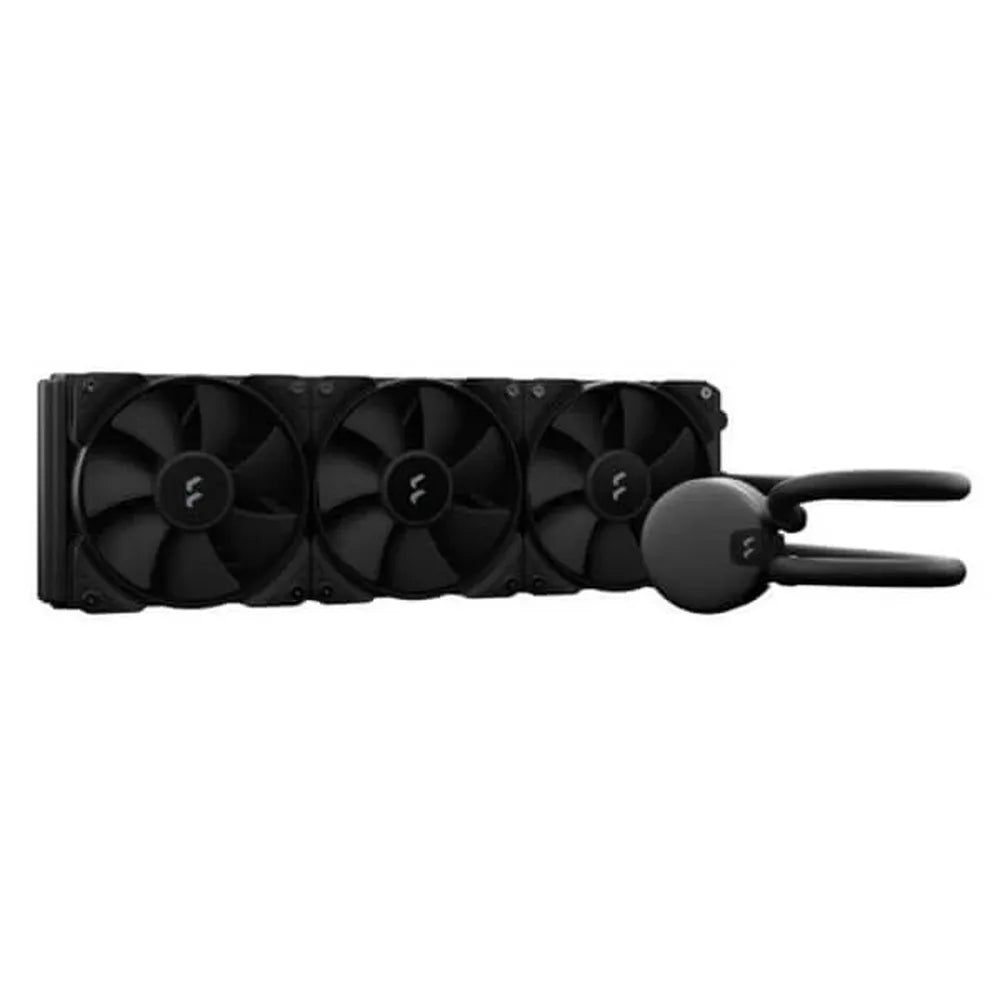

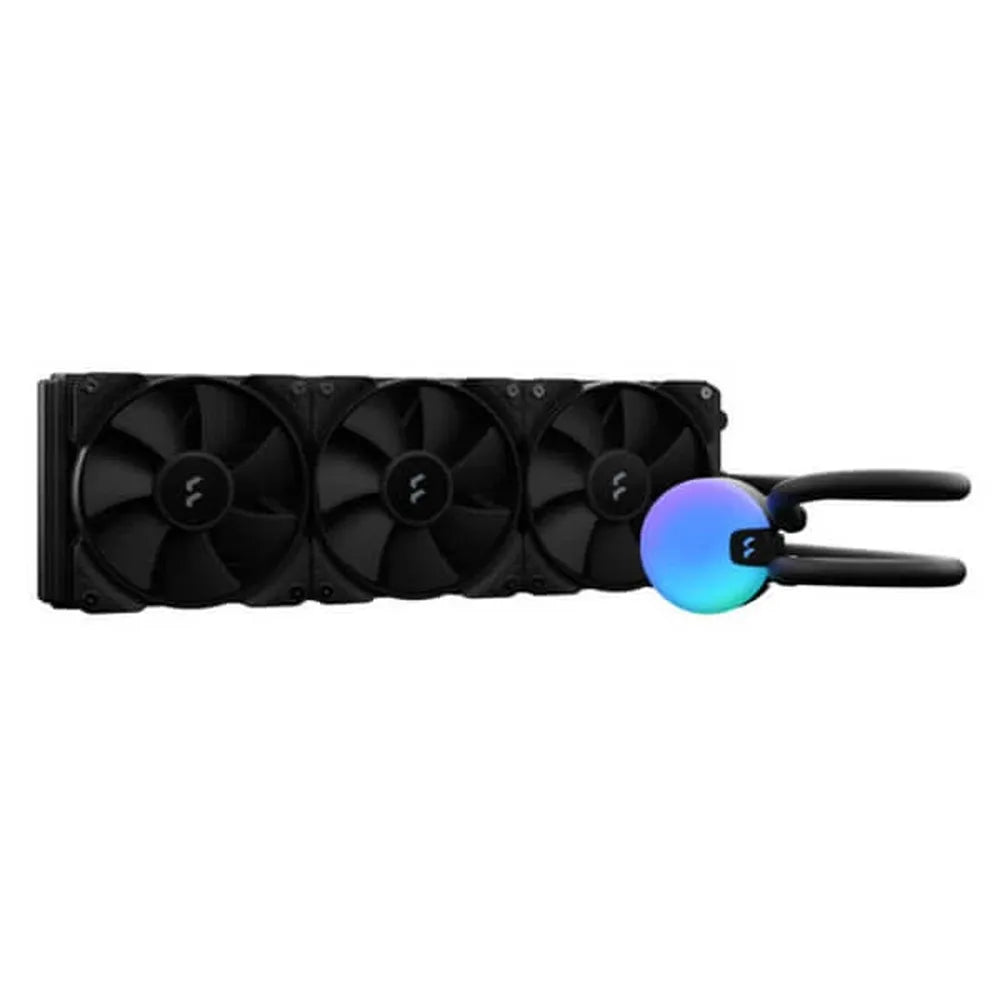

- FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)
Description
Features of FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)
Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller
• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Compatible with LGA 1700 and AM5
Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the FRACTAL DESIGN Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Compatible with LGA 1700 and AM5
- Supports the most common sockets for both Intel and AMD
Specifications of FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)
| Model Number | FD-W-L1-S3611 |
| Sockets supported (Intel) | LGA1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets supported (AMD) | AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 |
| Cold plate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree Elbow |
| Fittings, radiator side | Barbed fitting |
| Block height | 43mm |
| Block measurements (with fittings) | 79 x 67 mm |
| Block diameter (main block body) | 67 mm |
| Fan specifications | |
| Fan type | Aspect 12 PWM |
| Rotational speed | 500–2000 RPM |
| Fan bearing | Rifle bearings |
| Fan PWM control | Yes |
| Fan acoustical noise | <10–33.2 dBA |
| Fan maximum air flow | 13-56 CFM |
| Fan maximum static pressure | 0.230–2.34 mm H2O |
| Fan input voltage | 12V |
| Fan maximum input current | 0.37A |
| Fan MTTF | 90,000 hours |
| Pump specifications | |
| Rotational speed | 4000 ± 10% RPM |
| Bearing type | Ceramic |
| PWM control | No |
| Acoustical noise (full speed) | 22 dBA |
| Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.34 A |
| MTTF | 50 000 hours |
| Radiator specifications | |
| Radiator dimensions | 392 x 120 x 27 mm |
| Radiator fin material | Aluminum |
| Radiator housing material | Aluminum |
| Radiator fan screw threads | 6-32 |

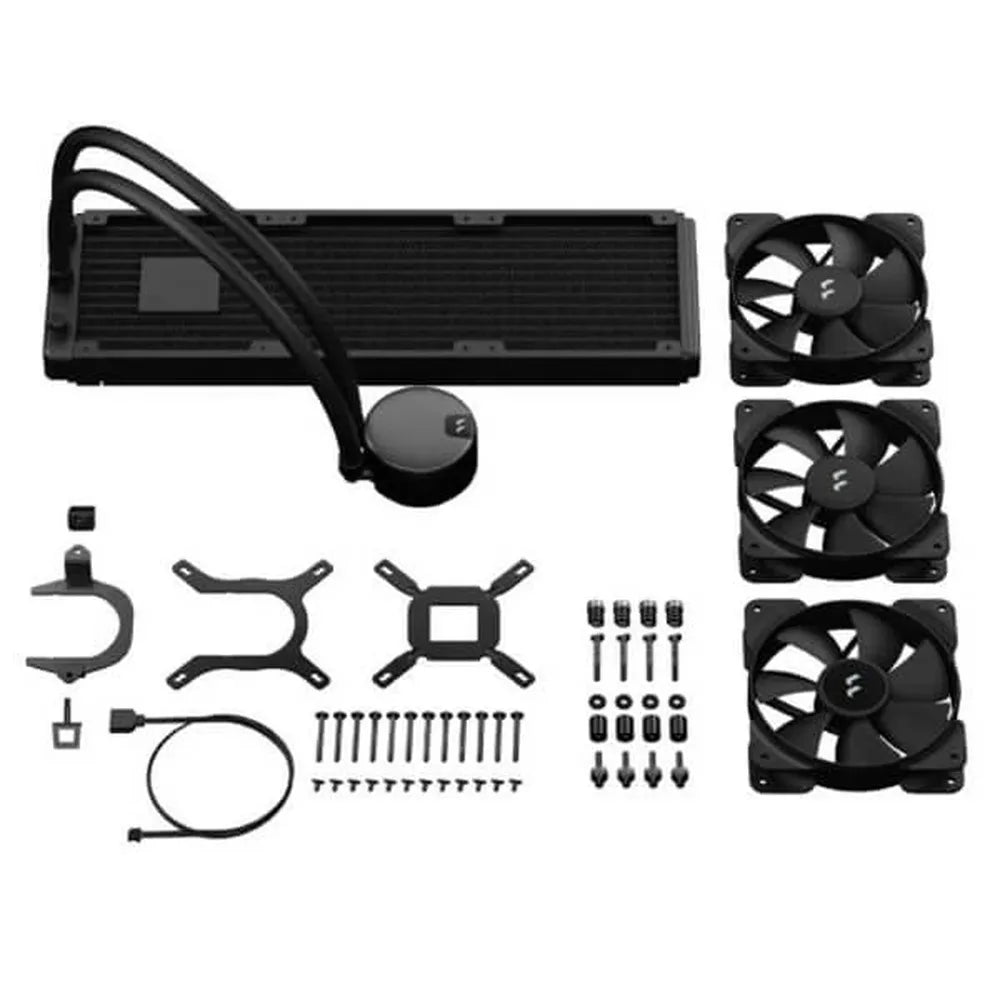

| Package contents | CPU Cooler Assembly, 3x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
