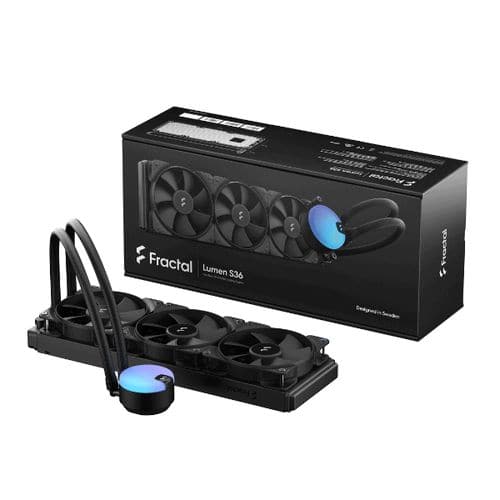

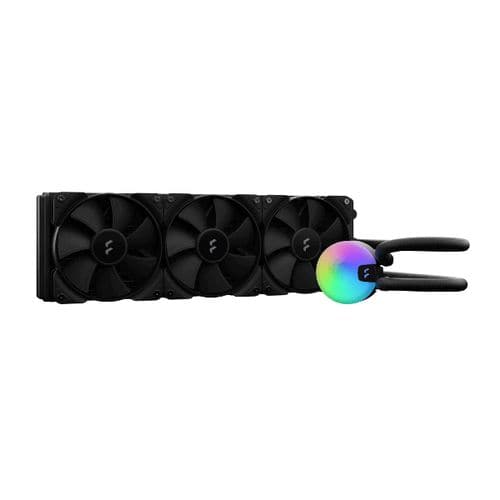

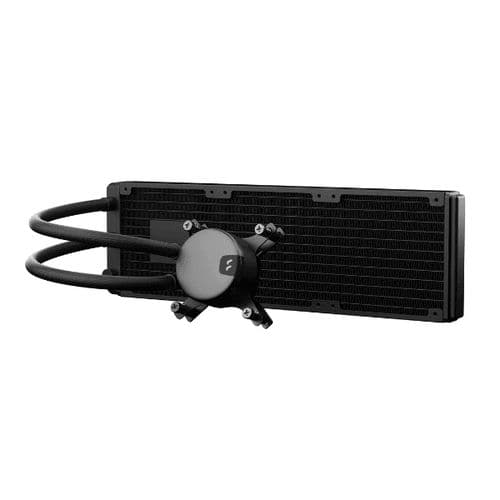

- FRACTAL DESIGN Lumen S36 360mm CPU Liquid Cooler (Black)
Description
Features of FRACTAL DESIGN Lumen S36 360mm (Black)
Customize your water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen is an attractive proposition for starting and seasoned builders alike.
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Pre-applied thermal paste ensures an easy installation
- Supports the most common sockets for both Intel and AMD
- Aspect fans for low turbulence and chaining support
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
- Current certifications include Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
- Low-permeability rubber tubes with braided nylon sleeves
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Compatible with LGA 1700
- Supports the most common sockets for both Intel and AMD
Specifications of FRACTAL DESIGN Lumen S36 360mm (Black)
General specifications | |
Sockets supported (Intel) | LGA 1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
Sockets supported (AMD) | AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 |
Cold plate material | Copper |
Thermal paste | Pre-applied |
Tube length | 400mm |
Tube material | Low-permeability rubber with braided nylon sleeve |
Fittings, block side | Articulating 90-degree Elbow |
Fittings, radiator side | Barbed fitting |
Block height | 43mm |
Block measurements (with fittings) | 79 x 67 mm |
Block diameter (main block body) | 67 mm |
Fan specifications | |
Fan type | Aspect 12 PWM |
Rotational speed | 500–2000 RPM |
Fan bearing | Rifle bearings |
Fan PWM control | Yes |
Fan acoustical noise | <10–33.2 dBA |
Fan maximum air flow | 13-56 CFM |
Fan maximum static pressure | 0.230–2.34 mm H2O |
Fan input voltage | 12V |
Fan maximum input current | 0.37A |
Fan MTTF | 90,000 hours |
Pump specifications | |
Rotational speed | 4000 ± 10% RPM |
Bearing type | Ceramic |
PWM control | No |
Acoustical noise (full speed) | 22 dBA |
Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
Input voltage | 12V DC |
Input current (without fans) | 0.34 A |
MTTF | 50 000 hours |
Radiator specifications | |
Radiator dimensions | 392 x 120 x 27 mm |
Radiator housing material | Aluminum |
Radiator fin material | Aluminum |
Radiator fan screw threads | 6-32 |
Other | |
Package contents | CPU Cooler Assembly, 3x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
Package dimensions | 448 x 205 x 137 mm |
Package weight | 2.20kg |
Product Code | FD-W-L1-S3601 |
