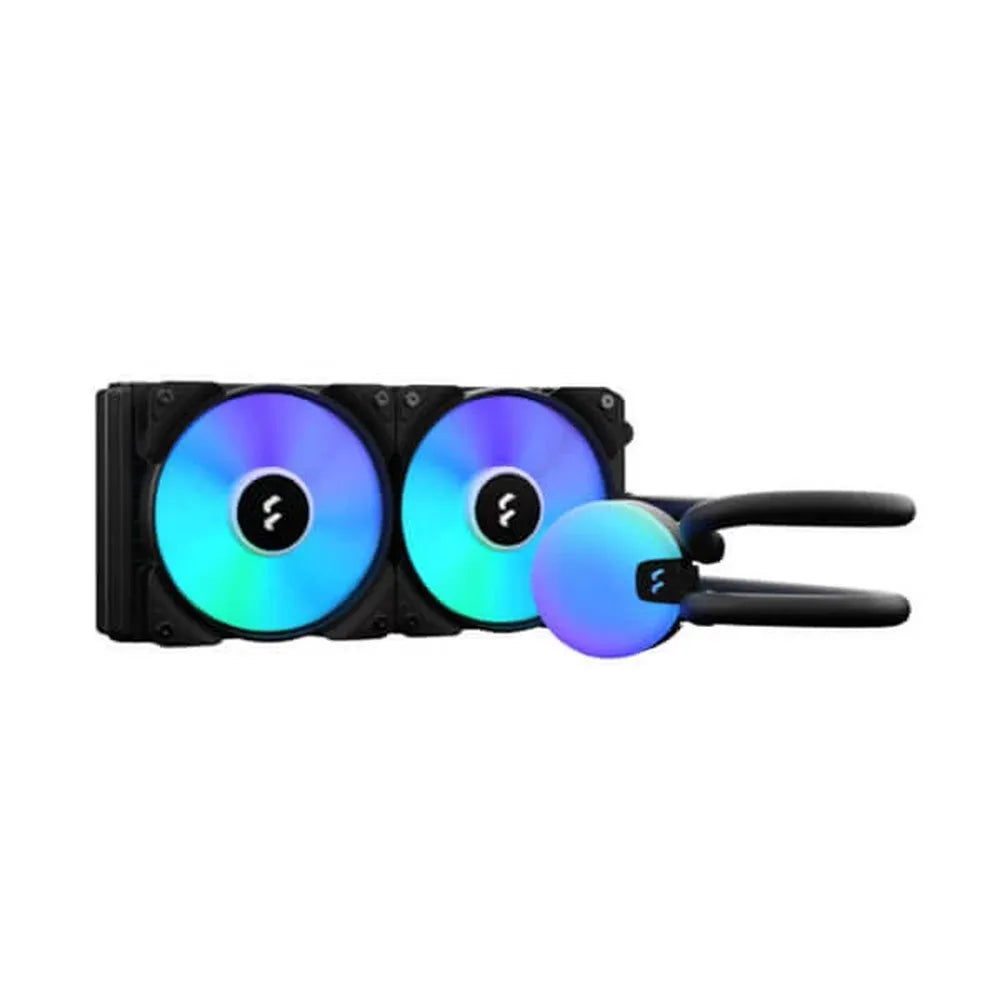

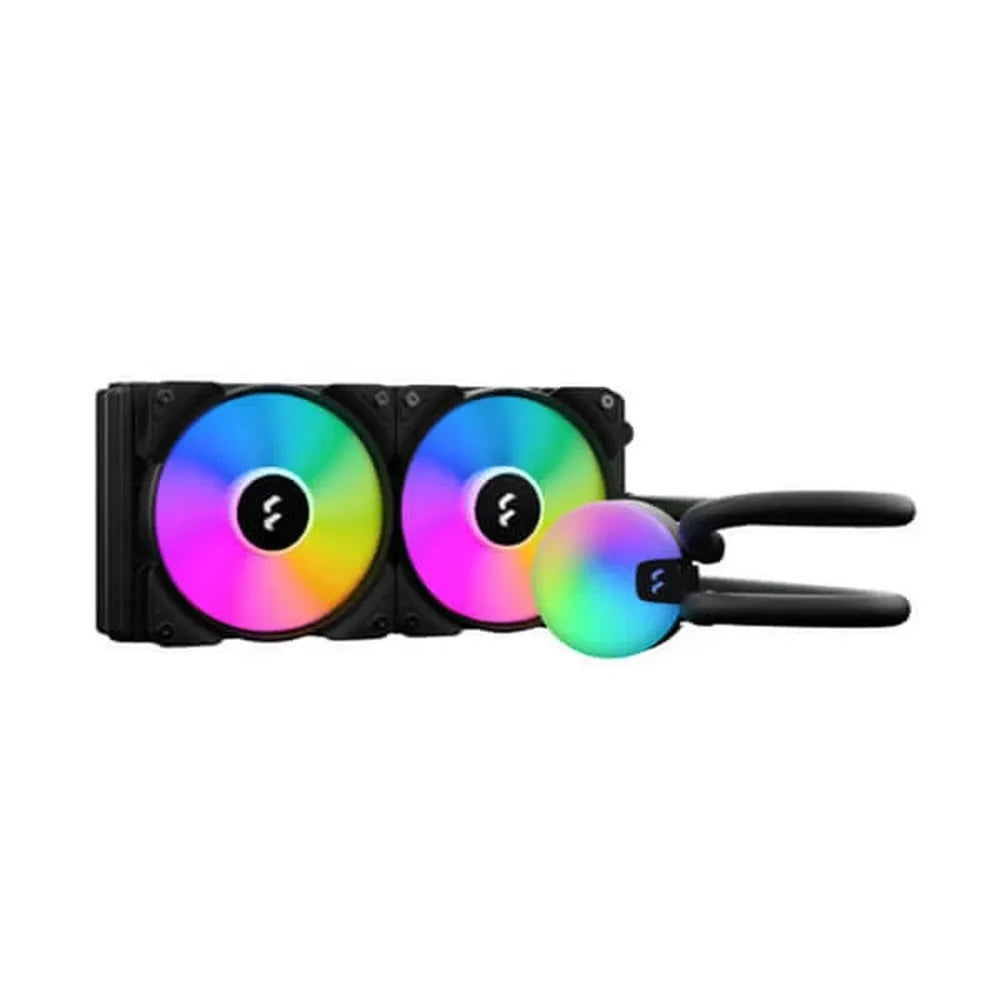

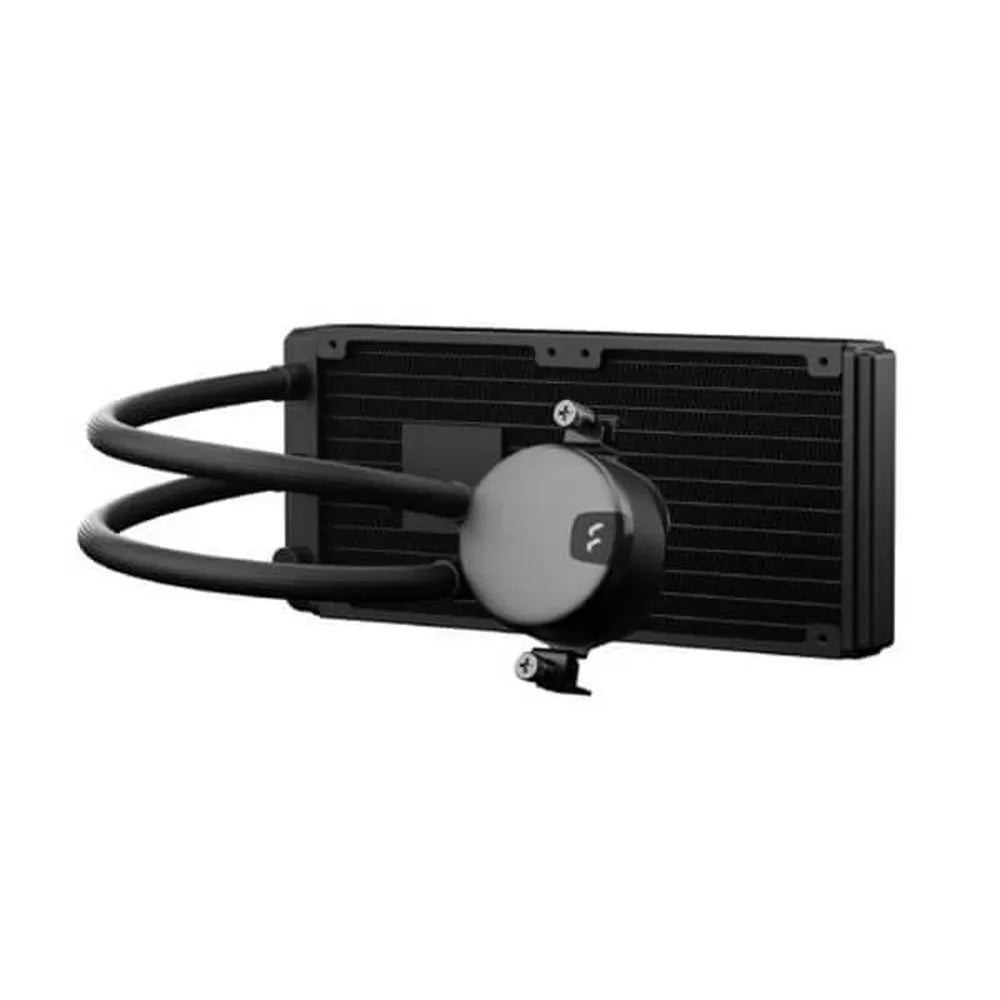

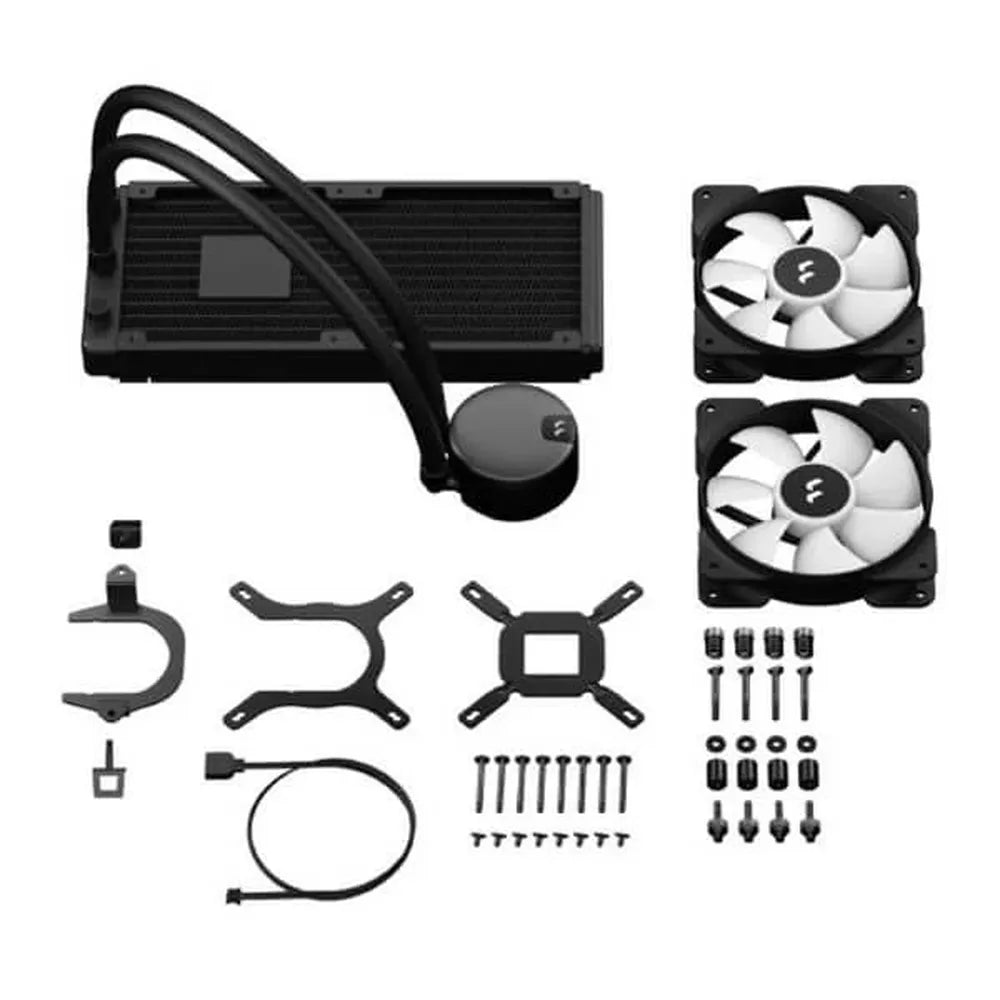

- FRACTAL DESIGN Lumen S24 RGB V2 240mm Liquid Cooler (Black)
Description
Features of FRACTAL DESIGN Lumen S24 RGB V2 240mm Liquid Cooler (Black)
• Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller
• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Compatible with LGA 1700 and AM5
Customize your CPU watercooling from subtle to stunning with FRACTAL DESIGN Lumen six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Supports the most common sockets for both Intel and AMD
- Compatible with LGA 1700 and AM5
Specifications of FRACTAL DESIGN Lumen S24 RGB V2 240mm Liquid Cooler (Black)
Model Number | FD-W-L1-S2412 |
Sockets supported (Intel) | LGA1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
Sockets supported (AMD) | AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 |
Cold plate material | Copper |
Thermal paste | Pre-applied |
Tube length | 400mm |
Tube material | Low-permeability rubber with braided nylon sleeve |
Fittings, block side | Articulating 90-degree Elbow |
Fittings, radiator side | Barbed fitting |
Block height | 43mm |
Block measurements (with fittings) | 79 x 67 mm |
Block diameter (main block body) | 67 mm |
Fan specifications | |
Fan type | Aspect 12 RGB PWM |
Rotational speed | 500–2000 RPM |
Fan bearing | Rifle bearings |
Fan PWM control | Yes |
Fan acoustical noise | <10–33.2 dBA |
Fan maximum air flow | 13-56 CFM |
Fan maximum static pressure | 0.230–2.34 mm H2O |
Fan input voltage | 12V |
Fan maximum input current | 0.37A |
Fan MTTF | 90,000 hours |
Pump specifications | |
Rotational speed | 4000 ± 10% RPM |
Bearing type | Ceramic |
PWM control | No |
Acoustical noise (full speed) | 22 dBA |
Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
Input voltage | 12V DC |
Input current (without fans) | 0.34 A |
MTTF | 50 000 hours |
Radiator specifications | |
Radiator dimensions | 272 x 120 x 27 mm |
Radiator fin material | Aluminum |
Radiator housing material | Aluminum |
Radiator fan screw threads | 6-32 |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
